Product Description

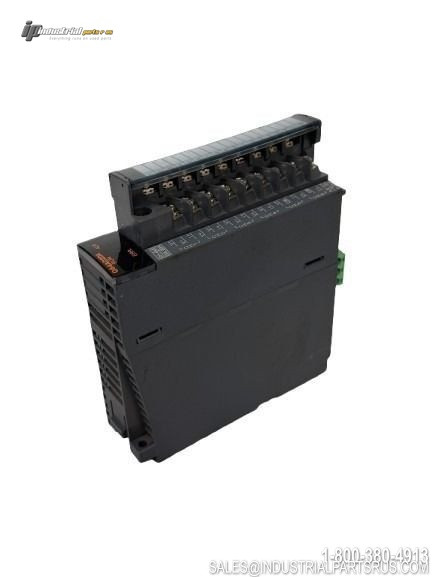

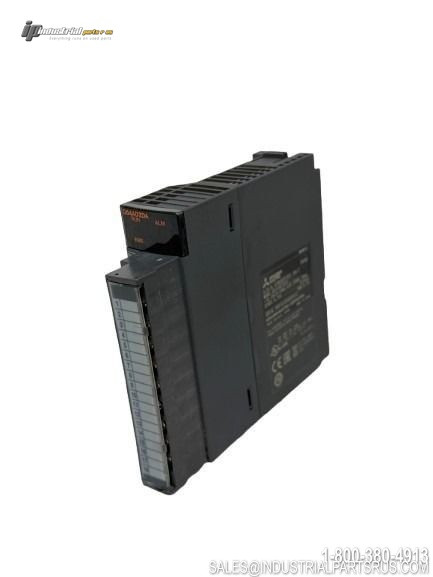

The Mitsubishi Q64AD2DA is a combined analog input/output I/O module designed for the MELSEC-Q series PLC system. This module provides 4 analog input channels and 2 analog output channels, supporting both voltage (-10 to +10 VDC) and current (0-20 mA) signal types for flexible industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model/Part Number | Q64AD2DA |
| Series | MELSEC-Q |
| Type | I/O Module |
| Analog Input Channels | 4 channels |
| Analog Output Channels | 2 channels |
| Input Voltage Range | -10 to +10 VDC |
| Input Current Range | 0-20 mA DC |
| Output Voltage Range | -10 to +10 VDC |
| Output Current Range | 0-20 mA DC |
| Input Resistance (Voltage) | 1 MΩ |
| Input Resistance (Current) | 250 Ω |
| External Load Resistance (Voltage) | 1 MΩ |
| External Load Resistance (Current) | 600 Ω |
| Conversion Speed | 500 μs per channel |
| Digital Resolution (Normal) | -96 to 4095, -4096 to 4095 |
| Digital Resolution (High) | -288 to 12287, -16384 to 16383 |
| Maximum Input Voltage | ±15 V |
| Maximum Input Current | ±30 mA |
| Maximum Output Voltage | ±12 V |
| Maximum Output Current | 21 mA |
| I/O Points Occupied | 16 points |
| Power Consumption | 0.17 A at 5 VDC |
| Dimensions (HxWxD) | 98 x 27.4 x 112 mm |
| Weight | 0.23 kg |
| Certification | UL, cUL, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0-20 mA DC
Manufacturer Mitsubishi Electric
Part Number Q64AD2DA
Controller Platform MELSEC-Q
Shelf K-47
Model Q64AD2DA
MPN Q64AD2DA
Type I/O Module
