Product Description

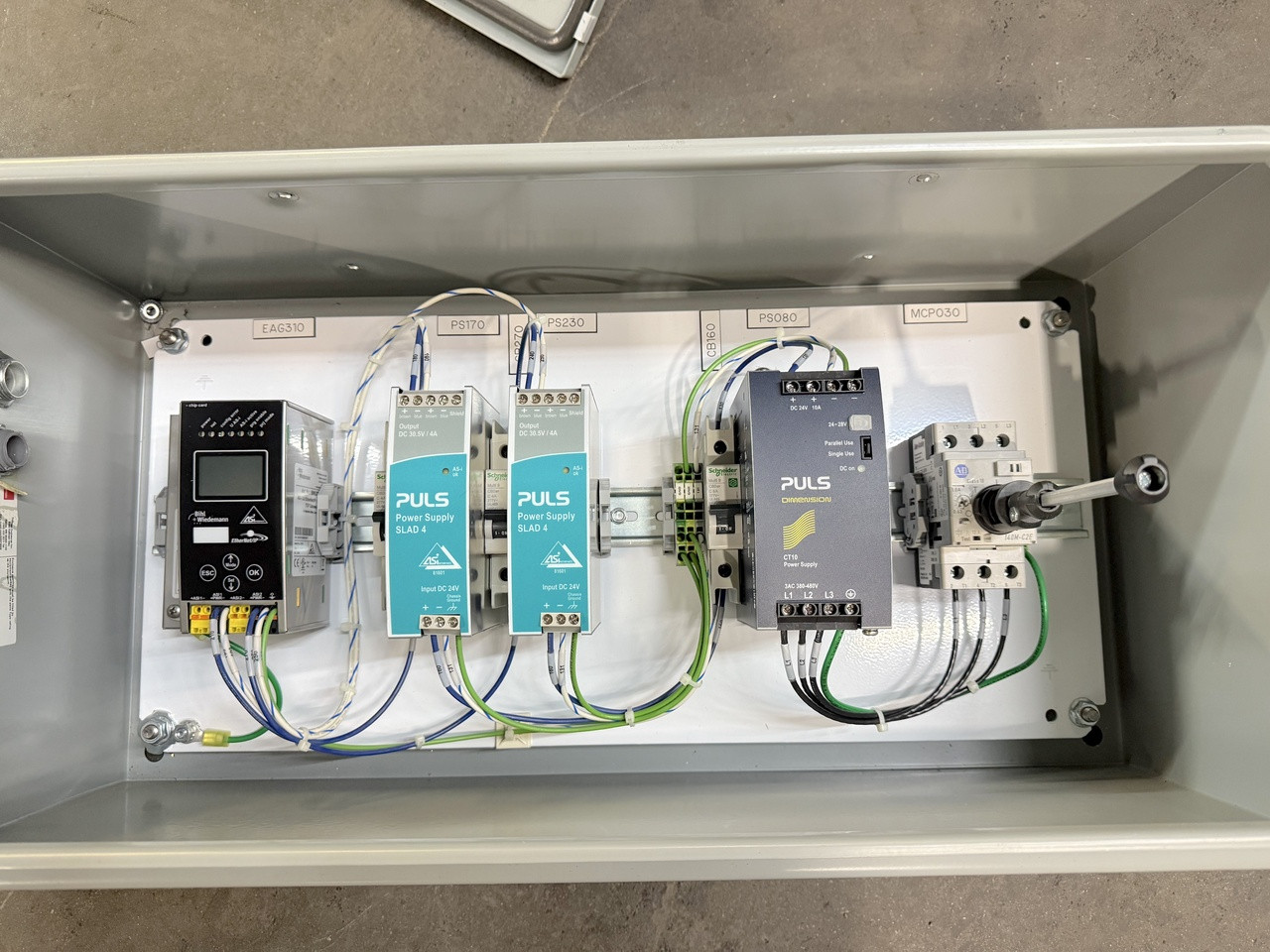

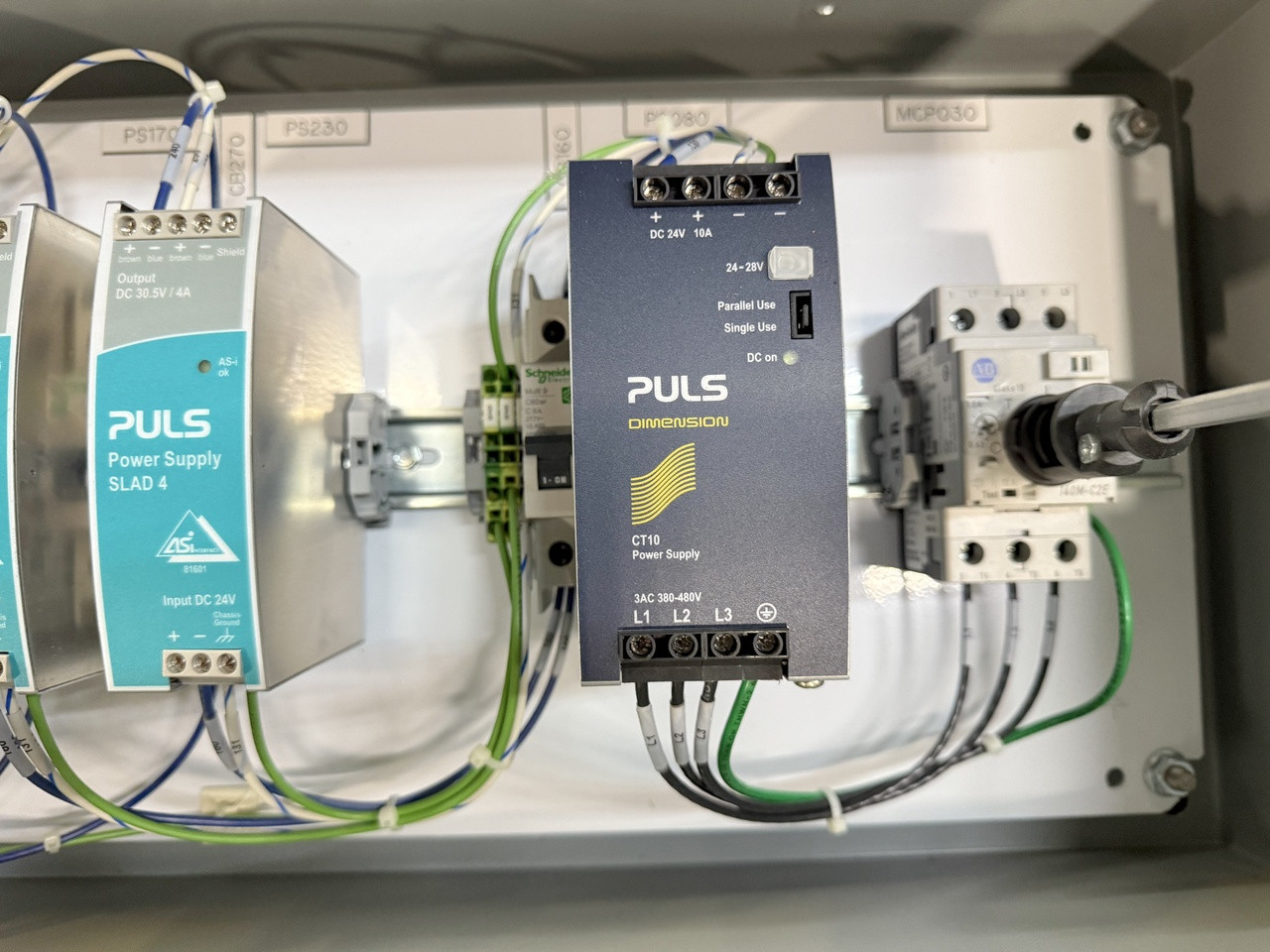

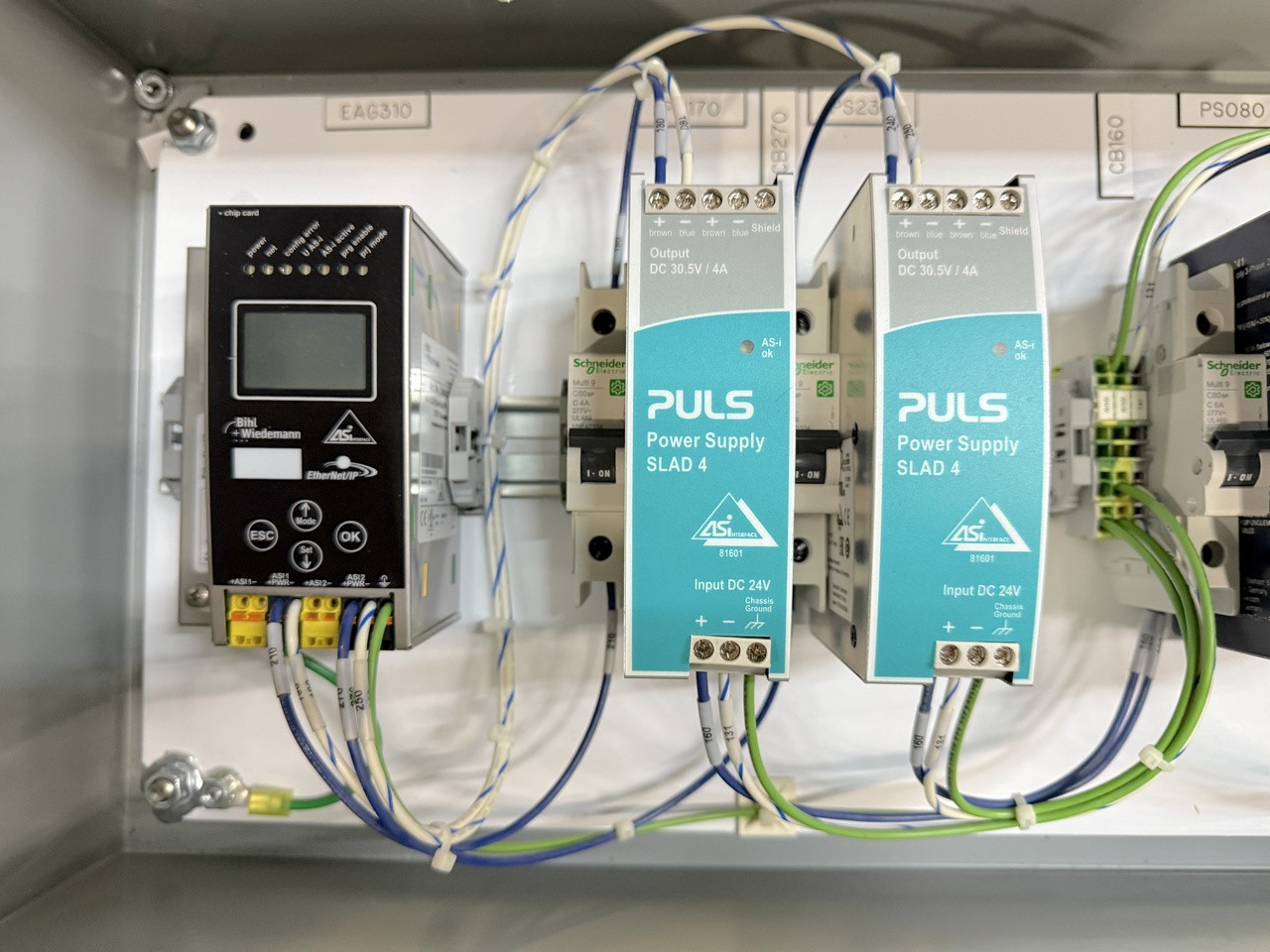

Trew MDR Conveyor ASI Gateway with Power Supply 24V 40 Amp for the Logic Power and Communications. This system is equipped with the Bihl Wiedemann BWU3735 ASi-3 EtherNet/IP & Modbus TCP Gateway with (2) ASI Masters, and a PULS CT10.241 Power Supply 40 Amp, Housed in a Hoffman 16" x 24" x 9" Metal Enclosure with a Safety Switch.This ASI Master Gateway can run up to 124 Slave Devices between the (2) ASI Master Circuits. The software for the Bihl Wiedemann Controller is free for download on their website.
This system is required for running the Trew MDR Conveyors with the PepperL+Fuchs VBA-4E3A-G20-ZEL/M1L-P2 Motor Roller Modules. Click Here to View All Our Trew MDR Conveyor System Components.
- Type: MDR Conveyor ASI Gateway
- ASI Controller Model: BWU3735
- Input Voltage: 480Vac 3 Phase
- Output Voltage: 24Vdc
- Output amperage: 40 Amp
Product Videos
Custom Field
GTIN Does Not Apply
Country/Region of Manufacture United States
Manufacturer PULS
Model XT40.242
MPN XT40.242
Voltage 480V
Type MDR Conveyor Power Supply
