Product Description

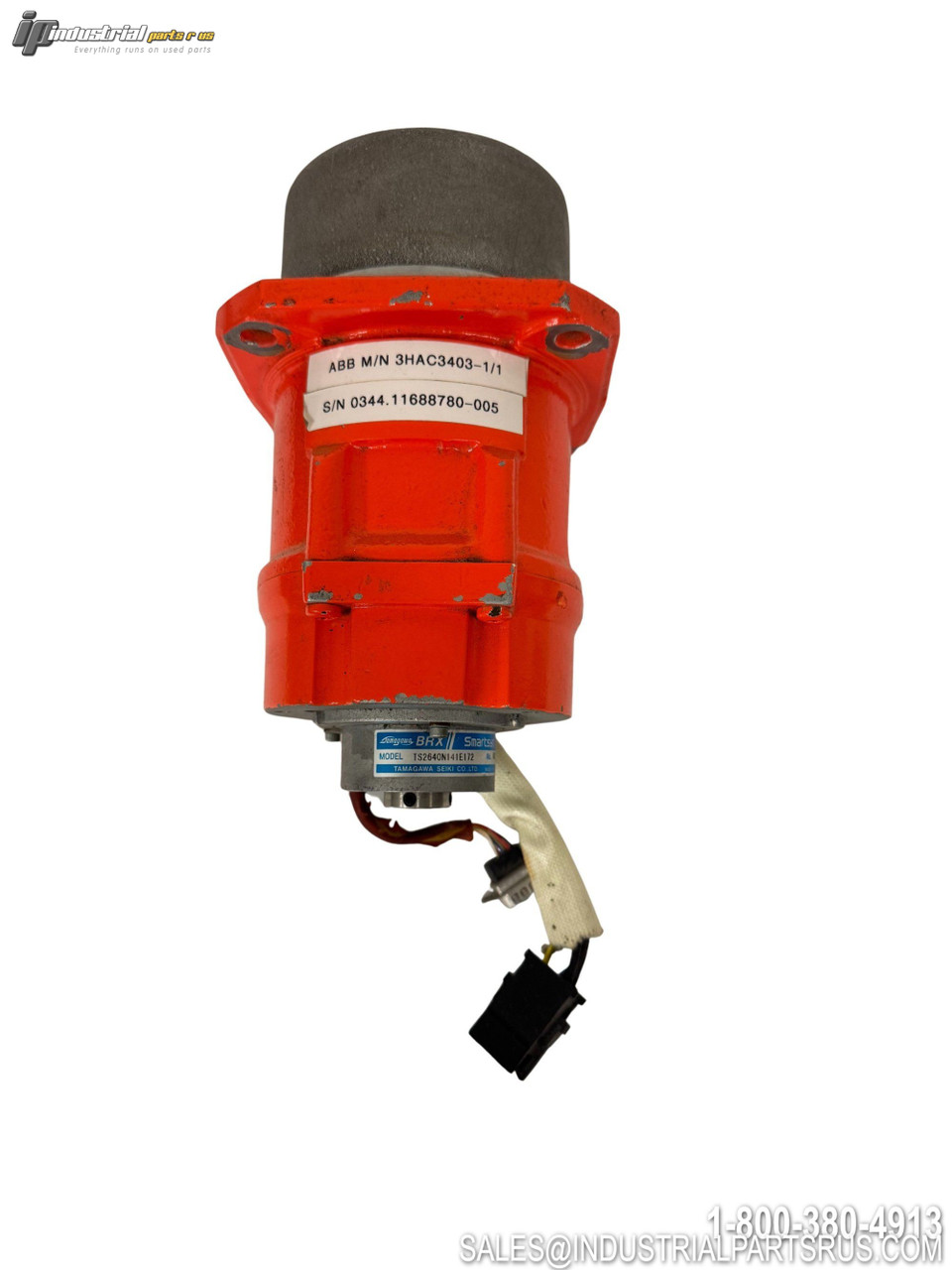

The ABB 3HAC3403-1/1 is a servo motor specifically designed for ABB IRB2400 industrial robots, used for axis 1 and 3 positioning. This motor features the PS 90/6-57-P-LSS-4280 designation and incorporates Elmo servo technology for precise motion control in robotics applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ABB |
| Model/Part Number | 3HAC3403-1/1 |
| Motor Model | PS 90/6-57-P-LSS-4280 |
| Type | Servo Motor |
| Power Rating | 0.5 kW |
| Rated Input Voltage | 400 VAC (380-480 VAC) |
| No-Load RPM | 3000 |
| Continuous Torque | 3.5 Nm |
| Stall Torque | 10.5 Nm |
| No-Load Current | 1.2 A |
| Stall Current | 8 A |
| Shaft Diameter | 14 mm |
| Pulses per Revolution | 2048 |
| Insulation Class | F |
| IP Rating | IP54 |
| Application | IRB2400 Robot Axis 1 & 3 |
| Motor Type | Type A |
| Compatible Robots | IRB 2400 M96, M97, M98, M99, M2000, M2004 |
| Controller Compatibility | S4C, S4C+ |
| Axis Position | Axis 1 and Axis 3 |
| Manufacturer Partnership | ABB Robotics & Elmo |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Stall Torque 10.5 Nm
Manufacturer ABB
Shaft Diameter 14 mm
Part Number 3HAC3403-1/1
Shelf G-7
Model TS2640N141E172
MPN 3HAC3403-1/1
Type Servo Motor
