Product Description

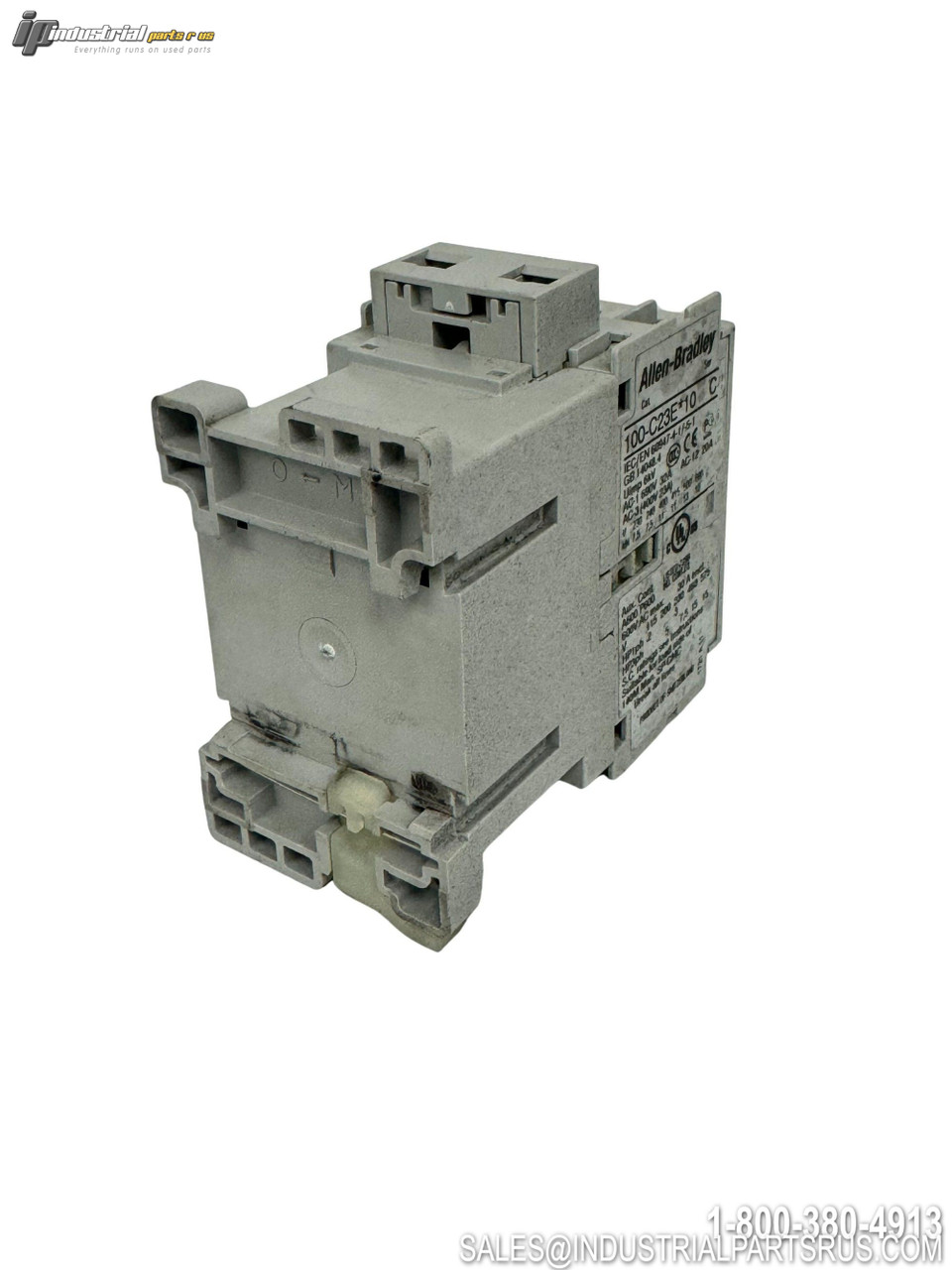

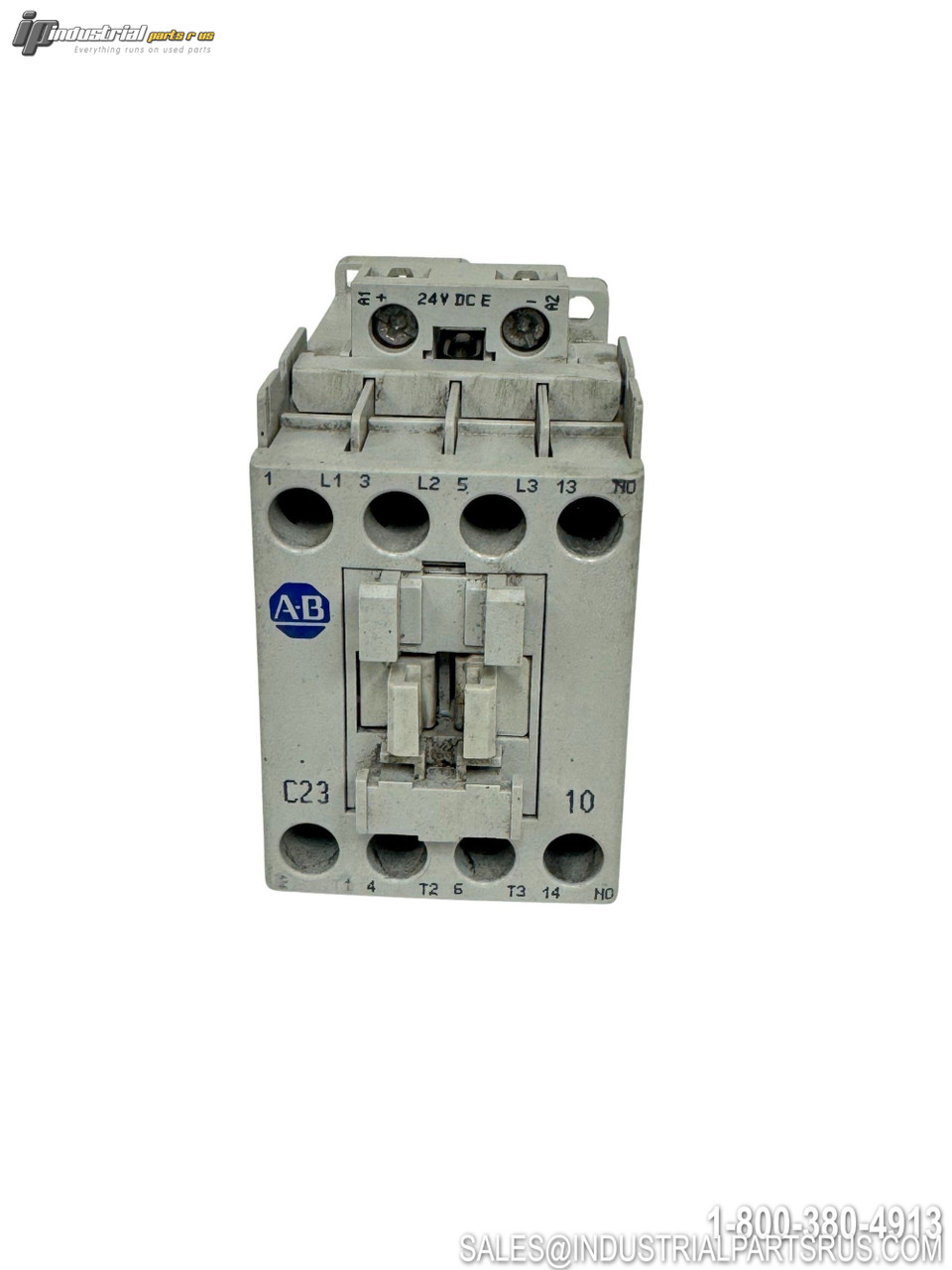

The Allen-Bradley 100-C23E*10 is a 23 AMP, 3 Pole IEC rated contactor with an electronic DC rated coil. This 3-phase IEC rated contactor is used for the control of electric motors and is rated 7.5 HP at 230V and 15 HP at 460V. It comes with 1 N.O. base mounted auxiliary contact block, screw terminals and can be base mounted or mounted on standard 35mm DIN rail.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 100-C23E*10 |
| Product Type | IEC Contactor |
| Current Rating | 23 Amps |
| Poles | 3-Pole |
| Coil Type | Electronic DC Coil |
| Coil Voltage Range | 12-250VDC |
| HP Rating at 230V | 7.5 HP |
| HP Rating at 460V | 15 HP |
| Auxiliary Contacts | 1 N.O. (Normally Open) |
| Terminal Type | Screw Terminals |
| Mounting Type | Base Mount or 35mm DIN Rail |
| IEC Standard | IEC/EN 60947-4-1 / 5-1 |
| Series | Bulletin 100-C |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Base/DIN Rail
Current Rating 23A
Material Thermoplastic Housing
Manufacturer Alan Bradley
Part Number 100-C23E*10
Series 100-C
Shelf K-51
Model 100-C23E*10
Coil Voltage 12-250VDC
Horsepower 7.5 HP @ 230V, 15 HP @ 460V
MPN 100-C23E*10
Type Contactor
