Product Description

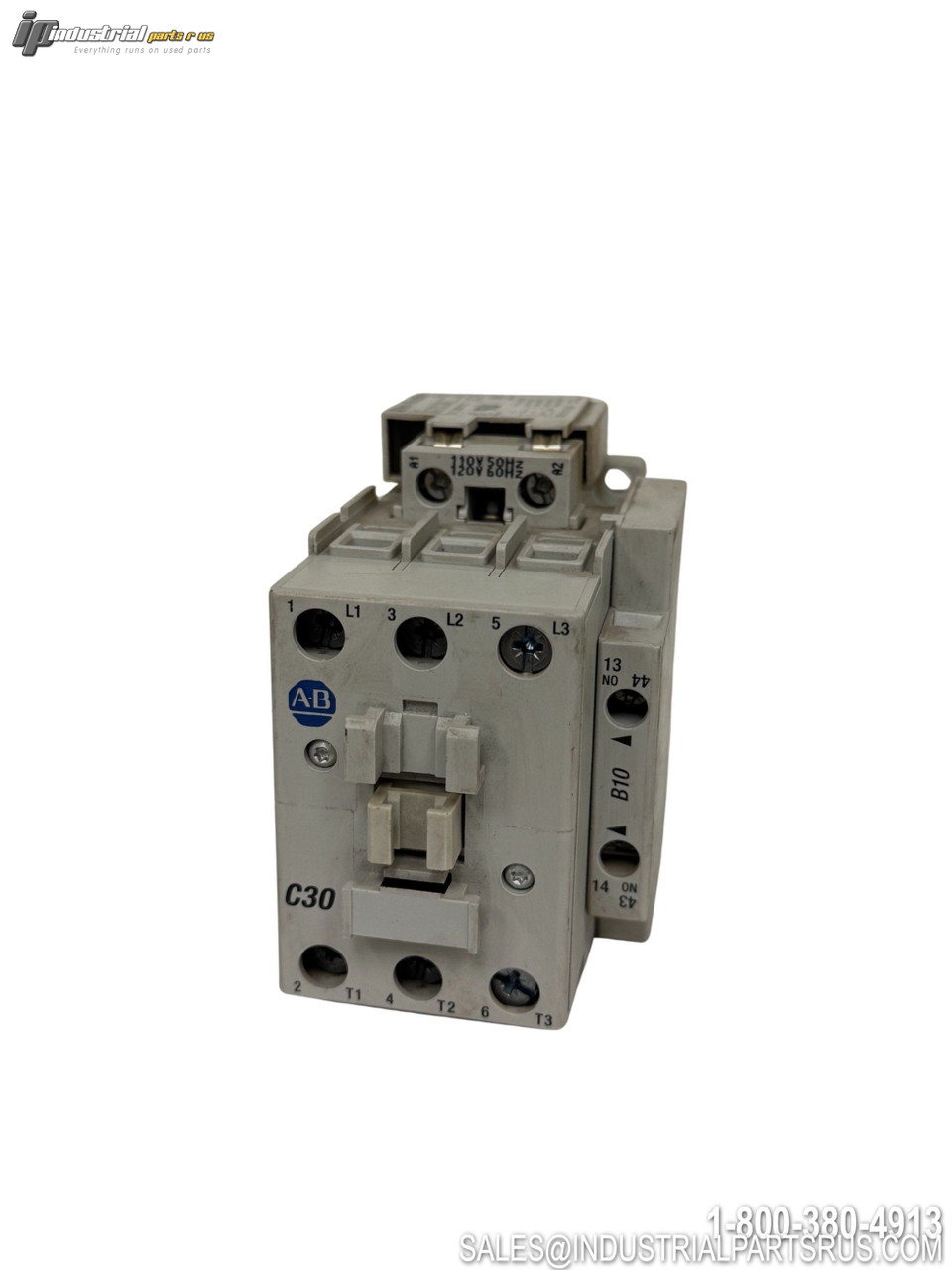

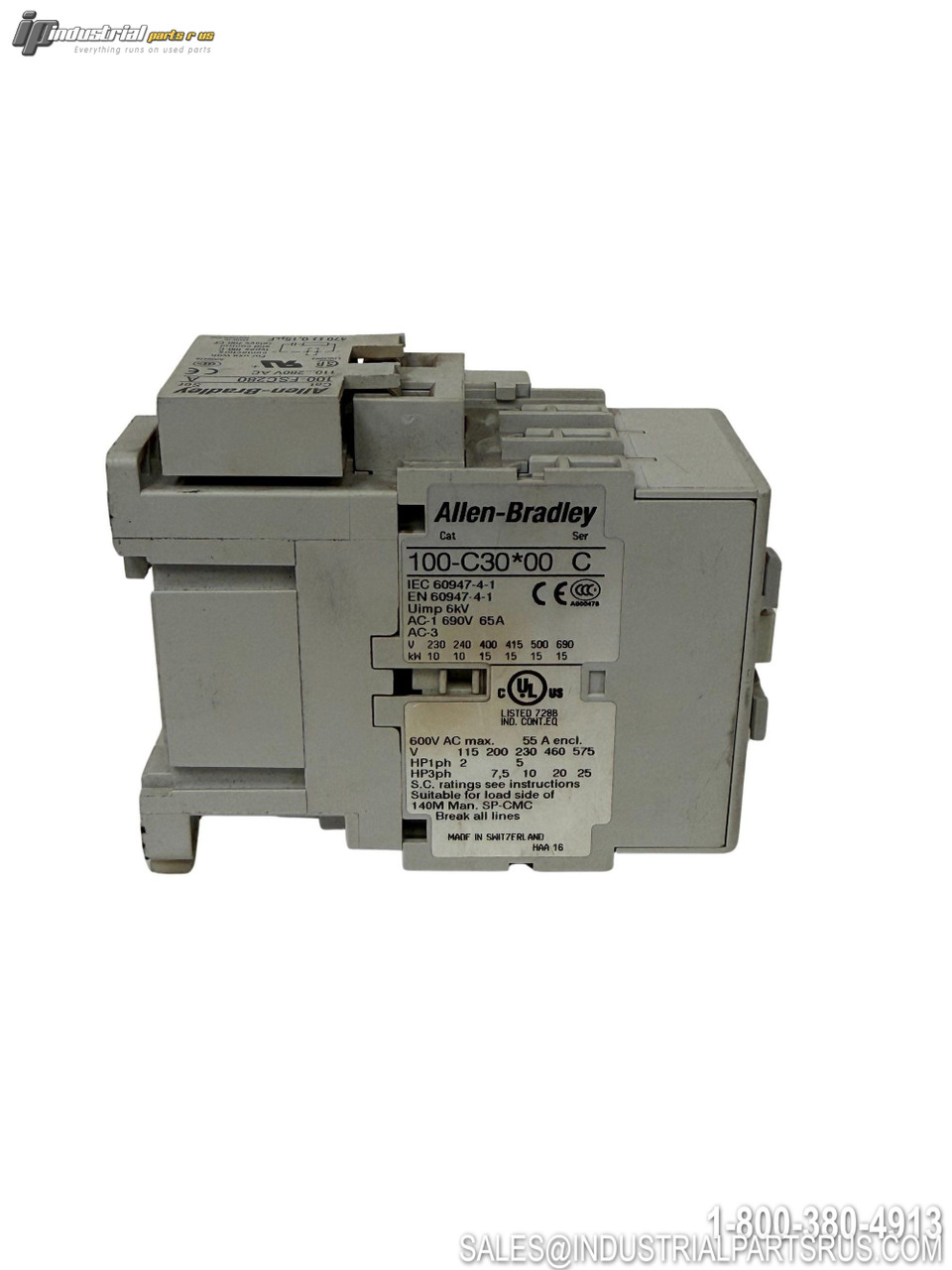

The Allen-Bradley 100-C30*00 is a 30-amp, 3-pole IEC-rated contactor from the Rockwell Automation Bulletin 100-C series designed for motor control and load switching applications. This contactor features no built-in auxiliary contacts (indicated by the "-00" suffix), providing maximum configuration flexibility for custom applications. Built with industrial-grade plastics and metal contacts, it includes IP2X finger protection and built-in surge suppression.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 100-C30*00 |
| Product Type | IEC Contactor |
| Current Rating | 30A |
| Poles | 3 |
| HP Rating 230V | 10 HP |
| HP Rating 460V | 20 HP |
| HP Rating 575V | 20 HP |
| AC-3 Rating | 30A |
| AC-1 Rating | 65A at 690V |
| Maximum Voltage | 690V |
| Enclosure Rating | 55A Max at 600V AC |
| Short Circuit Rating | 5kA at 600V |
| Impulse Withstand Voltage | 8kV |
| Auxiliary Contacts Included | None (-00 suffix) |
| Maximum Auxiliary Contacts | 6 total (4 front + 2 side mount) |
| Coil Voltage | See label (* indicates variable) |
| Terminal Type | Screw Terminals |
| Mounting Type | 35mm DIN Rail or Panel Mount |
| IEC Standard | IEC/EN 60947-4-1 |
| UL Rating | UL 508 Listed |
| CSA Certified | Yes |
| CE Marked | Yes |
| RoHS Compliant | Yes |
| Platform | Bulletin 100-C |
| Series | See label |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail / Panel Mount
Current Rating 30A AC-3 / 65A AC-1
Material Industrial Grade Plastics and Metal Contacts
Manufacturer A -B
Enclosure Type 55A Max at 600V AC
Part Number 100-C30*00
Series 100-C
Shelf K-4
Model 100-C30*00
Coil Voltage Variable (see catalog number)
Horsepower 10 HP @ 230V / 20 HP @ 460V
MPN 100-C30*00
Type Contactor
