Product Description

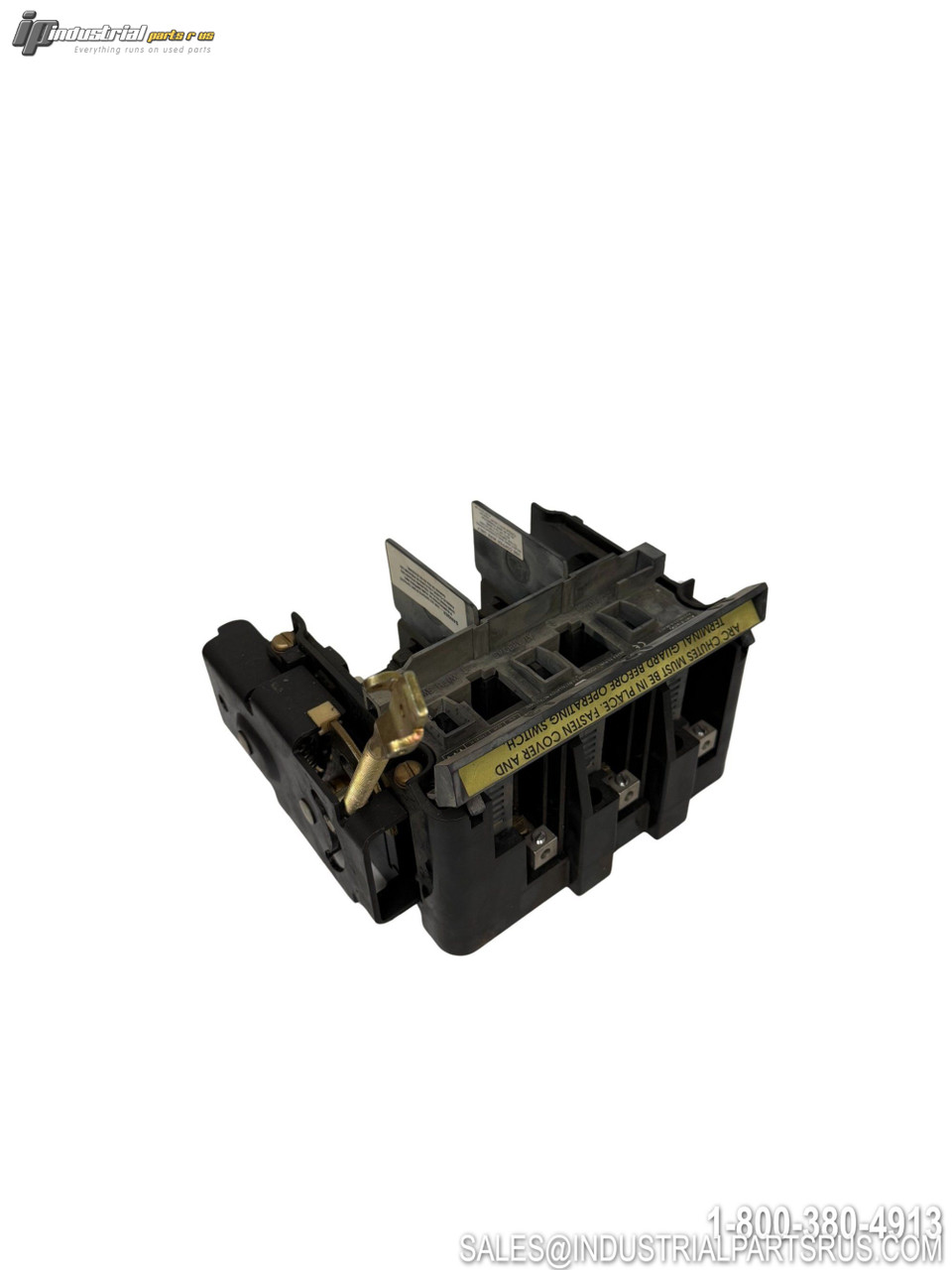

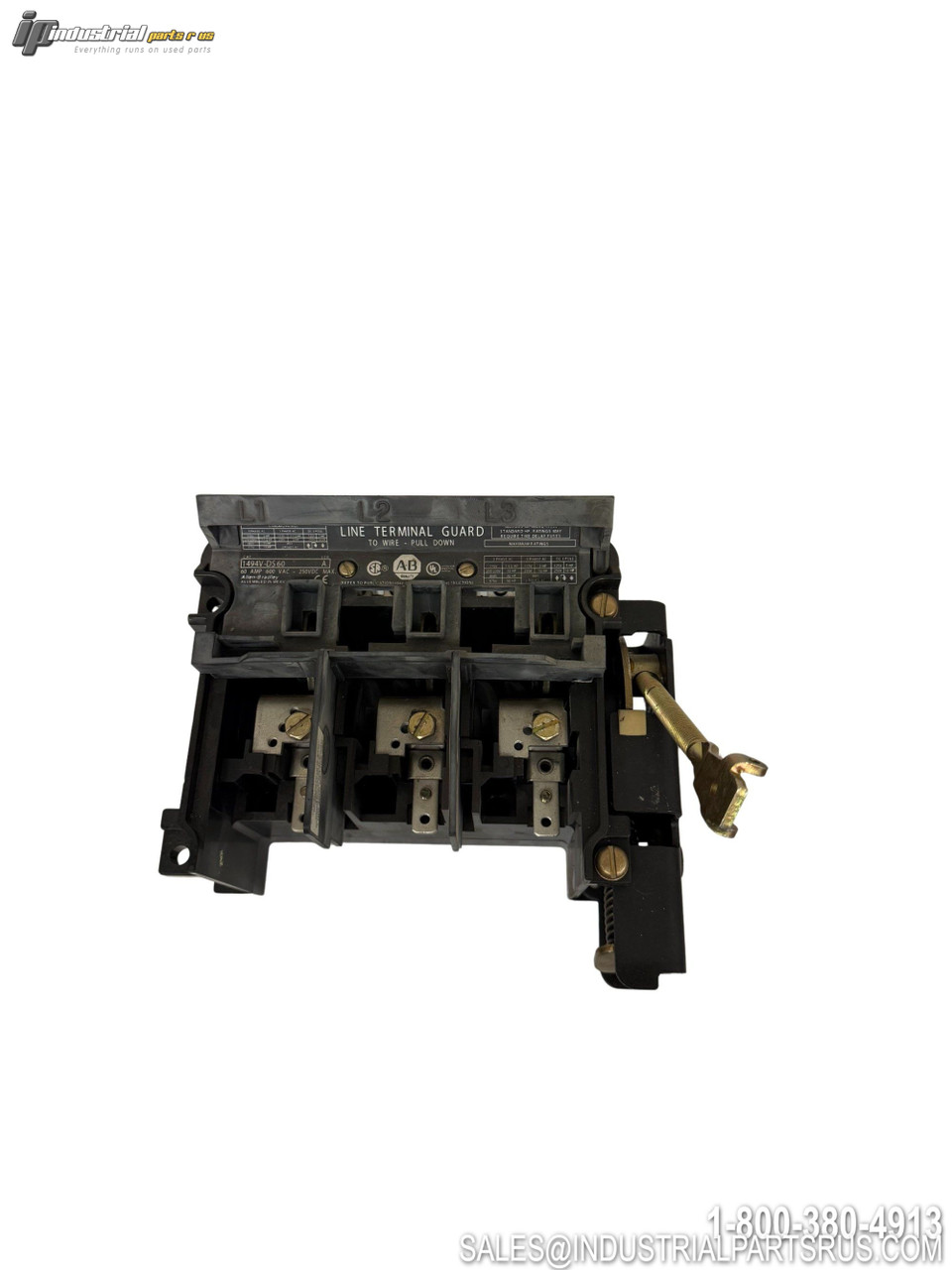

The Allen-Bradley 1494V-DS60 is a variable depth disconnect switch designed for safely de-energizing industrial equipment, multiple circuits, and transmission lines during maintenance operations. This non-fusible disconnect switch features a 60 Amp continuous current rating with a right-hand mechanism and operates at voltages up to 600VAC or 250VDC. With NEMA B600 and P300 ratings, it supports compatibility with industrial applications and operates at a maximum temperature of 60 degrees Celsius.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1494V-DS60 |
| Type | Disconnect Switch |
| Series | 1494V |
| Current Rating | 60 Amps |
| AC Voltage Rating | 600VAC |
| DC Voltage Rating | 250VDC |
| Frequency | 50-60 Hz |
| Phase | Three-Phase |
| Poles | 3 |
| Mechanism | Right Hand |
| Mounting Type | Flange Mount |
| Fuse Type | Non-Fusible |
| NEMA Rating | B600, P300 |
| Maximum Operating Temperature | 60°C |
| UPC | 781180163944 |
| Weight | 7.4 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type B600, P300
Part Number 1494V-DS60
Shelf C-12
Model 1494V-DS60
MPN 1494V-DS60
Type Disconnect
