Product Description
The DAIKIN JSC-G01-10 is a seat-type hydraulic solenoid valve designed for industrial hydraulic control applications. This valve features gasket mount connections and provides reliable fluid flow control in hydraulic systems.
Technical Specifications
| Specification | Value |
|---|---|

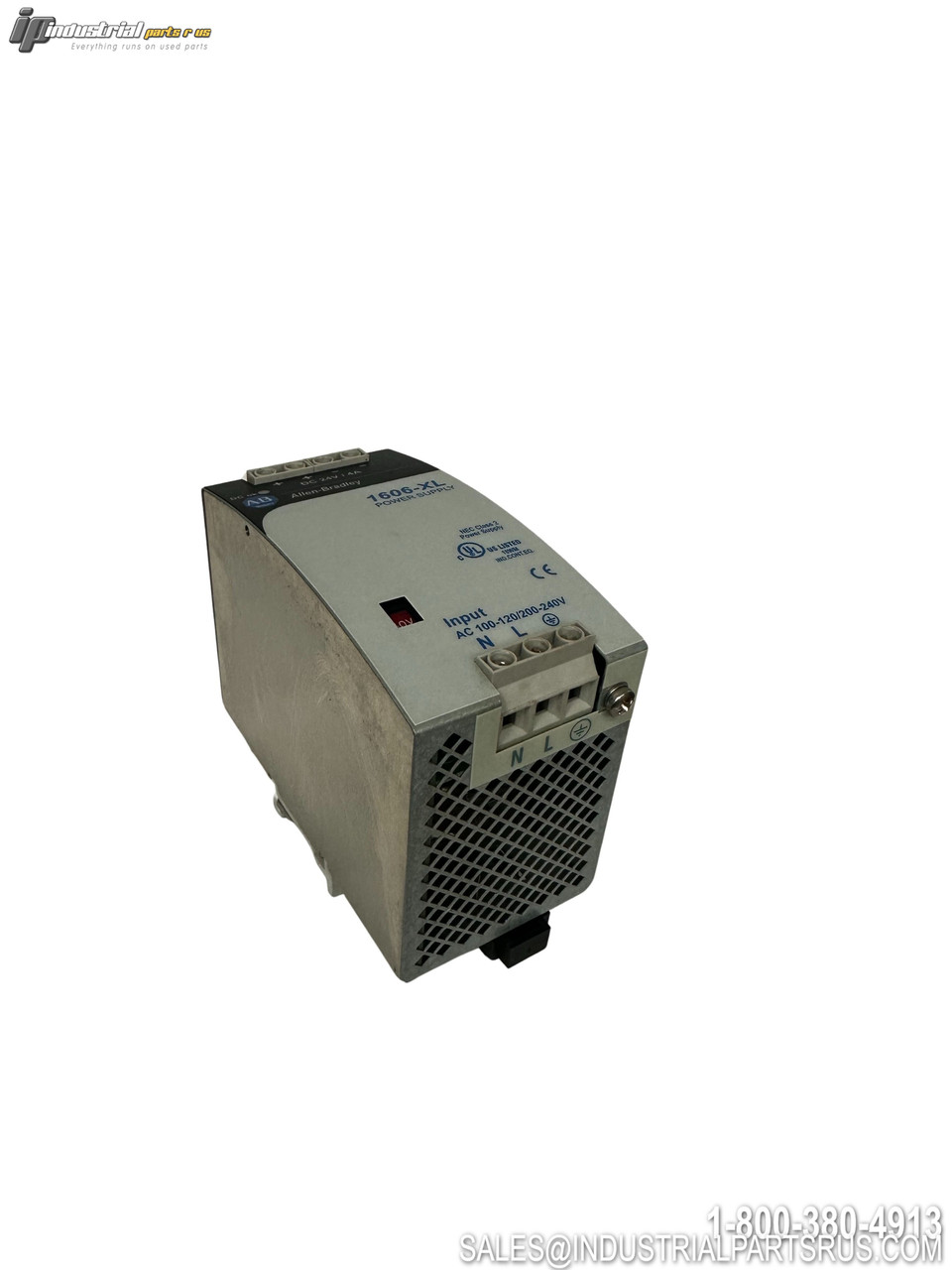

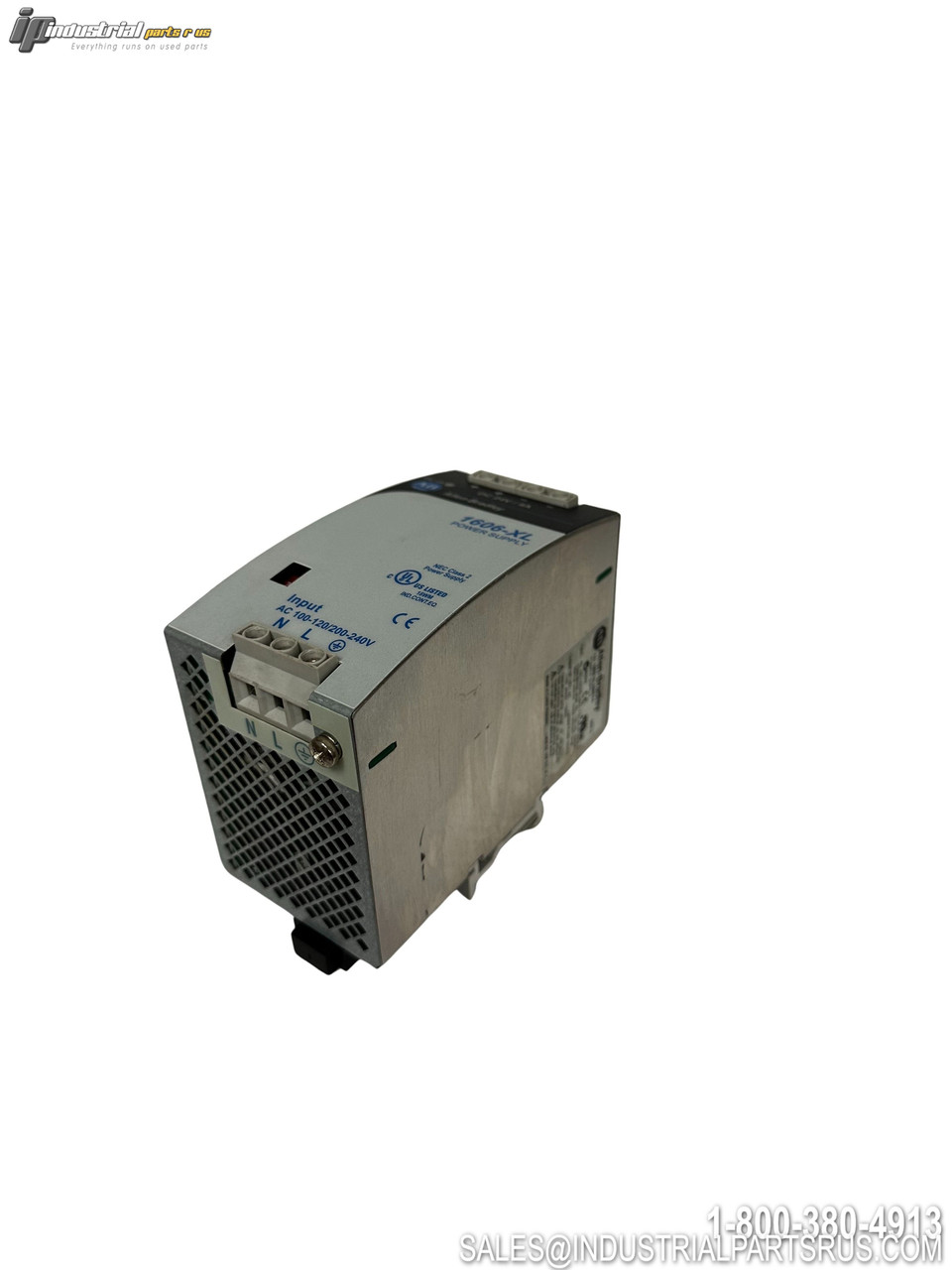

| Brand | Allen-Bradley |
| Model/Part Number | 1606-XLDNET4 |
| Product Type | DeviceNet Switched Mode Power Supply |
| Series | A |
| Output Voltage | 24VDC |
| Output Current | 4.0A |
| Power Rating | 120W |
| Input Voltage Nominal | 1-Phase 120/240VAC |
| Input Voltage Range | 100-120/200-240VAC |
| Operating Voltage Range | 85-132/176-264VAC |
| Input DC Voltage Range | 240-375VDC |
| Input Current | 2.6A/1.4A |
| Efficiency | 90.0% typical |
| Mounting Type | DIN Rail Mount |
| Dimensions (H x W x D) | 4.88 x 2.56 x 4.04 inches (124 x 65 x 103mm) |
| Weight | 1.30 lbs |
| Current Limiting | Electronically Limited to 4A |
| Communication Protocol | DeviceNet |
| Status | Discontinued (Oct 30, 2017) |
| Replacement Model | 1606-XLSDNET4 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Full Load Amps Electronically Limited to 4A
Manufacturer Allen-Bradley
Part Number 1606-XLDNET4
Shelf K-45
Model 1606-XLDNET4
MPN 1606-XLDNET4
Type Power Supply
