Product Description
The Allen-Bradley 1734-FPD is a field power distributor module designed for POINT I/O applications. This module enables efficient power distribution by breaking the field power distribution and allowing power source changes for downstream I/O modules. It integrates seamlessly with the POINT I/O backplane and supports both AC and DC voltage inputs.

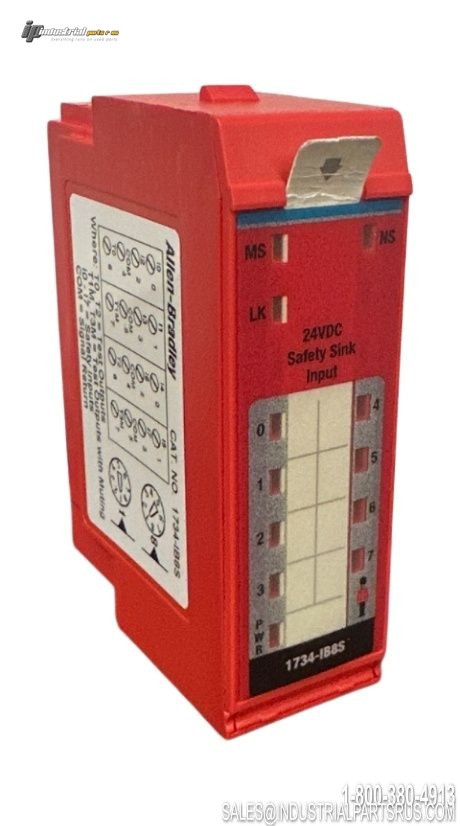

Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1734-IB8S |
| Platform | POINT Guard I/O |
| Input Type | Current Sinking |
| Number of Inputs | 8 |
| Supply Voltage | 24VDC Nominal |
| Input Voltage Range | 19.2 to 28.8 VDC |
| Maximum Input Current | 175 mA |
| Maximum Power Dissipation | 3.4 W |
| Response Time | 16.2 milliseconds per channel |
| Test Outputs | 4 Current Sourcing Pulse |
| Enclosure Type | Open |
| IP Rating | IP20 |
| Mounting Type | DIN Rail |
| Series Availability | Series A and B |
| Dimensions | 77 x 25 x 55 mm (3.03 x 0.98 x 2.17 inches) |
| Weight | 62.4 grams (2.2 ounces) |
| Max Thermal Dissipation | 11.62 BTU/hour |
| Isolation Voltage | 50 VDC Continuous |
| Max Power Bus Current | 25 mA (no load) |
| LED Indicators | 10 Total (8 I/O Channel Status, 1 Power Status, 1 Lock Status) |
| Communication Support | Ethernet/IP and DeviceNet |
| Safety Rating | SIL (Safety Instrumentation Level) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686246
Output Type Current Sourcing
Full Load Amps 25 mA
Manufacturer Allen-Bradley
Enclosure Type Open
Part Number 1734-IB8S
Controller Platform POINT Guard I/O
Shelf K-46
Model 1734-IB8S
MPN 1734-IB8S
Type I/O Module
