Product Description
The 1756-L55/A is a ControlLogix processor module designed for industrial automation environments. This Logix5555 processor features a 100 MHz processor and supports up to 128 discrete and 128 analog I/O points. The module comes without any user memory and relies on external memory components and a 1756-BA1 battery.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |

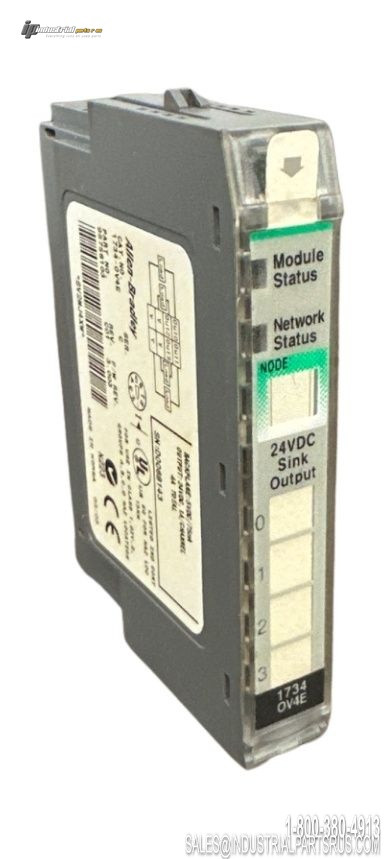

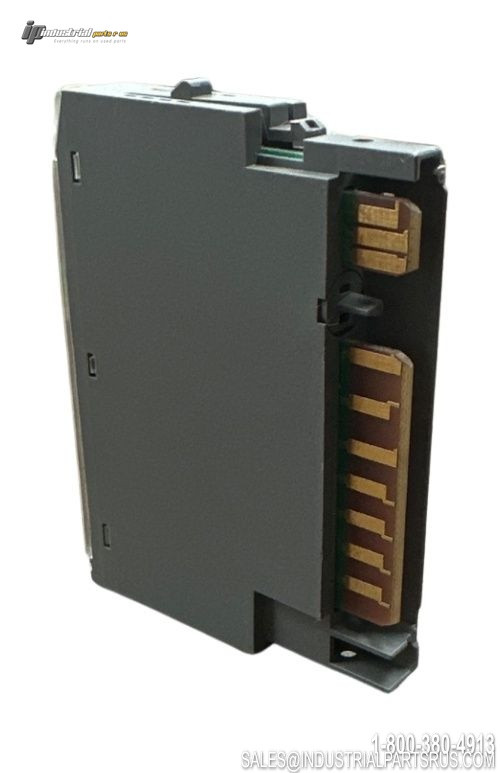

| Model/Part Number | 1734-OV4E |
| Platform | POINT I/O |
| Number of Outputs | 4 |
| Output Type | Digital DC Sinking |
| Output Voltage Range | 10-28.8V DC |
| Output Voltage Nominal | 24V DC |
| Output Current Max Per Channel | 1.0A |
| Output Current Max Per Module | 3.0A |
| Off-State Leakage Max | 0.5mA |
| Signal Delay Max | 0.1ms |
| POINTBus Current | 75mA @ 5V DC |
| Power Dissipation Max | 1.2W @ 28.8V DC |
| Thermal Dissipation Max | 4.1 BTU/hr @ 28.8V DC |
| Operating Temperature | -20 to +55°C (-4 to +131°F) |
| Mounting Type | DIN Rail |
| Dimensions | 2.21 x 0.47 x 2.97 in (56 x 12 x 75.5 mm) |
| Weight | 1.17 oz (33g) |
| Enclosure Type | Open Style |
| Electronic Protection | Yes |
| ESD Immunity | 6kV contact, 8kV air discharge |
| Compatible Terminal Bases | 1734-TB, 1734-TBS |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type Digital DC Sinking
Full Load Amps 75mA @ 5V DC
Manufacturer Allen-Bradley
Enclosure Type Open Style
Part Number 1734-OV4E
Controller Platform POINT I/O
Shelf K-41
Model 1734-OV4E
MPN 1734-OV4E
Type I/O Module
