Product Description

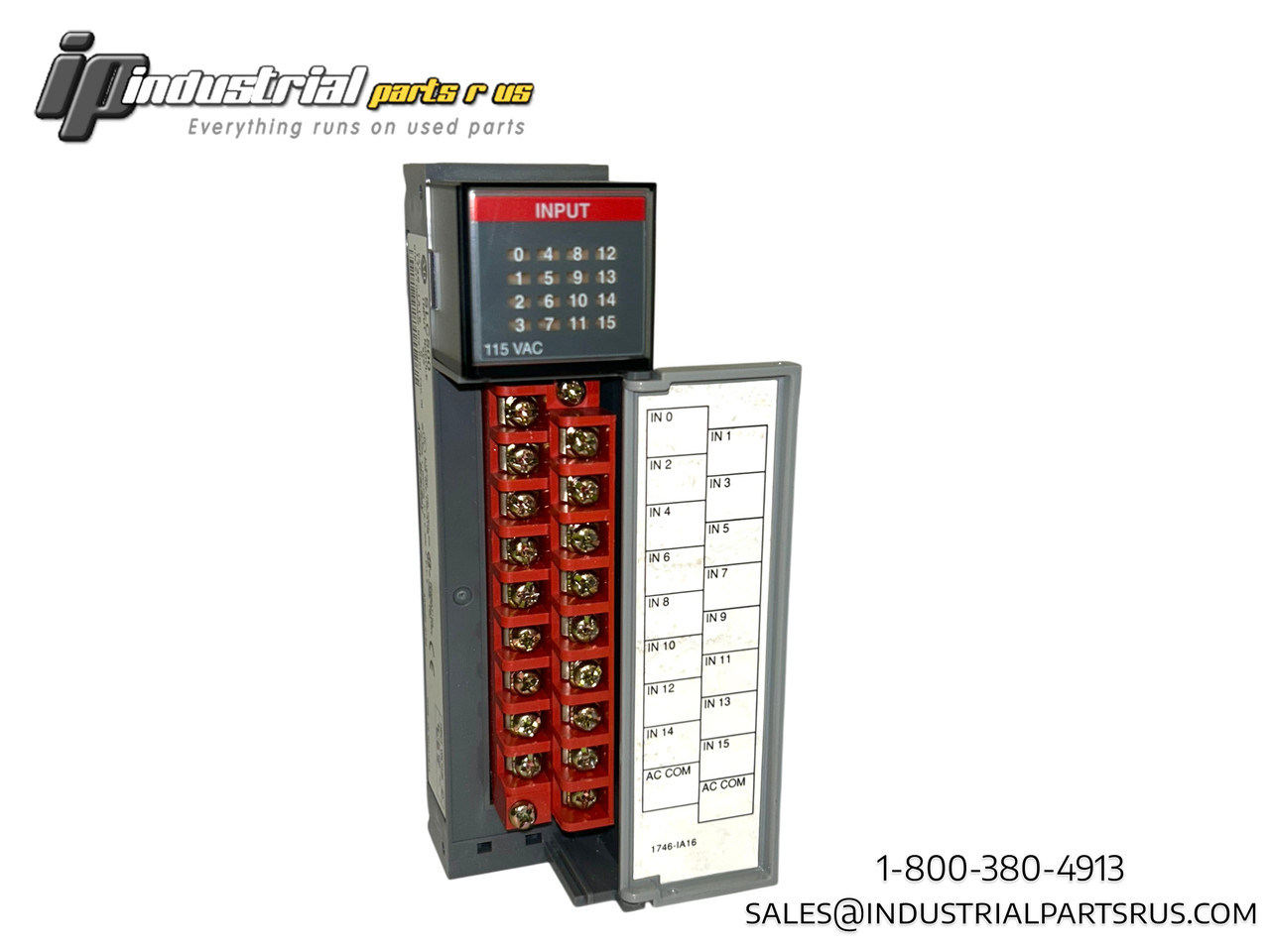

The Allen-Bradley 1746-IA16 Series C is a professional SLC 500 digital AC input module designed for industrial automation systems. This 16-channel discrete input module provides reliable interface capabilities for 85-132V AC signal sources and features built-in isolation and surge protection for enhanced reliability in harsh industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen Bradley |
| Model Number | 1746-IA16 Series C |
| Product Family | SLC 500 |
| Module Type | Digital AC Input Module |
| Input Voltage Range | 85-132V AC |
| Number of Input Channels | 16 |
| Frequency Range | 47-63 Hz |
| Backplane Current | 85 mA @ 5V DC |
| Power Dissipation | 4.8 Watts total |
| On Delay Max | 35 ms |
| Off Delay Max | 45 ms |
| Input Current Nominal | 12 mA @ 120V AC |
| Off-State Voltage Max | 30V AC |
| Off-State Current Max | 2 mA |
| Terminal Style | Screw Clamp Terminals |
| Weight | 0.34 kg (0.55 lbs) |
| Dimensions | 13 x 5 x 15 cm (5 x 2 x 6 inches) |
| Operating Temperature | 0-60°C |
| Wire Size Accepted | 14 AWG |
| Isolation | Optical Isolation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen Bradley
Part Number 1746-IA16 SER.C
Shelf F-3 Tub 4
Model 1746-IA16 SER.C
MPN 1746-IA16 SER.C
Type Programmable Logic Controller
