Product Description

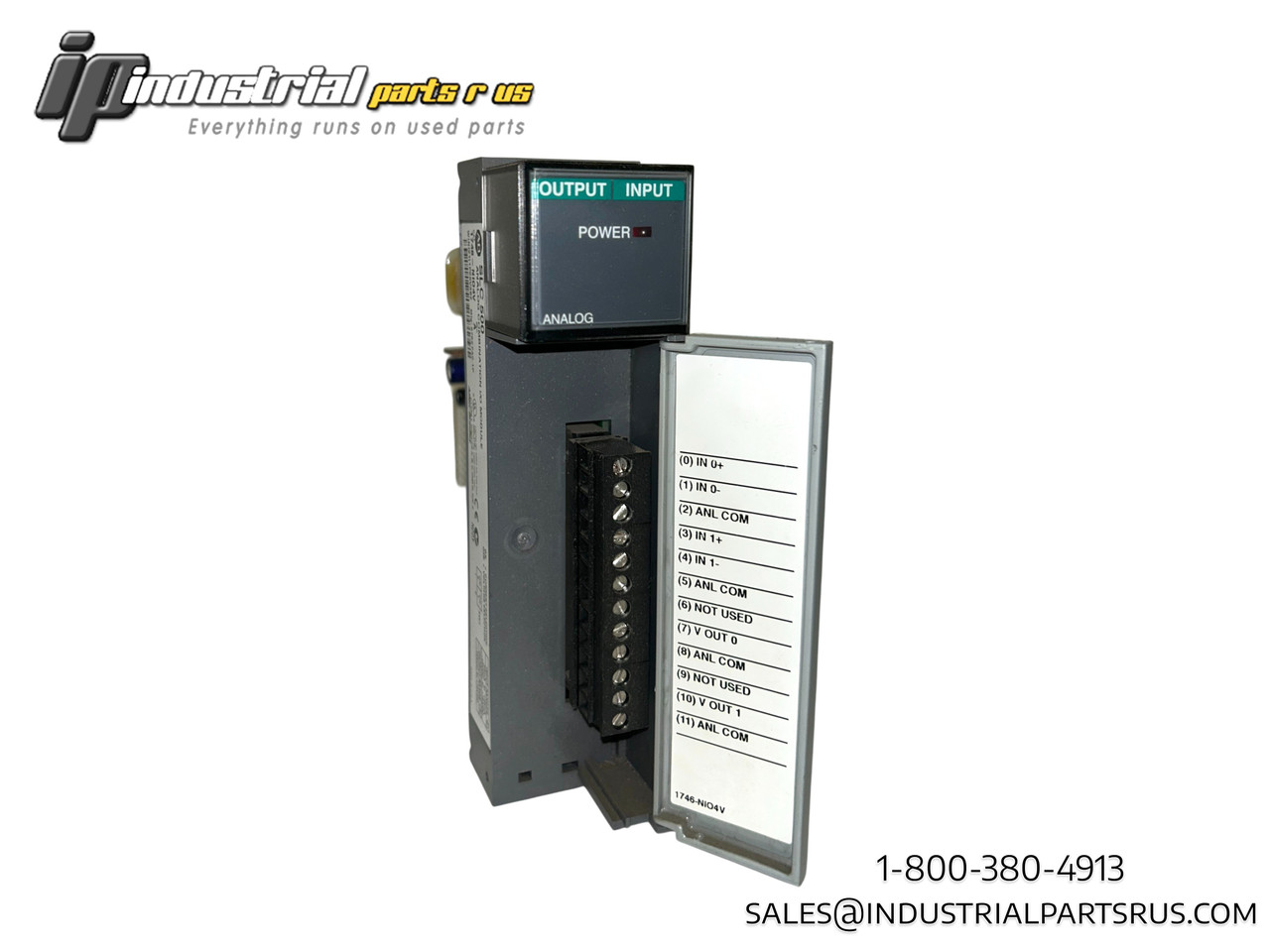

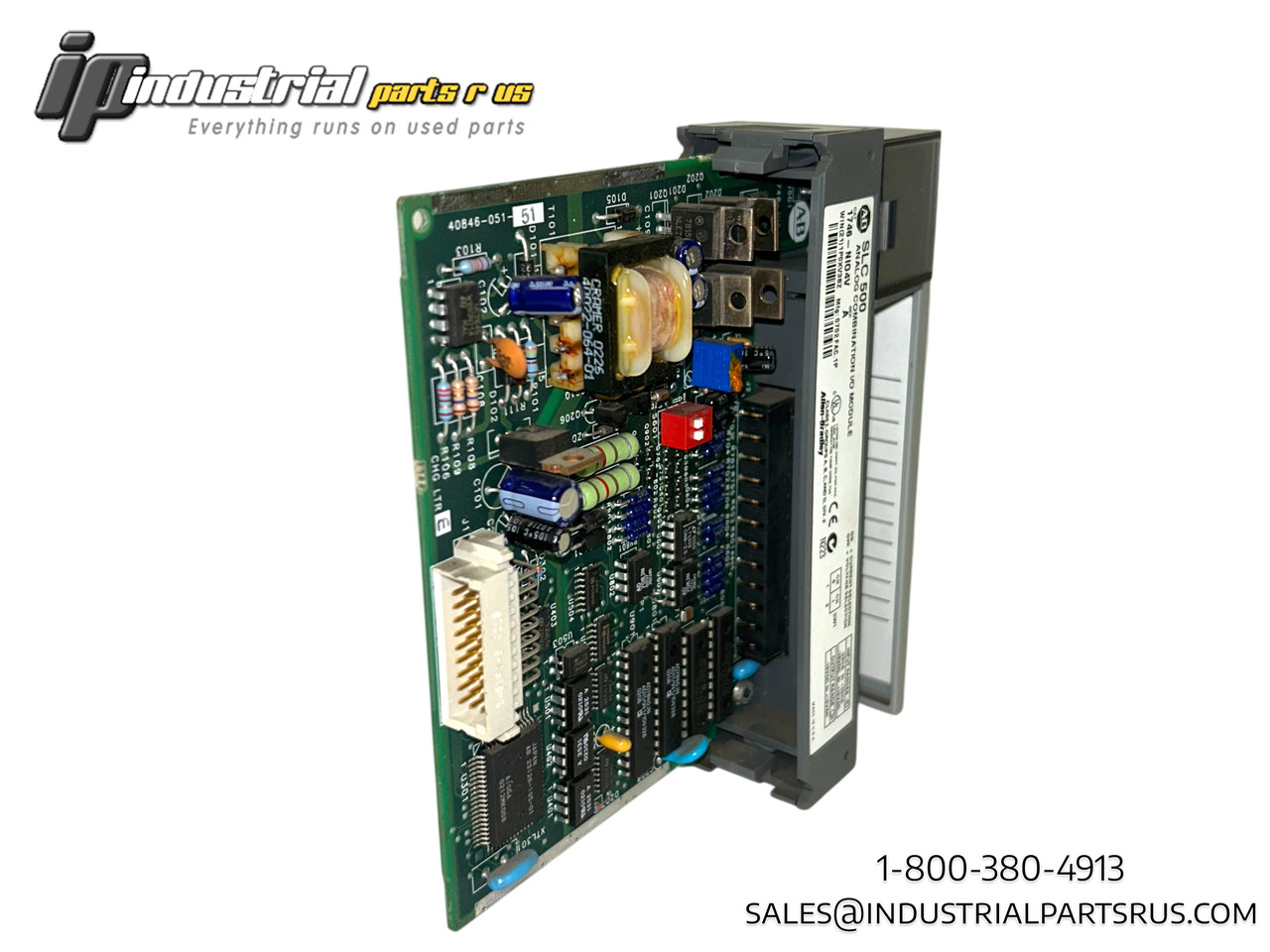

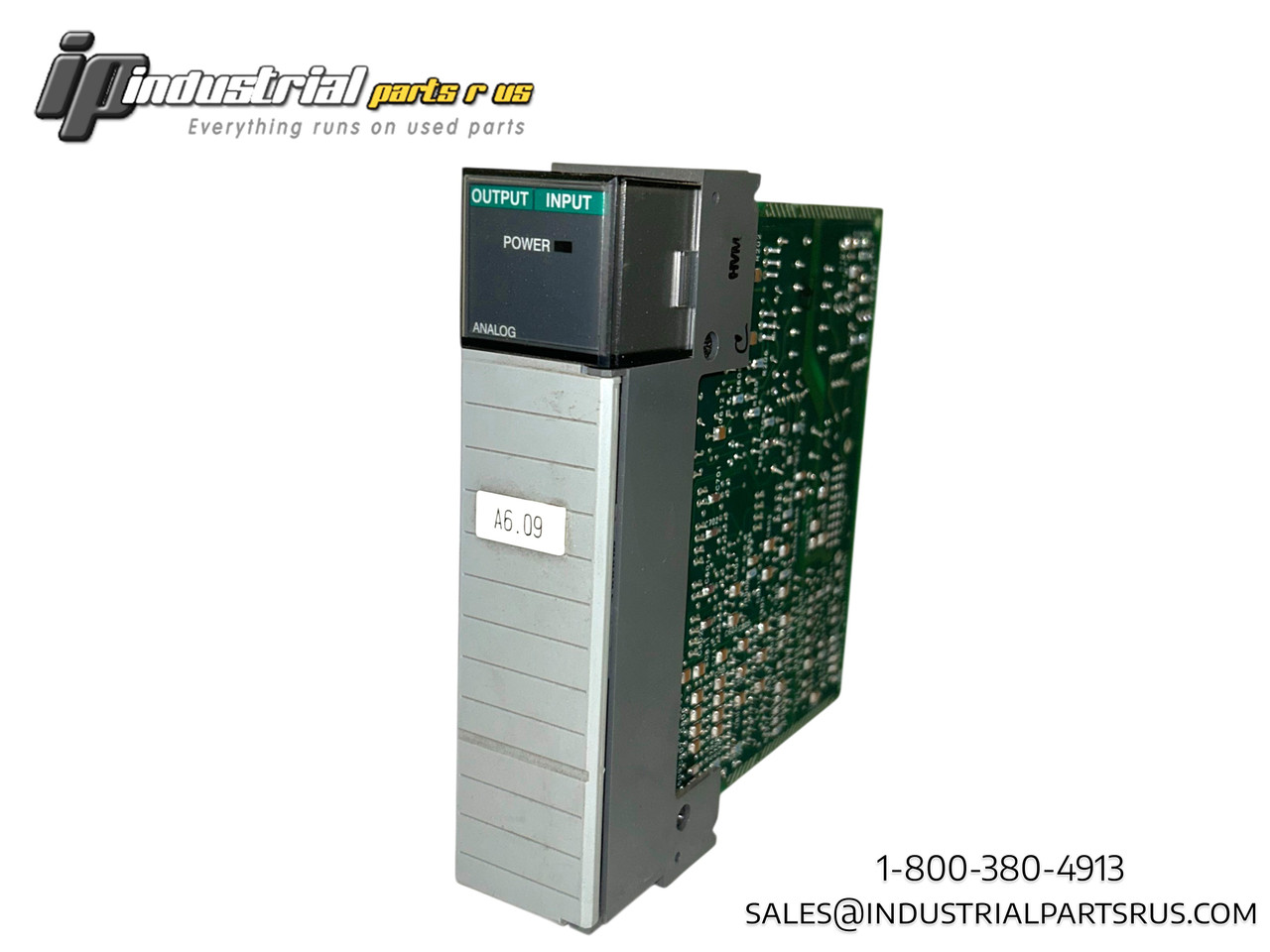

The Allen-Bradley 1746-NI04V is an SLC 500 analog combination module designed for industrial automation applications. This module offers four differential input channels, each configurable for voltage signals ranging from -10V to +10V DC and features a 16-bit resolution, ensuring accurate data acquisition for process control applications. This module features Two (2) differential, voltage or current selectable per channel with input signal ranges of -20 to +20 mA (or) -10 to +10V dc and Two (2) current outputs with signal range of 0 to +20 mA.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen Bradley |
| Model Number | 1746-NI04V |
| Series | SLC 500 |
| Module Type | Analog Combination I/O |
| Number of Input Channels | 2 |
| Number of Output Channels | 2 |
| Input Resolution | 16-bit |
| Output Resolution | 14-bit |
| Voltage Input Range | -10 to +10V DC |
| Current Input Range | -20 to +20 mA |
| Output Range | 0 to +20 mA |
| Input Configuration | Differential |
| Channel Selection | User-selectable per channel |
| Isolation | Field Wiring-to-Backplane 500V DC |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen Bradley
Part Number 1746-NI04V
Shelf F-3 Tub 4
Model 1746-NI04V
MPN 1746-NI04V
Type Programmable Logic Controller
