Product Description
The Allen-Bradley 2711-T6C8L1 is a PanelView 600 Standard Operator Terminal featuring a 6-inch color display with touchscreen interface. This HMI provides real-time monitoring and control capabilities through its Data Highway Plus (DH+) communication port and RS-232 printer interface, making it suitable for industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |

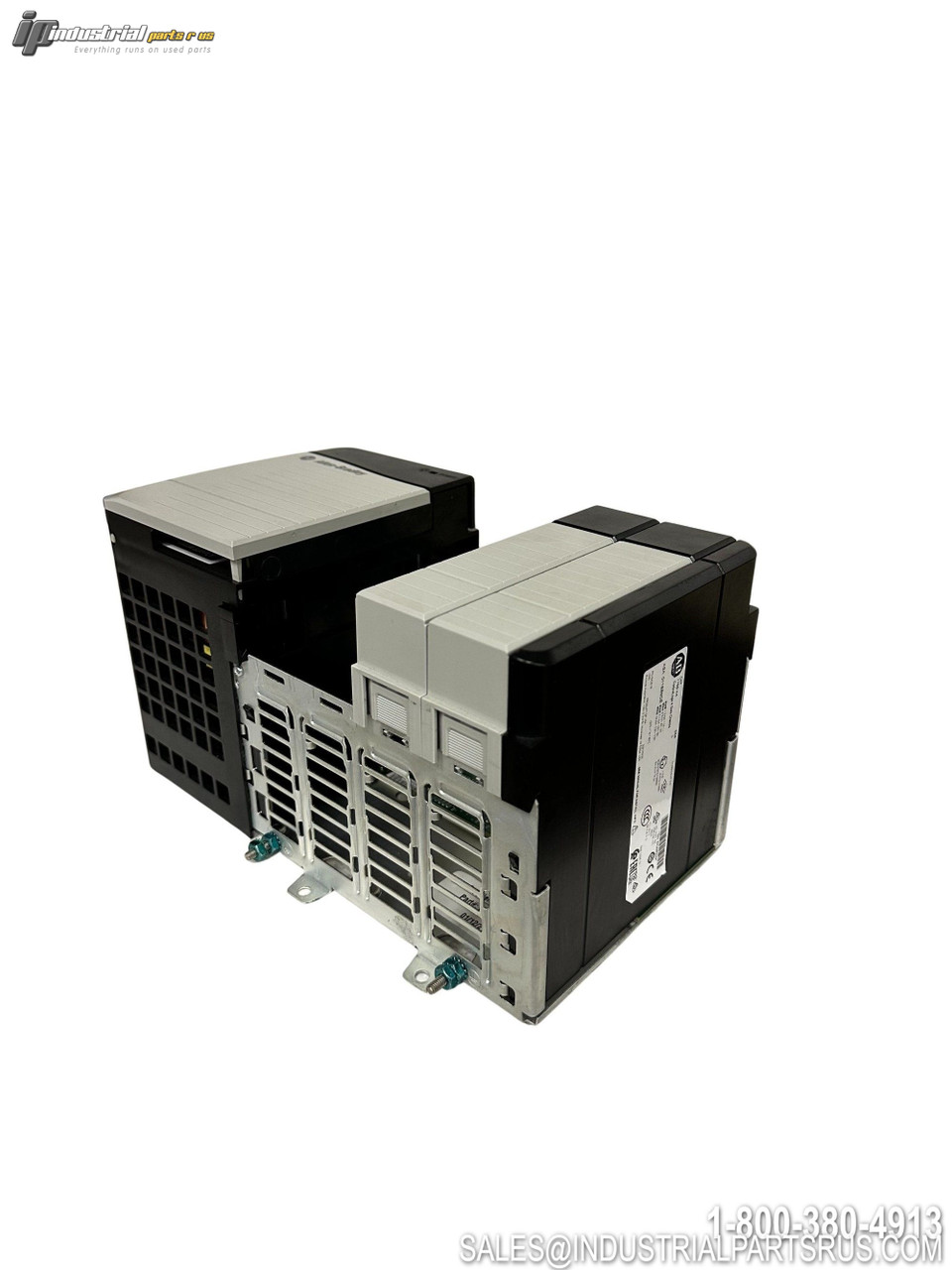

| Model/Part Number | 1756-PA75 |
| Product Type | PLC Power Supply |
| Platform | ControlLogix |
| Input Voltage Range | 85-265V AC |
| Nominal Input Voltage | 120V/240V AC |
| Input Frequency Range | 47-63 Hz |
| Output Power Maximum | 75W @ 0-60°C |
| Output Current @ 1.2V DC | 1.5A |
| Output Current @ 3.3V DC | 4A |
| Output Current @ 5.1V DC | 13A |
| Output Current @ 24V DC | 2.8A |
| Inrush Current Maximum | 20A |
| Operating Temperature | 0-60°C (32-140°F) |
| Hold Up Time | 2 cycles @ 85V AC, 6 cycles @ 120V AC, 20 cycles @ 220V AC |
| Mounting Type | Chassis Mount |
| Module Location | Left side of 1756 chassis |
| Compatible Chassis | 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
| Dimensions (H x W x D) | 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in) |
| Weight | 0.95 kg (2.10 lb) |
| Enclosure Type | Open Style |
| Wire Size | 14 AWG solid/stranded copper |
| Isolation Voltage | 250V continuous, reinforced insulation |
| UPC | 612598206858 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 1.5A @ 1.2V DC
Manufacturer Allen-Bradley
Enclosure Type Open Style
Part Number 1756-PA75
Controller Platform ControlLogix
Shelf K-47
Model 1756-PA75
MPN 1756-PA75
Type PLC Power Supply
