Product Description

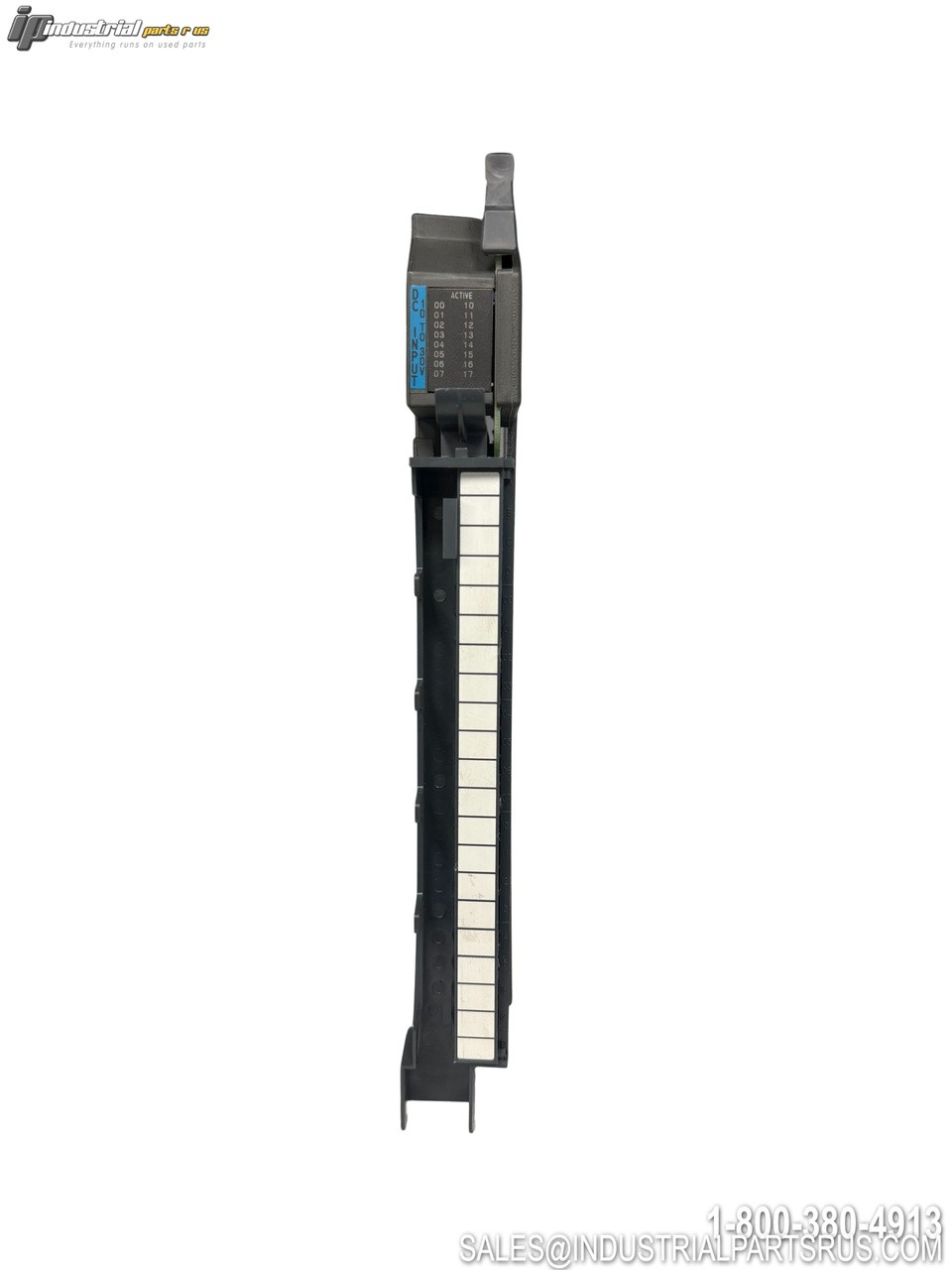

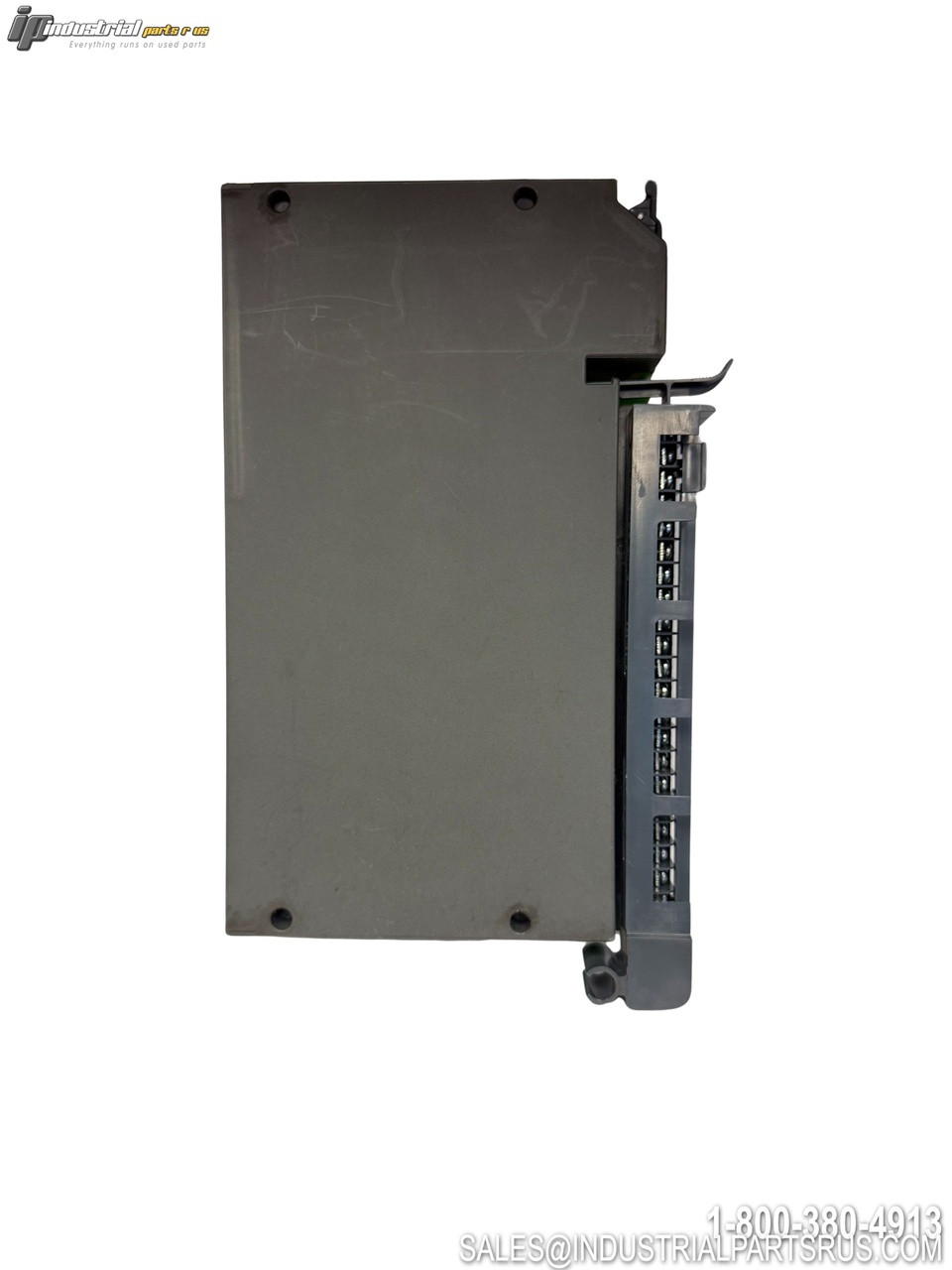

The Allen-Bradley 1771-IBD/B is a Series B discrete DC input module designed for the PLC-5 control system. This 16-point digital input module provides reliable signal detection for DC sensors and switches operating between 10-30VDC with sink (source load) configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1771-IBD/B |
| Series | B |
| Platform | PLC-5 |
| Module Type | Digital DC Input Module |
| Input Points | 16 |
| Input Voltage | 10-30VDC |
| Circuit Logic | Sink (Source Load) |
| Backplane Current | 130mA |
| Minimum On-State Voltage | 10VDC |
| Maximum Off-State Voltage | 5VDC |
| Maximum Off-State Current | 2.0mA |
| Input Signal Delay | 1.3ms ±0.1 (On/Off) |
| Power Dissipation | 7.3W max, 1.0W min |
| Wiring Arm | 1771-WH |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative Humidity | 5 to 95% (non-condensing) |
| Dimensions | 3.5 x 6.5 x 2.0 inches |
| Weight | 1.06 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 130mA
Manufacturer Allen-Bradley
Part Number 1771-IBD/B
Controller Platform PLC-5
Shelf F-1
Model 1771-IBD/B
MPN 1771-IBD/B
Type I/O Module
