Product Description

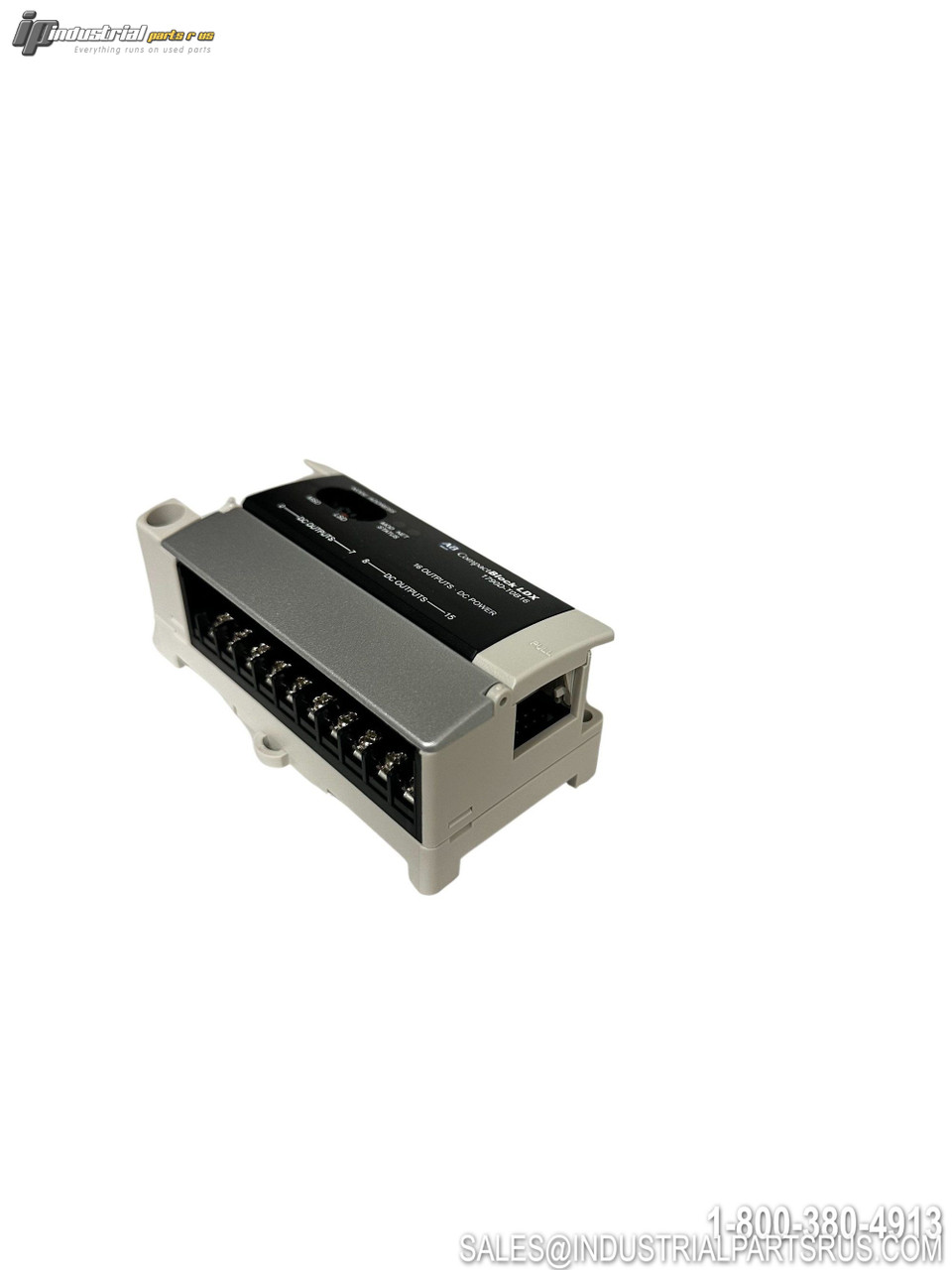

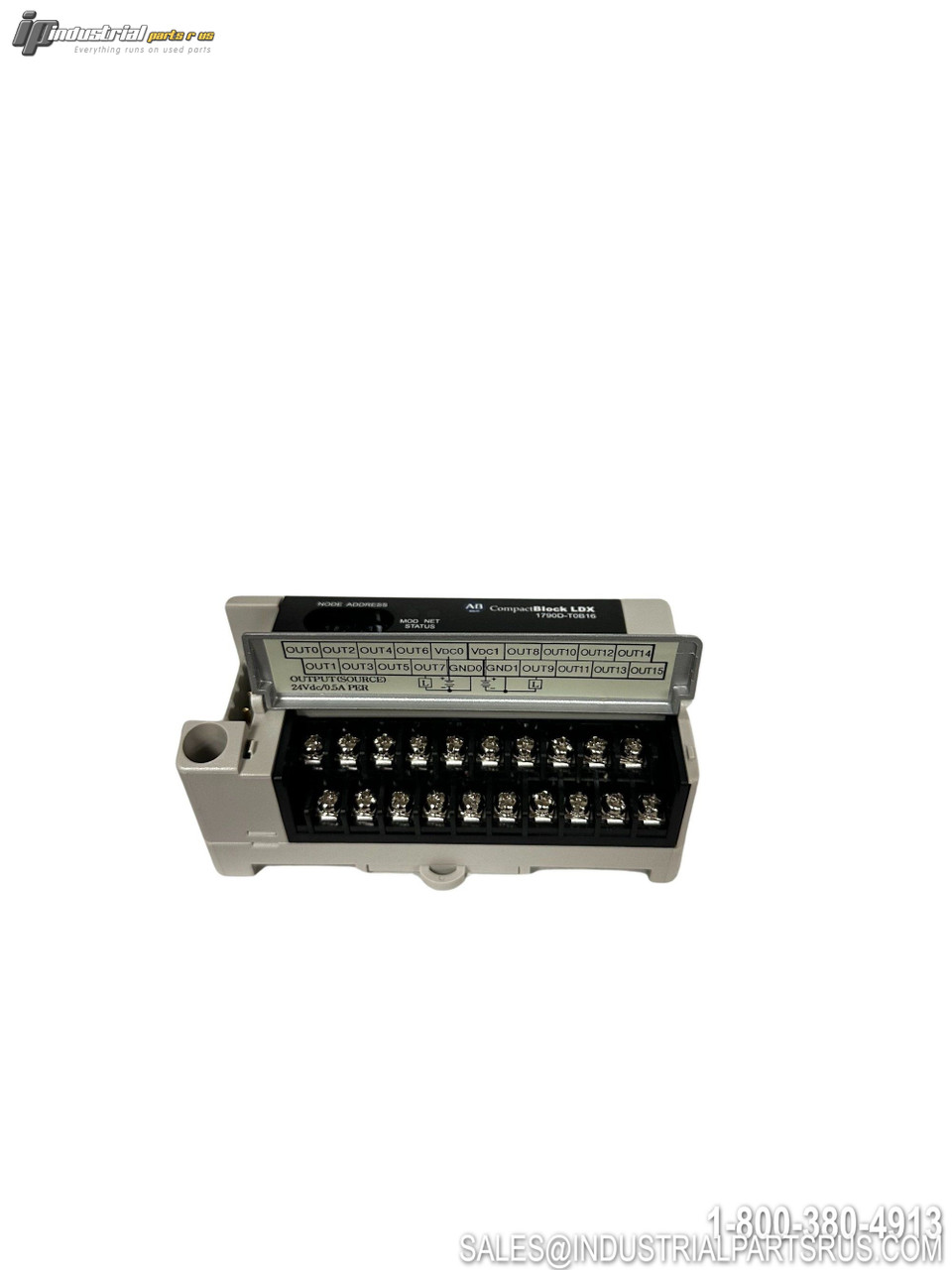

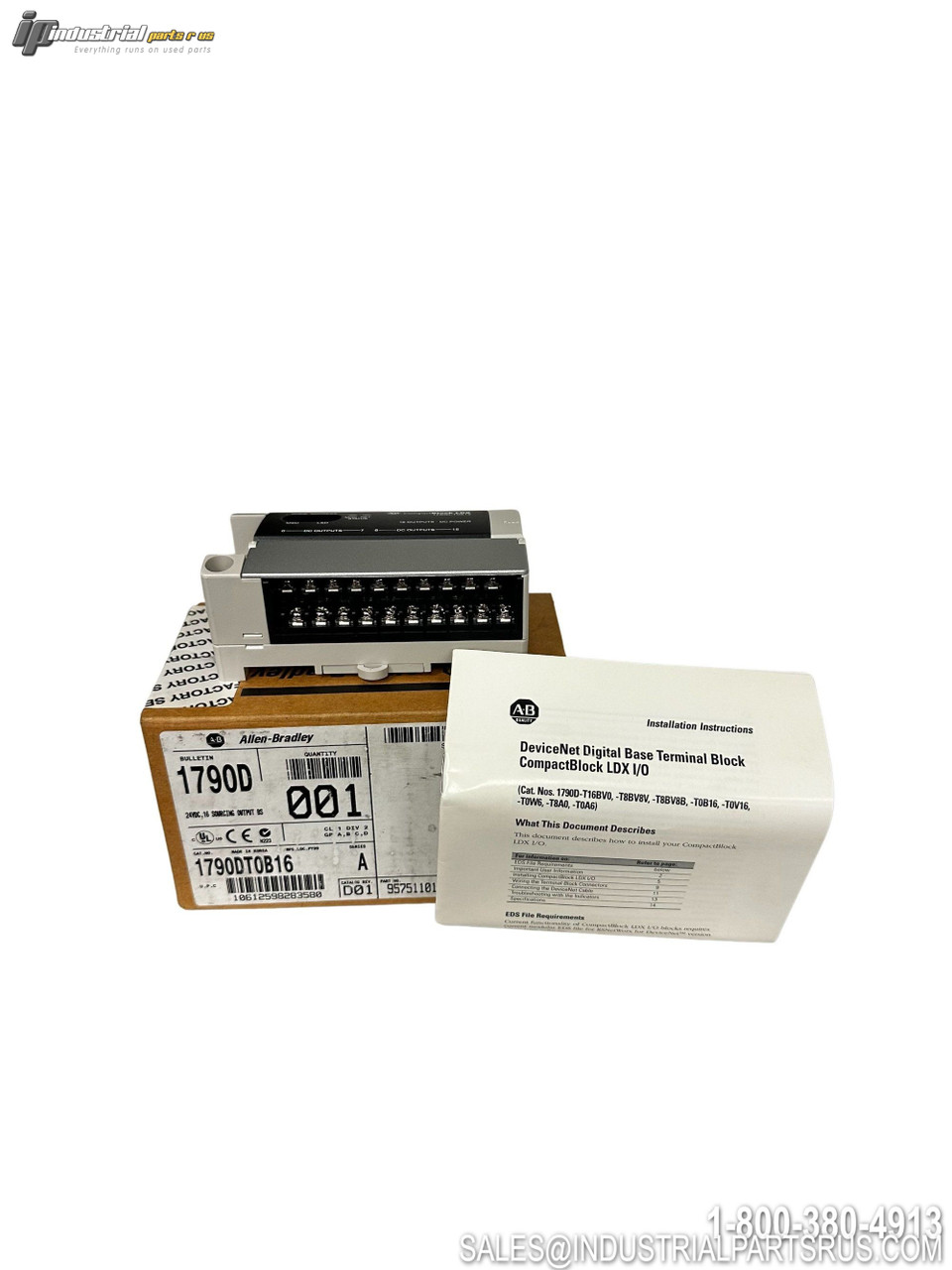

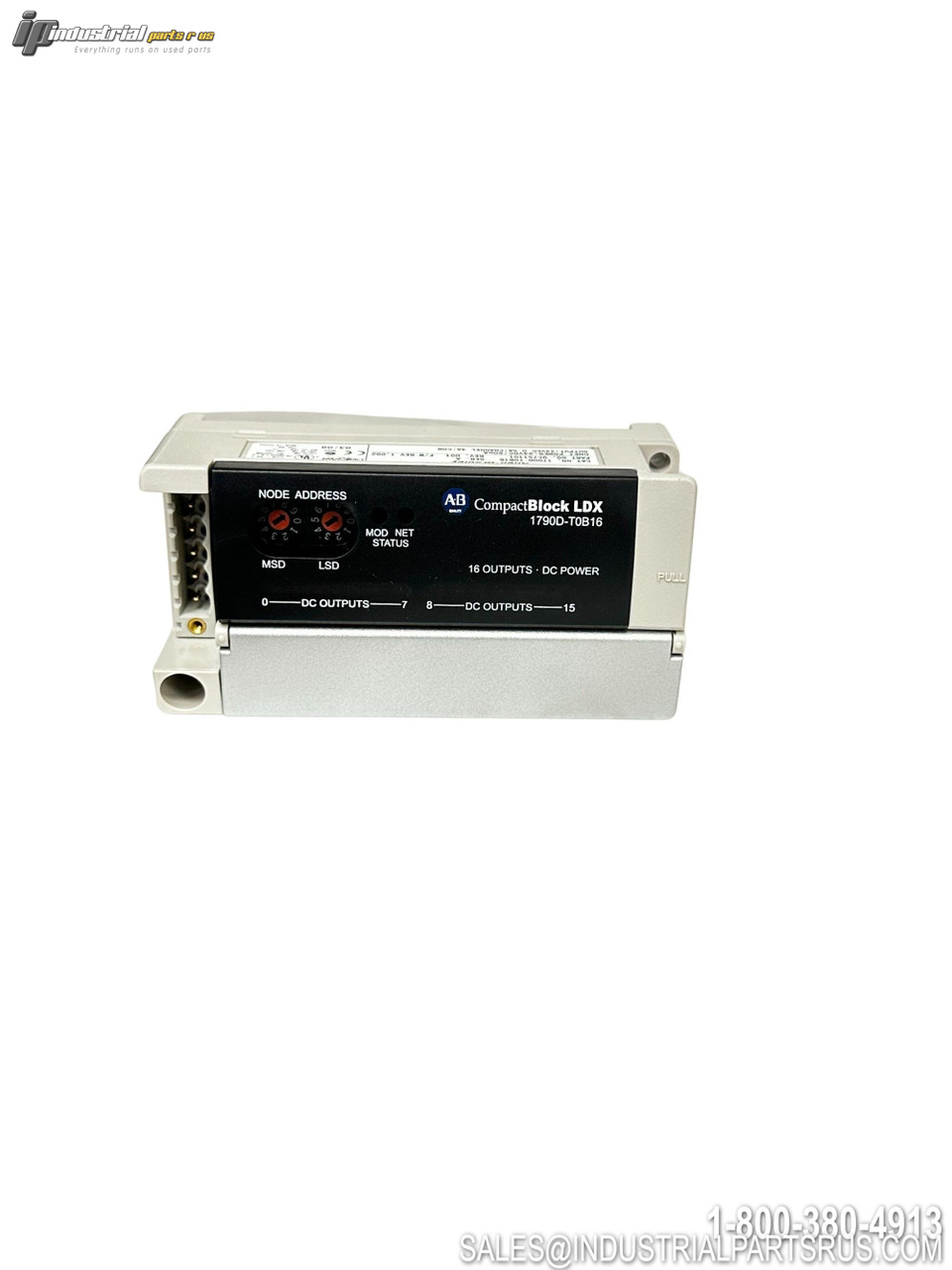

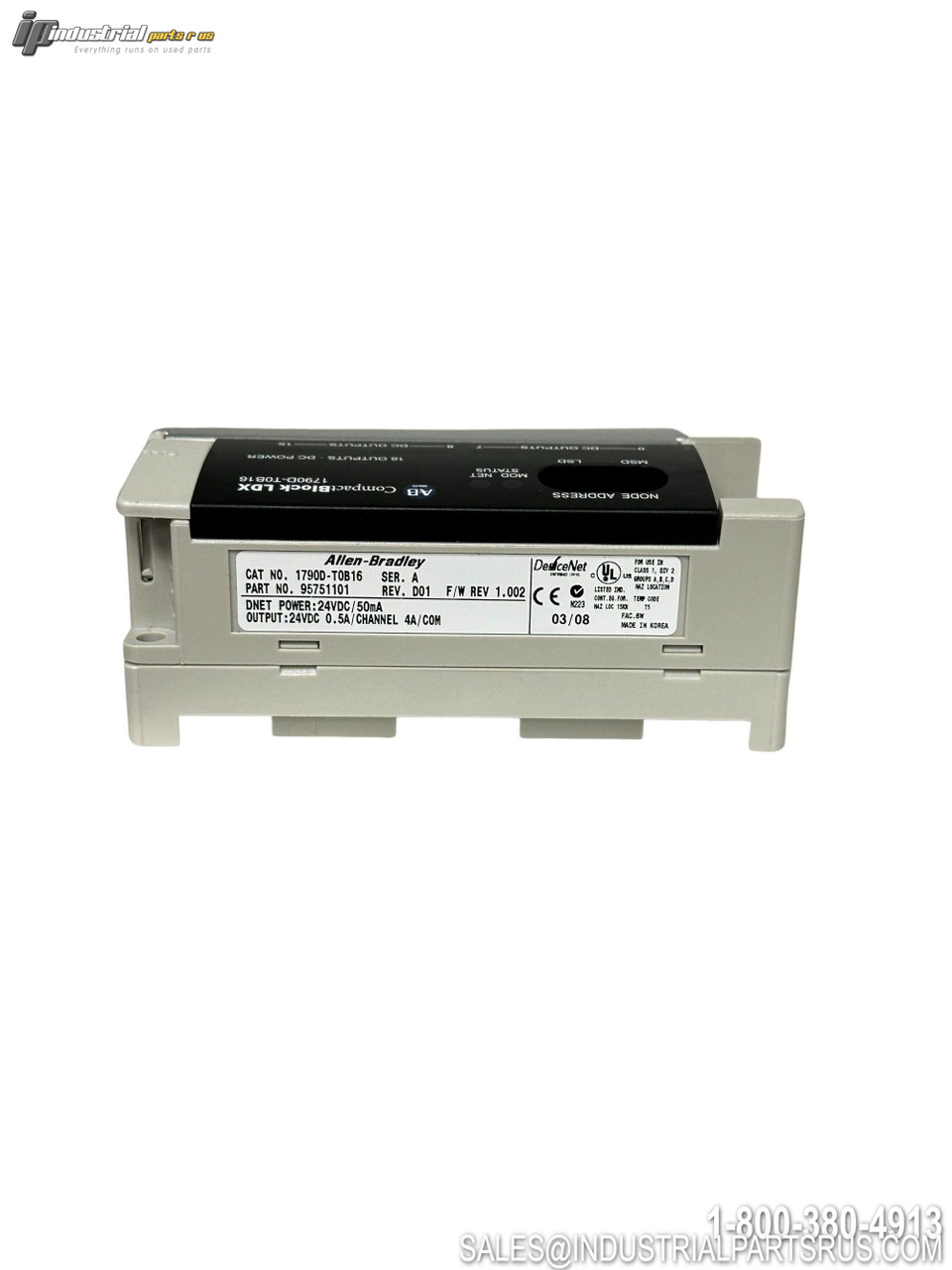

The Allen-Bradley 1790D-T0B16 is a CompactBlock LDX 16-point DC output base module designed for DeviceNet networks. This module provides 16 sourcing digital outputs with a nominal voltage of 24V DC and maximum output current of 100mA per channel. It features screw clamp terminals for reliable connections and is suitable for industrial automation applications requiring discrete output control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1790D-T0B16 |
| Product Type | I/O Module |
| Platform | CompactBlock LDX |
| Function | Digital Output Base Module |
| Output Points | 16 |
| Output Type | Sourcing |
| Output Voltage | 24V DC |
| Voltage Range | 10-28.8V DC |
| Output Current | 100mA per channel |
| Communication | DeviceNet |
| Termination Type | Screw Clamp |
| Enclosure Type | Open Style |
| IP Rating | IP20 |
| Isolation | Non-Isolated |
| Dimensions (HxWxD) | 52 x 104 x 42mm (2.03 x 4.07 x 1.64 in.) |
| UPC | 612598283583 |
| Lifecycle Status | End of Life (Discontinued Dec 31, 2024) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Sourcing
Manufacturer Allen-Bradley
Enclosure Type Open Style
Part Number 1790DT0B16
Controller Platform CompactBlock LDX
Shelf J-49
Model 1790DT0B16
MPN 1790DT0B16
Type I/O Module
