Product Description

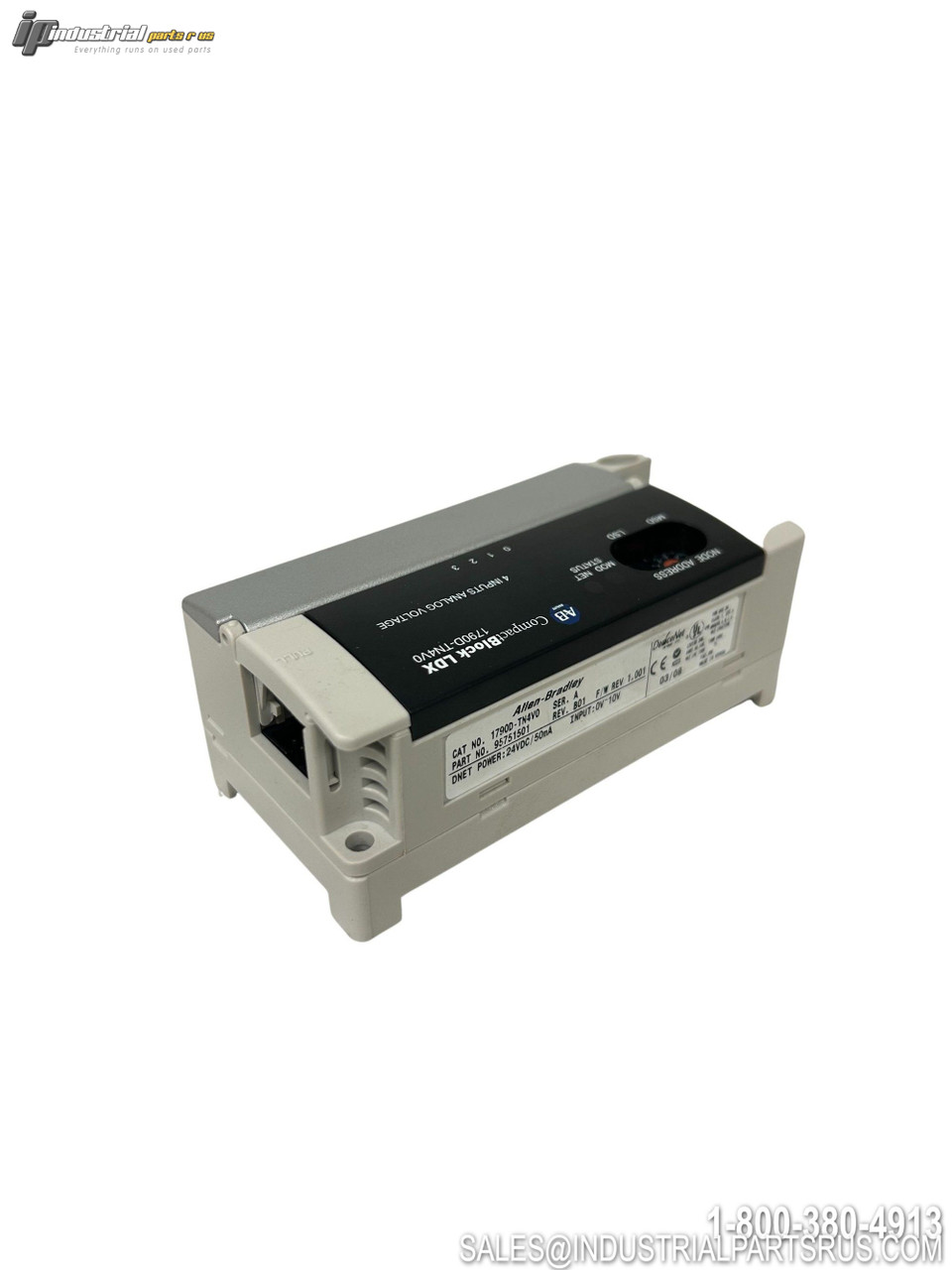

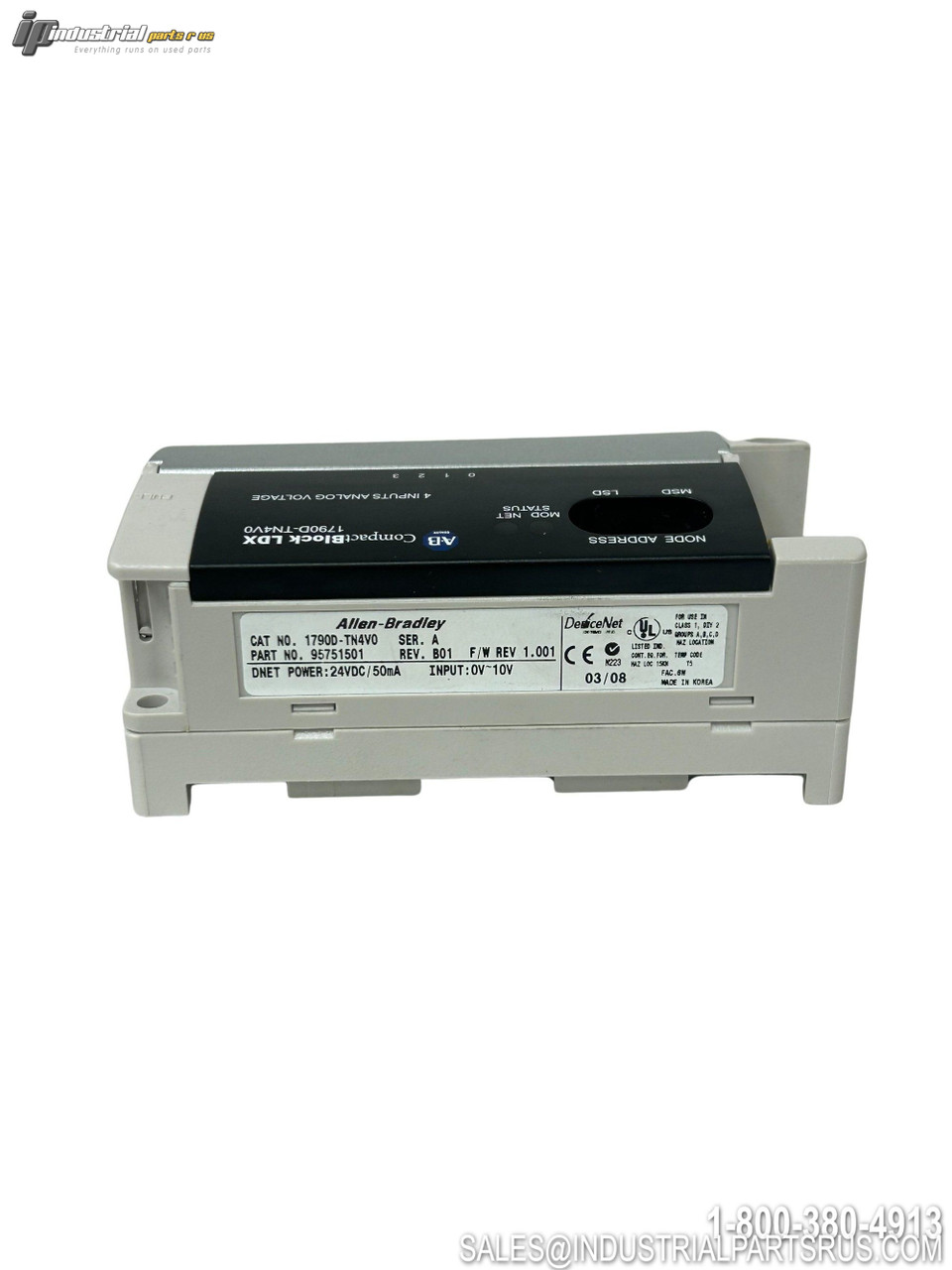

The Allen-Bradley 1790DTN4V0 is a CompactBlock LDX analog input base module that provides four single-ended voltage input channels for industrial automation applications. This module features DeviceNet communication protocol and supports up to two discrete expansion modules for flexible system configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1790DTN4V0 |
| Type | I/O Module |
| Platform | CompactBlock LDX |
| Input Points | 4 |
| Input Voltage Range | 0-10V DC |
| Input Type | Single-ended Analog Voltage |
| Resolution | 12-bit (4096 counts) |
| Communication Standard | DeviceNet |
| Power Supply | 24V DC (21.6-26.4V) |
| Operating Temperature | 0-55°C (32-131°F) |
| Enclosure Type | IP20 |
| Mounting Type | DIN-rail, Panel |
| Connection Type | Screw-clamp |
| Expansion Capability | Up to 2 discrete expansion modules |
| Non-Isolated | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type IP20
Part Number 1790DTN4V0
Controller Platform CompactBlock LDX
Shelf K-49
Model 1790DTN4V0
MPN 1790DTN4V0
Type I/O Module
