Product Description

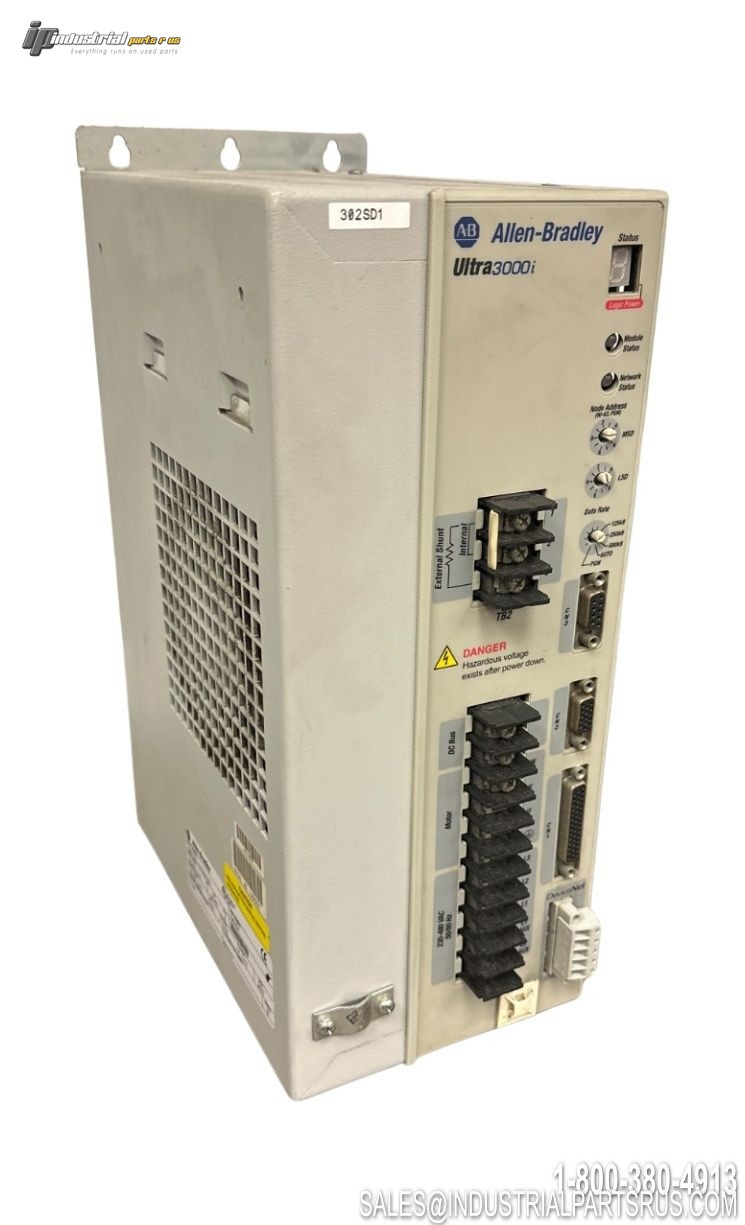

The Allen-Bradley 2098-DSD-HV030X-DN is an Ultra 3000i digital high-voltage servo drive designed for industrial motion control applications. This three-phase drive features a DeviceNet interface and supports both standalone indexing and multi-axis integrated motion control systems. The drive provides precise servo control with comprehensive protection features and robust construction for demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 2098-DSD-HV030X-DN |
| Platform | Ultra 3000i |
| Input Voltage | 230-480V AC RMS |
| Phase | 3 Phase |
| Input Frequency | 47-63 Hz |
| Input Current | 4A nominal at 460V, 6A max inrush |
| Continuous Output Current | 11A at 0-pk |
| Intermittent Output Current | 22A at 0-pk |
| Power Rating | 3kW at 480V, 1.5kW at 230V |
| Communication Standard | DeviceNet |
| Bus Voltage | 810V DC overvoltage |
| Bus Capacitance | 470 µF |
| Shunt On Voltage | 800V DC |
| Shunt Off Voltage | 750V DC |
| Internal Shunt Resistance | 120 Ω |
| Operating Temperature | 0-55°C |
| Dimensions | 9.54 x 14.2 x 5.46 inches |
| Weight | 8.55 kg (18.8 lbs) |
| Type | Digital, Multi-Axis, Indexing |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 22A at 0-pk
Manufacturer Allen-Bradley
Part Number 2098-DSD-HV030X-DN
Shelf F-10
Model 2098-DSD-HV030X-DN
MPN 2098-DSD-HV030X-DN
Type Servo Drive
