Product Description

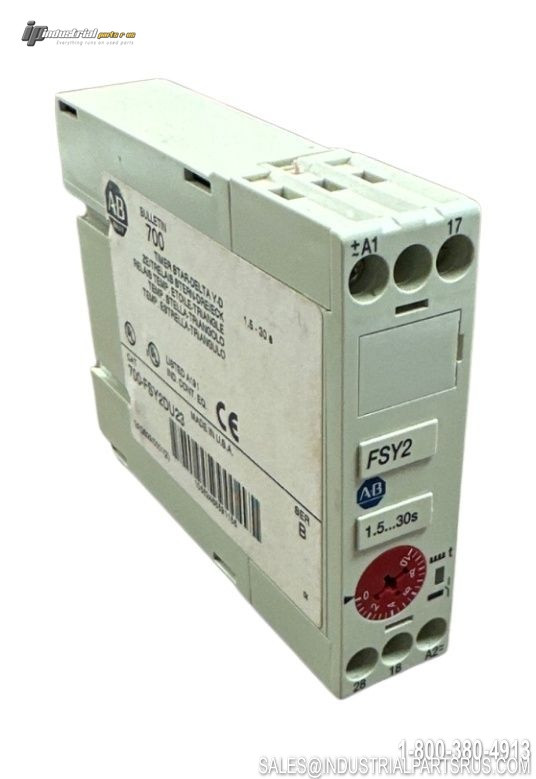

The Allen-Bradley 700-FSY2DU23 is a high performance timing relay specifically designed for star-delta motor starting applications. This dual voltage relay operates on 24-48V DC or 24-240V AC and provides precise timing control with a range of 1.5 to 30 seconds.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 700-FSY2DU23 |
| Product Type | High Performance Timing Relay |
| Application | Star-Delta Motor Starting |
| Timing Range | 1.5 to 30 seconds |
| Control Voltage | 24-48V DC / 24-240V AC 50/60Hz |
| Contact Configuration | 2 NO (Normally Open) Contacts, 1 Side Common |
| Contact Rating | 8A |
| Input Amperage | 1 mA |
| Power Consumption | 0.5W at 24VDC, 5VA at 240VAC |
| Mounting Type | DIN Rail/Panel Mount |
| Operating Cycles | 30,000,000 Mechanical |
| Temperature Range | -25°C to +45°C Enclosed, -25°C to +60°C Open |
| Reset Time | 50 ms |
| Voltage Tolerance | -20% to +20% (DC), -15% to +10% (AC) |
| Standards | CCC, CE, MARINE |
| Weight | 0.29 lbs |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail/Panel
Current Rating 8A
Manufacturer Allen-Bradley
Part Number 700-FSY2DU23
Series 700-FS
Shelf K-41
Model 700-FSY2DU23
Coil Voltage 24-240V
MPN 700-FSY2DU23
Type Time Delay Relay
