Product Description

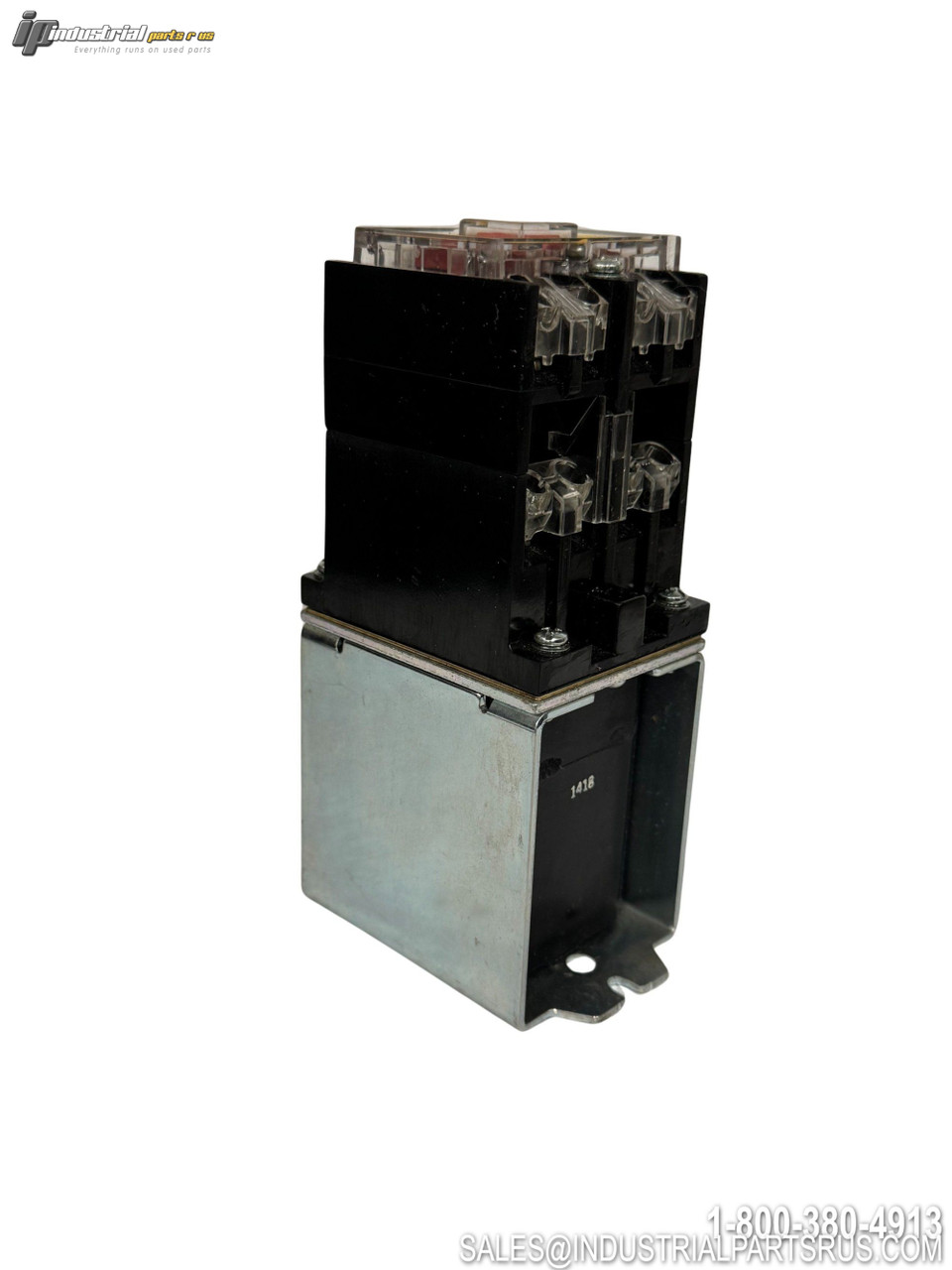

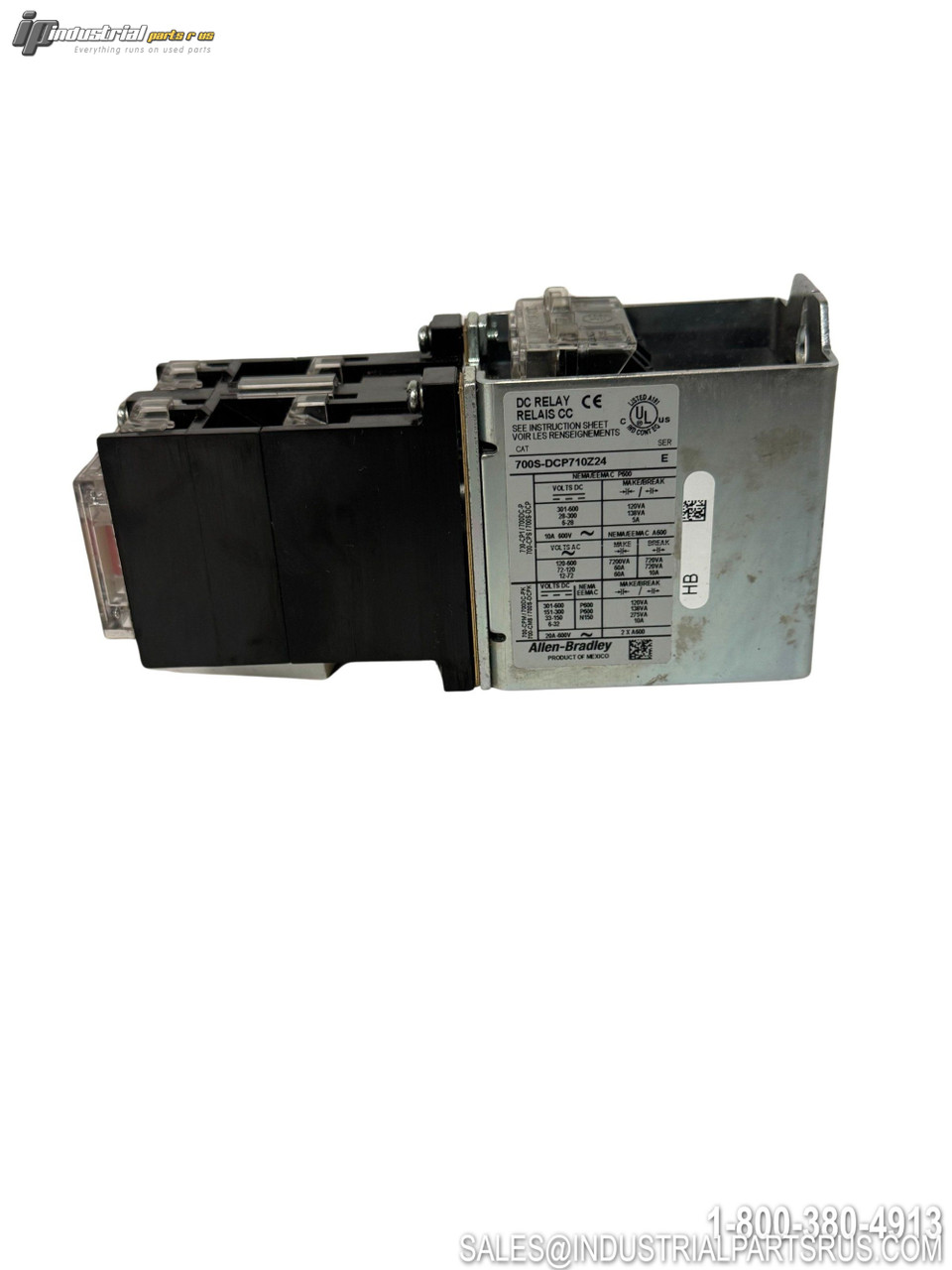

The Allen-Bradley 700S-DCP710Z24 is a NEMA safety control relay designed for critical safety applications requiring mechanically linked contacts. This 8-pole relay provides 7 normally open and 1 normally closed contact configuration with a 24VDC coil voltage. It meets IEC 947-5-1 Annex L standards for industrial safety applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 700s-dcp710z24 |
| Type | Safety Relay |
| Series | 700S |
| Coil Voltage | 24VDC |
| Contact Rating | 10 Amp |
| Voltage Rating | 600VAC |
| Poles | 8 |
| Contact Configuration | 7 NO, 1 NC |
| Mounting Type | DIN Rail |
| Enclosure Type | Open Type |
| Operating Cycles | 12,500,000 Mechanical, 1,500,000 Electrical |
| Temperature Rating | -20 to 65°C |
| Storage Temperature | -40 to 65°C |
| Standards | CE, KC, IEC 947-5-1 Annex L |
| Weight | 3.15 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style DIN Rail
Current Rating 10 Amp
Country/Region of Manufacture Mexico
Application Safety Control Relay
Manufacturer Allen-Bradley
Enclosure Type Open Type
Part Number 700S-DCP710Z24
Shelf K-57
Model 700S-DCP710Z24
Coil Voltage 24VDC
MPN 700S-DCP710Z24
Type Safety Relay
