Product Description

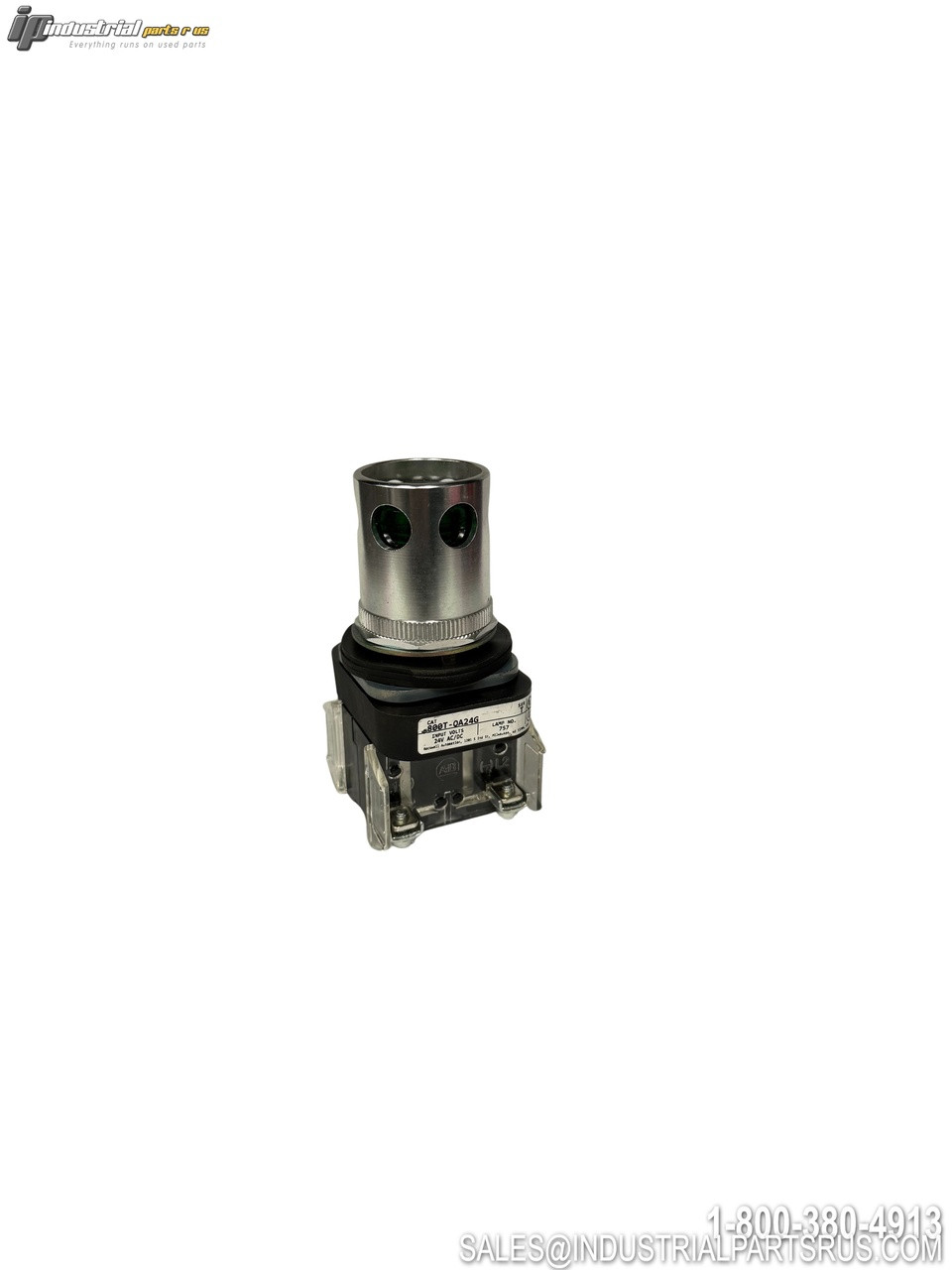

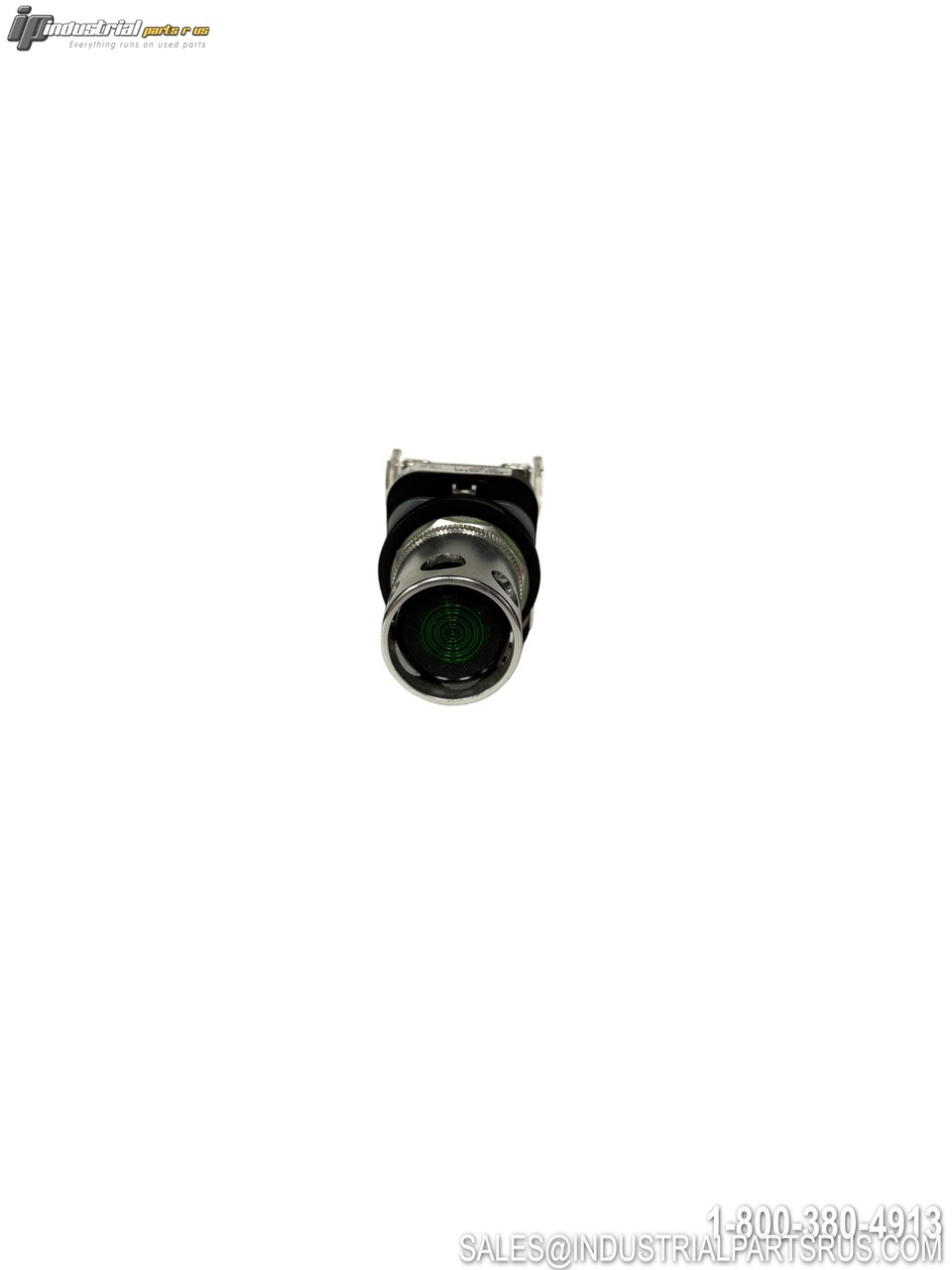

The Allen-Bradley 800T-QA24G is a rugged 30mm illuminated momentary push button designed for industrial automation applications. This Type 4/13 rated device features an extended head with guard, green incandescent illumination at 24V AC/DC, and provides reliable switching with 1 normally open and 1 normally closed contact configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 800T-QA24G |
| Product Type | Push Button |
| Series | 800T |
| Size | 30mm |
| Action Type | Momentary |
| Actuator Type | Extended Head with Guard |
| Voltage | 24V AC/DC |
| Contact Configuration | 1 NO, 1 NC |
| Contact Rating | 10 Amps |
| Illumination Type | Incandescent |
| Lens Color | Green |
| Protection Rating | Type 4/13 |
| Block Type | Standard |
| Material | Metal |
| Mounting Type | 1-Hole, Screw |
| Weight | 0.35 lbs |
| UPC | 781180189272 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Part Number 800T-QA24G
Shelf J-43
Model 800T-QA24G
MPN 800T-QA24G
Type Push Button
