Product Description

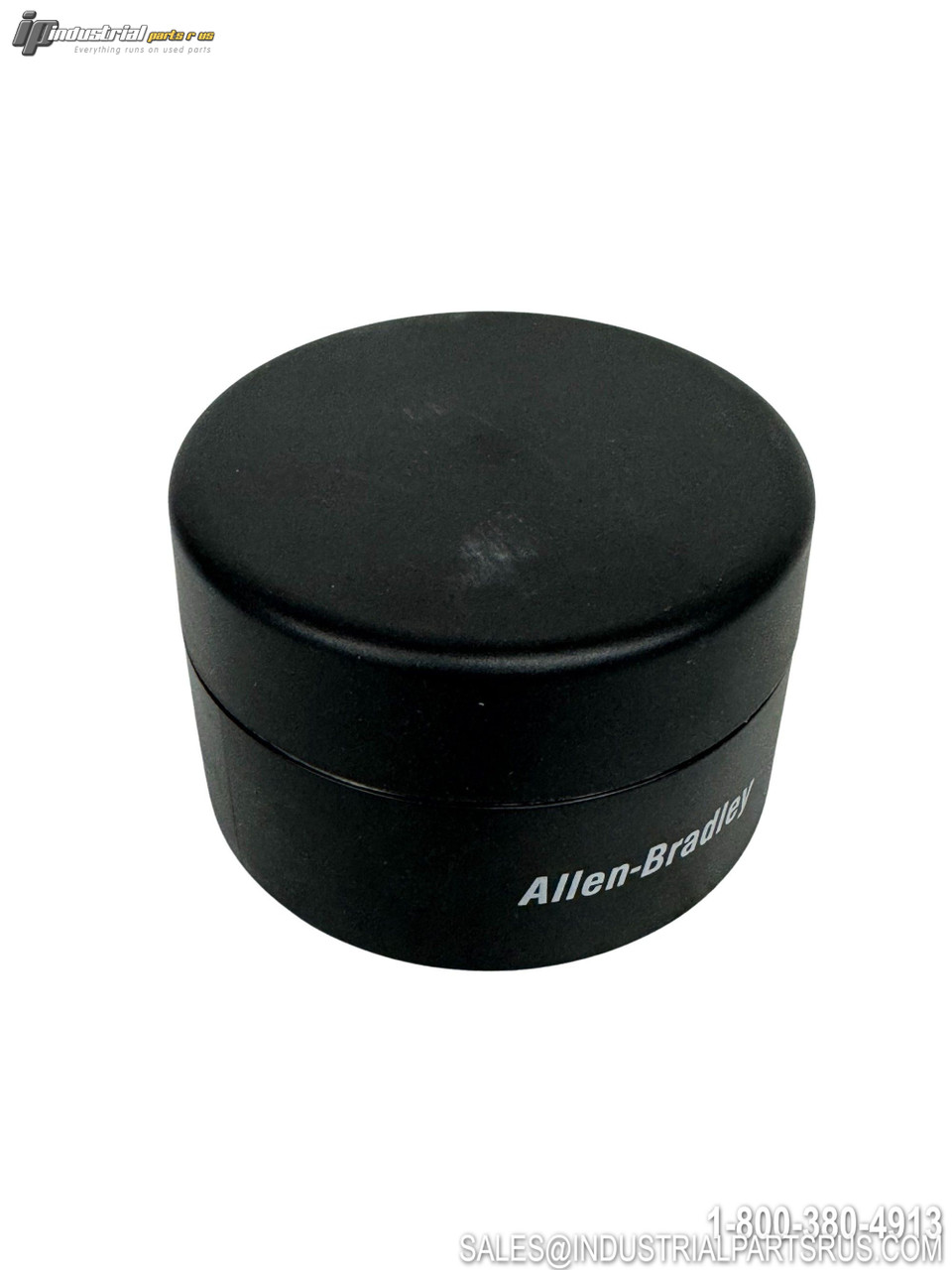

The Allen-Bradley 856T-BAC3C is a 3-circuit power module specifically designed for 70mm Control Tower stack light systems. This module provides power distribution for multiple light elements in stack light applications and features a wide voltage input range of 90-250V AC. The unit includes a black housing with polycarbonate lens material and IP66 environmental protection rating.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 856t-bac3c |
| Series | 856T |
| Platform | Control Tower |
| Input Voltage | 90-250V AC |
| Current Type | AC, DC |
| Circuit Type | 3-Circuit |
| Base Diameter | 70mm |
| Enclosure Rating | IP66, IP67 |
| Housing Color | Black |
| Lens Material | Polycarbonate |
| Mounting Type | Surface Mount |
| Terminal Type | Push-In Terminal Block |
| Operating Temperature | -30°C to +70°C |
| Length | 3.85 in (97.8 mm) |
| Width | 4.0 in (101.6 mm) |
| Height | 3.0 in (76.2 mm) |
| Weight | 0.24 lb (111 g) |
| UPC | 191326531009 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type IP66, IP67
Part Number 856T-BAC3C
Shelf K-61 tub-5
Model 856T-BAC3C
MPN 856T-BAC3C
Type Power Supply
