Product Description

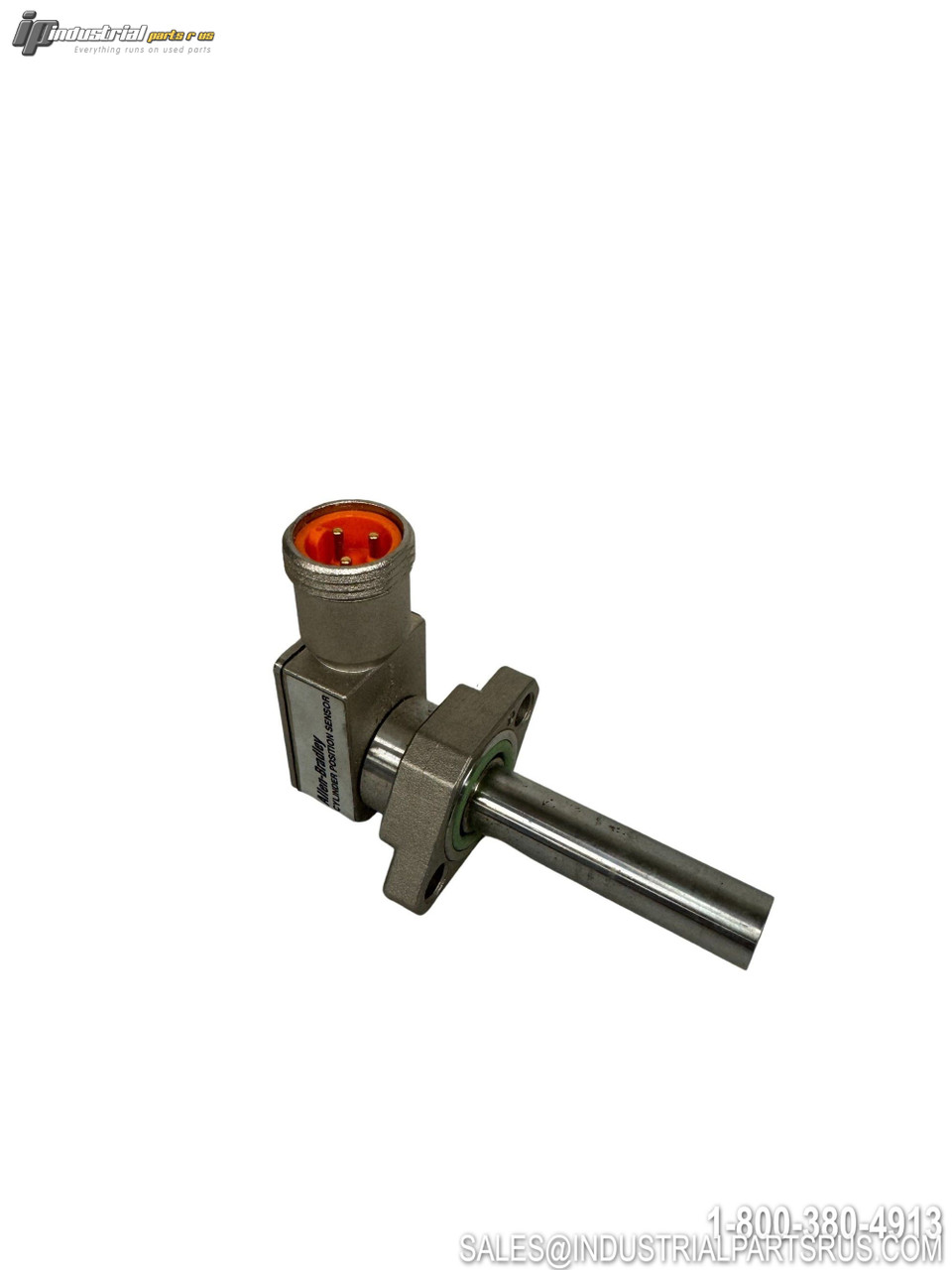

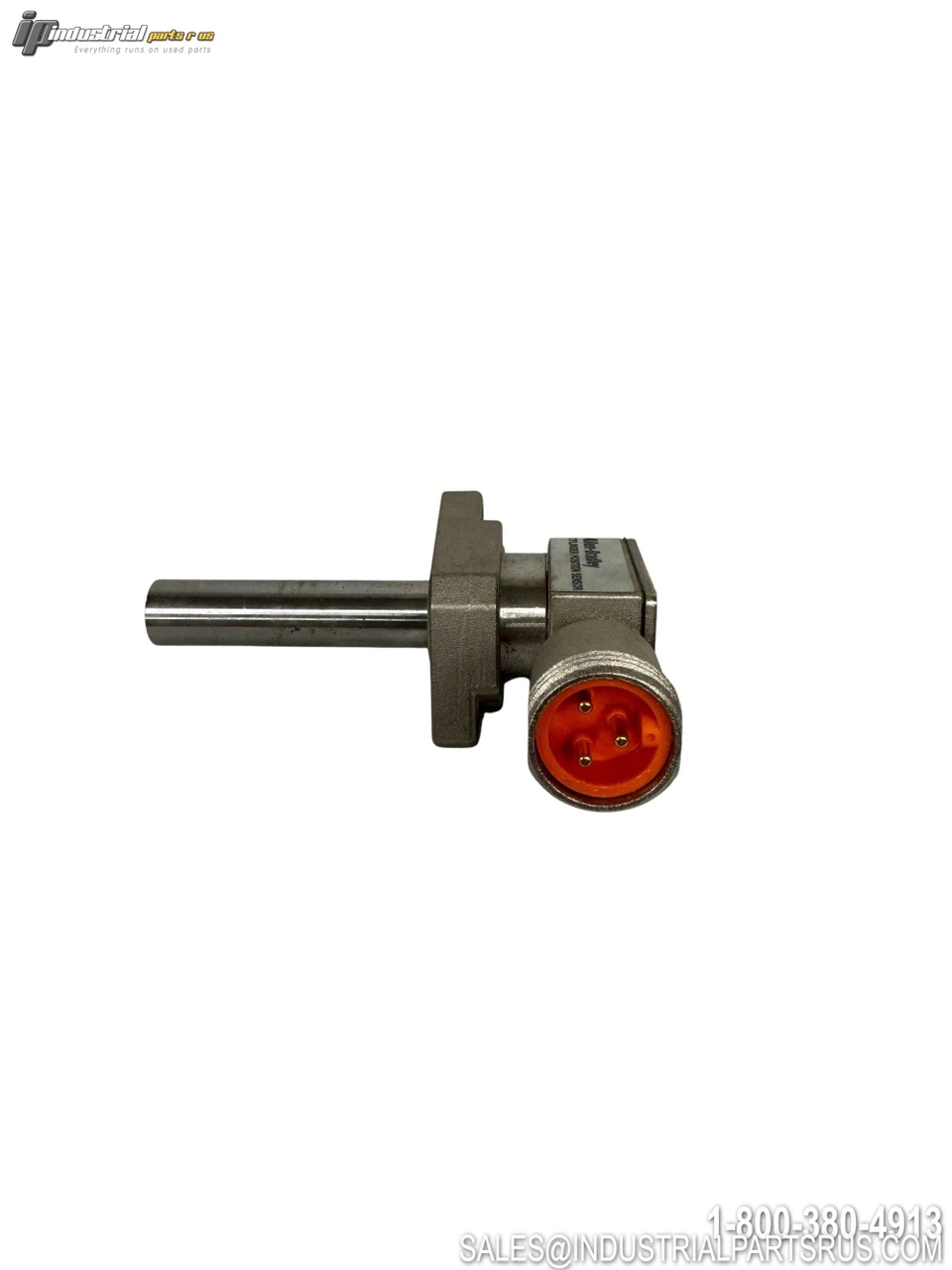

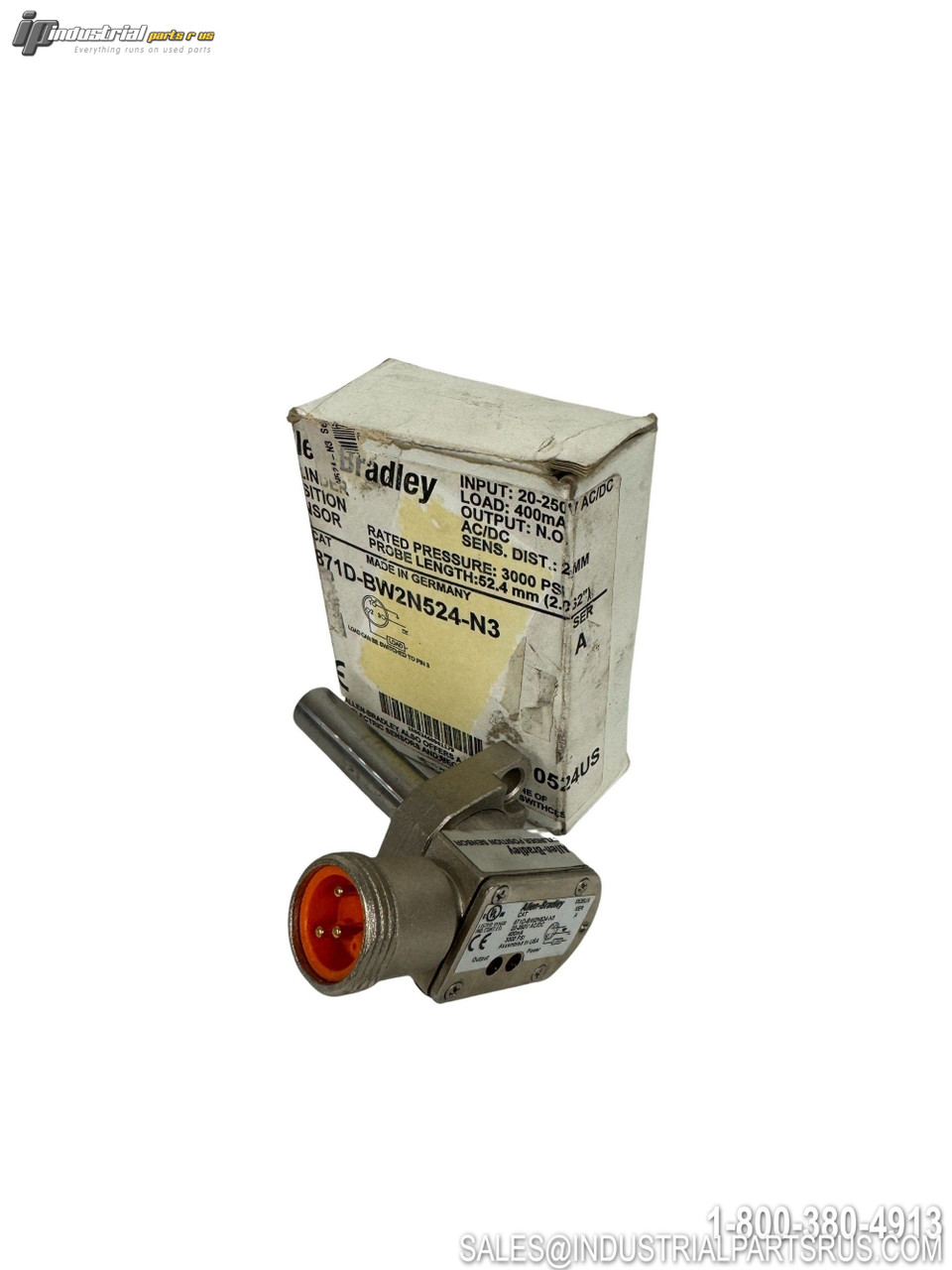

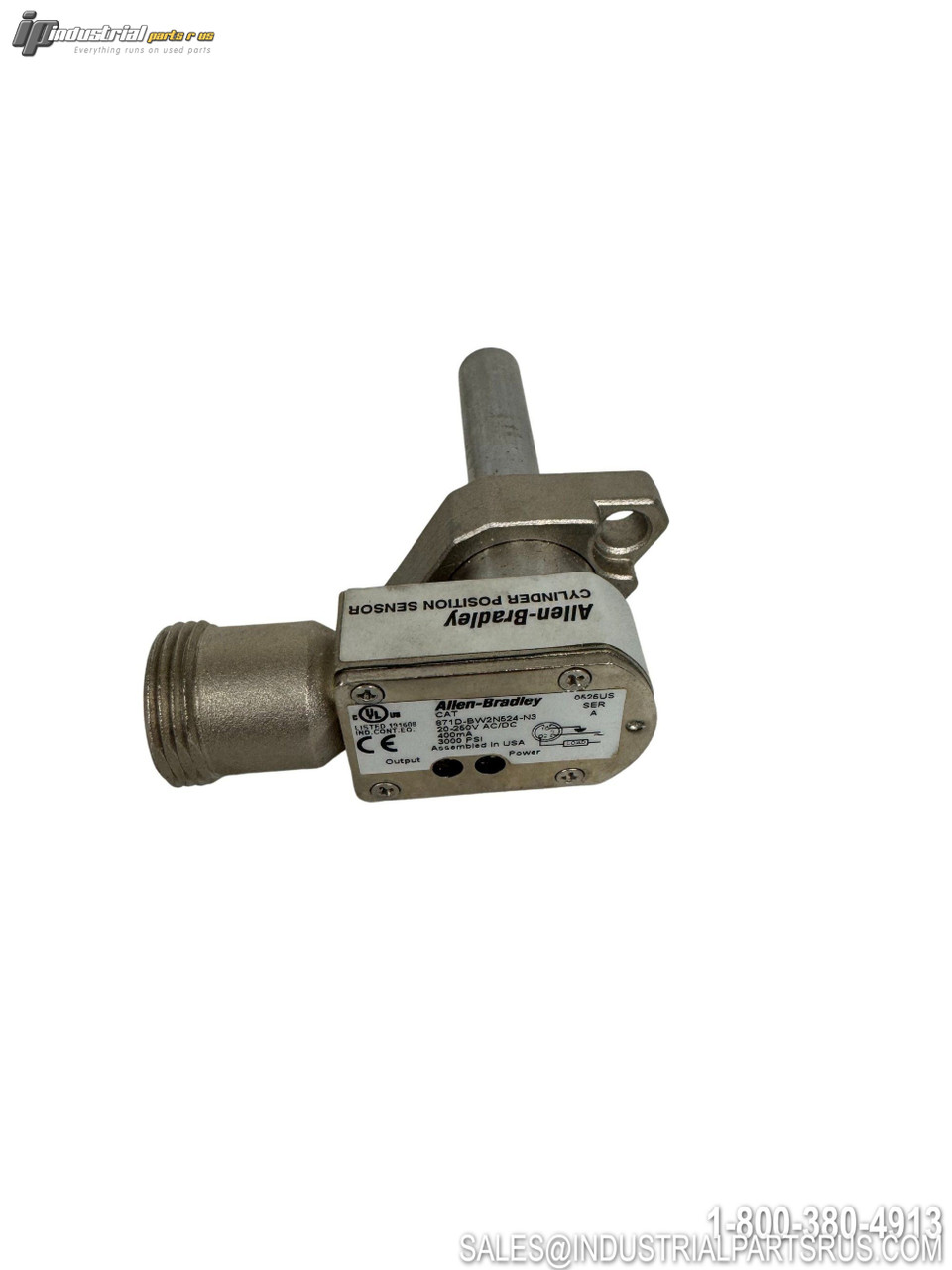

The Allen-Bradley 871D-BW2N524-N3 is an inductive proximity sensor specifically designed for cylinder position detection applications. This 2-wire AC/DC sensor features a 2mm sensing distance and 52.4mm probe length, making it ideal for end-of-stroke detection in pneumatic cylinder and gripper applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 871D-BW2N524-N3 |
| Sensor Type | Inductive Proximity Sensor |
| Application | Cylinder Position Detection |
| Operating Voltage | 20-250V AC/DC |
| Sensing Distance | 2mm |
| Probe Length | 52.4mm |
| Barrel Diameter | 12mm |
| Output Type | Normally Open (NO) |
| Wire Configuration | 2-Wire |
| Connection Type | 3-Pin AC Mini Quick Disconnect |
| Maximum Load Current | 400mA |
| Operating Frequency | 50/60 Hz |
| Housing Material | Metal |
| Color Code | Red |
| Mounting Type | In-Port Cylinder Position |
| Protection Features | Short Circuit, Overload, Transient Noise, False Pulse, Reverse Polarity Protection |
| Certifications | CE, CUL, KC, UL |
| UPC Code | 662468961172 |
| Product Status | Discontinued (July 15, 2021) |
| Replacement Product | 871D-LW2N524-N3 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Normally Open
Sensor Type Inductive
Operating Distance 2mm
Full Load Amps 400mA
Manufacturer Allen-Bradley
Part Number 871D-BW2N524-N3
Shelf P-6
Model 871D-BW2N524-N3
MPN 871D-BW2N524-N3
Type Inductive Proximity Sensor
