Product Description

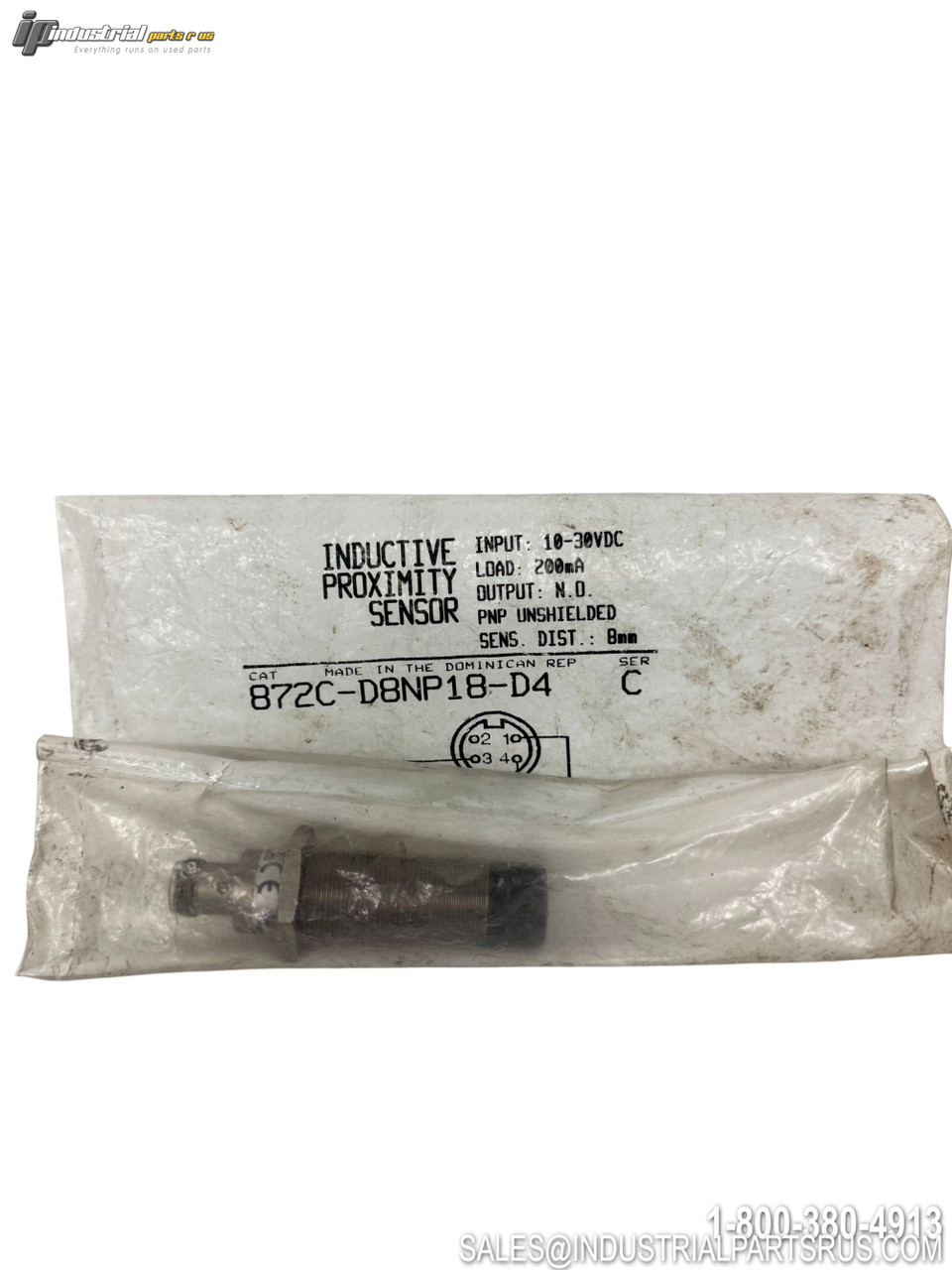

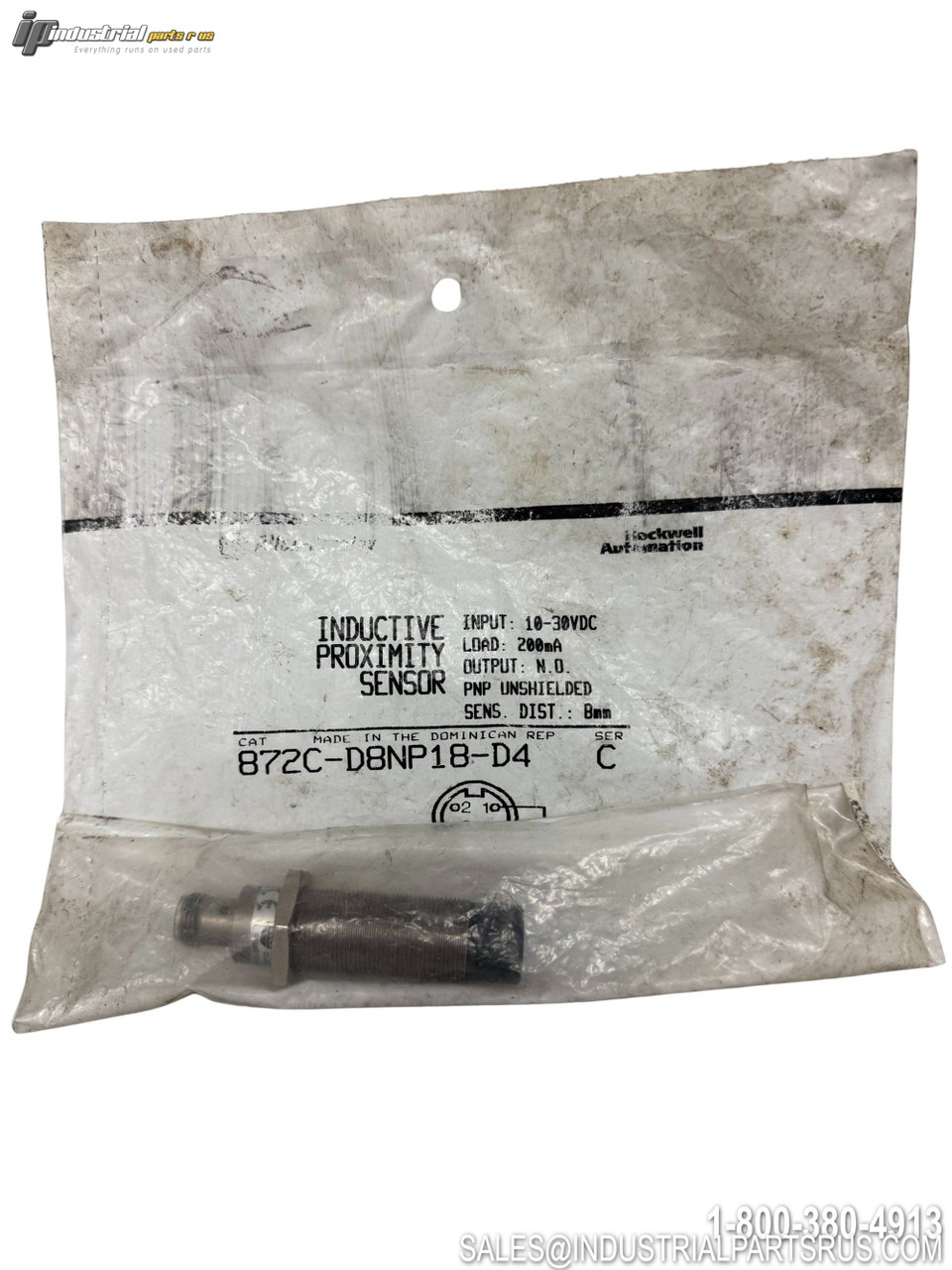

The Allen-Bradley 872C-D8NP18-D4 is an 18mm barrel inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation applications. This 3-wire DC sensor features PNP (source) output with 8mm sensing distance and operates on 10-30VDC with micro quick-disconnect connector for easy installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 872C-D8NP18-D4 |
| Series | 872C WorldProx |
| Barrel Diameter | 18mm |
| Sensing Range | 8mm |
| Output Type | PNP (Source) |
| Output Mode | Normally Open (NO) |
| Voltage | 10-30VDC |
| Current Type | 3-Wire DC |
| Maximum Load Current | 200mA |
| Operating Frequency | 1500Hz |
| Connection Type | 4-Pin DC Micro QD |
| Connection Size | M12x1 |
| Material | Nickel-Plated Brass |
| Shielding | Unshielded |
| Enclosure Rating | IP67, NEMA 4/6P/12/13 |
| Temperature Rating | -25°C to +70°C (-13°F to +158°F) |
| Body Style | Barrel/Cylindrical |
| Mounting Type | Threaded |
| Certifications | UL, CUL, CE, RCM, KC, CCC |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Inductive
Operating Distance 8mm
Full Load Amps 200mA
Manufacturer Allen-Bradley
Enclosure Type IP67
Part Number 872C-D8NP18-D4
Shelf O-5
Model 872C-D8NP18-D4
MPN 872C-D8NP18-D4
Type Inductive Proximity Sensor
