Product Description

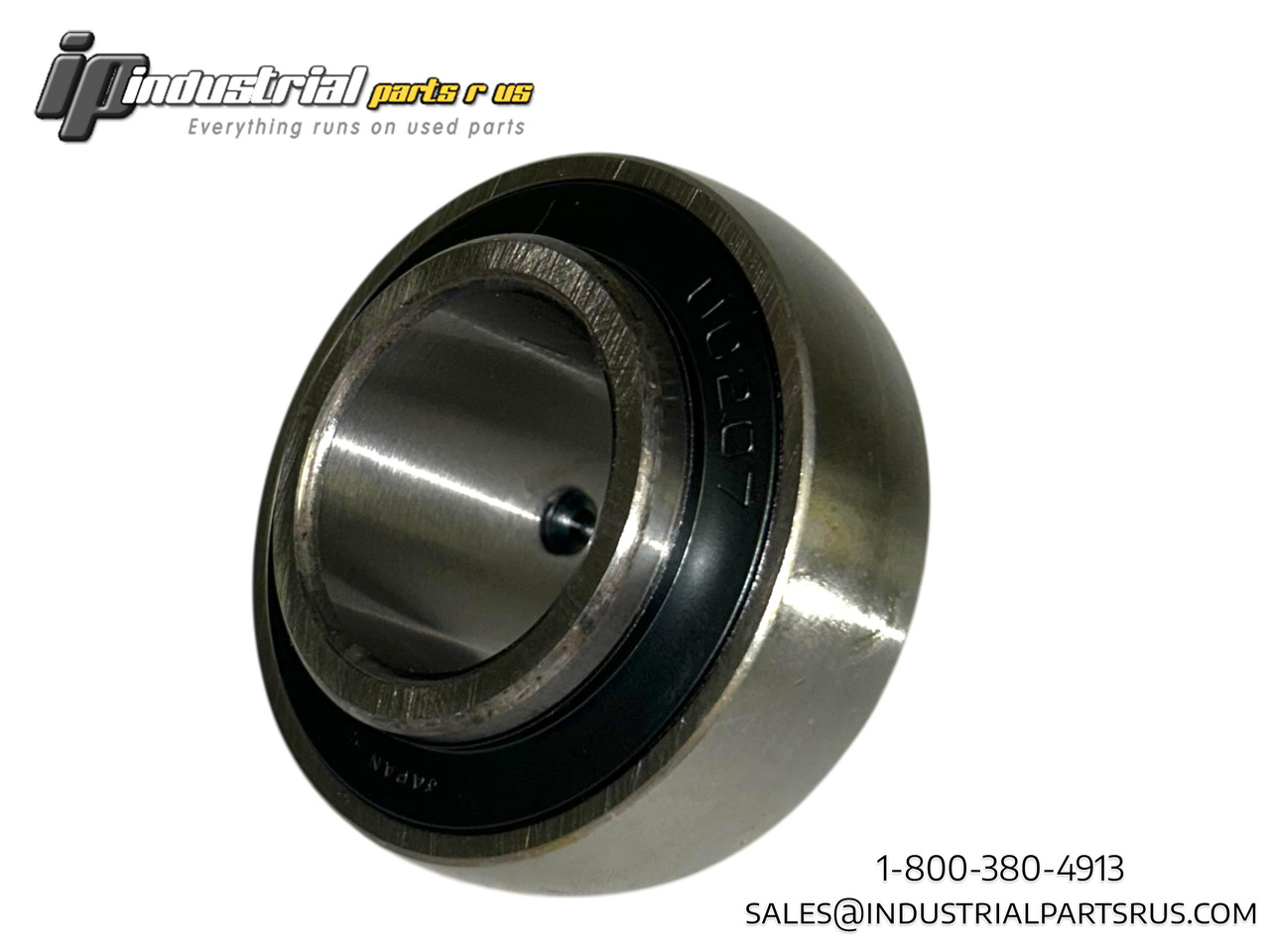

The AMI UC207-23 is a normal duty ball bearing insert designed for spherical housing applications. This wide inner ring bearing insert features set screw locking and contact sealing with slinger for reliable performance in industrial machinery. The bearing utilizes AISI 52100 steel construction and is part of the UC200 series from AMI Bearings.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AMI |
| Model/Part Number | UC207-23 |
| Bore Diameter | 1-7/16 in |
| Outside Diameter | 2.8346 in (72 mm) |
| Overall Width | 1.6890 in |
| Outer Ring Width | 0.787 in (20 mm) |
| Dynamic Load Rating | 5820 lbf |
| Static Load Rating | 3460 lbf |
| Material | AISI 52100 Steel |
| Seal Type | Contact Seal with Slinger |
| Locking Device | Set Screw |
| Inner Ring Type | Wide |
| Bearing Type | Ball Bearing |
| Series | UC200 |
| Duty Rating | Normal Duty |
| Relubrication | Yes |
| UPC | 0808250105304 |
| Weight | 0.91 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Japan
GTIN 679523686161
Manufacturer Ami
Part Number UC207-23
Shelf A-3
Model UC207-23
MPN UC207-23
Type Ball Bearing Insert
