Product Description

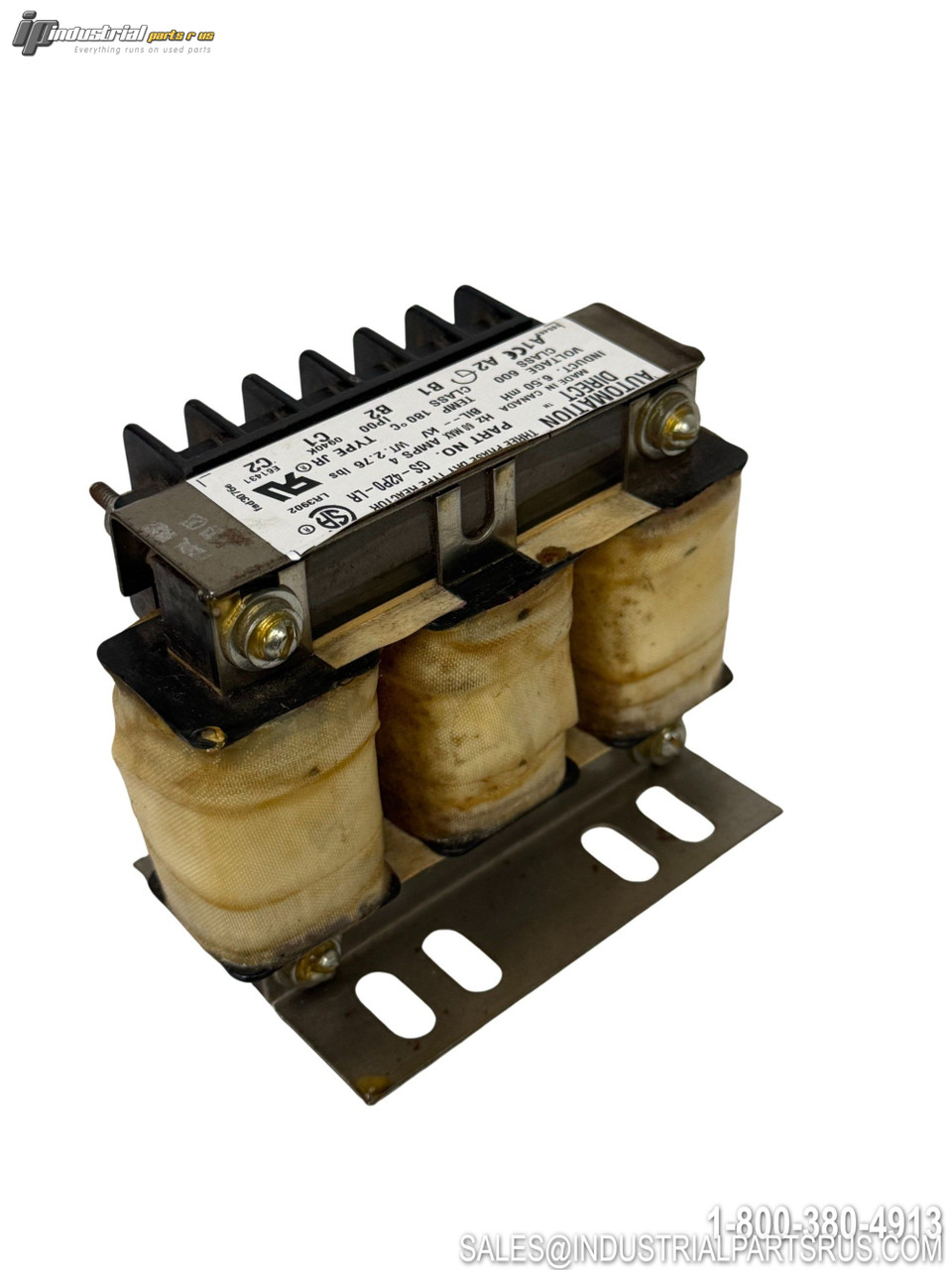

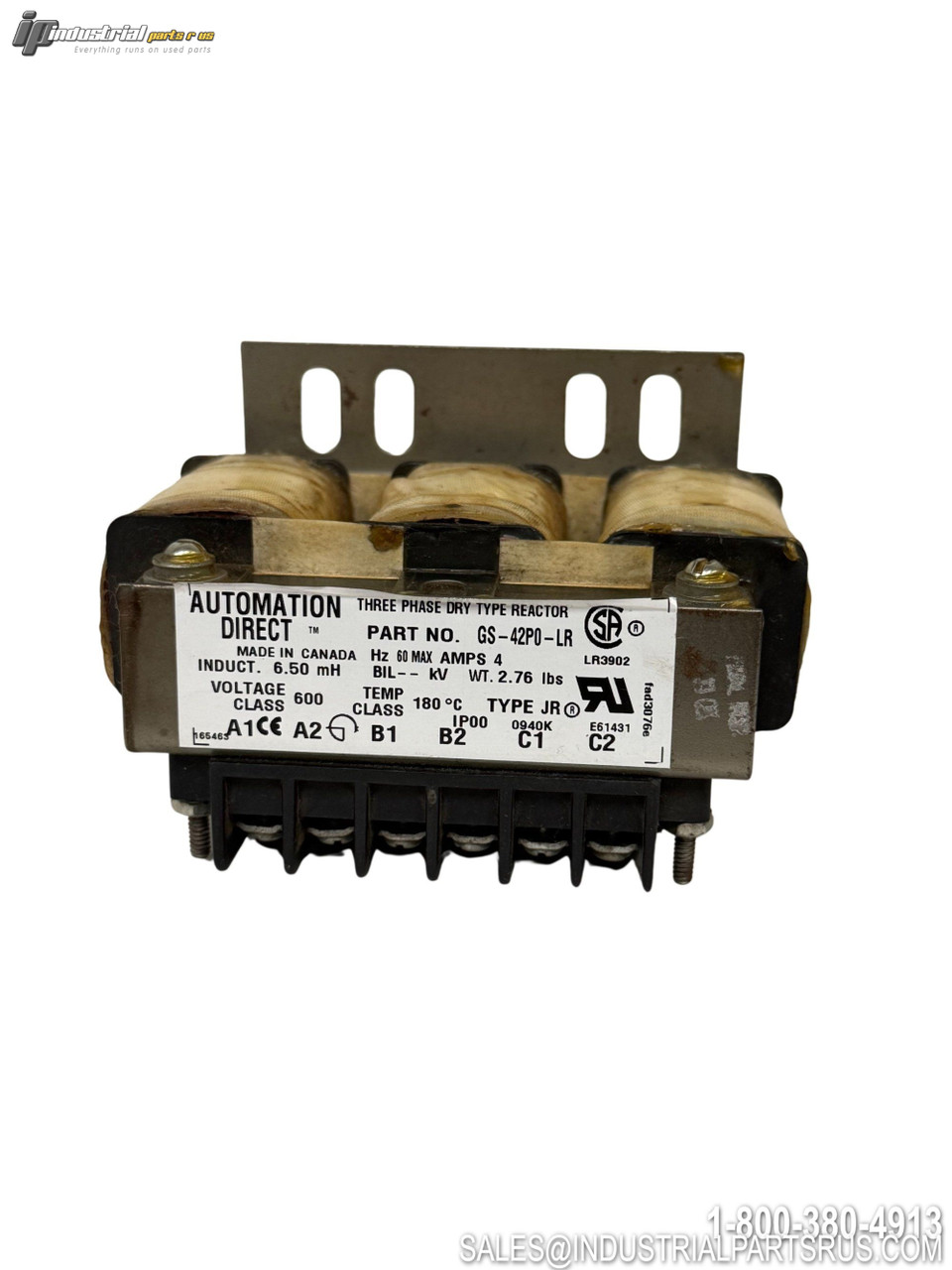

The Automation Direct GS-42P0-LR is a three-phase AC line reactor designed for use with GS2 and GS3 series variable frequency drives. This dry type reactor features 6.50 mH inductance with 3% impedance and is rated for 4 amps. It supports both input and output applications for 460V/575V drives with 2.0/3.0 HP ratings. Line reactors protect VFDs from line transients and reduce harmonic distortion in the power system.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Automation Direct |
| Model/Part Number | GS-42P0-LR |
| Product Type | Line Reactor |
| Reactor Type | AC Line/Load Reactor |
| Construction | Three Phase Dry Type |
| Rated Current | 4 Amps |
| Voltage Rating | 460V/575V |
| Frequency | 60 Hz |
| Horsepower Rating | 2.0 HP (460V) / 3.0 HP (575V) |
| Inductance | 6.50 mH |
| Impedance | 3% |
| Power Loss | 13 Watts |
| Compatible Drives | GS2-42P0, GS2-53P0, GS3-42P0 |
| Application | Input/Output |
| Status | Discontinued (Retired 11/2011) |
| Weight | 2.81 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer AutomationDirect
Part Number GS-42PO-LR
Shelf I-15
Model GS-42PO-LR
MPN GS-42PO-LR
Type Line Reactor
