Product Description

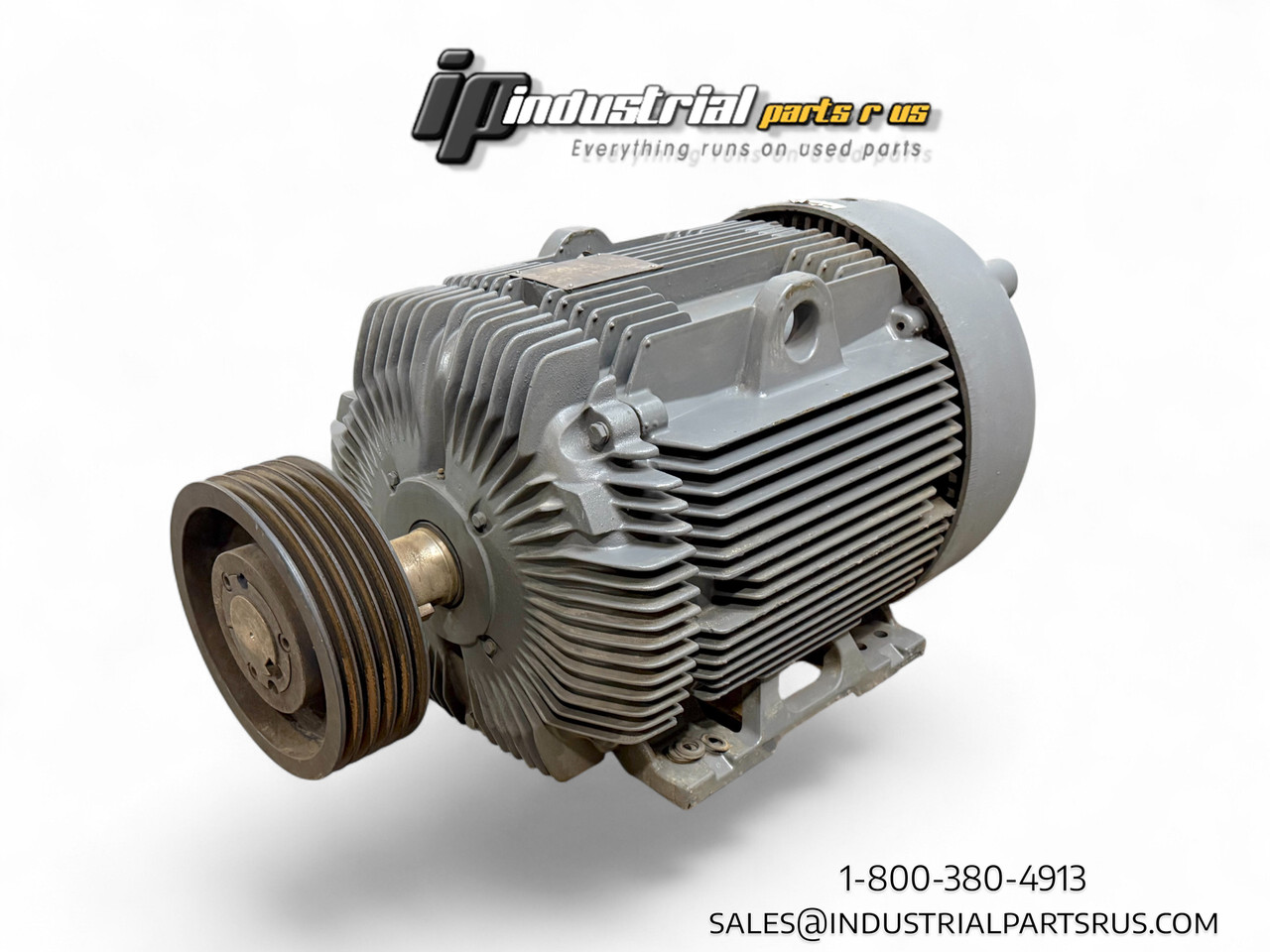

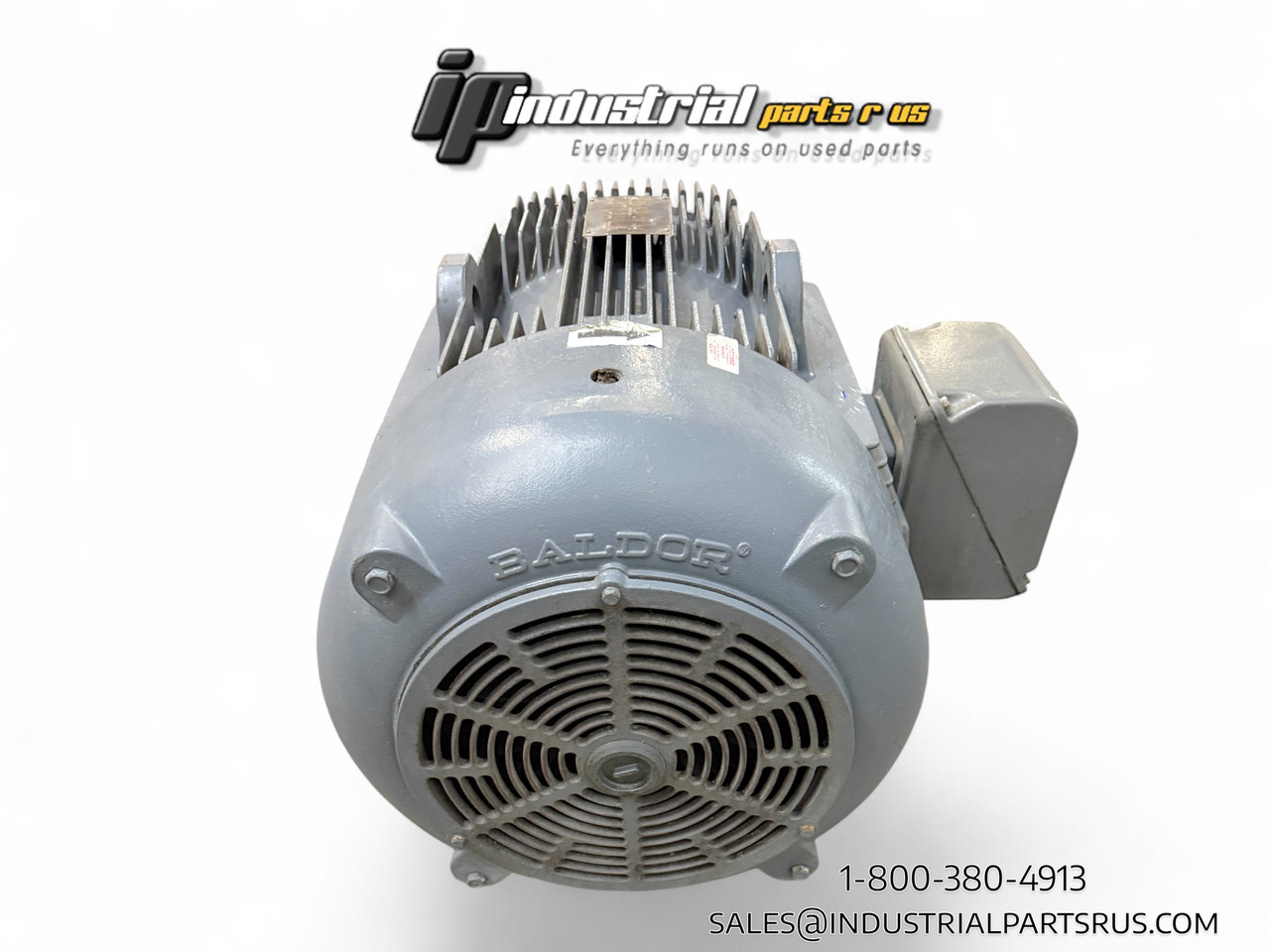

Baldor 125Hp Electric Motor 1780 RPM 444T Frame TEFC 460v 3 Ph. Used in Great Condition with 30 Day Warranty.Catalog Number: M4410T-4
Enclosure: TEFC
Frame4: 44T
Frame Material: Cast Iron
Frequency: 60.00 Hz
Motor Letter Type: Three Phase
Output @ Frequency: 125.000 HP @ 60 HZ
Phase: 3
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
Ambient Temperature: 40 °C
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Current @ Voltage: 140.000 A @ 460.0 V
Design Code: B
Duty Rating: CONT
Efficiency @ 100% Load: 94.5 %
Feedback Device: NO FEEDBACK
High Voltage Full Load Amps: 140.0 a
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Motor Lead Quantity/Wire Size: 6 @ 4 AWG
Motor Type: A44054M
Mounting Arrangement: F1
Number of Poles: 4
Overall Length: 44.62 IN
Power Factor: 88
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Service Factor: 1.15
Shaft Diameter: 2.375 IN
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed: 1780 rpm
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Wye Start - Delta Run
Product Videos
Custom Field
GTIN 721814245141
Country/Region of Manufacture United States
Full Load Amps 141
Manufacturer Baldor
Shaft Diameter 2 3/8 in
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Shelf Pallet Racking
Model M4410T-4
Horsepower 125
MPN M4410T-4
Type Electric Motor
