Product Description

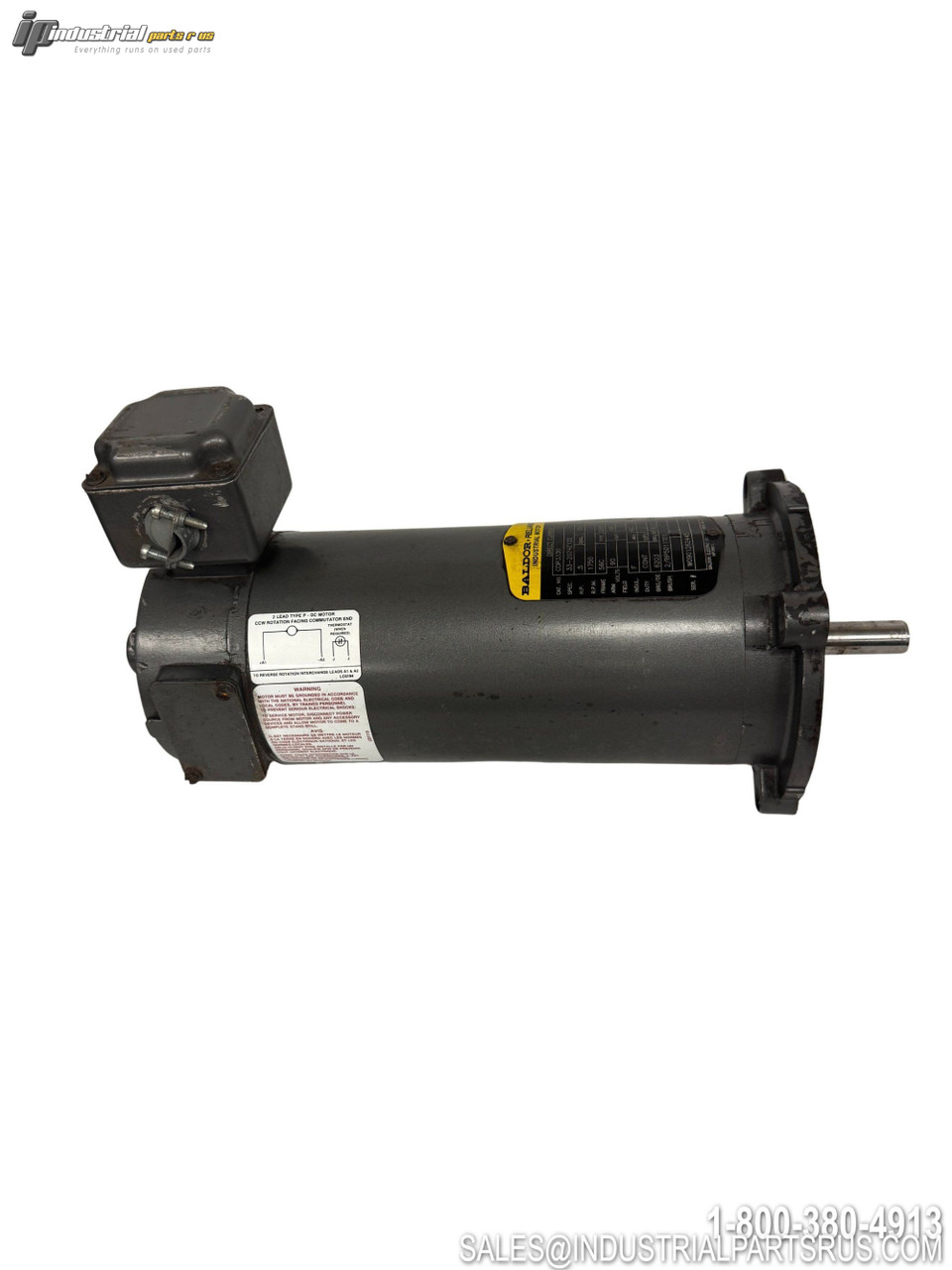

The Baldor CDP3330 is a permanent magnet DC motor designed for variable speed applications requiring constant torque. This motor features C-face mounting with removable base, making it ideal for conveyors, mixers, and packaging machinery applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Baldor |
| Model/Part Number | CDP3330 |
| Motor Type | Permanent Magnet DC Motor |
| Horsepower | 0.5 HP (1/2 HP) |
| RPM | 1750 |
| Armature Voltage | 90 VDC |
| Armature Current | 4.8 A |
| Frame Size | 56C |
| Enclosure Type | TENV |
| Insulation Class | F |
| Mounting Type | C-Face with Base (F1) |
| Shaft Diameter | 5/8 inch (0.625 in) |
| Service Factor | 1.00 |
| Torque | 3 ft-lb |
| Speed Range | 20:1 Constant Torque |
| Bearing Type | Double Sealed Ball Bearings (6203) |
| Duty Rating | Continuous (CONT) |
| Overall Length | 14.94 inches |
| Weight | 31-32 lbs |
| Baldor Type | 3336P |
| Rotation | Reversible |
| Certifications | UL Recognized, CSA Certified, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 4.8A
Manufacturer Baldor
Shaft Diameter 0.625 in
Enclosure Type TENV
Part Number CDP3330
Shelf H-3
Model CDP3330
MPN CDP3330
Type DC Motor
