Product Description

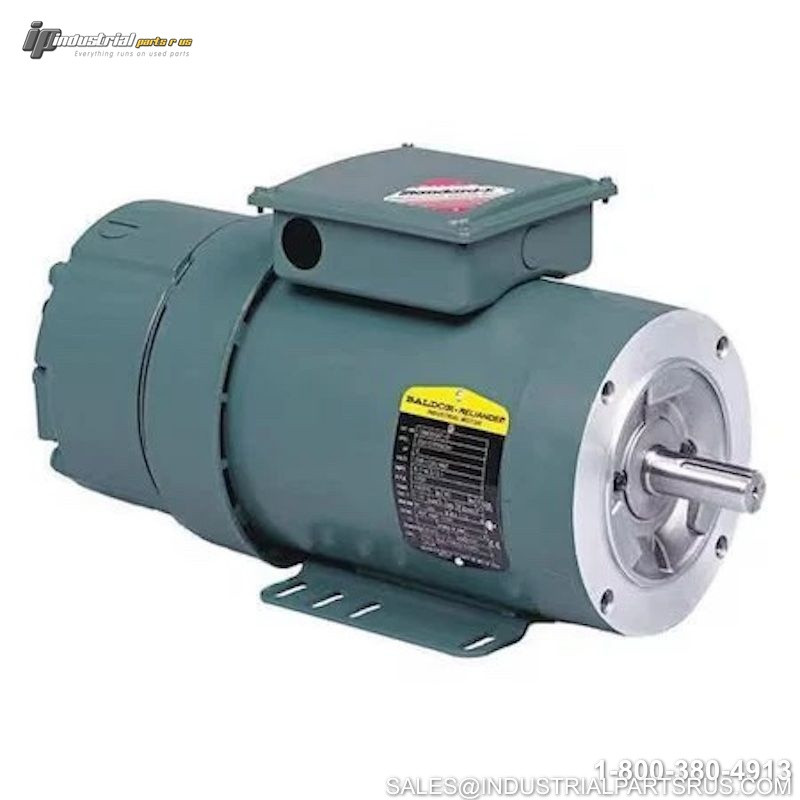

The Baldor VEBM3611T is a three-phase AC brake motor designed for applications requiring quick stops and positive holding capabilities. This motor features NEMA Premium efficiency and is suitable for inverter use with machine tools, conveyors, door operators, and speed reducers. The spring-set brake automatically resets and includes power-off manual release functionality.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Baldor |
| Model/Part Number | VEBM3611T |
| Power Output | 3.0 HP |
| Base RPM | 1760 |
| Synchronous Speed | 1800 RPM |
| Voltage | 230/460V |
| Phase | 3 |
| Frequency | 60 Hz |
| Full Load Amps | 8.4A @ 230V / 4.2A @ 460V |
| Frame Size | 182TC |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Mounting Type | C-Face, Footless |
| Brake Torque | 15.0 lb-ft |
| Service Factor | 1.15 |
| Insulation Class | F |
| Design Code | B |
| Efficiency @ 100% Load | 89.5% |
| Duty Rating | Continuous |
| Shaft Diameter | 1.125" |
| Bearing Grease Type | Polyrex EM |
| Inverter Code | Inverter Ready |
| Overall Length | 21.11" |
| Motor Weight | 80 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 8.4A @ 230V / 4.2A @ 460V
Manufacturer Baldor
Shaft Diameter 1.125 in
Enclosure Type TEFC
Part Number VEBM3611T
Shelf PR-TOP
Model VEBM3611T
MPN VEBM3611T
Type Electric Motor
