Product Description

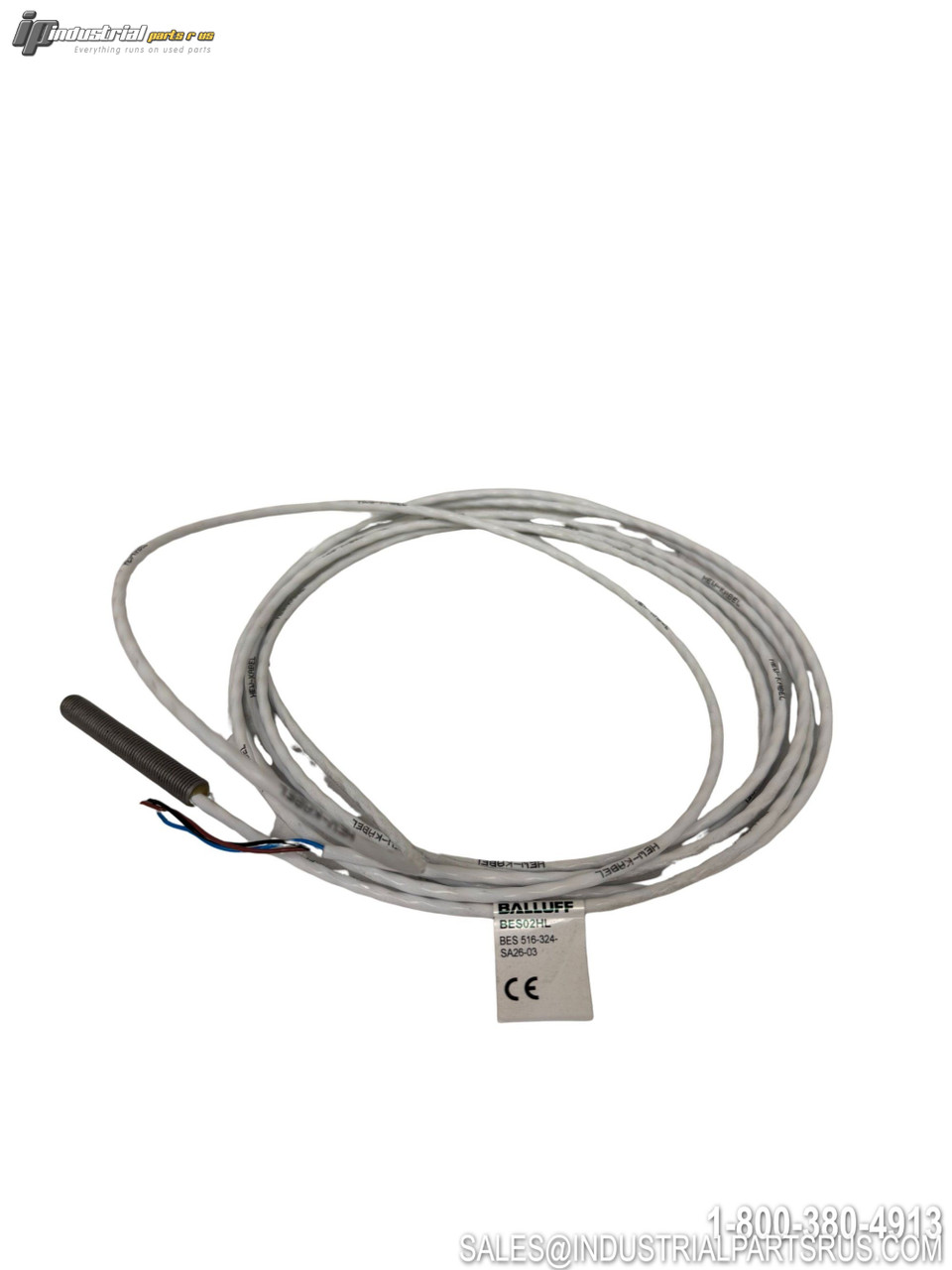

The Balluff Bes02hl (BES 516-324-SA26-03) is a robust inductive proximity sensor designed for metal object detection in industrial applications. This sensor features a stainless steel housing with M8x1 threading for flush mounting installation and delivers reliable performance with a 2mm sensing range and PNP normally open switching output.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | Bes02hl |
| Alternate Part Number | BES 516-324-SA26-03 |
| Sensor Type | Inductive |
| Sensing Range | 2 mm |
| Output Type | PNP Normally Open (NO) |
| Switching Frequency | 1500 Hz |
| Operating Voltage | 10-30 VDC |
| Current Rating | 200 mA |
| Dimensions | Ø 8 x 55.5 mm |
| Housing Type | M8x1 |
| Installation Type | Flush mounting |
| Housing Material | Stainless steel |
| Sensing Surface Material | PBT |
| Connection Type | Cable, 3.00 m, PTFE |
| Operating Temperature | -25...120 °C |
| IP Rating | IP67 |
| Approvals | CE, UKCA, cULus, WEEE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Output Type PNP
Sensor Type Inductive
Operating Distance 2 mm
Manufacturer Balluff
Part Number BES02HL
Shelf K-61 Tub 2
Model BES 516-324-SA26-03
MPN BES02HL
Type Inductive Proximity Sensor
