Product Description

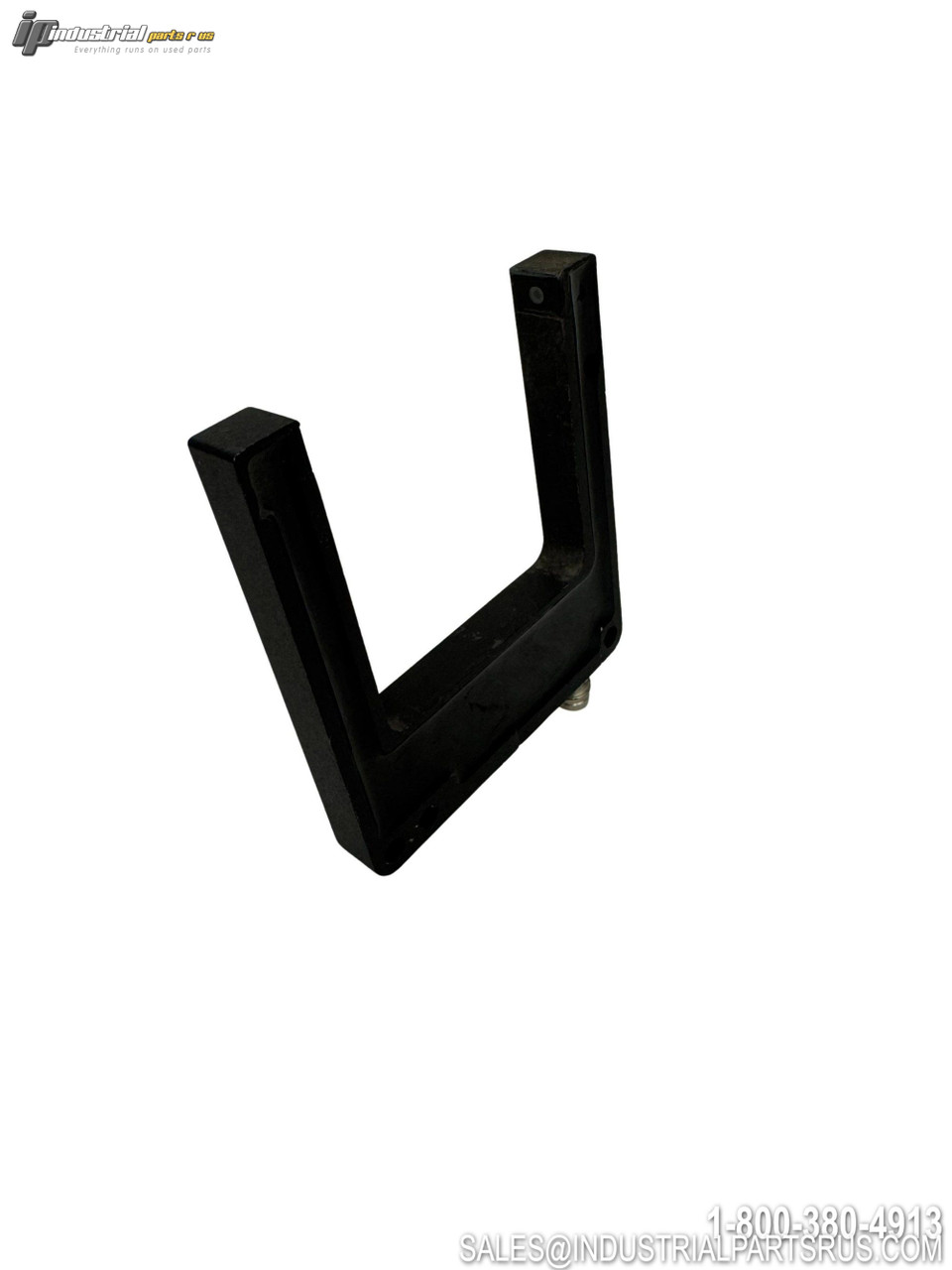

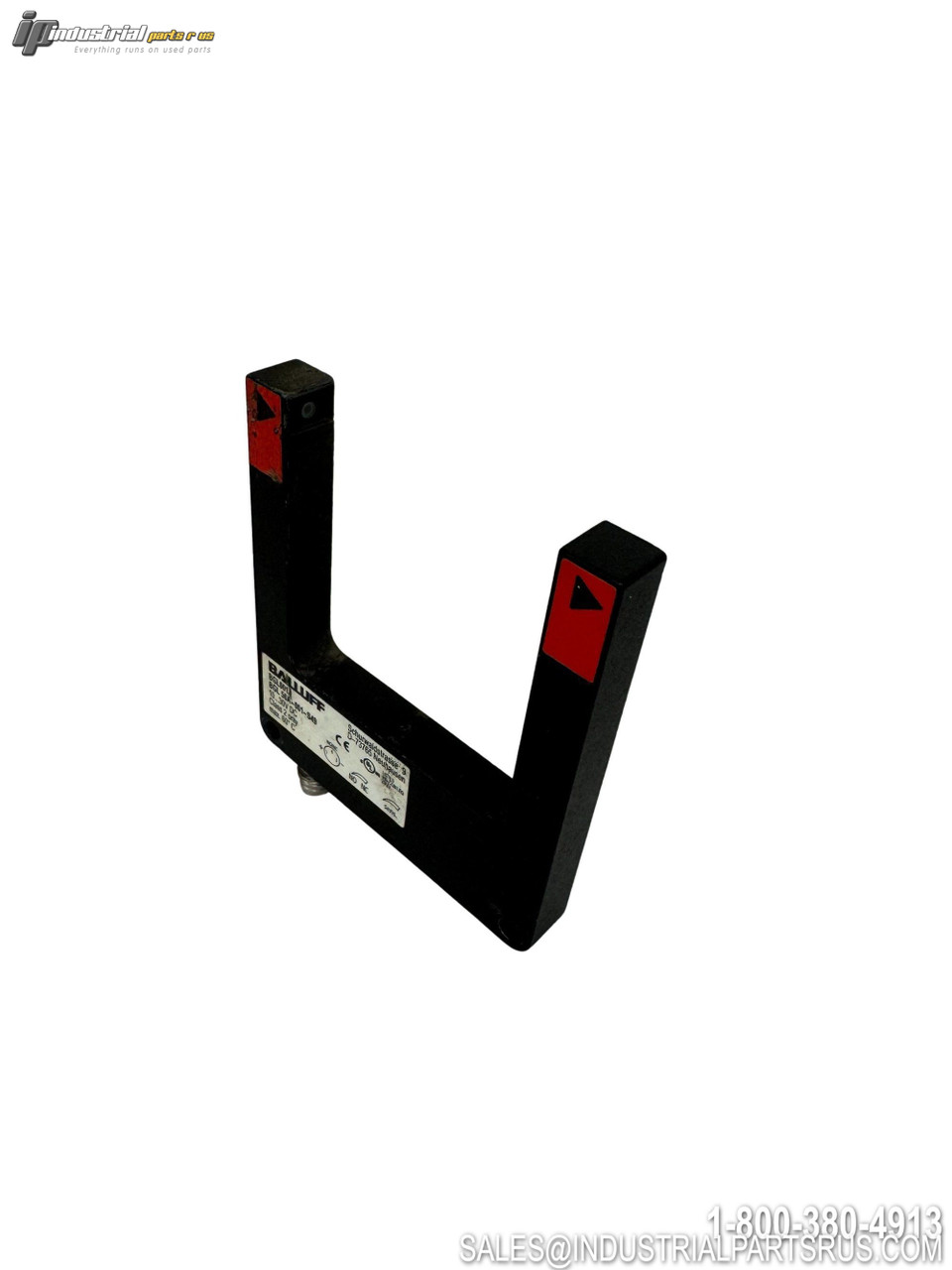

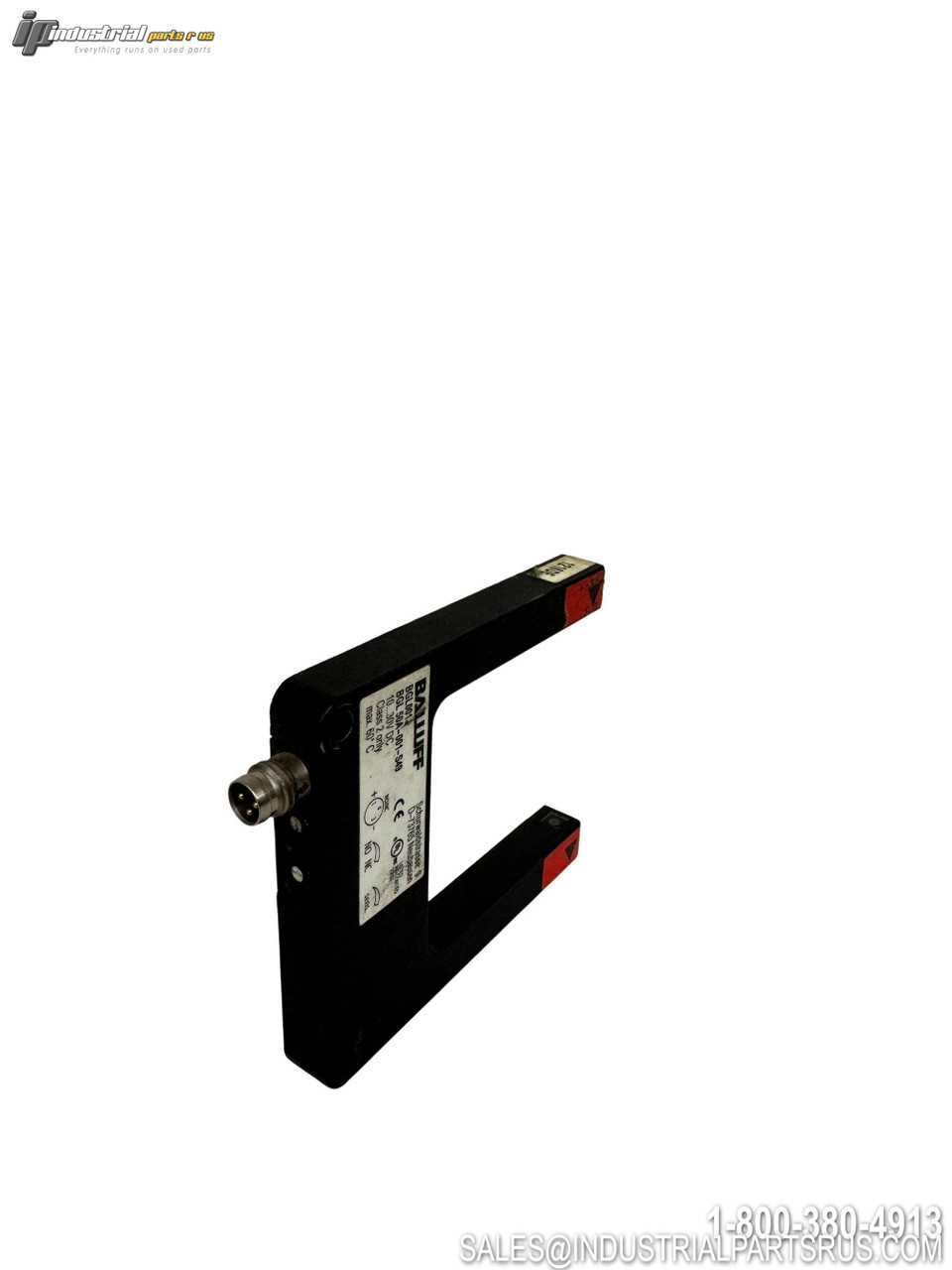

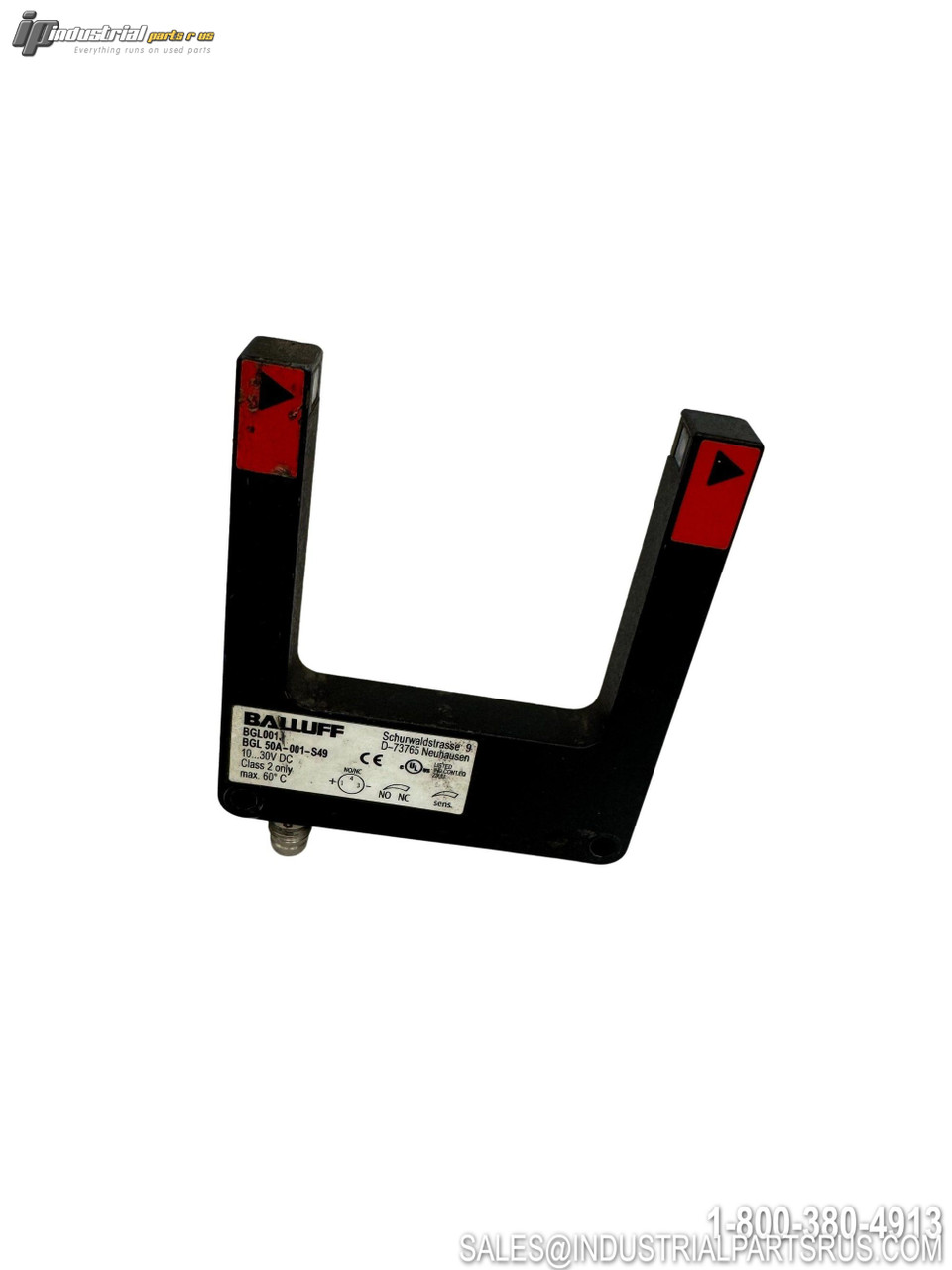

The Balluff BGL 50A-001-S49 is a photoelectric fork sensor designed for precise object detection in industrial automation applications. This through-beam sensor features a 50mm fork opening and PNP output with normally open/normally closed switching capability, making it ideal for detecting small components and providing reliable process control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BGL 50A-001-S49 |
| Order Code | BGL001J |
| Series | A |
| Fork Opening | 50mm |
| Sensing Range | 0-50mm |
| Output Type | PNP |
| Contact Configuration | NO/NC Switchable |
| Supply Voltage | 10-30 VDC |
| Output Current | 200mA |
| Supply Current | 35mA |
| Switching Frequency | 1.5kHz |
| Operating Temperature | -10°C to 60°C |
| Connection Type | M8x1 Male 3-Pin Connector |
| Housing Material | Zinc Die Casting, Painted |
| Sensing Surface Material | Glass |
| Dimensions | 10 x 70 x 88 mm |
| IP Rating | IP65 |
| Light Type | LED Red Light |
| Beam Characteristic | Divergent |
| Light Spot Size | Ø 1.5mm Light Exit |
| Approvals | CE, cULus, WEEE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Fork Sensor
Full Load Amps 35mA
Manufacturer Balluff
Part Number BGL 50A-001-S49
Shelf K-57
Model BGL 50A-001-S49
MPN BGL 50A-001-S49
Type Photoelectric Sensor
