Product Description

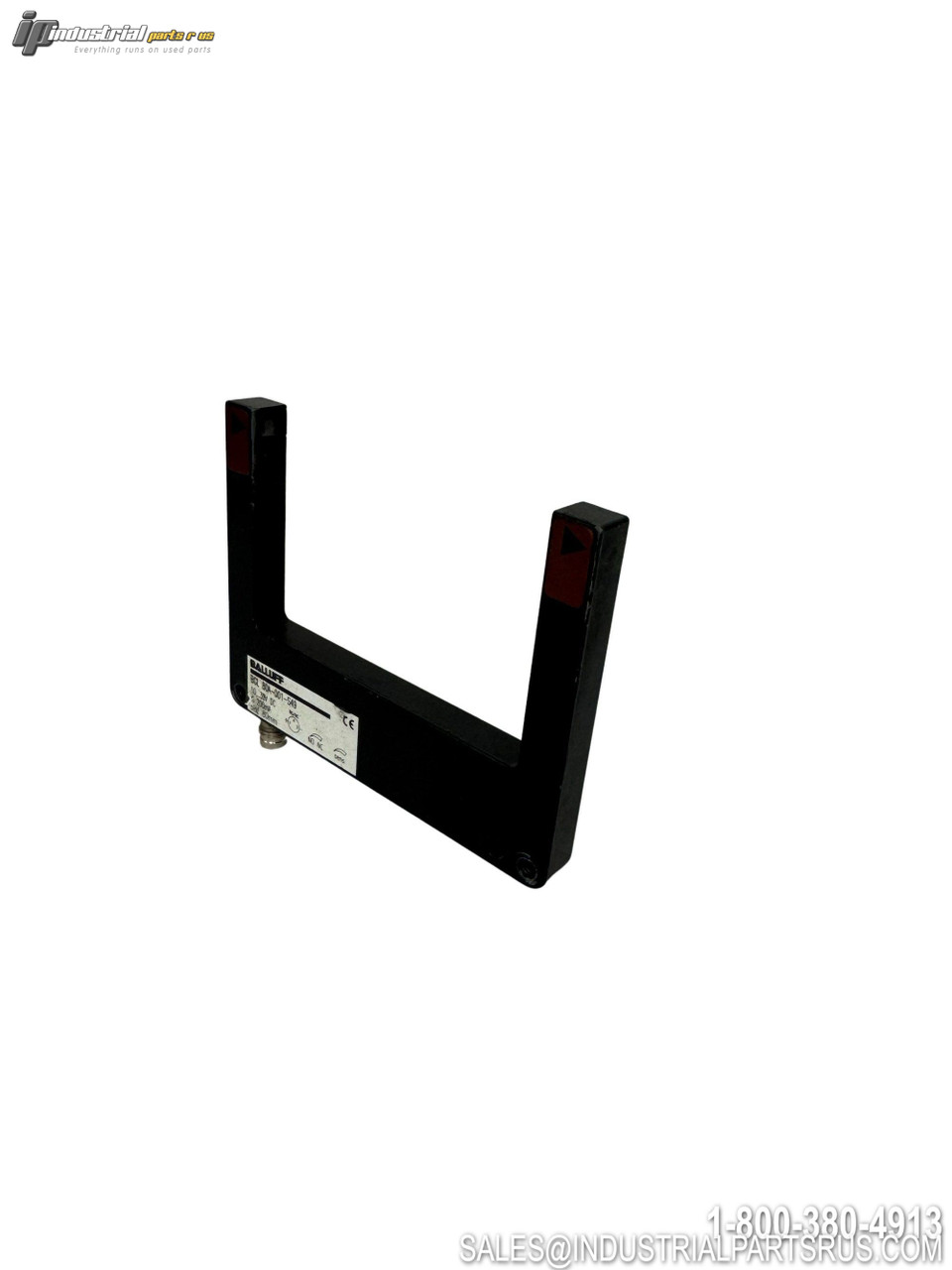

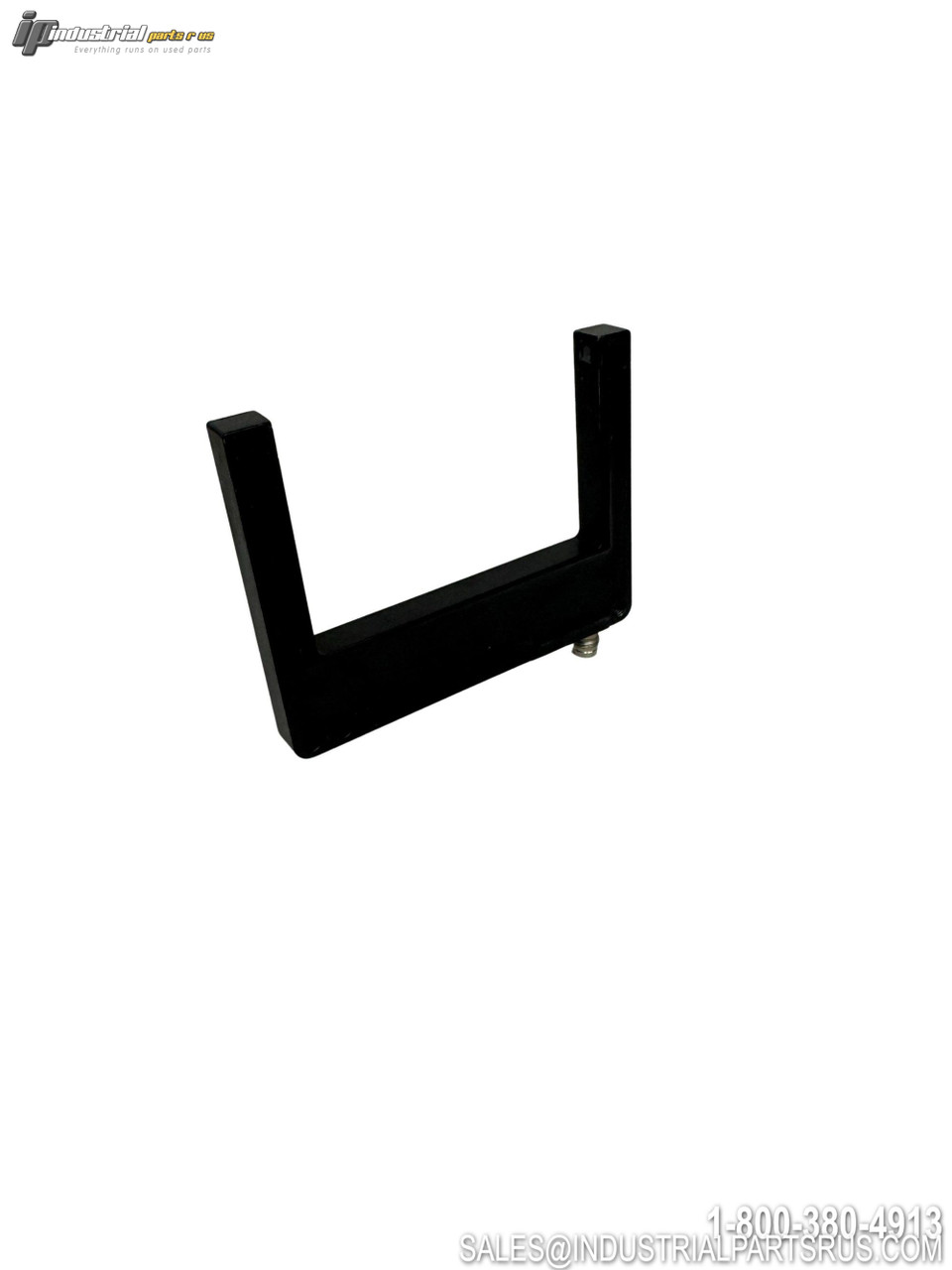

The Balluff BGL 80A-001-S49 is a fork-type photoelectric sensor designed for precise object detection and positioning applications. This self-contained through-beam sensor features a U-shaped housing configuration that offers pinpoint accuracy with highly visible red LED emission. The integrated transmitter and receiver design saves mounting and machine setup time while providing reliable process control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BGL 80A-001-S49 |
| Order Code | BGL0023 |
| Series | A |
| Fork Opening | 80 mm |
| Sensing Range Max | 80 mm |
| Supply Voltage | 10-30V DC |
| Output Type | PNP |
| Contact Configuration | NO/NC Switchable |
| Operating Current Max | 200 mA |
| Supply Current | 35 mA |
| Light Type | LED Red (636 nm) |
| Frequency Response | 1.5 kHz |
| Operating Temperature | -10°C to +60°C |
| IP Rating | IP65/IP67 |
| Dimensions | 10 x 100 x 88 mm |
| Housing Material | Aluminum |
| Connection Type | M8 x 1 Male 3-Pin |
| Sensing Surface Material | Glass |
| Mounting | Screw M4, Through Hole |
| Optical Operation | Through-beam |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Photoelectric
Full Load Amps 200 mA
Manufacturer Balluff
Part Number BGL 80A-001-S49
Shelf K-57
Model BGL 80A-001-S49
MPN BGL 80A-001-S49
Type Photoelectric Sensor
