Product Description

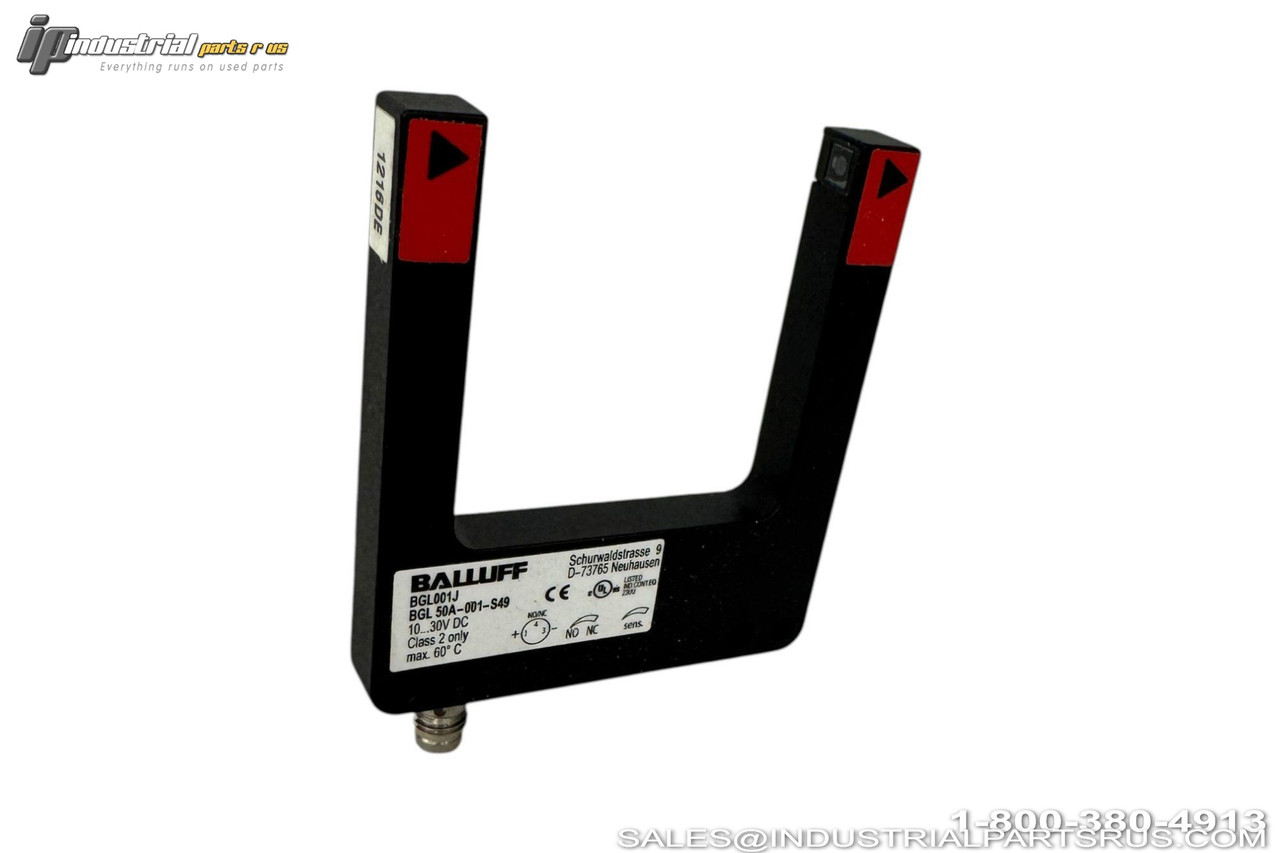

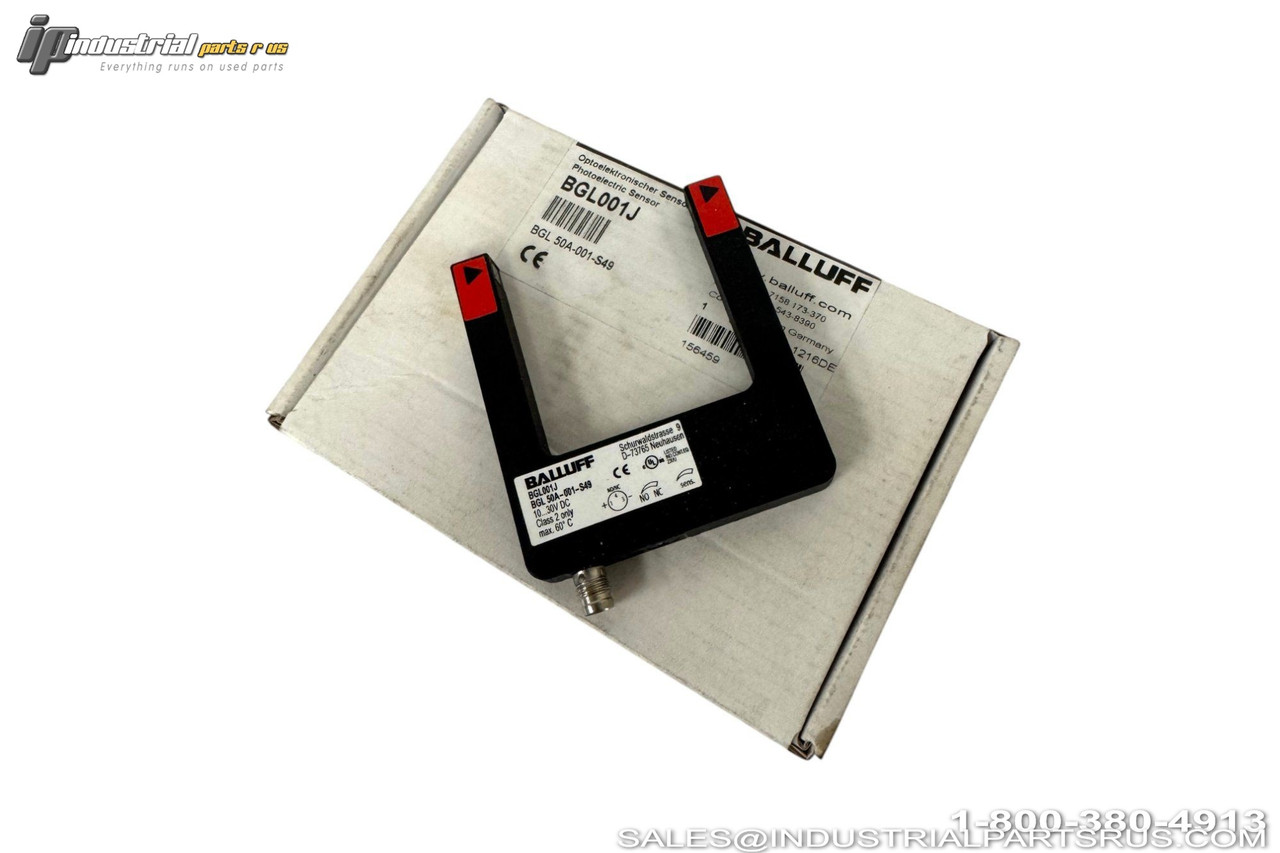

The BALLUFF BGL001J (BGL 50A-001-S49) is a precision photoelectric fork sensor designed for industrial automation applications. This through-beam sensor utilizes a red LED light source with divergent beam characteristics to detect objects passing through its 50mm fork opening. The sensor features PNP switching output with both normally open and normally closed contacts, making it versatile for various control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | BALLUFF |
| Model/Part Number | BGL001J |
| Full Model | BGL 50A-001-S49 |
| Series | A |
| Fork Opening | 50mm |
| Dimensions | 10 x 70 x 88 mm |
| Operating Voltage | 10-30 VDC |
| Output Type | PNP NO/NC |
| Light Type | LED Red light |
| Light Spot Size | Ø 1.5 mm |
| Beam Characteristic | Divergent |
| Connection Type | M8x1-Male, 3-pin |
| Housing Material | Zinc, Die casting, Painted |
| Sensing Surface Material | Glass |
| Principle of Operation | Fork sensor |
| Optical Operation | Through-beam sensor |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP NO/NC
Sensor Type Photoelectric
Manufacturer Balluff
Part Number BGL001J
Shelf K-51
Model BGL001J
MPN BGL001J
Type Fork Sensor
