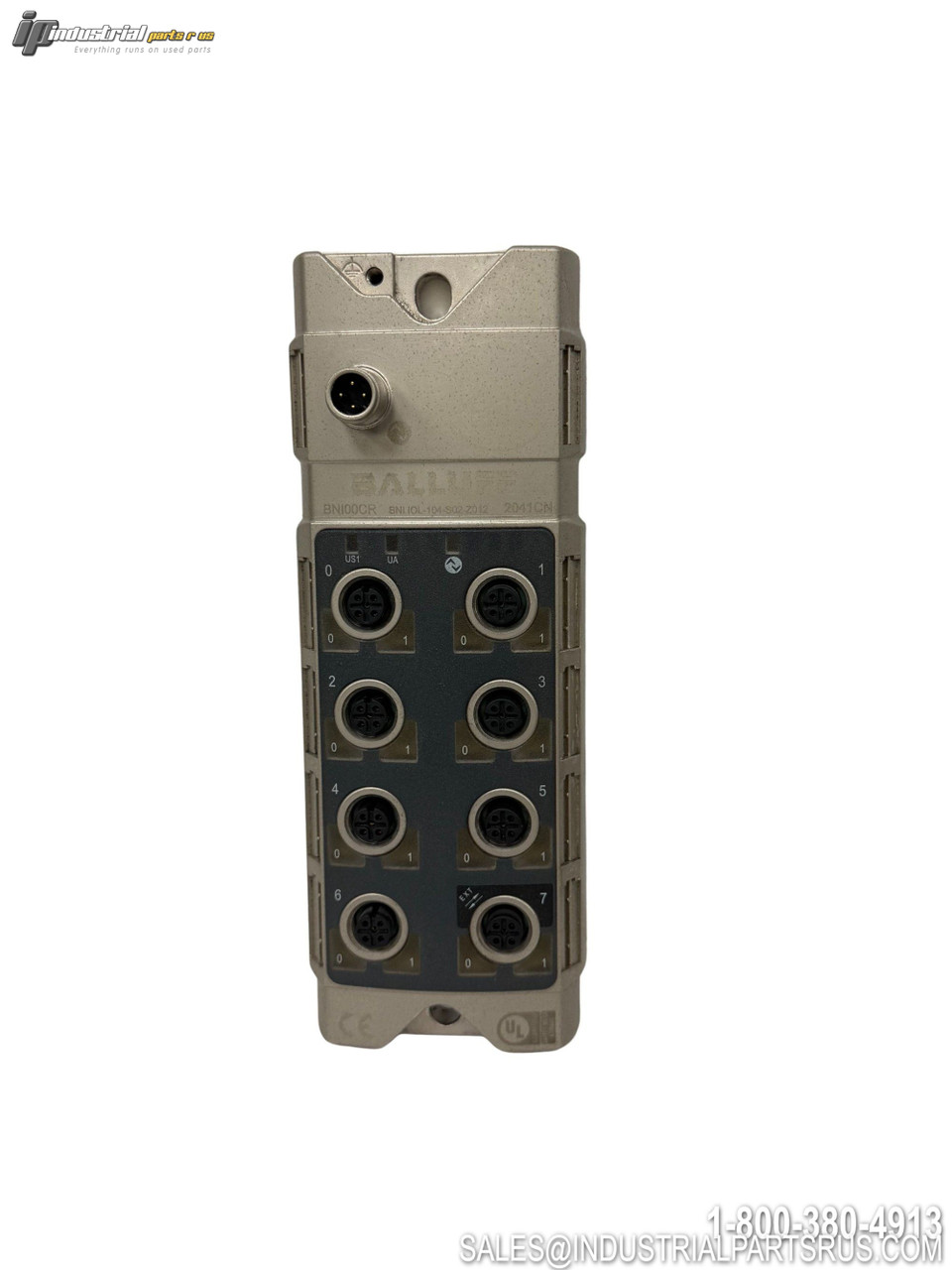

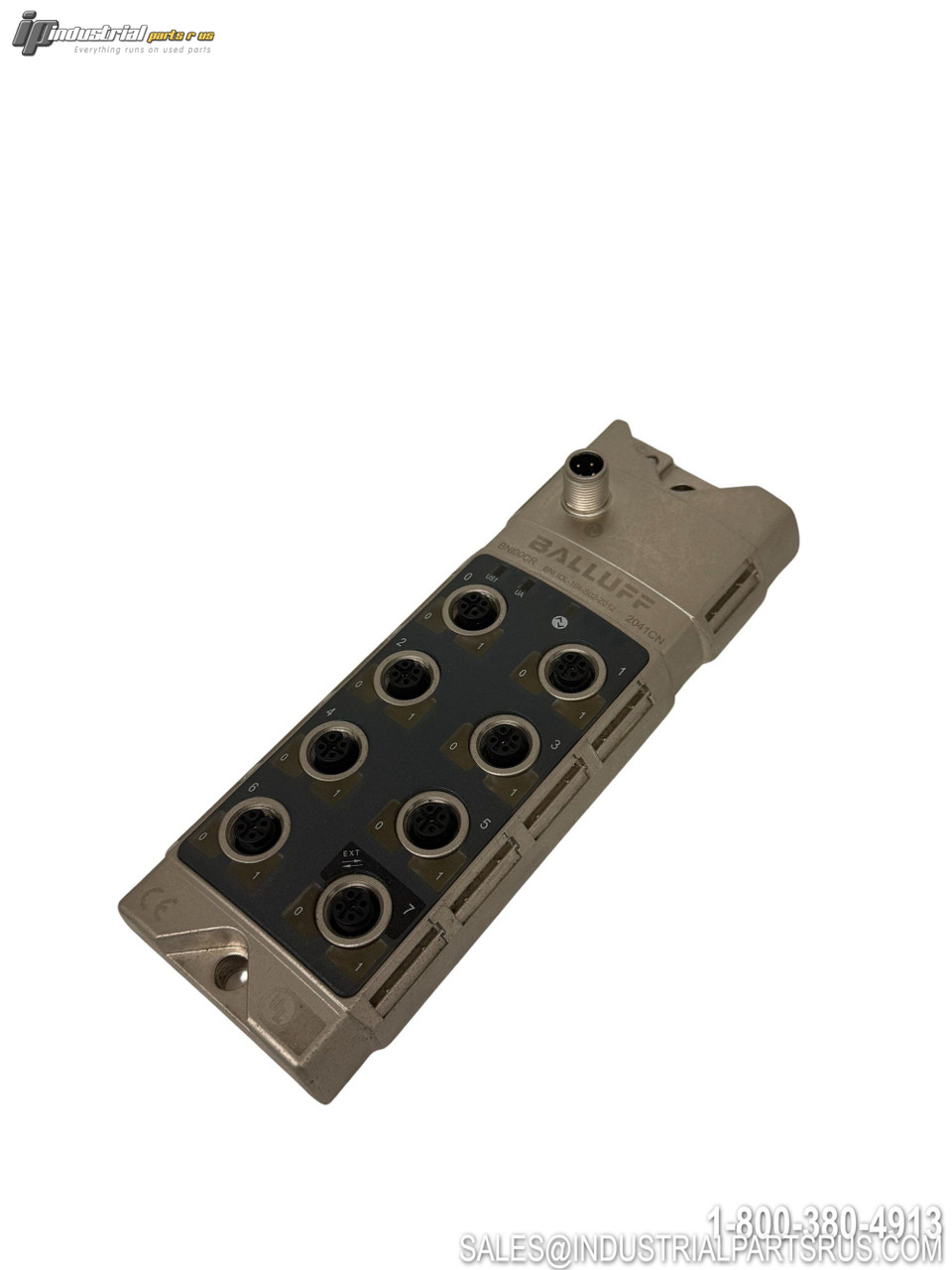

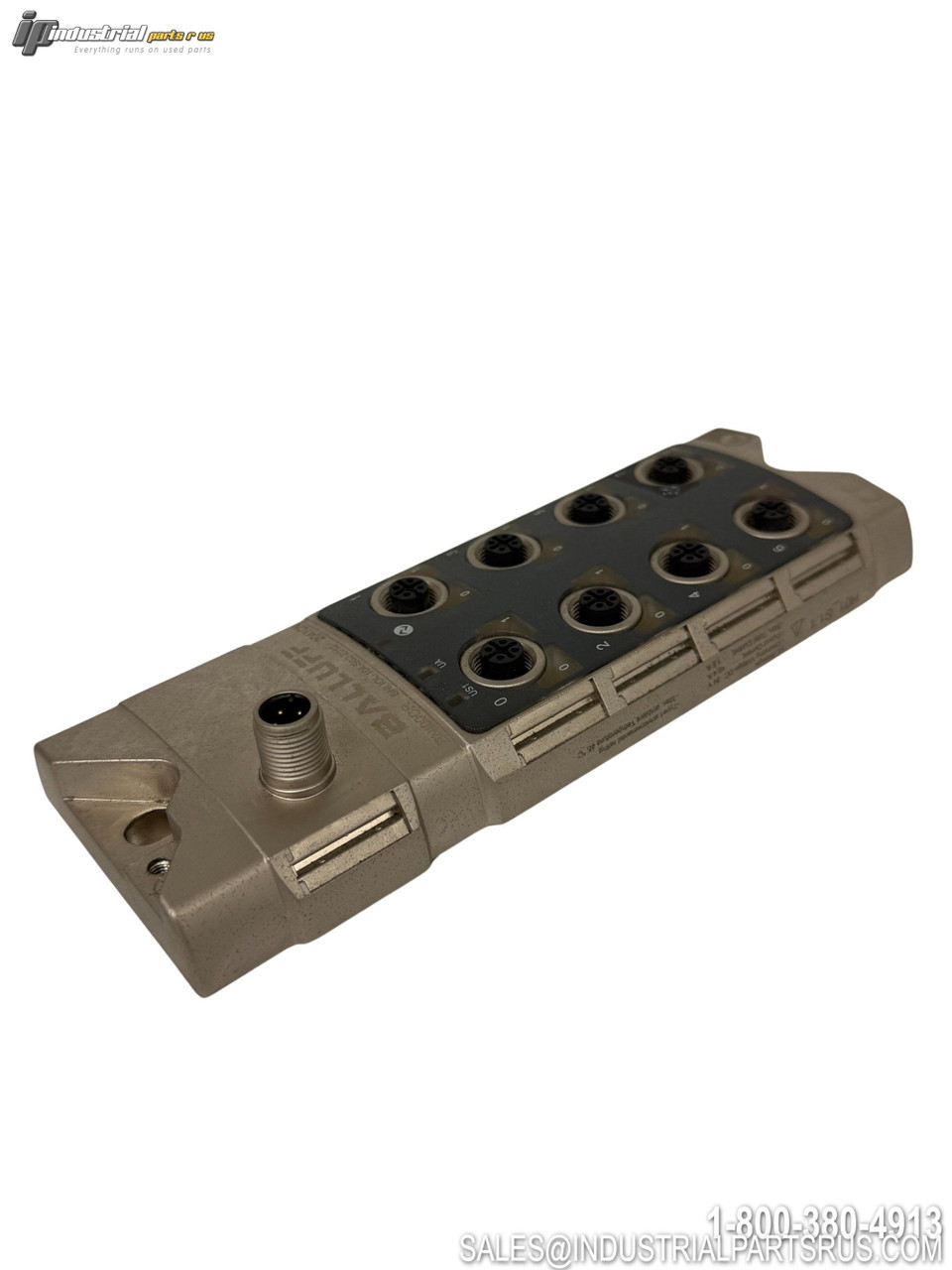

Product Description
The Balluff BNI00CR is an industrial IO-Link sensor/actuator hub designed for robust automation applications. This I/O module provides 8 connection slots with M12 connectors and supports 16 digital inputs with PNP transistor technology. The unit operates on 18-30.2 VDC supply voltage and features IO-Link 1.1 interface for modern industrial networking requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BNI00CR |
| Full Model Number | BNI IOL-104-S02-Z012 |
| Interface | IO-Link 1.1 |
| Operating Voltage | 18-30.2 VDC |
| Nominal Voltage | 24 VDC |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Connection Slots | 8x M12x1-Female, 5-pin, A-coded |
| Digital Inputs | 16x PNP, Type 3 |
| Housing Material | Die-cast zinc, nickel-plated |
| Dimensions | 68 x 31.8 x 181.5 mm |
| Current Sum (Sensor) | 4 A |
| Current Sum (Actuator) | 4 A |
| Extension Port | Yes |
| Single-Channel Monitoring | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 4 A
Manufacturer Balluff
Part Number BN100CR
Shelf K-51 Tub 3
Model BNI IOL-104-S02-Z012
MPN BN100CR
Type I/O Module
