Product Description

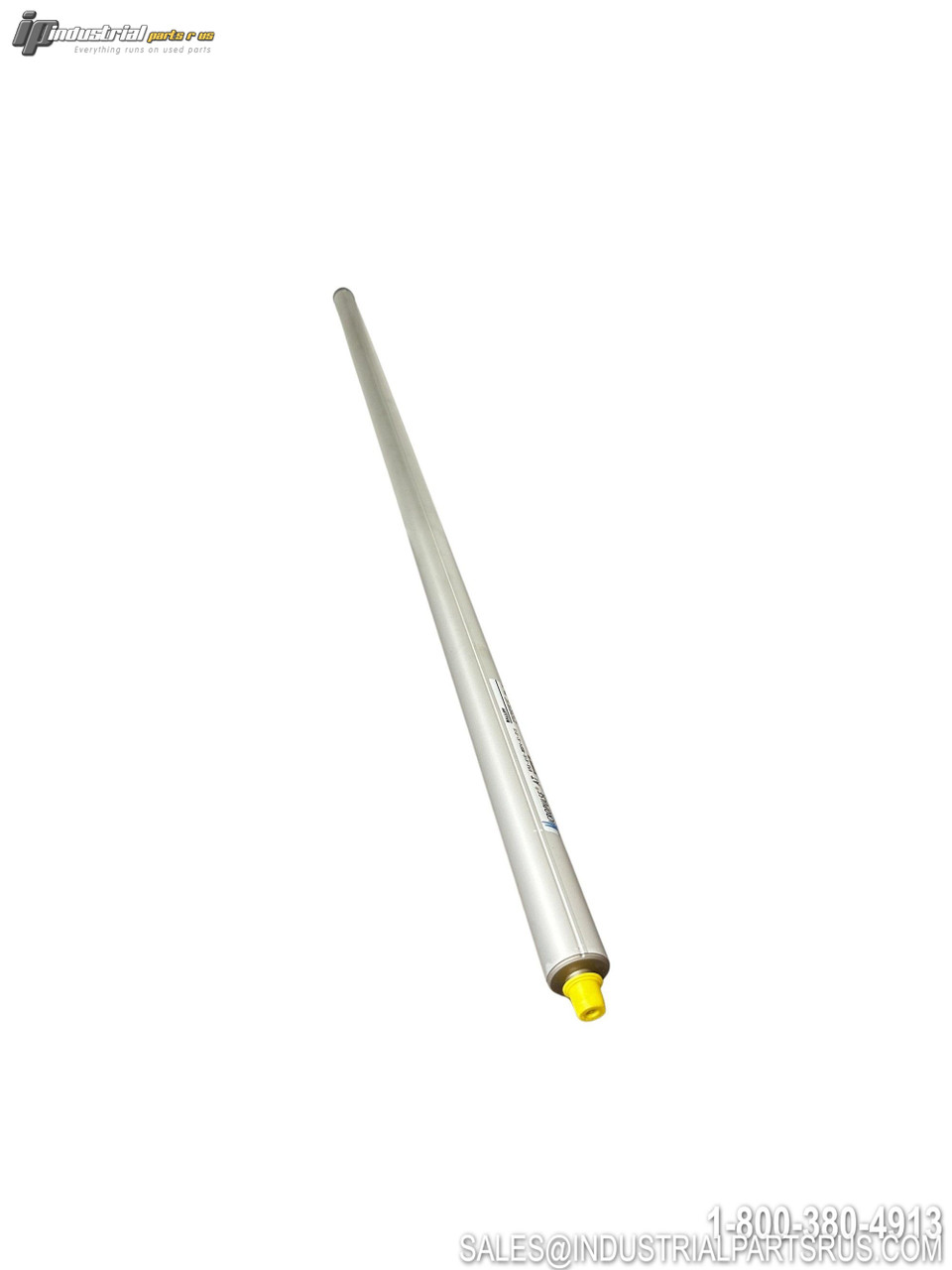

The Balluff BTL6-A110-M0914-A1-S115 is a magnetostrictive linear position sensor designed for precise, contact-free position measurement. This profile series transducer features a hermetically sealed aluminum housing with IP67 protection, making it suitable for harsh industrial environments including presses, injection molding machines, and gantry robots.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BTL6-A110-M0914-A1-S115 |
| Product Type | Magnetostrictive Linear Position Sensor |
| Series | Profile Series |
| Measuring Range | 914 mm |
| Housing Material | Aluminum, Anodized |
| Mounting Type | Mounting Clamps |
| Connection Type | Connector, M12x1, 8-pin |
| Analog Output | 0...10 V, 10...0 V |
| Operating Voltage | 20...28 VDC |
| Sampling Frequency | 1000 Hz |
| Resolution | ≤ 20 µm |
| Non-linearity | ±200 µm |
| Repeat Accuracy | ≤ ± 10 µm |
| Operating Temperature | 0...70 °C |
| IP Rating | IP67 |
| Maximum Magnets | 1 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Analog Voltage 0-10V / 10-0V
Sensor Type Magnetostrictive
Manufacturer Balluff
Part Number BTL6-A110-M0914-A1-S115
Shelf K-60
Model BTL6-A110-M0914-A1-S115
MPN BTL6-A110-M0914-A1-S115
Type Linear Sensor
