Product Description

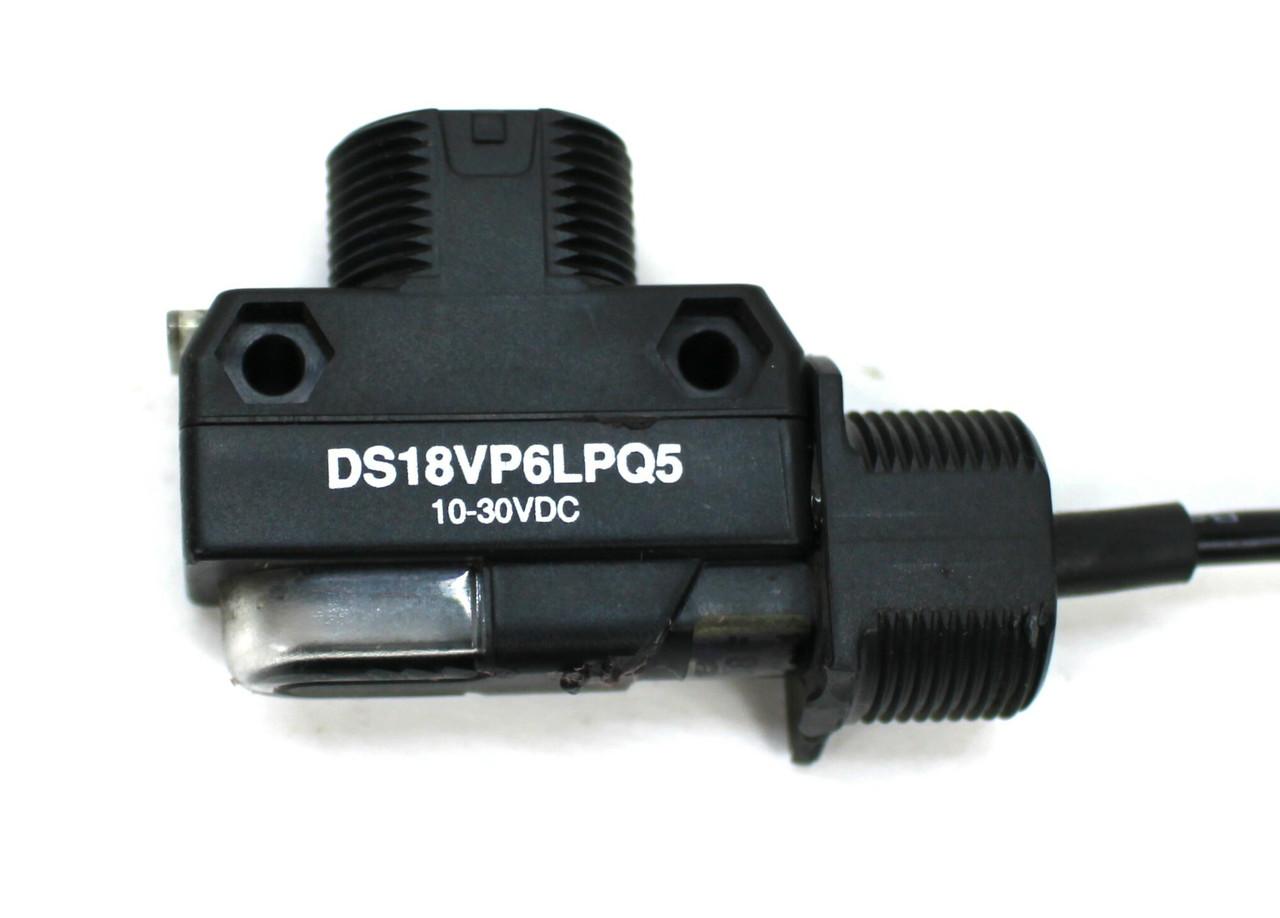

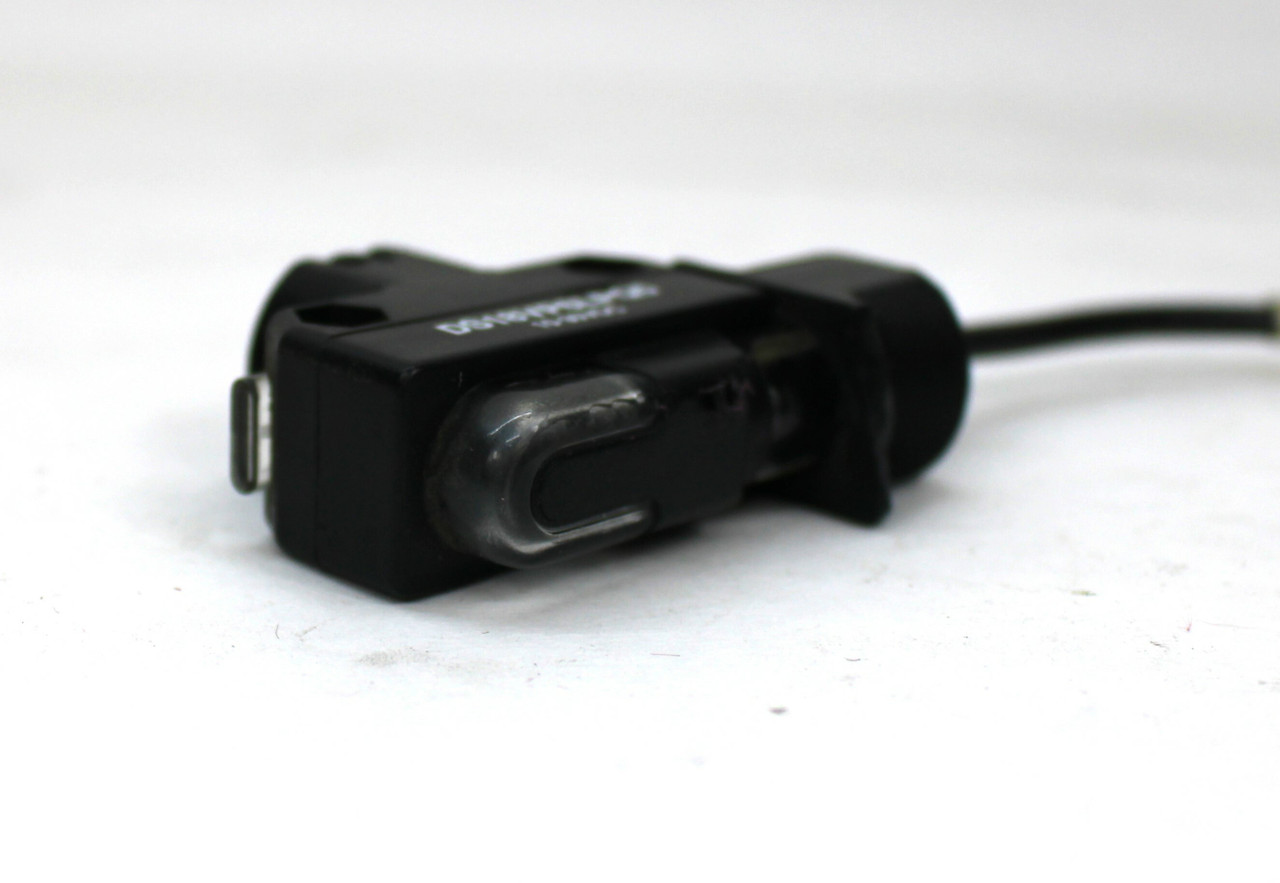

Banner Engineering DS18VP6LPQ5 Wide Beam Barrel-Mount Sensor, 10-30VDCSensing BeamVisible Red LED
Cable Length (m)0.15
Sensing Mode (General)Retroreflective
Sensing Mode (Detailed)Polarized
Housing StyleRectangular w/M18 Mount
Primary Housing MaterialThermoplastic
Input/OutputDiscrete
Max Sensing Distance (mm)3500
OutputsPNP
Power Supply/Supply Voltage10-30 V dc
ConnectionPigtail QD
Quick Disconnect TypeM12 (Euro)
Min Op. Temp. (°C)-20
OperationLight/Dark Operate
Max Op. Temp. (°C)70
Output response time (ms)2
Special Feature: Intrinsically SafeNo
Special Feature: Remote TeachNo
Special Feature: Water DetectionNo
Sensing Beam Wavelength660
Delay at Power-up (ms)100
Repeatability (µs)350
Number of Pins4
NEMA RatingNEMA 6
IP RatingIP67
Max Op. Relative Humidity [%]90% @ 50°C
Lens MaterialAcrylic
AdjustmentsN/A
Barrel Diameter (mm)18
IndicatorLEDs
Opposed Mode Emitter/ReceiverN/A
Feature: Timing (Hold/Delay)No
Feature: EncapsulatedNo
Feature: Hazardous AreaNo
Feature: AudibleNo
Feature: Chemical ResistantNo
DeviceNetNo
IO LinkNo
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
GTIN 646412807280
Sensor Type Barrel Mount
Manufacturer Banner Engineering
Shelf P-8
Model DS18VP6LPQ5
MPN DS18VP6LPQ5
Voltage 10-30VDC
