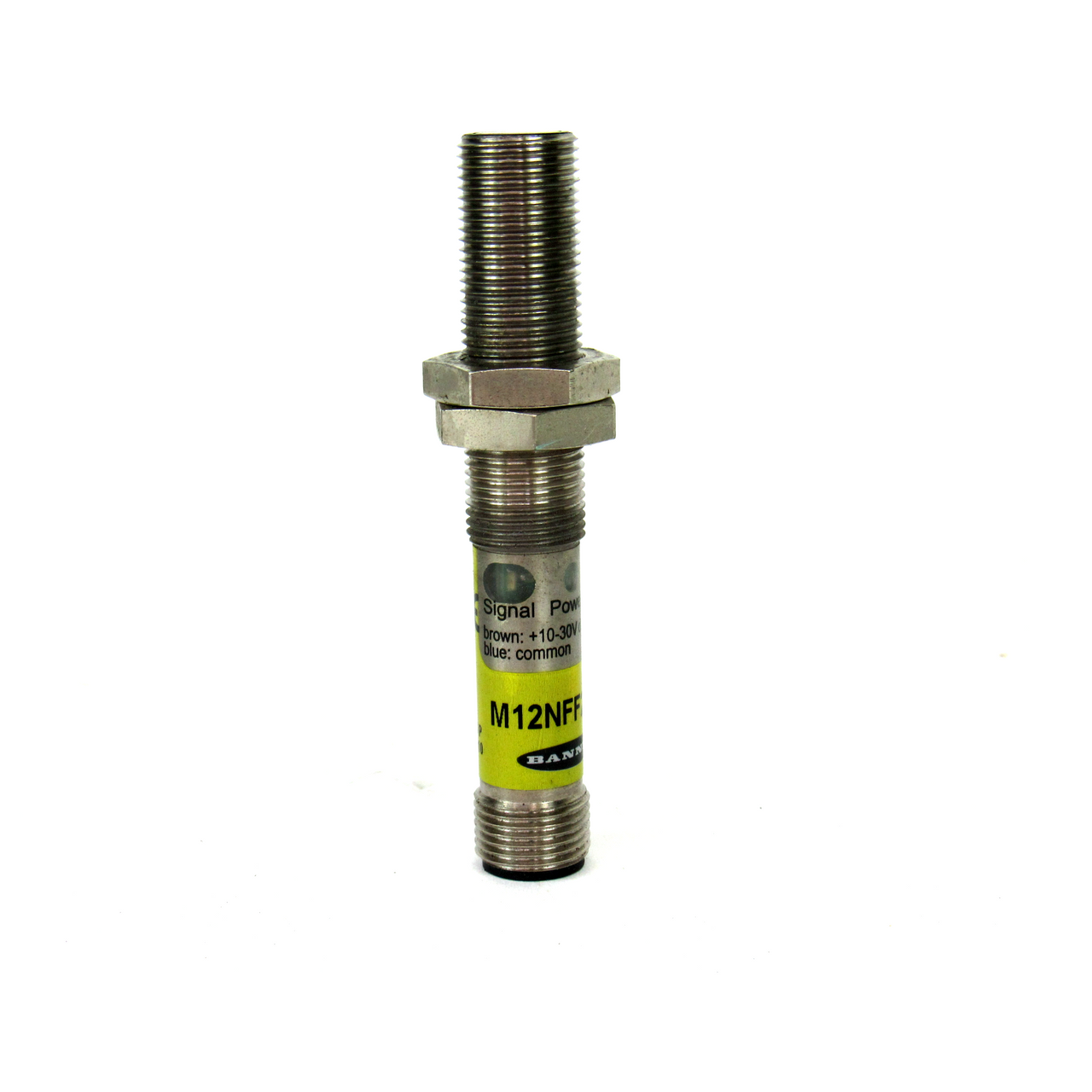

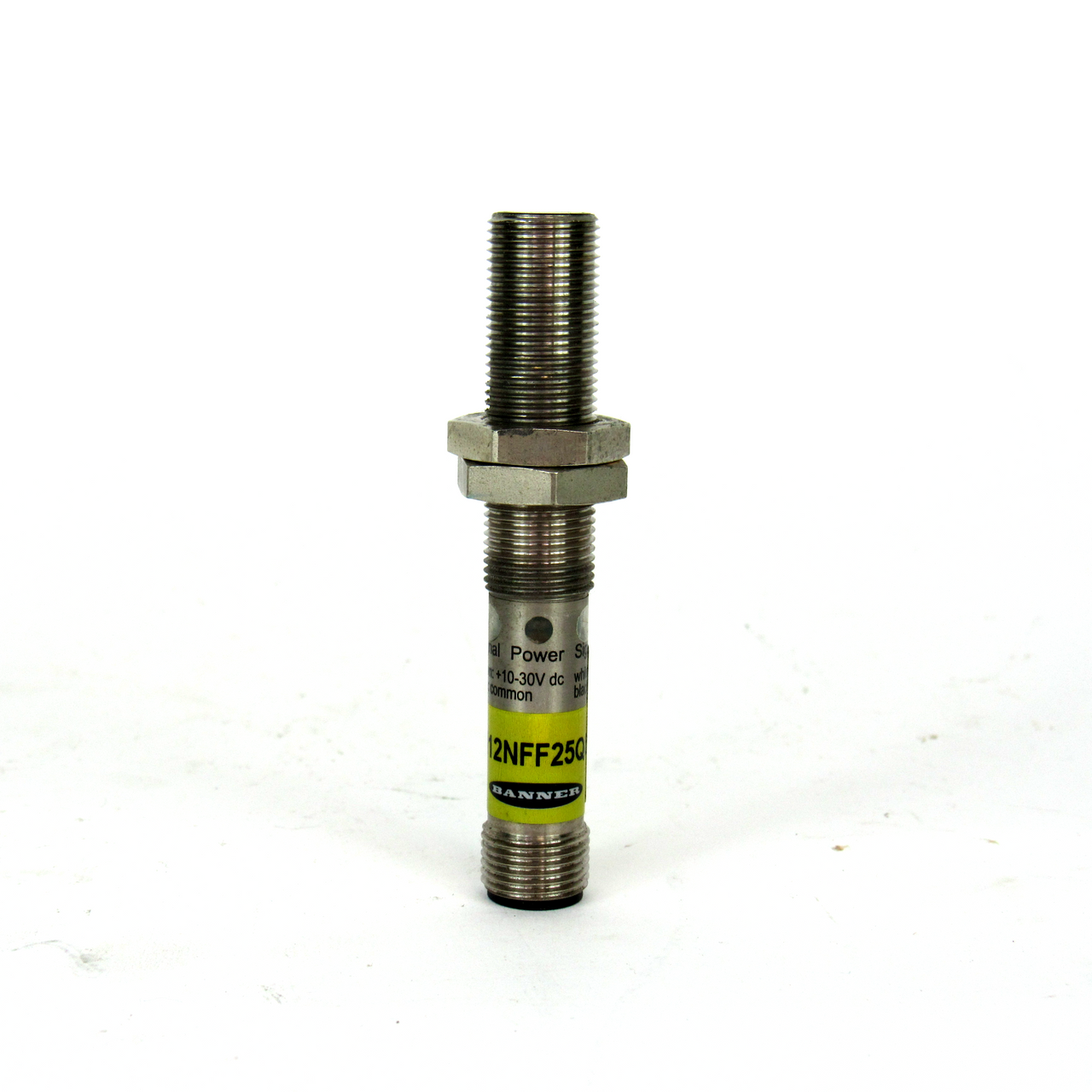

Banner M12NFF25Q8 Photoelectric Proximity Sensor, 10-30V DC, 25mm

Product Description

Banner M12NFF25Q8 Photoelectric Proximity Sensor, 10-30V DC, 25mm -Sensing Beam Visible Red LED Power DC Sensing Mode (General) Proximity Sensing Mode (Detailed) Background Suppression (Fixed) Housing Style Barrel Primary Housing Material Nickel-Plated Brass Input/Output Discrete Max Sensing Distance (mm) 25 Outputs NPN Power Supply/Supply Voltage 10-30 V dc Connection Integral QD Quick Disconnect Type M12 (Euro) Operation Light/Dark Operate Min Op. Temp. (°C) -20 Max Op. Temp. (°C) 60 Output response time (ms) 0.5 Special Feature: Intrinsically Safe No Special Feature: Remote Teach No Special Feature: Water Detection No Sensing Beam Wavelength 680 Delay at Power-up (ms) 100 Repeatability (µs) 95 Number of Pins 4 NEMA Rating NEMA 5, 6 and 1200 PSI Washdown IP Rating IP67, IP68 Max Op. Relative Humidity [%] 90% @ 50°C Lens Material PMMA Adjustments N/A Barrel Diameter (mm) 12 Indicator LEDs Feature: Washdown Rated Yes Feature: Timing (Hold/Delay) No Feature: Encapsulated Yes Feature: Hazardous Area No Feature: Audible No Feature: Chemical Resistant No Feature: Quick Disconnect Yes DeviceNet No IO Link No
