Product Description

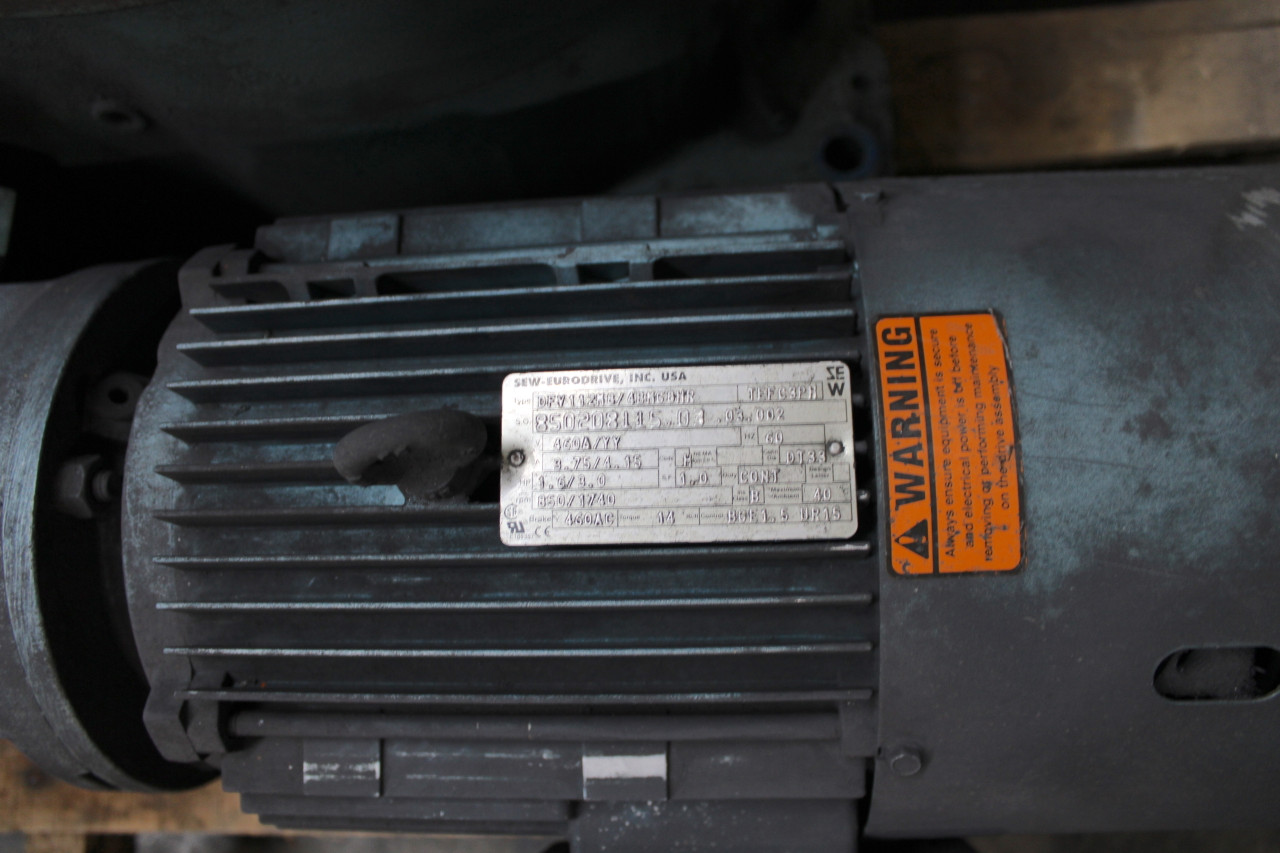

Camco 1301RD2H80-330 Heavy-Duty Rotary Index Drive with Wide Range Motion. Equpped with a Sew Eurodrive 3Hp Motor and Gear Reducer, Plus Adjustable Limit Switches.
Roller Dial Index Drives offer superior load capabilities making them ideal for medium to high torque applications. Other features include:
- Universal mounting including horizontal mounting ideal for trunnion applications
- Center thru hole facilitates passage of electrical wiring, pneumatic lines or mechanical linkages
- Short camshaft motion periods are well-suited to continuous running applications or for special motion requirements
- Available with custom motions such as oscillating motions
| Imperial or Metric Product | Imperial |
| Base Model | 1301RD2H80-330 |
| Center Distance (in) | 10.500 |
| Center Thru Hole Diameter (in) | 4.75 |
| Accuracy (arcsec) | ±39 |
| Series | 1301RD |
| Stops | 2 |
| Index Period (deg) | 330 |
| B10 Torque Capacity (in-lb) | 41,144 |
| Maximum Inertia Load at 30 indexes per minute (lb-in² x 1000) | 108.000 |
| Maximum Inertia Load at 60 indexes per minute (lb-in² x 1000) | 29.000 |
| Maximum Torque (in-lb) | 47,861 |
| Internal Inertia (lb-in²) | 3,245 |
| Output | Flange |
| Motion | msc.50 |
| Repeatability (arcsec) | ±10 |
| Output Radial Capacity (lb) | 15,800 |
| Output Thrust/Axial Capacity (lb) | 10,800 |
| Output Overturning Moment Capacity (in-lb) | 109,000 |
| Mounting Surface Diameter (in) | 13.75 |
| Height To Mounting Surface (in) | 14.00 |
| Product Type | Flange Output |
| Family | RD |
| Product Series Description | 1301RD |
| Product Function | Rotary Positioning |
| Product Family | Indexers |
| Product Group | Mechanical Rotary Indexers |
| Brand | CAMCO |
| Distributor Group | Camco Indexers & Conveyors |
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Rotary Indexer
Voltage 460Vac 3 Phase
MPN 1301RD2H80-330
Horsepower 3 Hp
Model 1301RD2H80-330
Series 1301RD
Phase 3
Manufacturer Destaco
Country/Region of Manufacture United States
GTIN 635510927273
