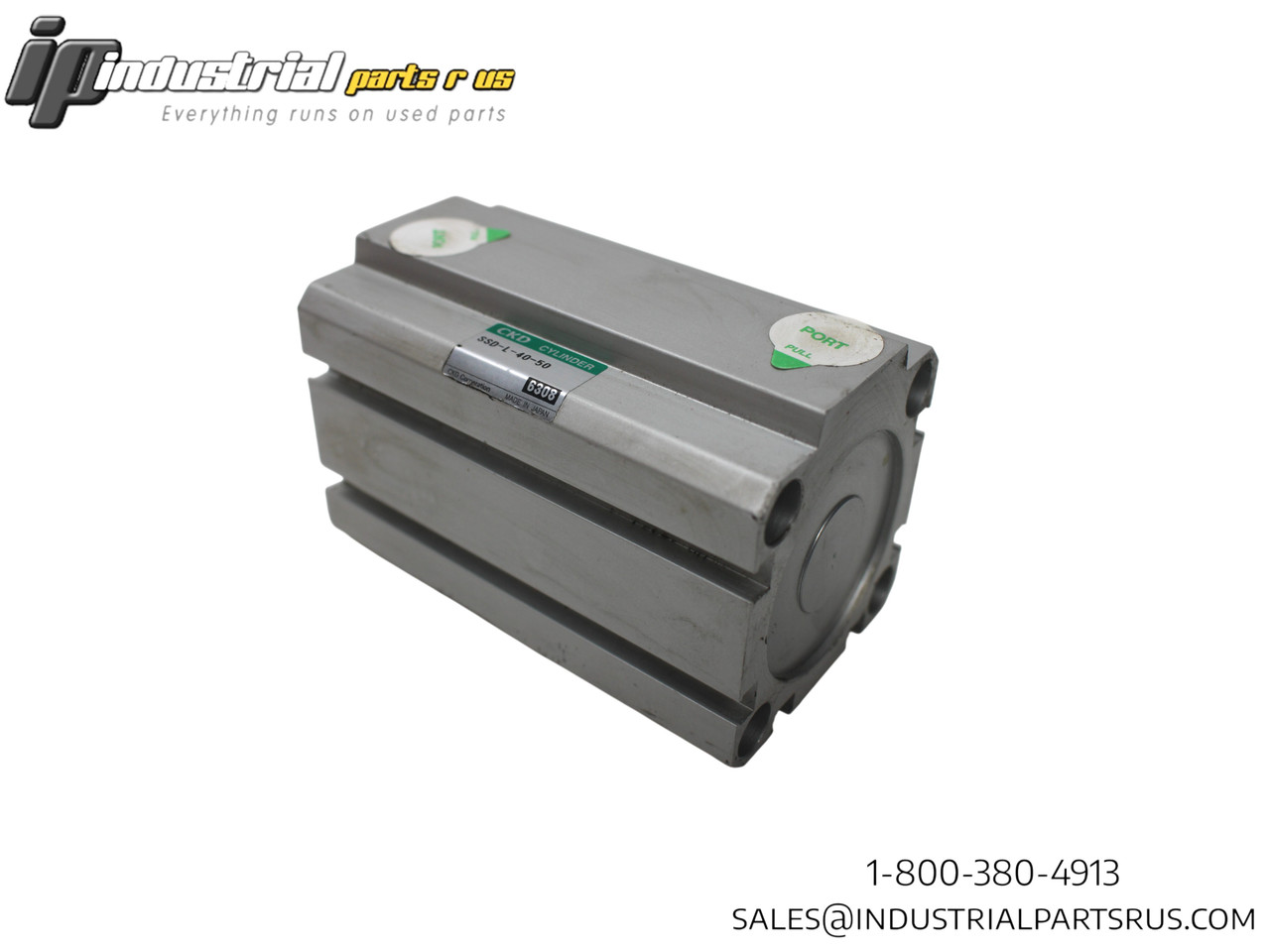

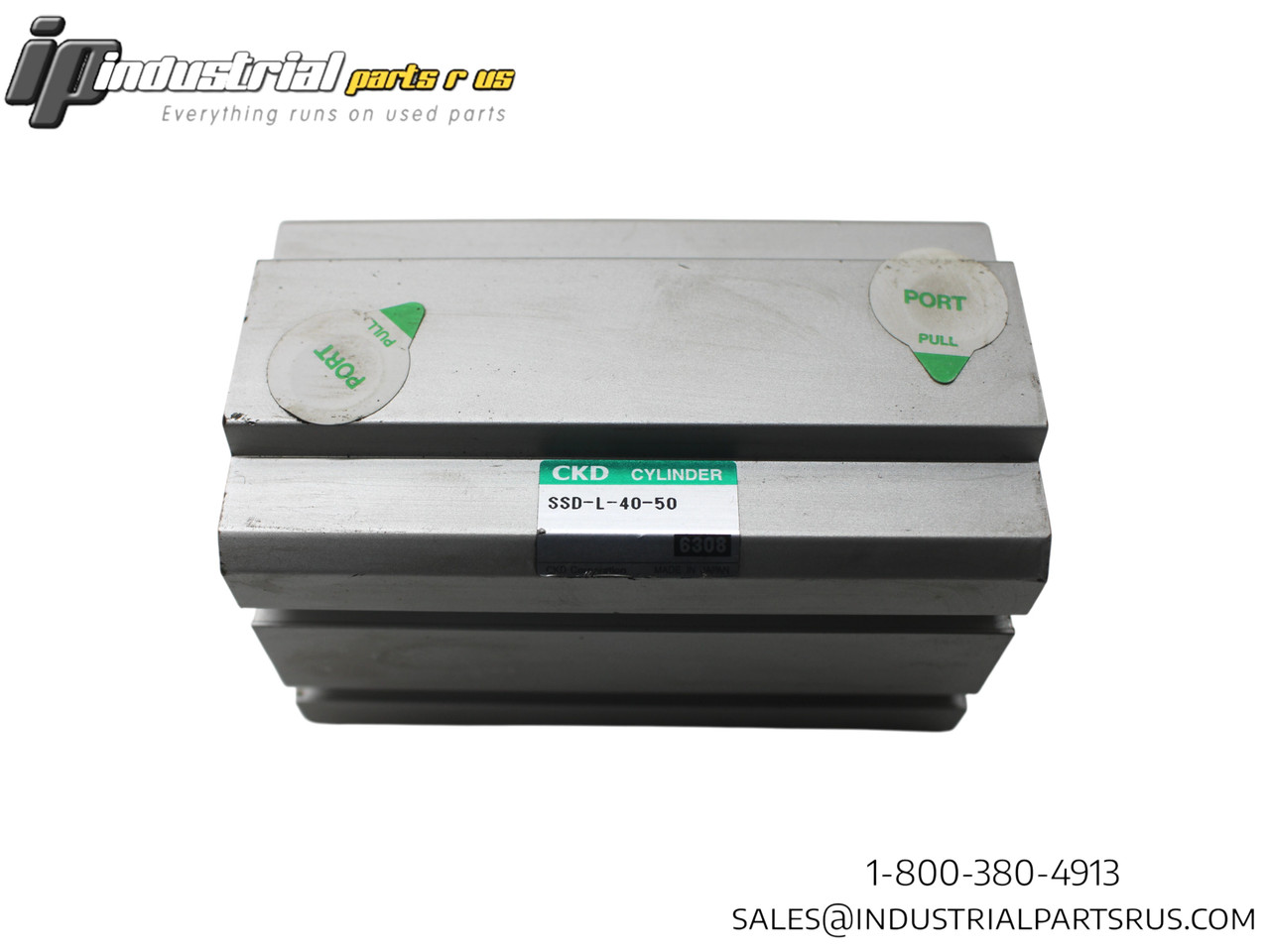

CKD SSD-L-40-50 Compact Pneumatic Cylinder 40mm Bore x 50mm Stroke

Product Description

This is a square, space saving cylinder that integrates the cylinder switch into the body for shorter total length. The space saving series with a wide range of stroke lengths and switch mounting surface options compared with conventional models. A widely varied series of space-saving cylinders, suitable for everything from general environments to specific applications.

Key Features:

• 40mm bore diameter with 50mm stroke length
• Double acting operation using compressed air with maximum working pressure of 1.0 MPa (≈150 psi, 10 bar)
• Rod ends can be selected from two options: female thread (standard) and male thread (option)
• The T type switch used in many CKD products can be mounted on cylinders of all bore sizes
• Square-shaped compact design for space efficiency
• Space saving compact cylinder. Miniature switches are simply integrated into main body. Switch can be installed from 3 sides.

Applications:

Ideal for automation systems, industrial machinery, and manufacturing applications requiring compact pneumatic actuation with reliable position sensing capability.
