Coherent Meta 10C CNC Laser Cutting System 1000W Koolant Koolers 7.5 Ton Chiller

Product Description

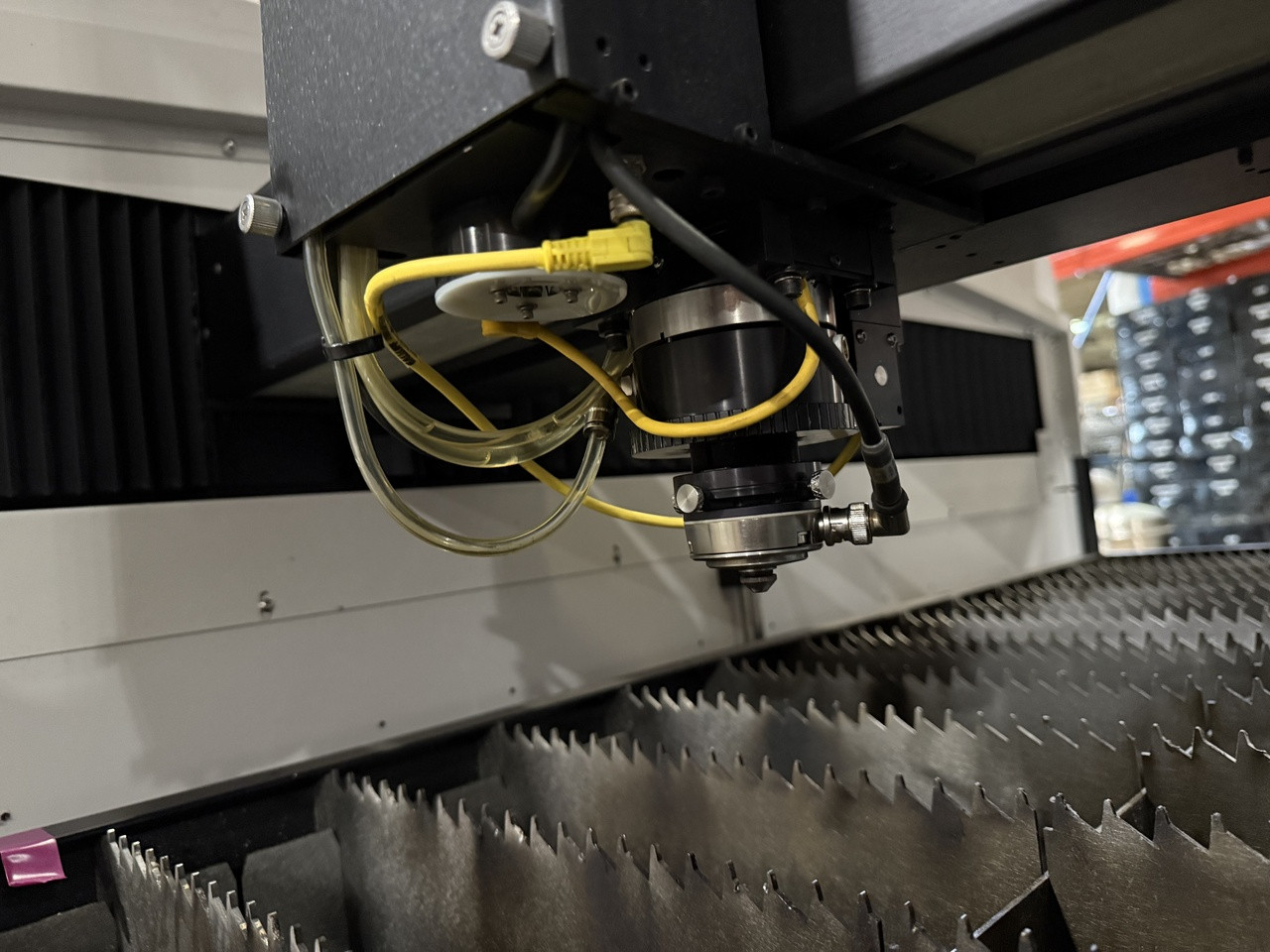

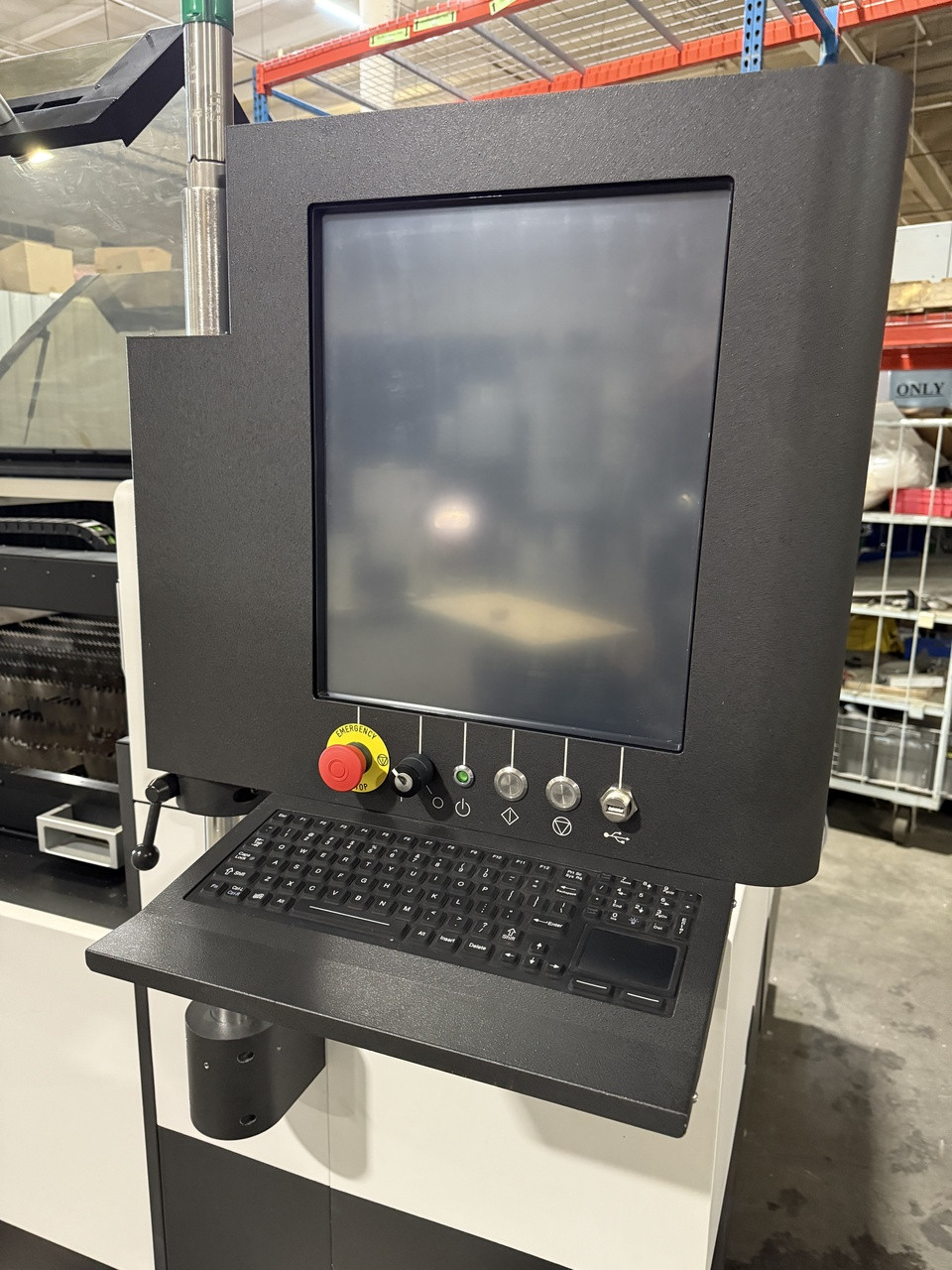

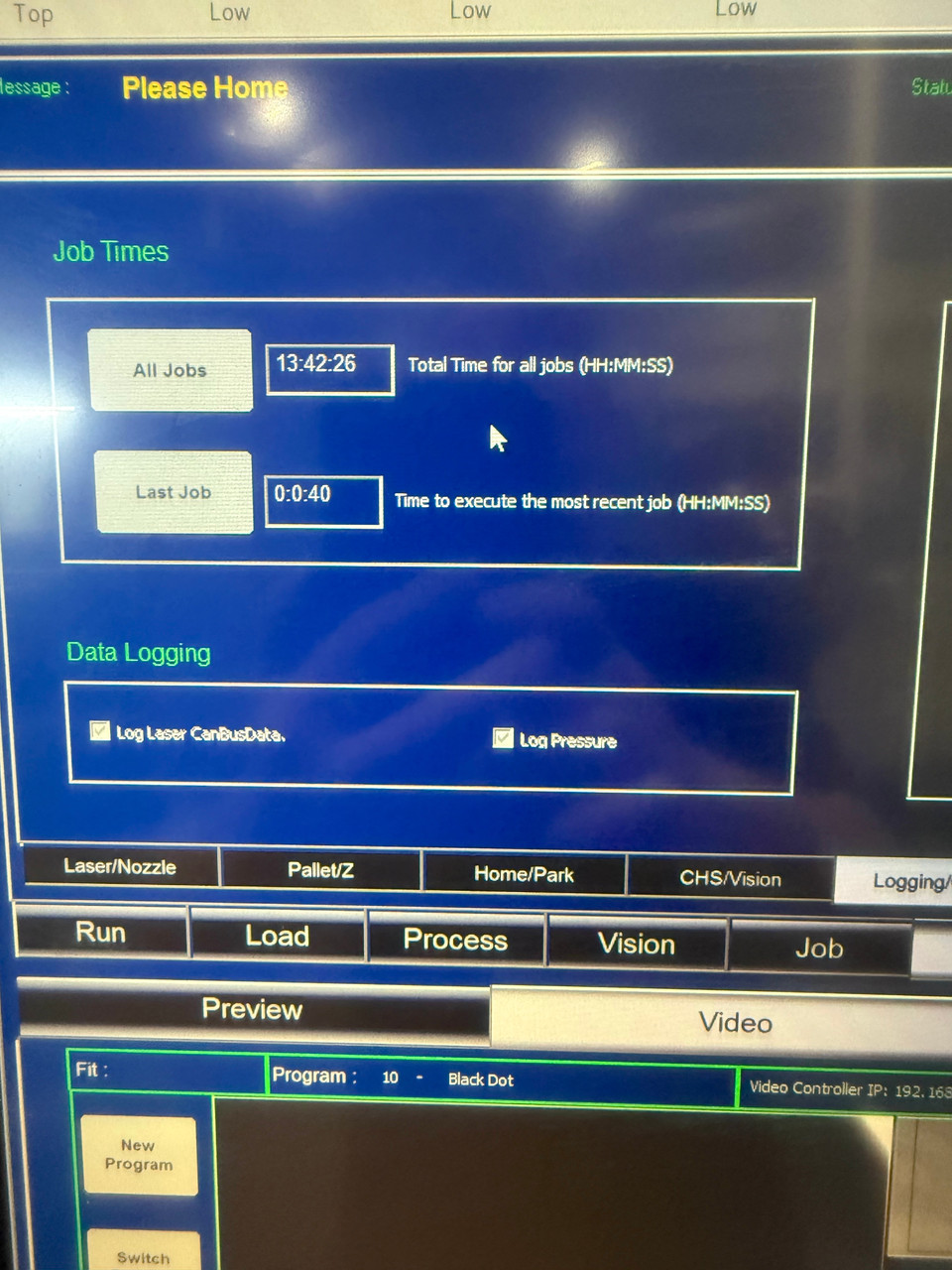

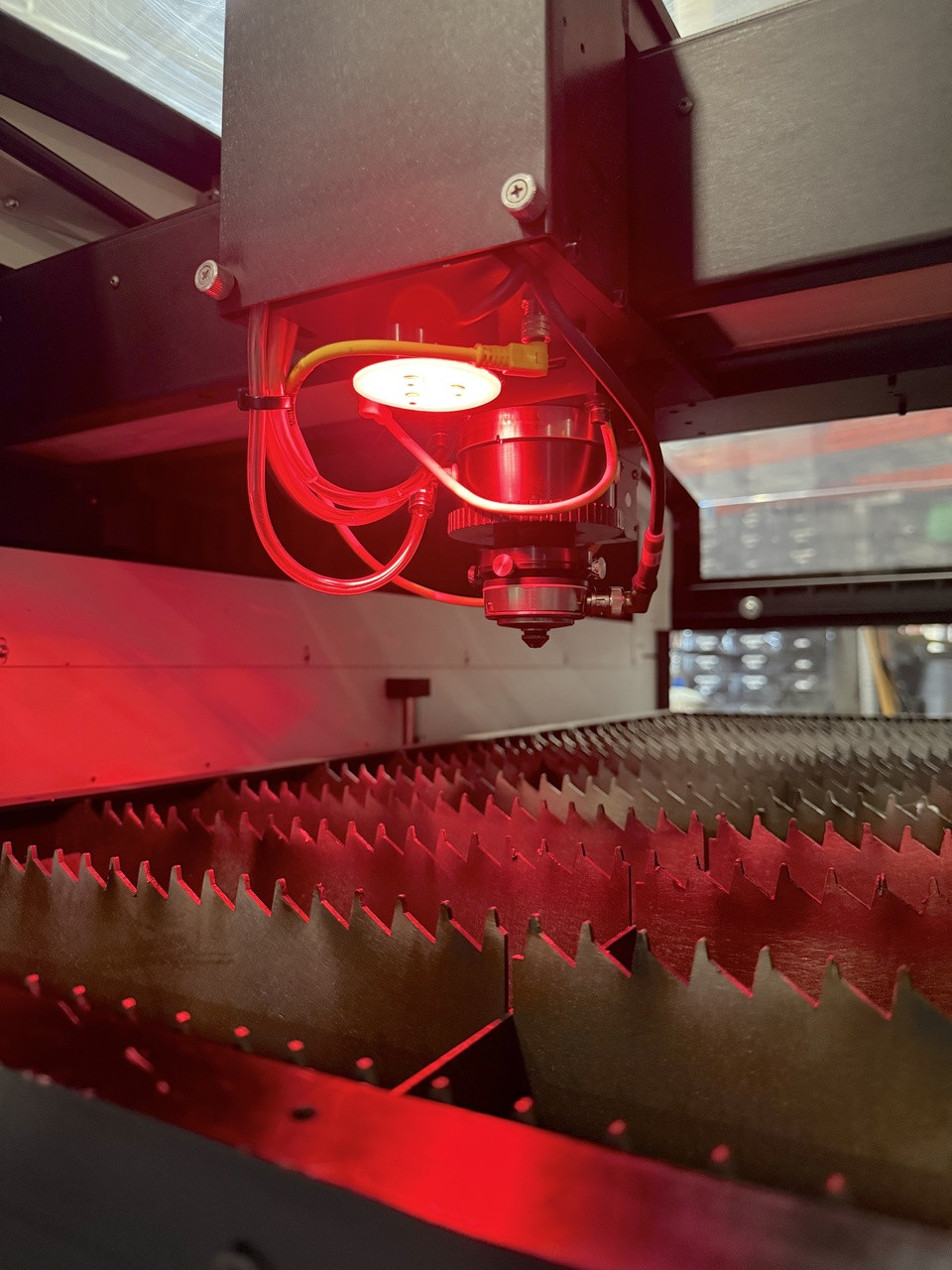

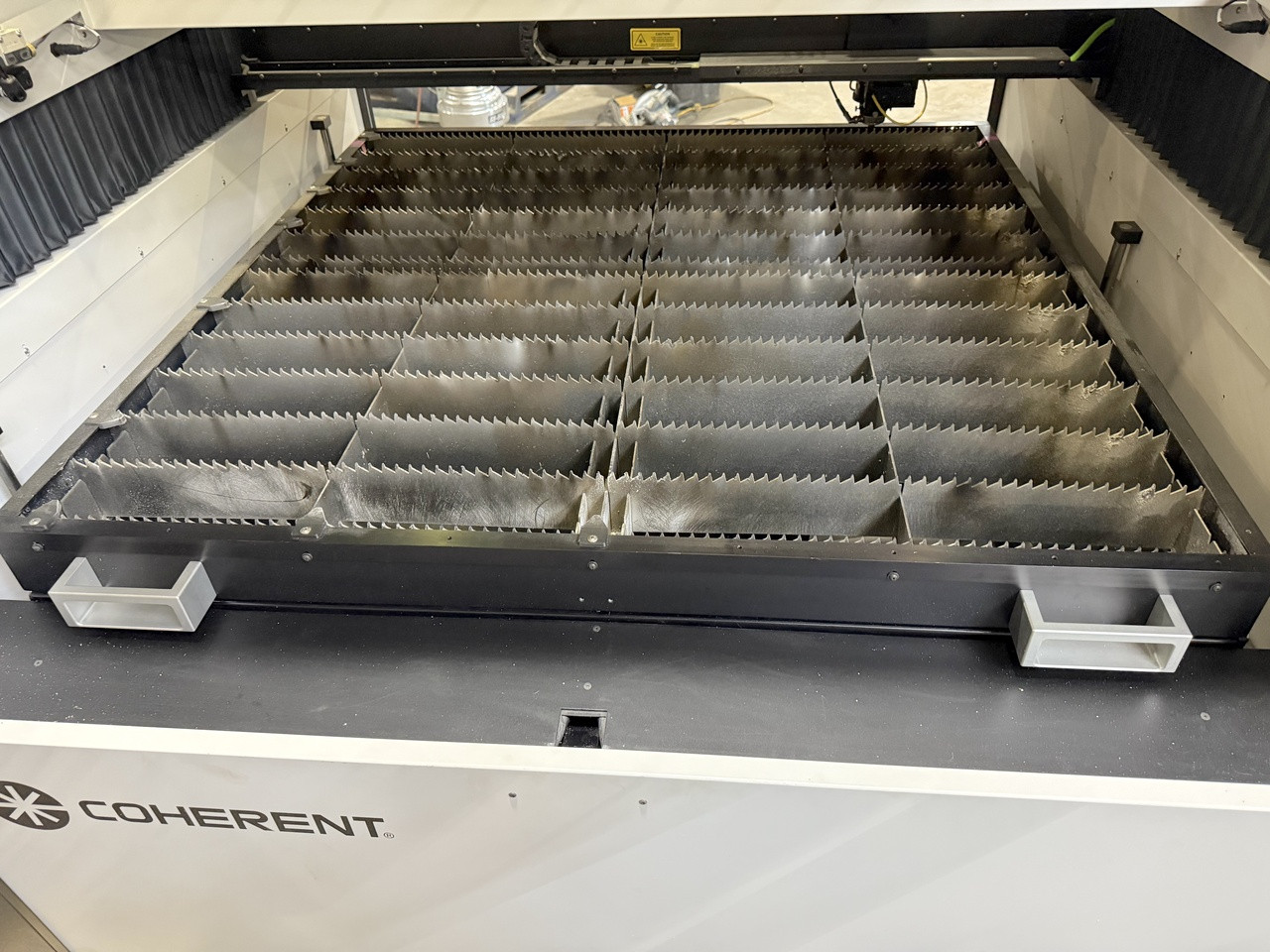

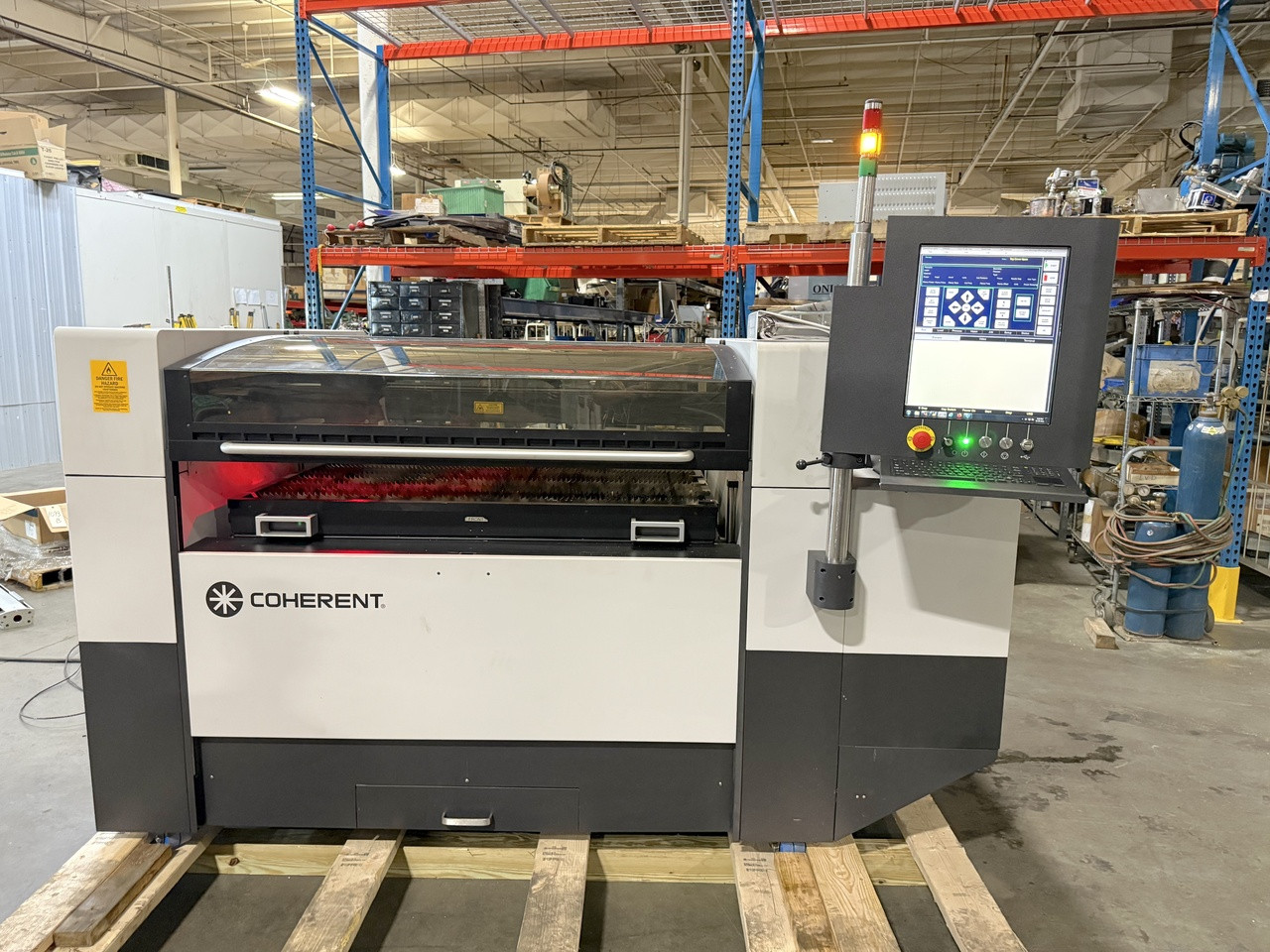

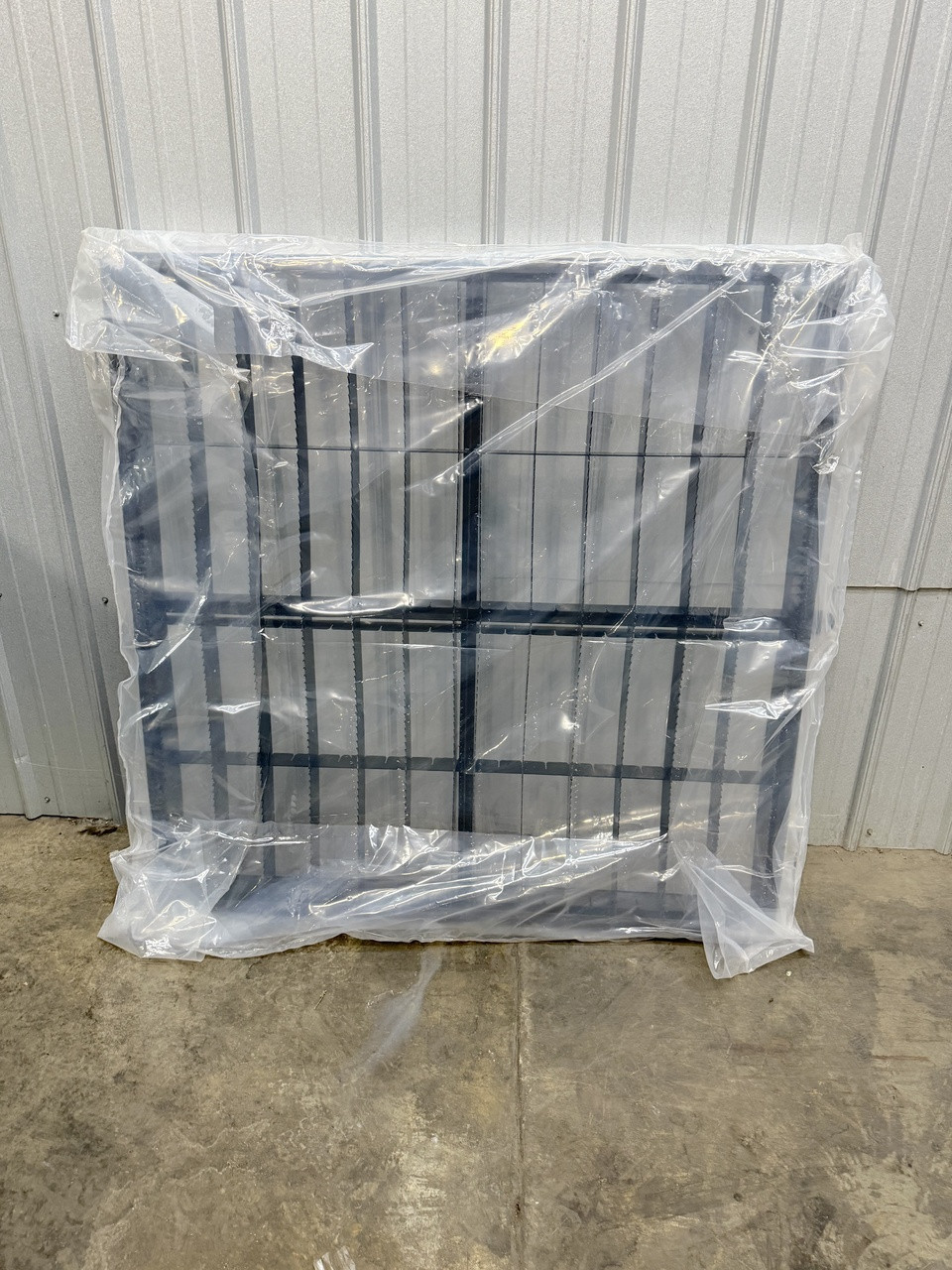

2016 Coherent Meta 10C CNC Laser Cutter with 7.5 Ton Koolant Koolers Air Cooled Chiller, 30Kva Three Phase Stepdown Transformer, 2Hp Centrifugal Exhaust Blower and Ducting, a New Replacement Slat Style Cutting Table, and both Design & Cam Software.  This 1000W CNC Laser Cutting System was previously used in a University and only has 14 Hours of use.  Everything looks like it just came out of the crate.  We have powered this system to verify it powers up and moves, but we have not attempted to cut anything as we do not have the Nitrogen Gas or the Chiller connected to operate the laser.  We do have the Operation Manual and Pre-Installation Manual.  Nitrogen and Argon Regulators are not included.

Laser Cutter Specifications:

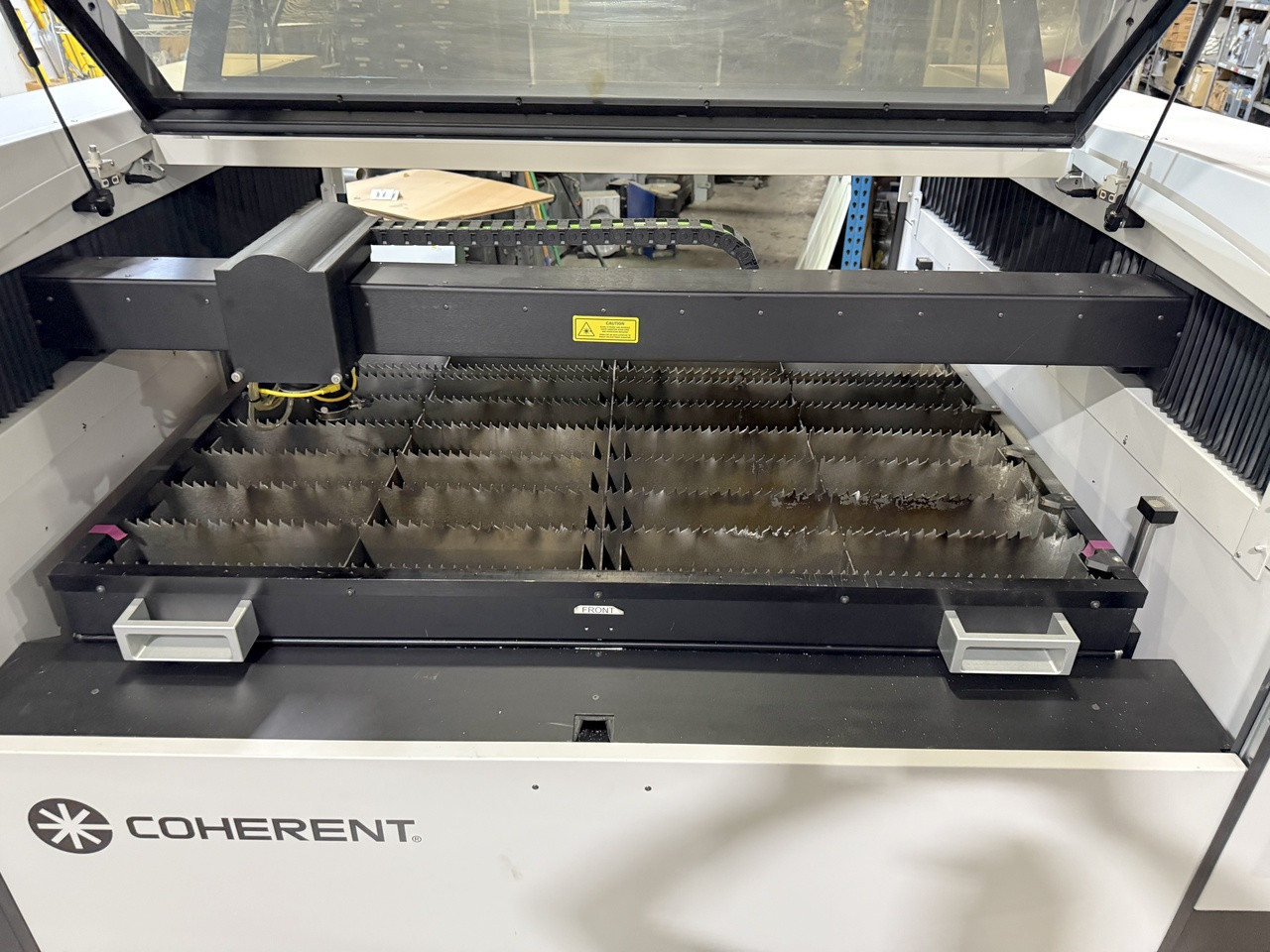

• Equipment Type: CNC Laser Cutter

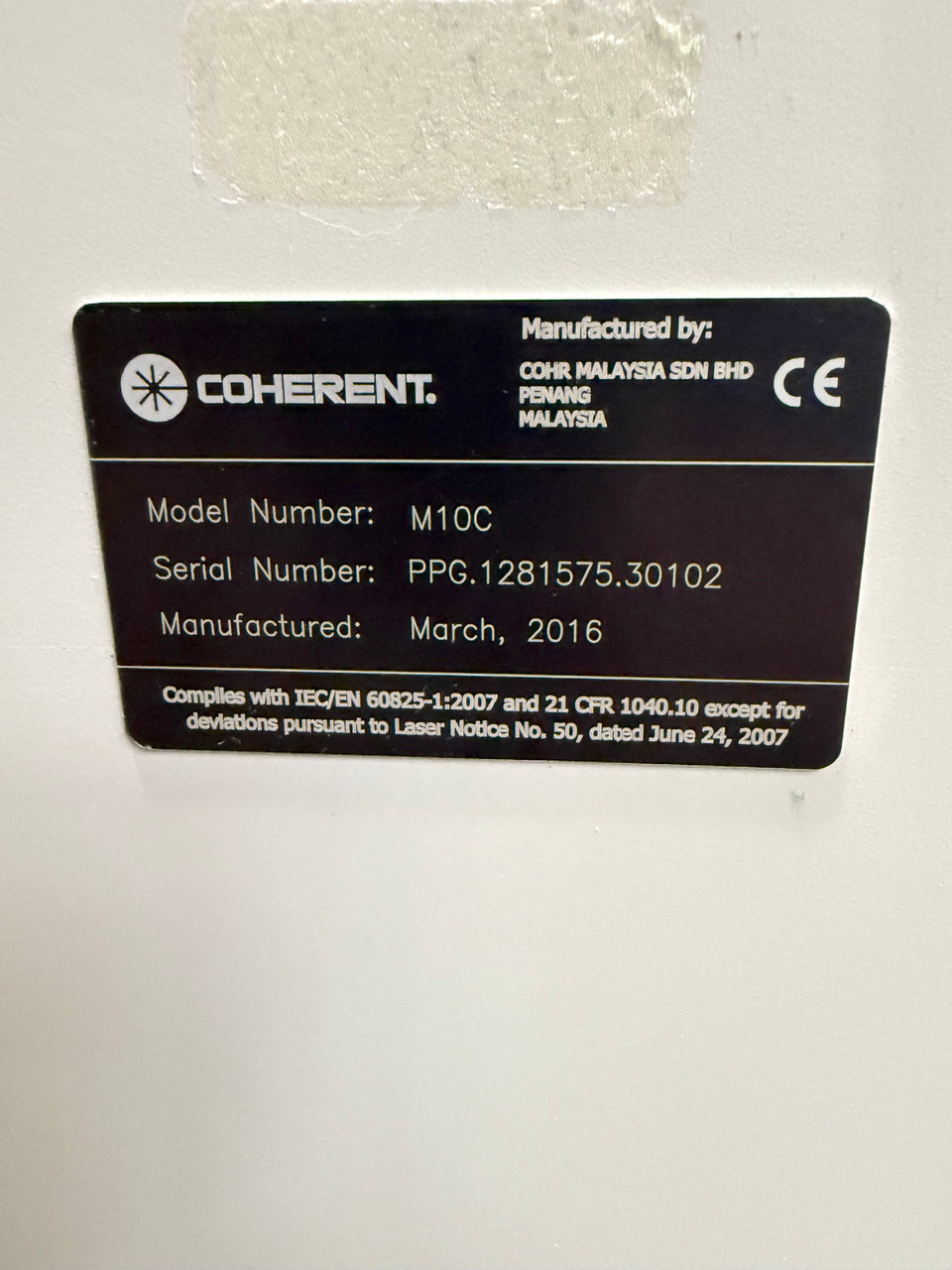

• Model: M10C
• Serial Number: PPG.1281575.30102
• Series: Meta
• MFG Date: March 2016

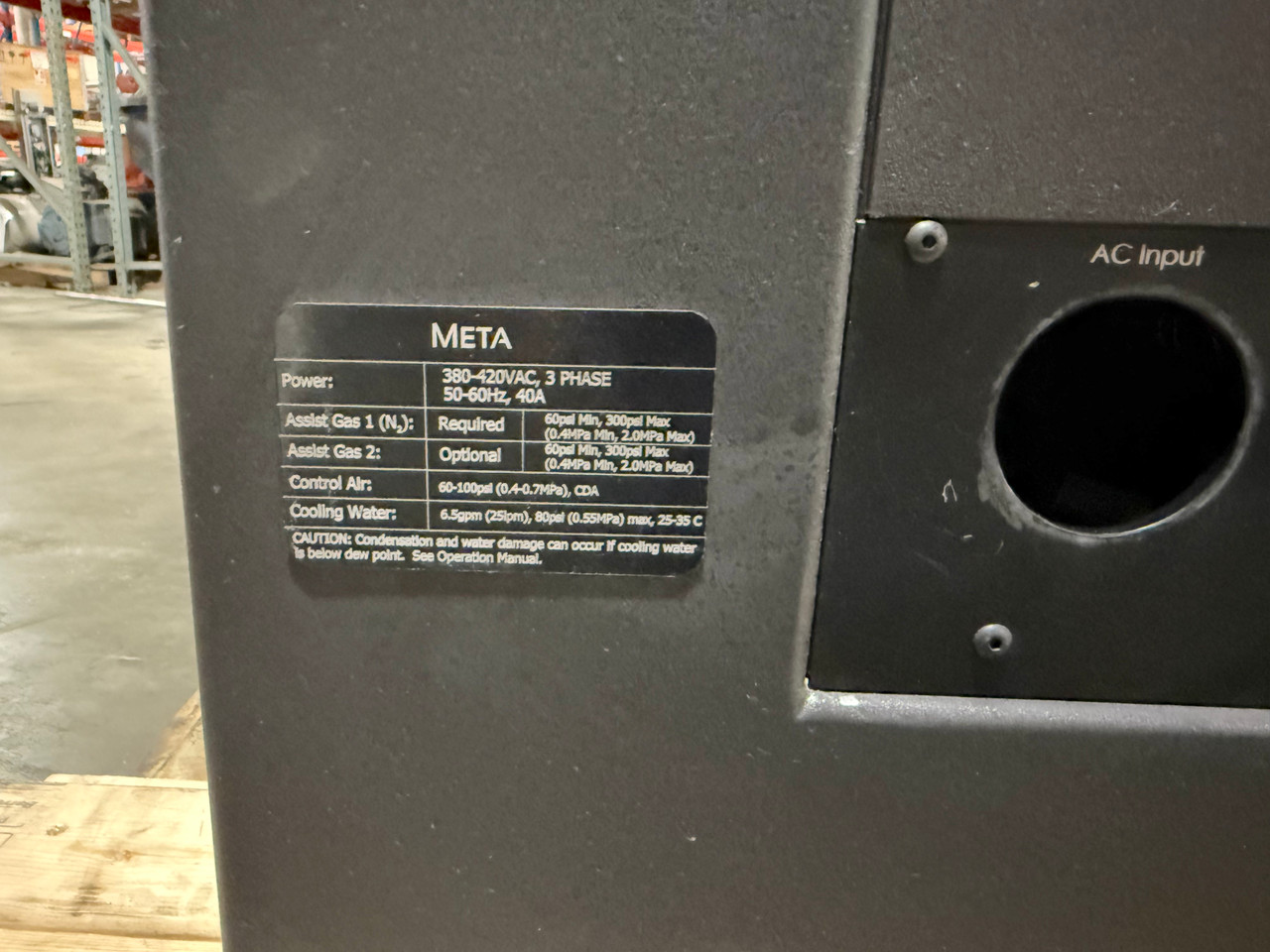

• Voltage: 380-400Vac 3 Phase (Comes with Stepdown Transformer for 480Vac)
• Materials Types: Metal, Plastics, Wood, Paper, Composites, Fabric, Rubber
• Max Material Size: 49.2" x 49.2"
• Max Cutting Speed: 2000 IPM Cutting - 3600 IPM Rapid Positioning - 3600 IPM Raster Engraving
• Spot Size: 3.75" Focal Length Lens 0.004"
• Kerf Width: 0.10-0.20mm (0.004-0.008 in.)
• Focal Length: 3.75"
• Working Range: x=48" - Y=48" - Z=10"
• Laser Wavelength: 10.6 um
• Laser Power: >1000 W
• System Dimentions: 94.75" x 92.2" x 78.7"
• System Weight (Laser Cutter Only) 2500 Lbs.

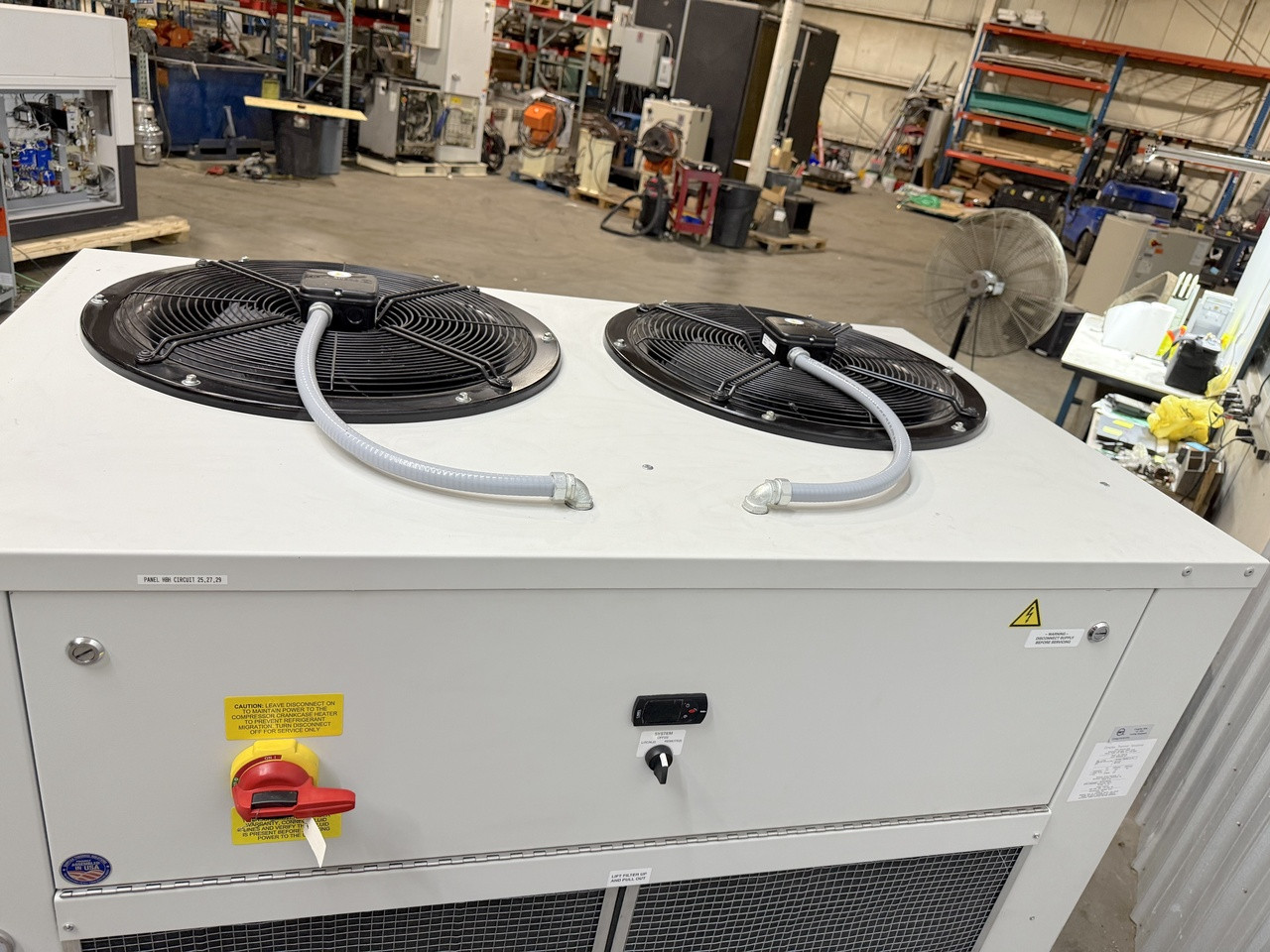

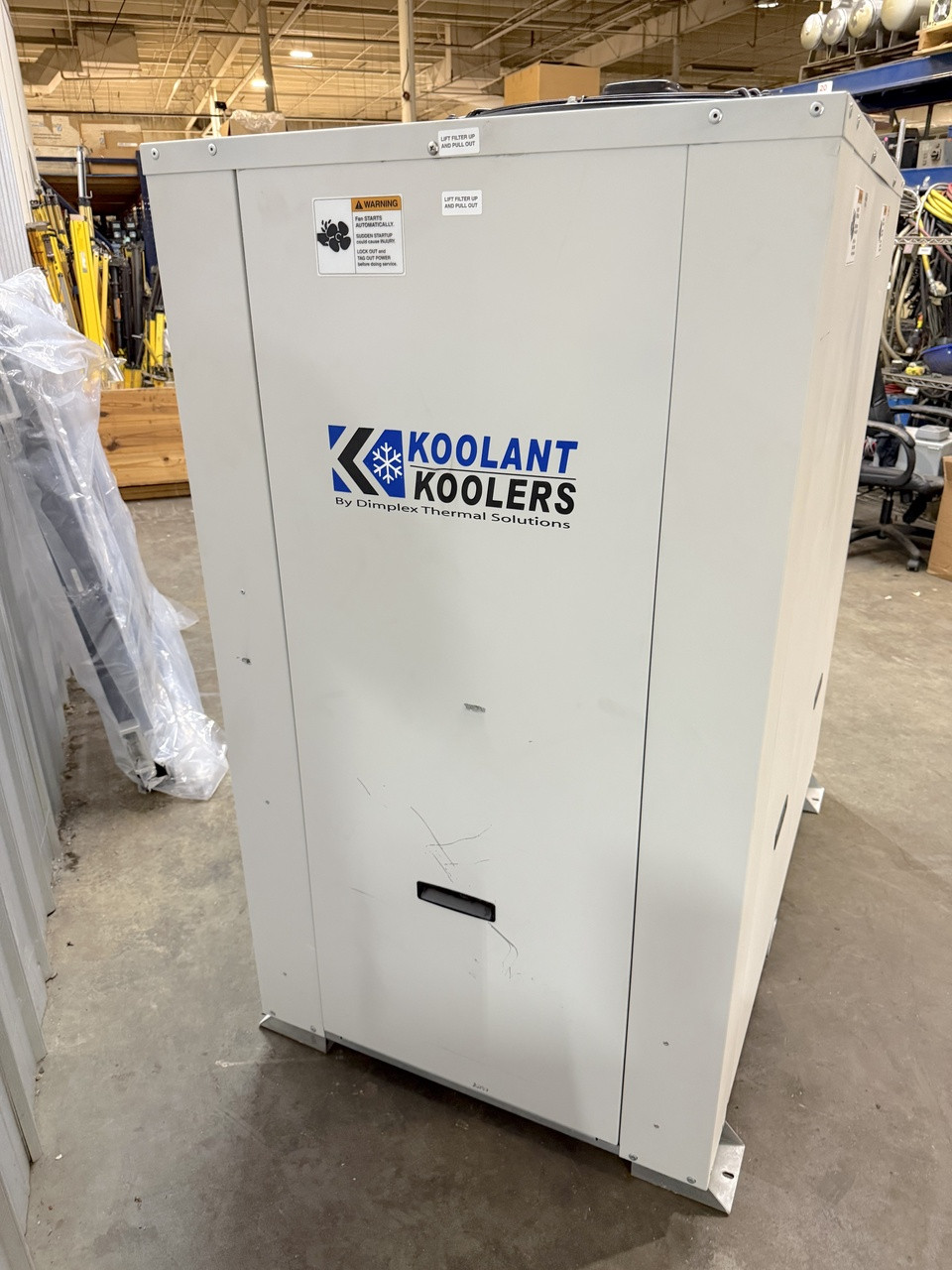

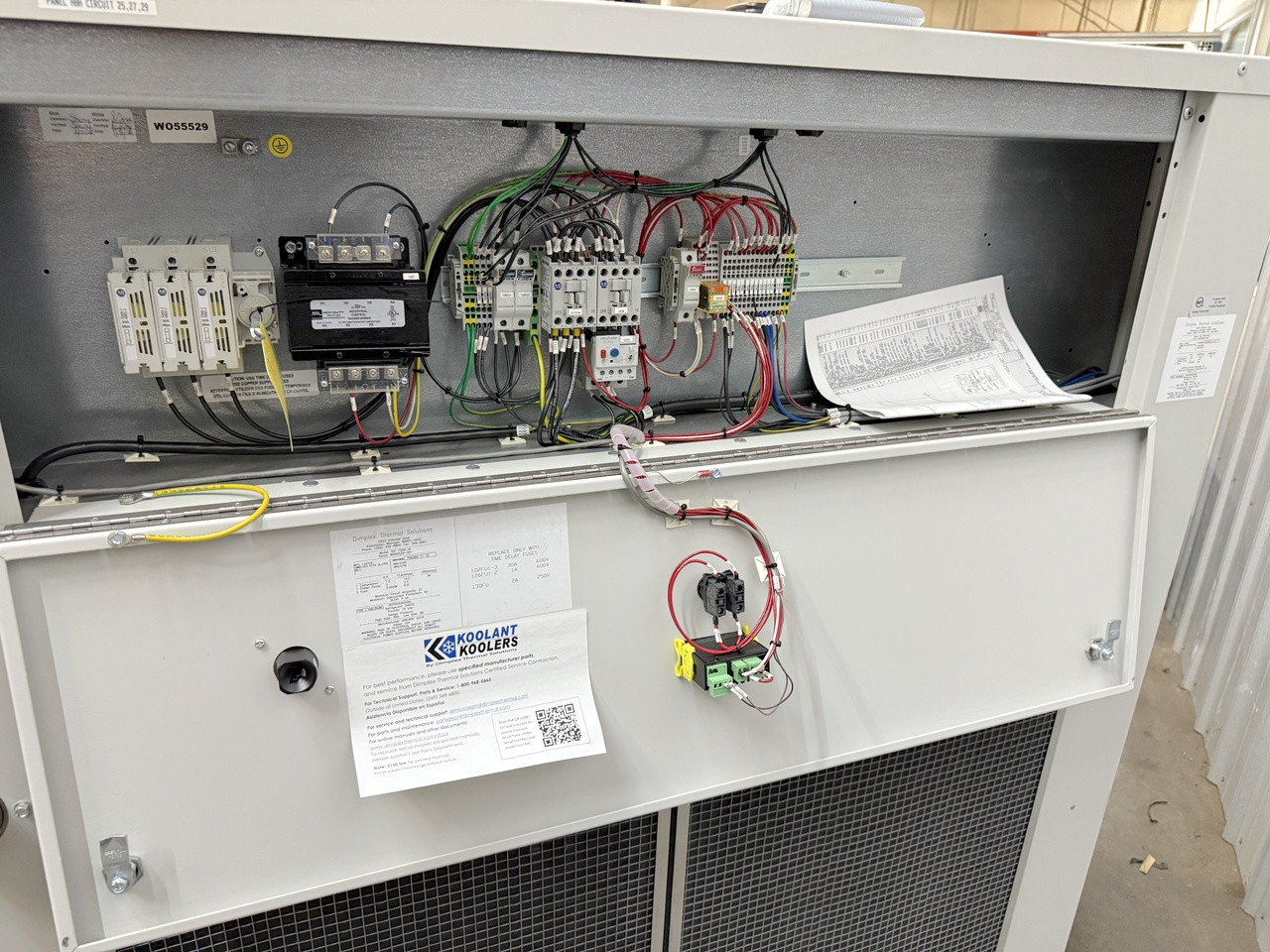

Chiller Specifications:

• Chiller Brand: Koolant Koolers
• Chiller Model: SVI-7500-M
• Chiller Serial Number: WO55529-001
• Chiller Tonnage: 7.5 Ton
• Chiller Refrigerant: R407C
• Voltage: 460Vac 3 Phase
• Amperage: 27 Amps
• Condenser Cooling: Air Cooled
• Pump Horsepower: 2 Hp

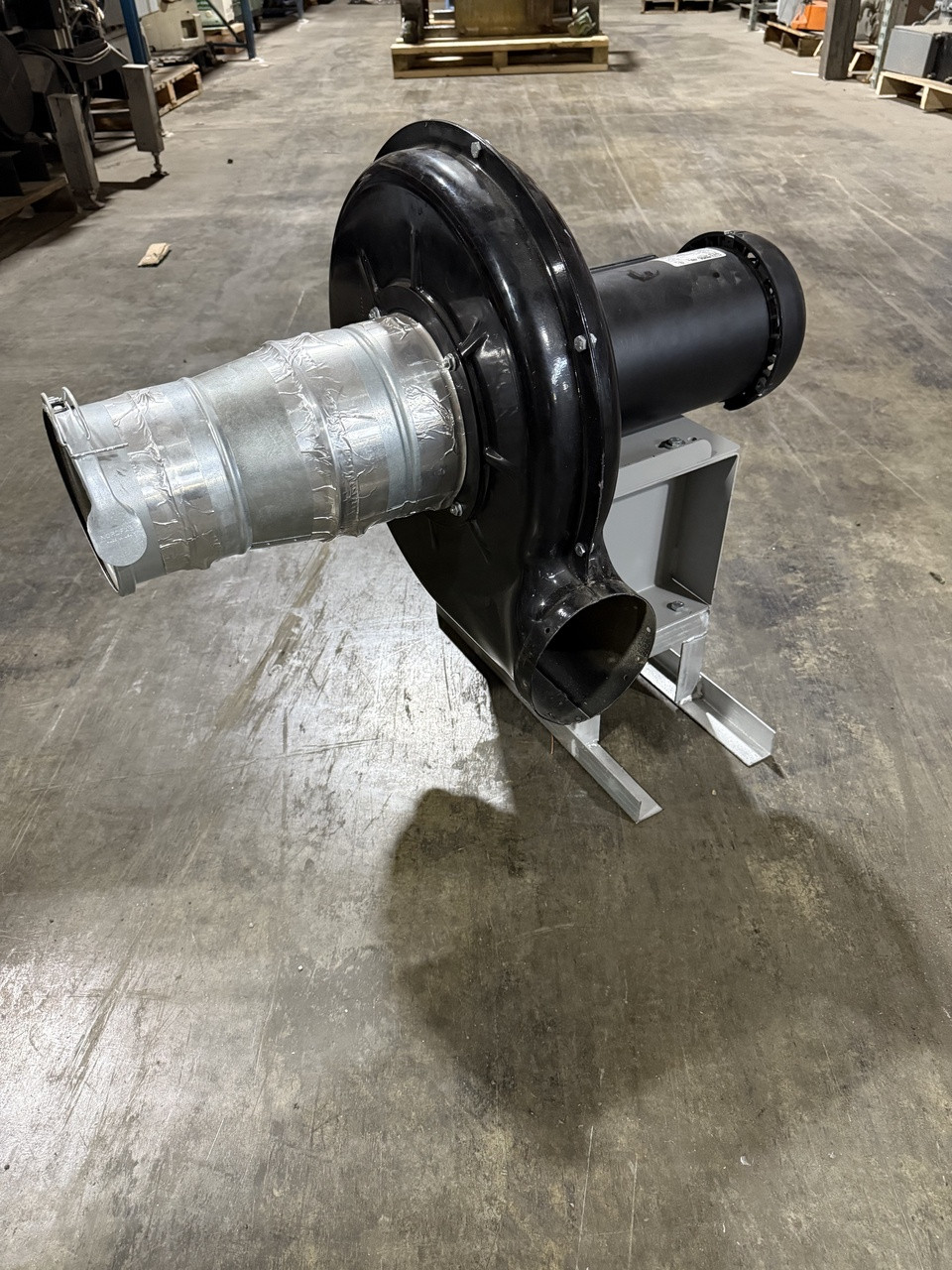

Blower Specifications:

• Motor Brand: WEG
• Horsepower: 2.2Hp
• RPM: 3500
• Voltage: 208-460Vac 3 Phase
• Amperage: 3.51 Amps

Transformer Specifications:

• Transformer Brand: Federal Pacific
• KVA: 30 Kva
• Primary Voltage: 480Vac 3 Phase
• Secondary Voltage: 380/219Vac 3 Phase
• Weight: 415 Lbs.
• HZ: 60Hz
• Model: T48LH3Y-30
