Product Description

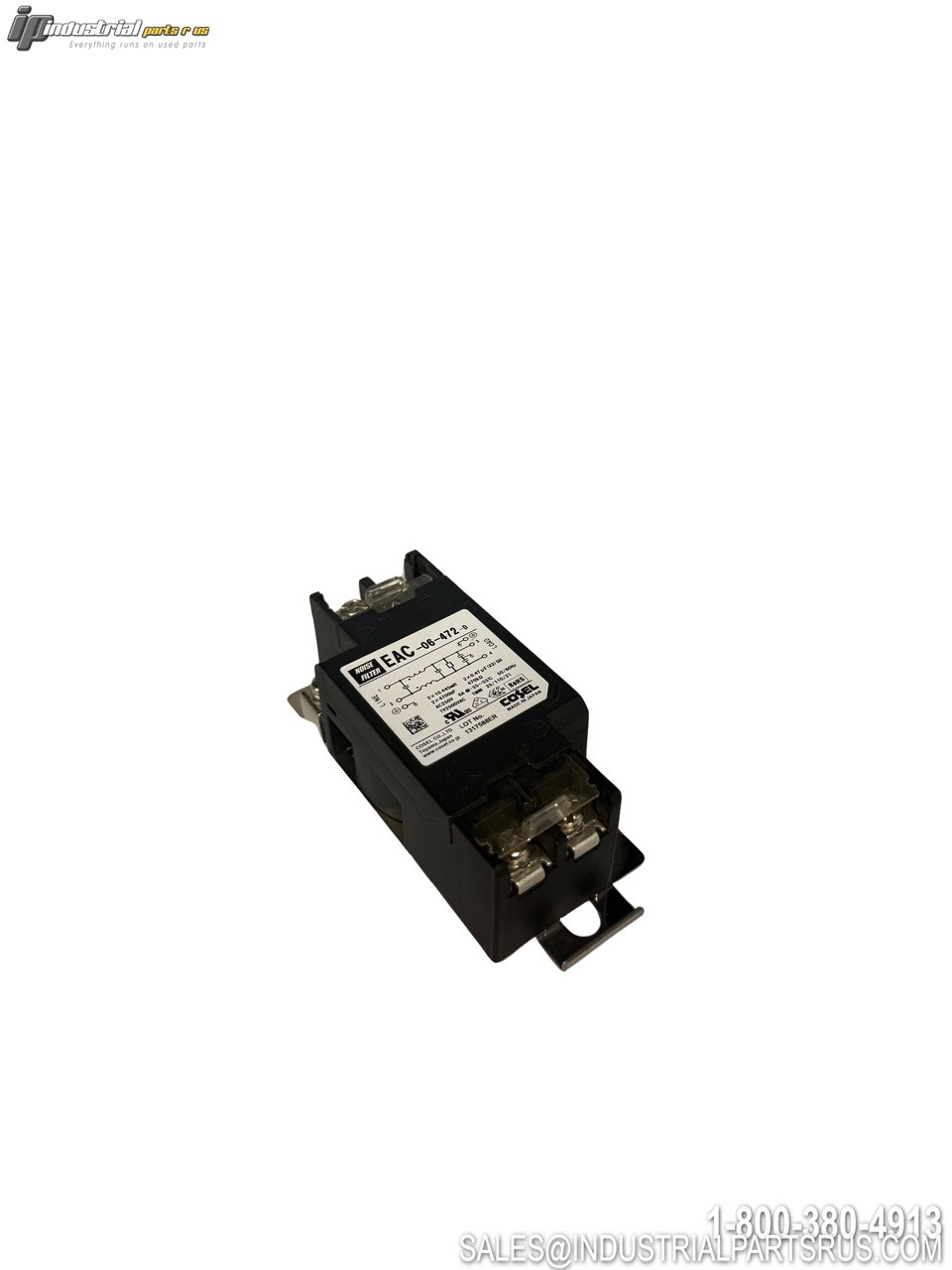

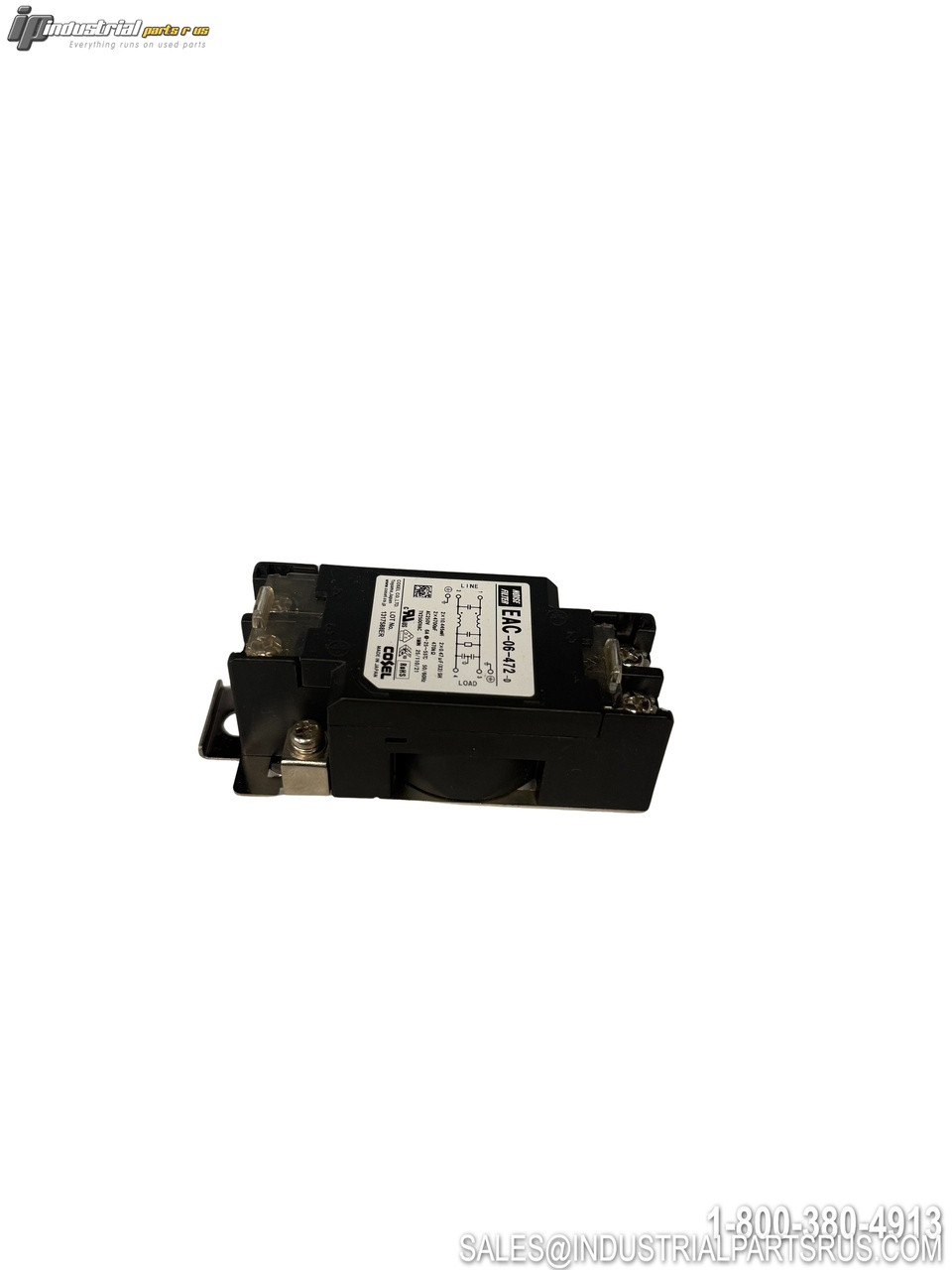

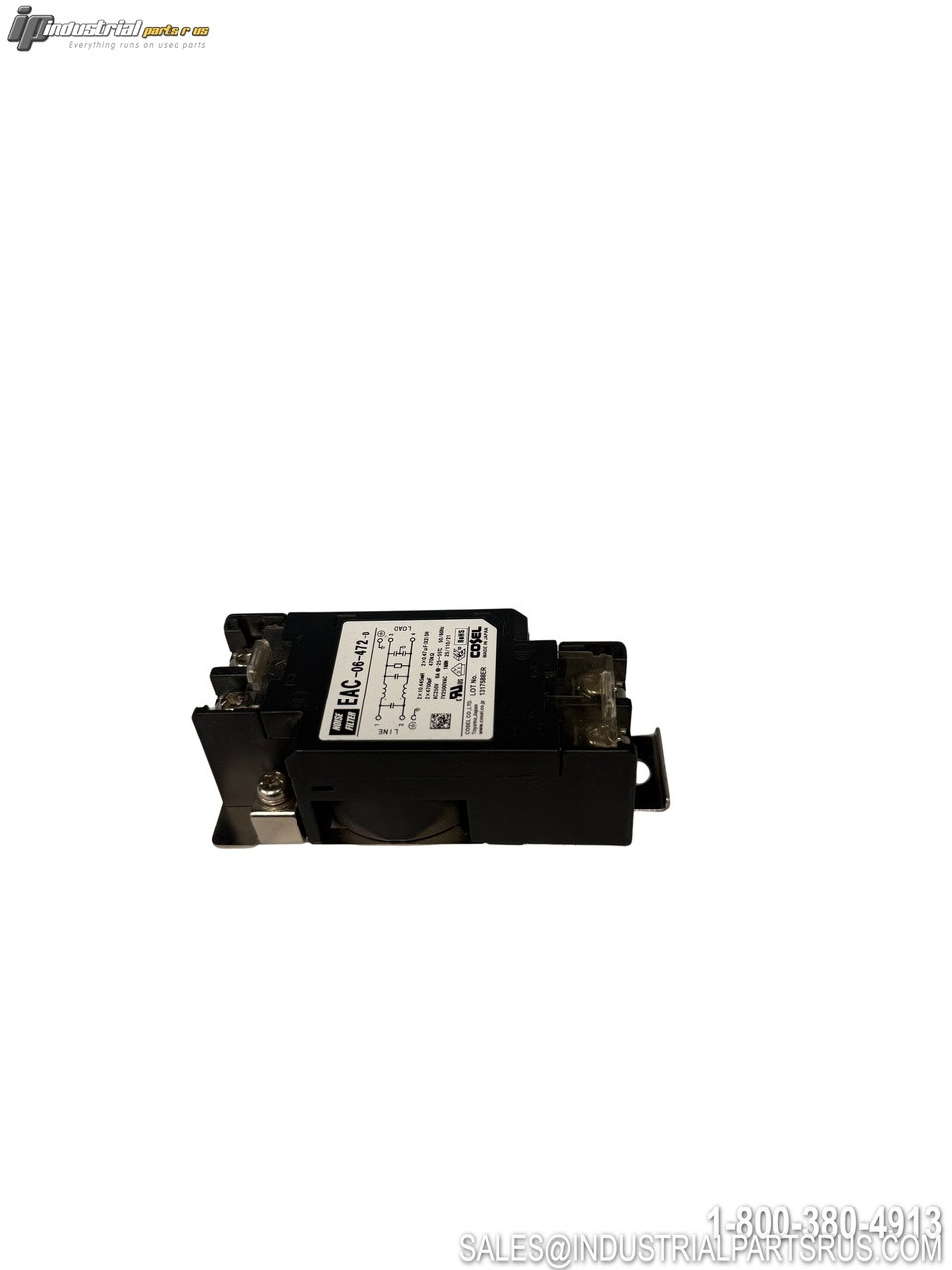

The COSEL EAC-06-472-D is a compact single-phase power line filter designed for EMI/EMC noise suppression in electrical systems. This filter operates in the 150kHz to 1MHz frequency range and features a 1-stage filtering design with terminal block connections and DIN rail mounting capability.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | COSEL |
| Model/Part Number | EAC-06-472-D |
| Product Type | Power Line Filter |
| Series | EAC |
| Rated Voltage | AC 1-Phase 250V / DC 250V |
| Rated Current | 6A |
| Operating Frequency | 60Hz |
| Filter Range | 150kHz to 1MHz |
| Line to Ground Capacitor | 4700pF |
| Leakage Current | 0.5mA/1.0mA max (125/250V 60Hz) |
| Test Voltage | 2500 VAC (Terminal-Mounting Plate) |
| Isolation Resistance | 500 VDC 500MΩ min |
| Operating Temperature | -25°C to +85°C |
| Mounting Type | DIN Rail |
| Connection Type | Terminal Block |
| Dimensions (W×H×D) | 39×30×85 mm (1.54×1.18×3.35 inches) |
| Weight | 170g max |
| Safety Approvals | UL1283, CSA C22.2 No.8, DIN EN60939 VDE0565 |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 0.5mA/1.0mA max (125/250V 60Hz)
Manufacturer Cosel
Part Number EAC-06-472-D
Shelf K-40
Model EAC-06-472-D
MPN EAC-06-472-D
Type Power Line Filter
