Product Description

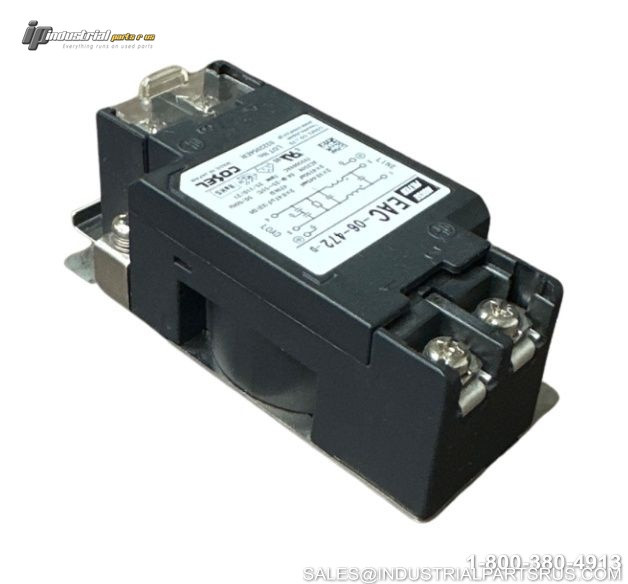

The COSEL EAC-06-472-D is a single-stage power line filter designed to provide EMI/EMC protection in industrial applications. This compact filter features terminal block connections and DIN rail mounting for easy installation. It operates in the frequency range of 150kHz to 1MHz and is suitable for single-phase AC and DC applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | COSEL |
| Model/Part Number | EAC-06-472-D |
| Type | Power Line Filter |
| Series | EAC |
| Rated Current | 6A |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Operating Frequency | 60Hz |
| Filter Frequency Range | 150kHz to 1MHz |
| Filter Type | EMI/EMC |
| Connection Type | Terminal Block |
| Mounting Type | DIN Rail |
| Phase | Single Phase |
| Width | 39mm |
| Length | 85mm |
| Height | 41mm |
| Test Voltage | 2500VAC |
| Leakage Current (125V) | 0.5mA max |
| Leakage Current (250V) | 1.0mA max |
| Operating Temperature | -25°C to +85°C |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 6A
Manufacturer Cosel
Part Number EAC-06-472-D
Shelf K-47
Model EAC-06-472-D
MPN EAC-06-472-D
Type Power Line Filter
