Product Description

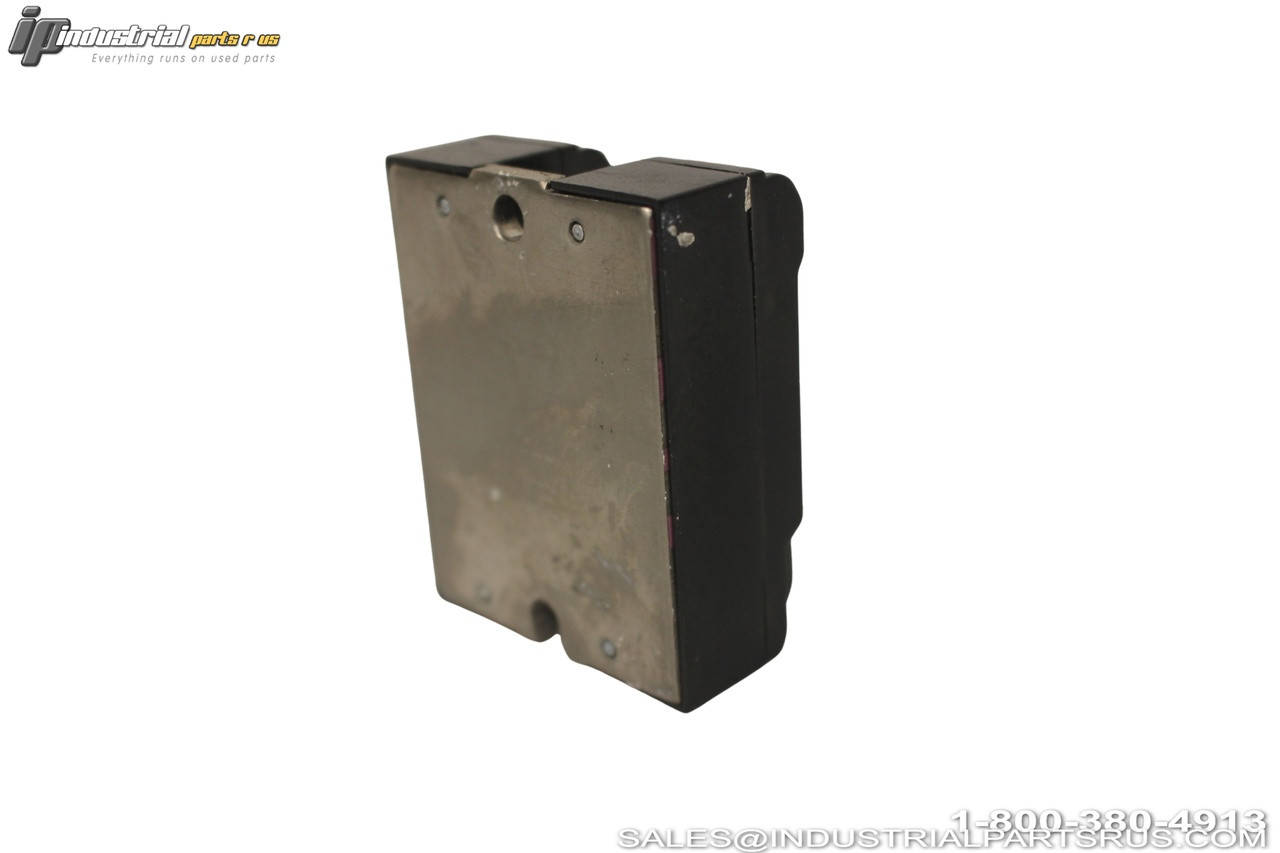

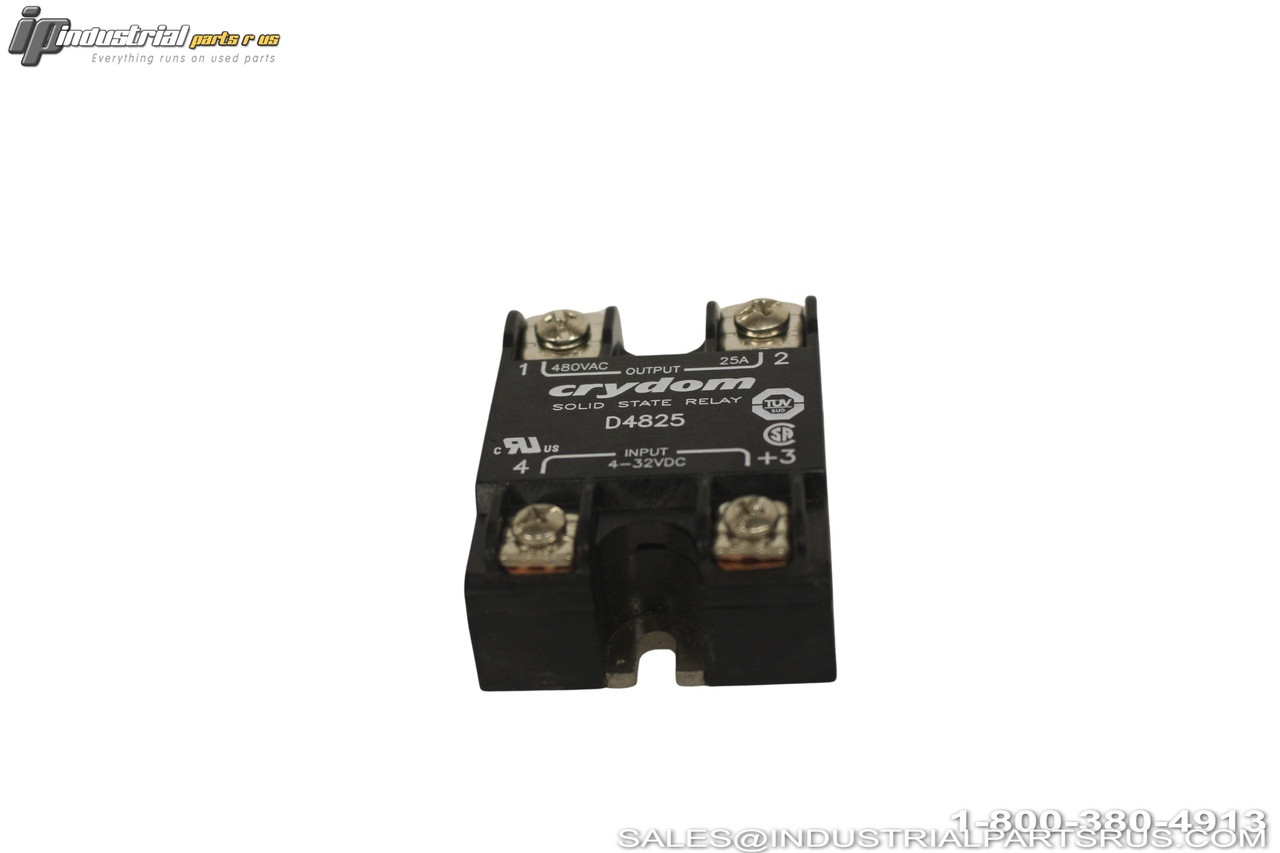

The Crydom D4825 is a professional-grade solid state relay from the Series One family designed for heavy industrial applications. This relay features SCR (Silicon Controlled Rectifier) output switching with zero crossing technology for reduced electromagnetic interference and extended load life. The unit incorporates an aluminum baseplate with direct bond copper substrate for optimal thermal management and reliability in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crydom |
| Model/Part Number | D4825 |
| Product Series | D48 Series (Series One) |
| Contact Configuration | SPST-NO (1 Form A) |
| Load Current Rating | 25A |
| Input Voltage Range | 4-32VDC |
| Output Voltage Range | 80-530VAC |
| Minimum Operating Voltage | 48VAC |
| Maximum Operating Voltage | 530VAC |
| Output Type | AC, Zero Cross |
| Output Device | SCR (Silicon Controlled Rectifier) |
| Switching Mode | Zero Crossing |
| Mounting Type | Panel Mount/Chassis Mount |
| Termination Style | Screw Terminal |
| Package Type | Hockey Puck |
| Dimensions (L x W x H) | 58.4 x 45.7 x 22.9 mm |
| IP Rating | IP00 |
| Housing Material | 94V-0 Housing |
| Base Material | Aluminum Baseplate |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Mounting Style Panel Mount
Country/Region of Manufacture Mexico
GTIN 679523686161
Output Type AC, Zero Cross
Manufacturer Crydom
Part Number D4825
Shelf K-50
Model D4825
MPN D4825
Type Solid State Relay
