Product Description

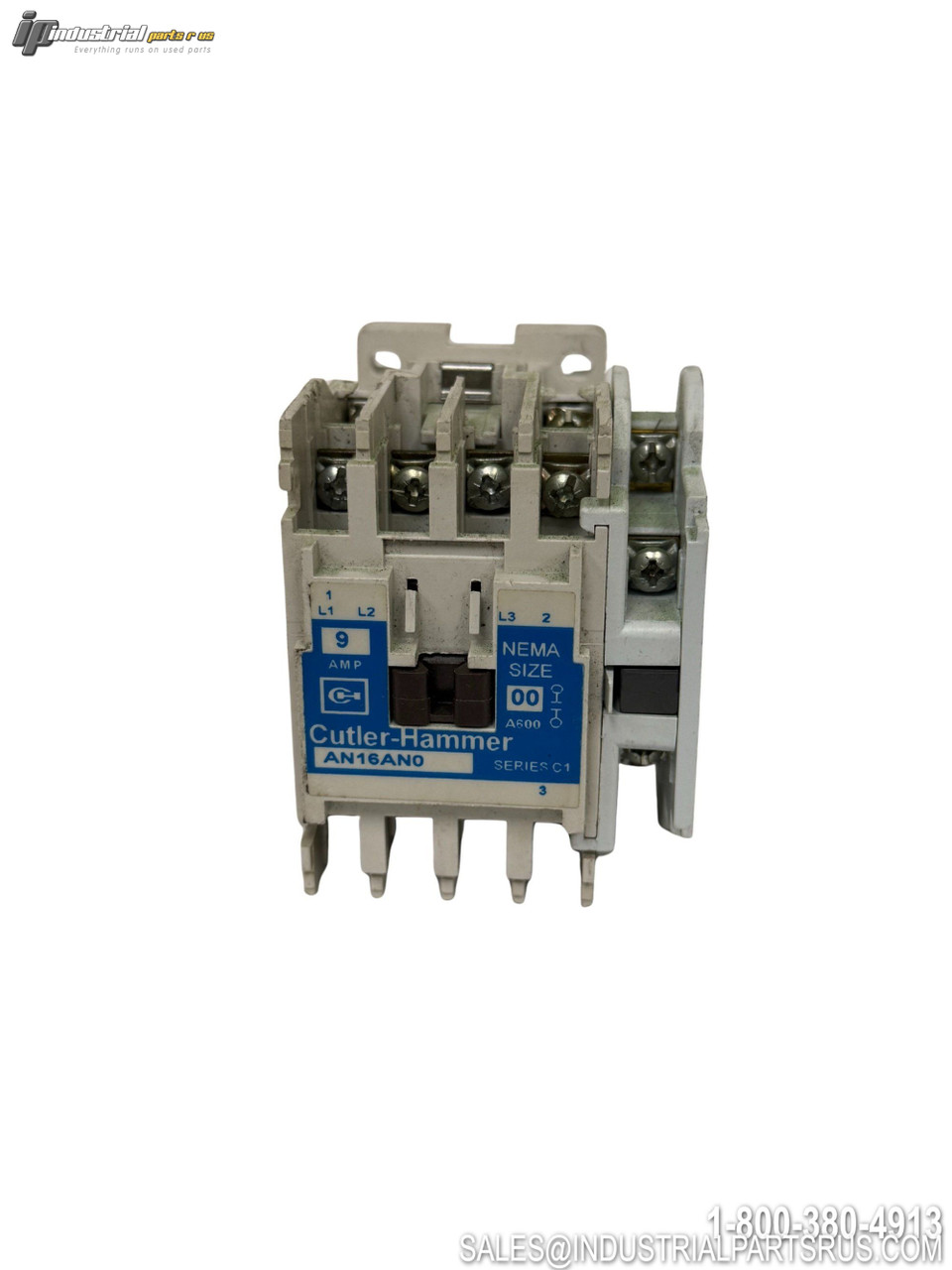

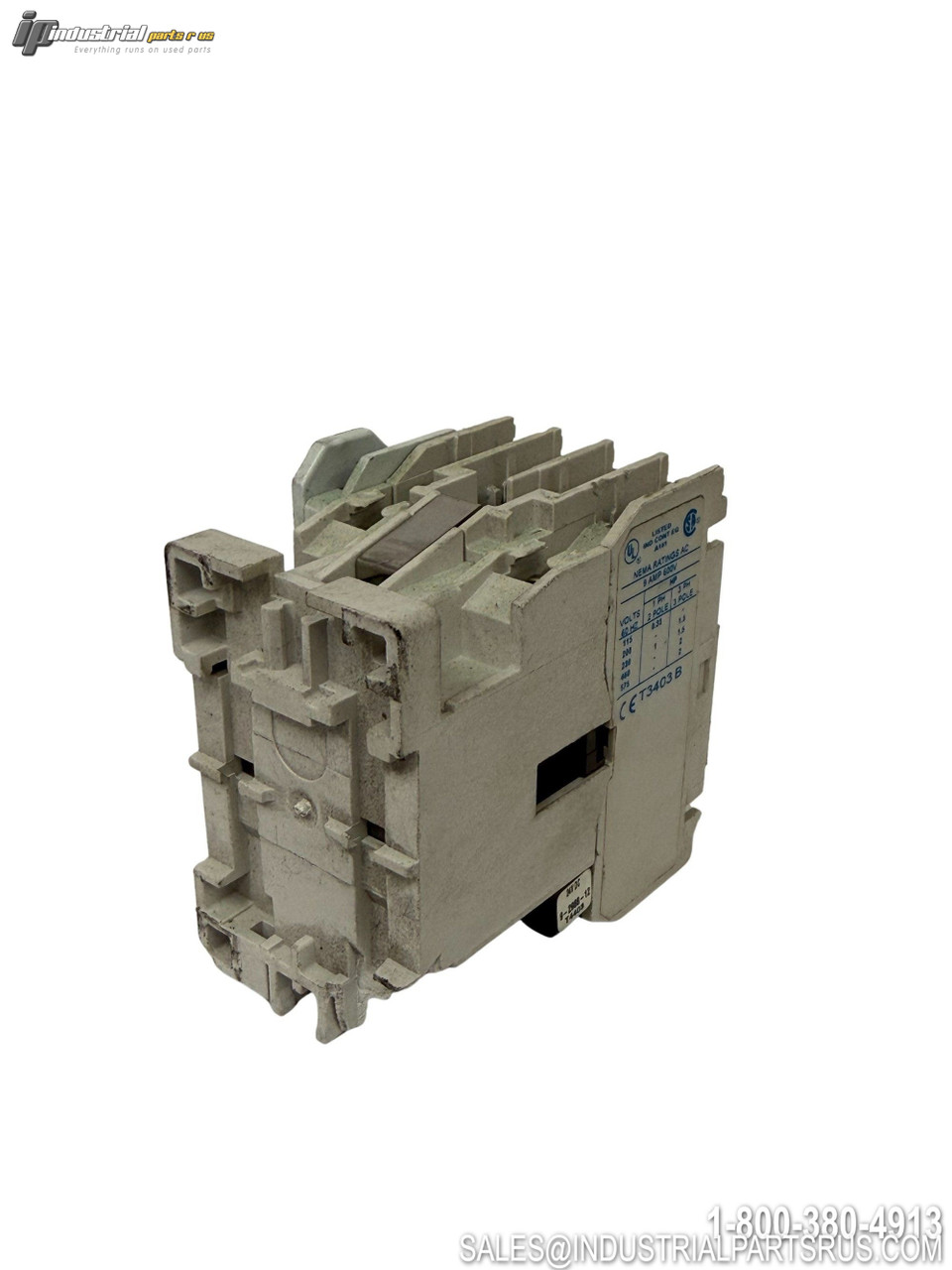

The Cutler-Hammer AN16AN0 is a NEMA Size 00 three-phase full voltage magnetic motor starter from the Freedom series, designed for industrial motor control applications. This heavy-duty starter features a magnetically actuated contactor with bimetallic overload relay for motor protection and is rated for up to 3 million electrical operations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cutler-Hammer |
| Model/Part Number | AN16AN0 |
| Product Series | Freedom |
| NEMA Size | 00 |
| Current Rating | 9 Amps |
| Voltage Rating | 600V |
| Number of Poles | 3 |
| Starter Type | Non-reversing |
| Horsepower Rating 230V | 1.5 HP |
| Horsepower Rating 460V | 2 HP |
| Overload Relay Type | Bimetallic |
| Auxiliary Contact | Side mounted |
| Enclosure Type | Open |
| Certifications | UL Listed, CSA Certified |
| Electrical Life | 3 million operations |
| Mechanical Life | 20 million operations |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Cutler-Hammer
Enclosure Type Open
Part Number AN16AN0
Shelf C-19 Tub 9
Model AN16AN0
MPN AN16AN0
Type Motor Starter
