Product Description

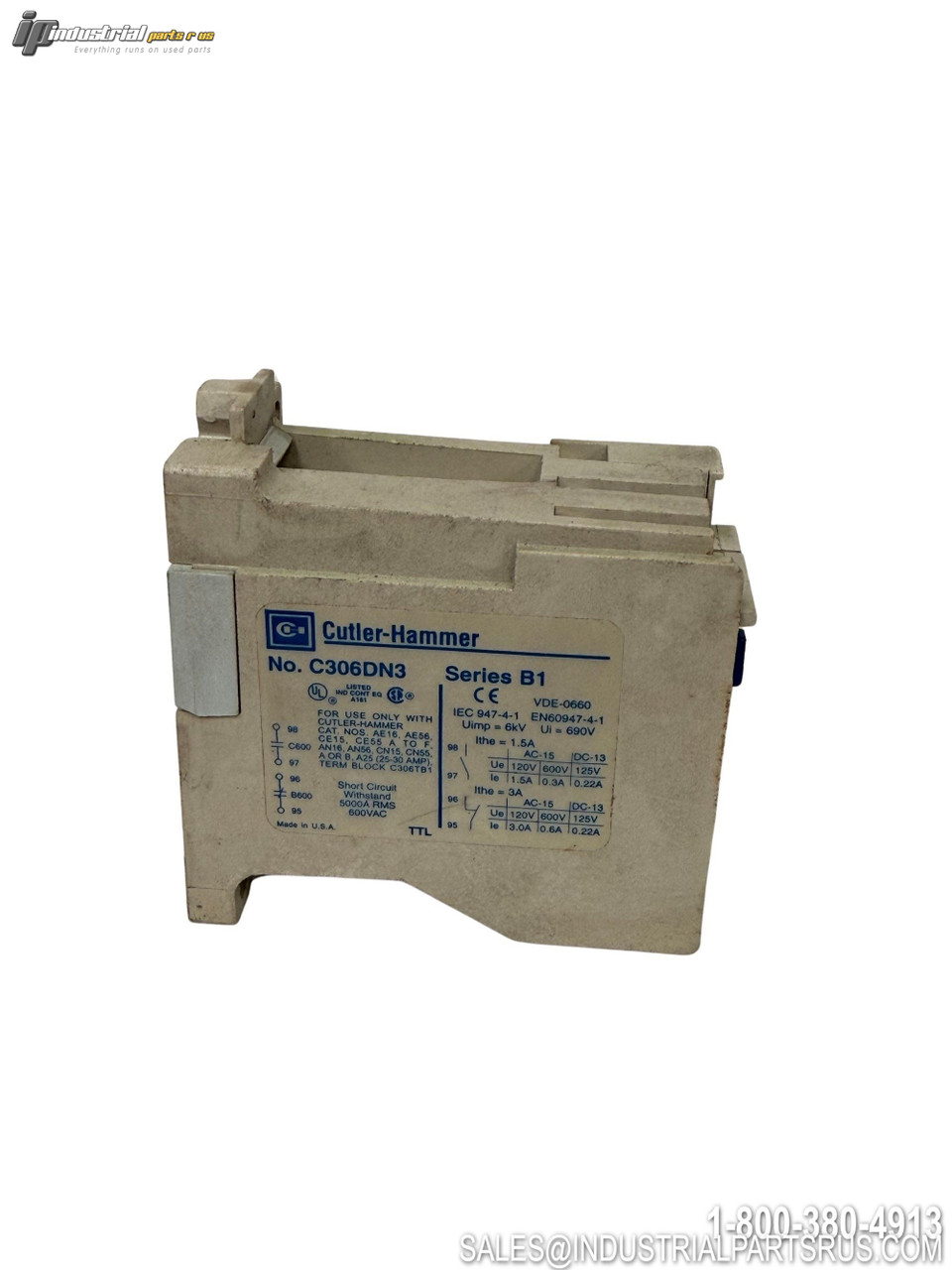

The Cutler-Hammer C306DN3 is a thermal overload relay designed to protect motors and motor-branch circuit conductors against excessive heating due to motor overloads and failure to start. This 3-pole relay is engineered for use with Cutler-Hammer series non-reversing contactors and provides reliable motor protection in industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cutler-Hammer |
| Model/Part Number | C306DN3 |
| Series | B1 |
| Product Type | Thermal Overload Relay |
| Number of Poles | 3 |
| NEMA Size | 00 |
| Motor FLA Range | 0.254-38.5A |
| Rated Voltage | 600VAC |
| Current Rating | 32A |
| AC-11 Current 600V | 1.5A |
| AC-11 Current (3A) 600V | 3A |
| Short Circuit Withstand | 5000A RMS 600VAC |
| Standards | VDE-0660, IEC 292-1, IEC 947-4-1 |
| Impulse Withstand | 60kV |
| Insulation Voltage | 690V |
| Weight | 1.0 lbs (370 grams) |
| Mounting Type | Contactor Mount/Panel Mount |
| Terminal Block | C306TB1 |
| RoHS Compliant | Yes |
| Manufacturer | Eaton Corporation |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 1.5A
Manufacturer Cutler-Hammer
Part Number C306DN3
Shelf K-4
Model C306DN3
MPN C306DN3
Type Thermal Overload Relay
