Product Description

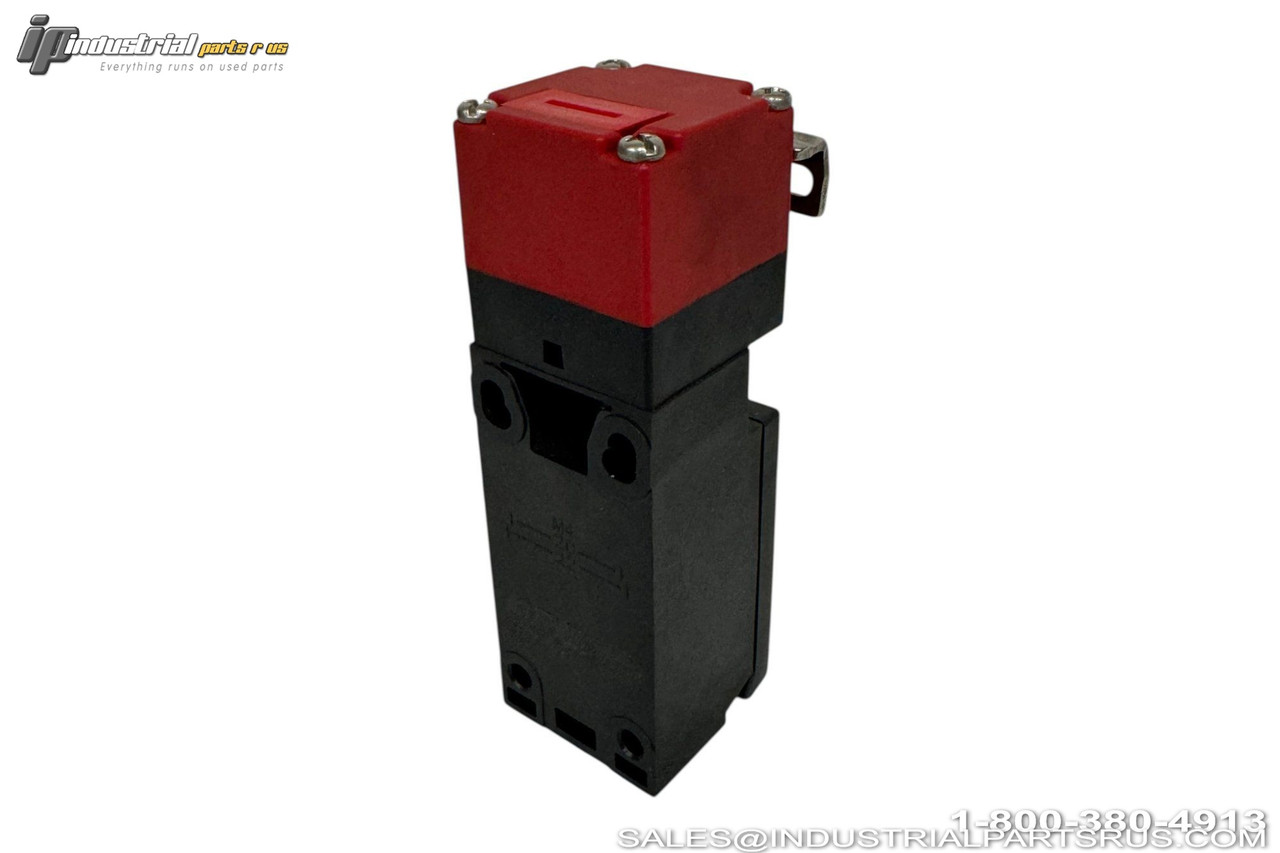

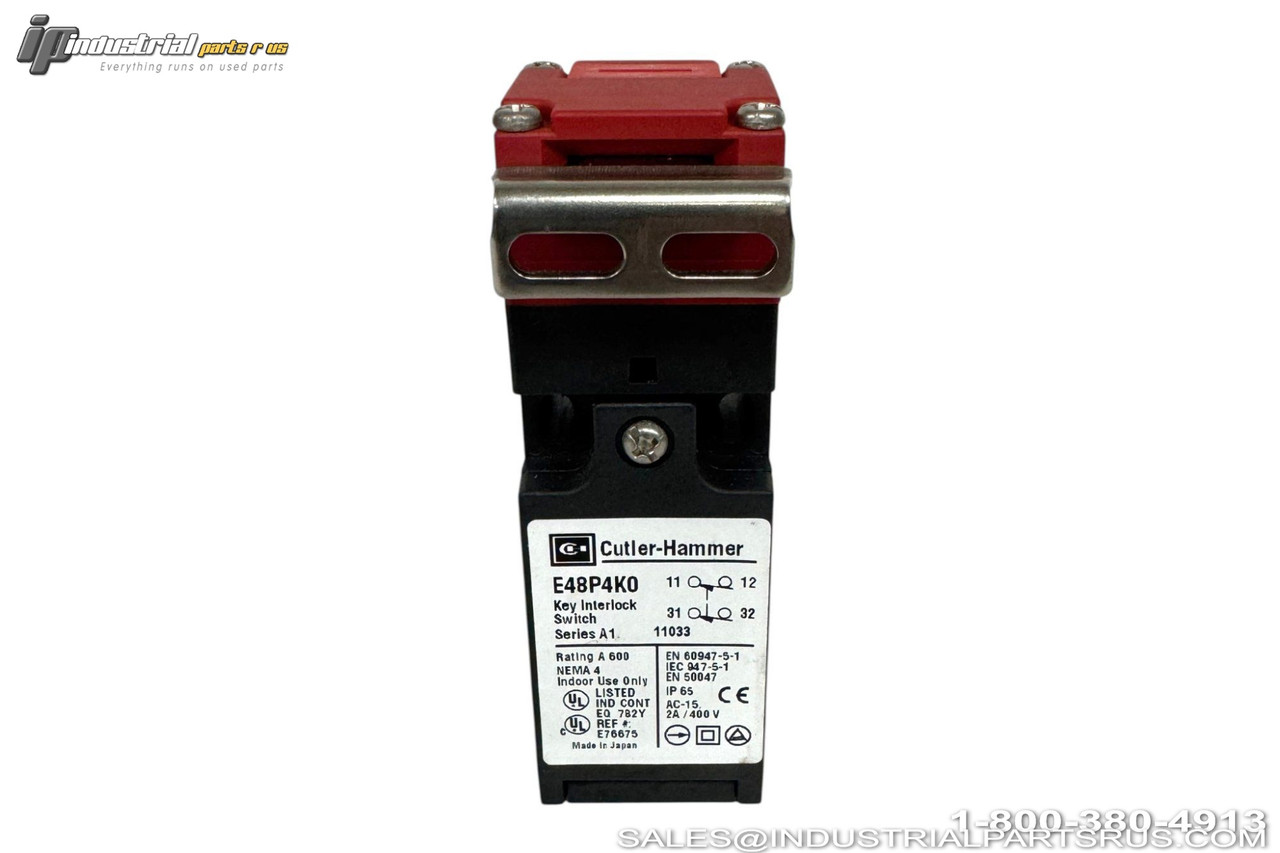

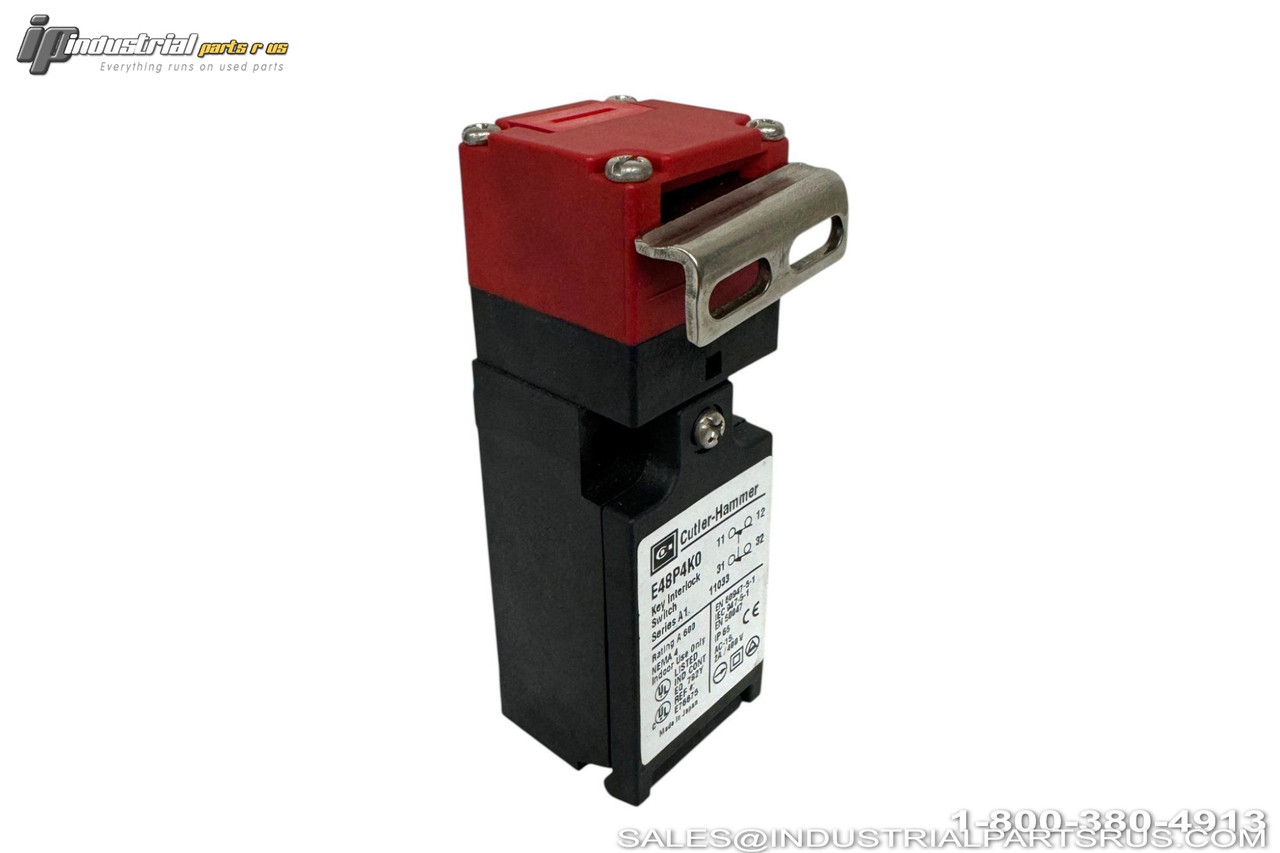

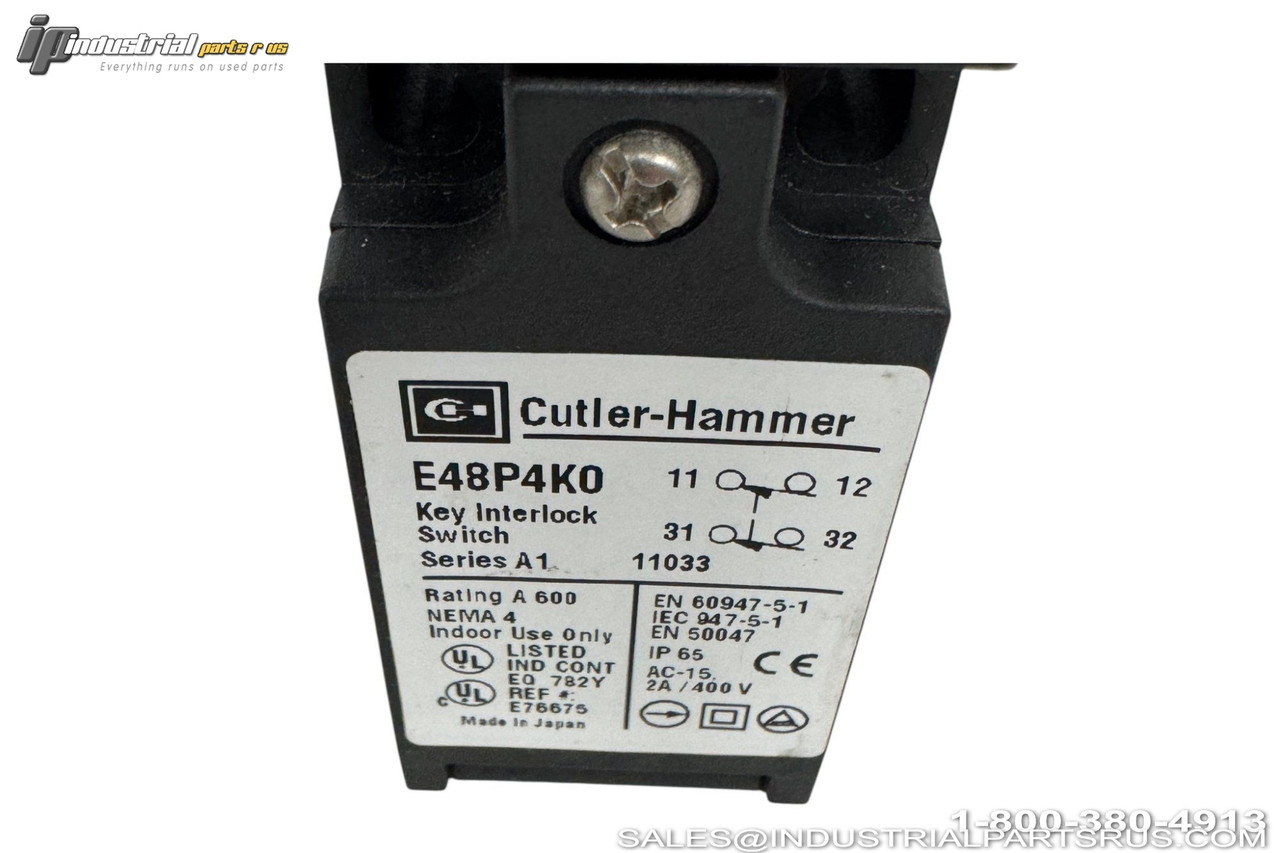

The Cutler-Hammer E48P4K0 is a DIN-style safety key interlock switch designed for industrial safety applications with movable guards or covers. This positively-driven safety switch interrupts control circuits when guards are opened, providing machine safety compliance. Features synthetic resin construction and IP65/NEMA 4 rating for reliable operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Cutler-Hammer |
| Model/Part Number | E48P4K0 |
| Series | E48DIN |
| Switch Contacts | 2NC (Normally Closed) |
| Contact Configuration | DPDT Slow Action |
| Voltage Rating | 600VAC |
| NEMA Rating | NEMA 4 |
| IP Rating | IP65 |
| Body Material | Synthetic Resin/Plastic |
| Extraction Force | 14.7 Newtons |
| Solenoid Interlocking | No |
| Guard Locking Type | None |
| Adjustable Actuator Head | Yes |
| Auxiliary Release | No |
| Dimensions (H x W x D) | 2.62 x 1.2 x 1.22 inches |
| Weight | 2.72 oz |
| Approvals | UL, CE, TUV |
| Application | Indoor Use Only |
| Termination Type | Terminal Wiring |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Panel Mount
Current Rating 10 A
Application Industrial Safety Control
Manufacturer Cutler-Hammer
Enclosure Type NEMA 4
Part Number E48P4K0
Shelf K-46
Model E48P4K0
MPN E48P4K0
Type Safety Interlock
