Product Description

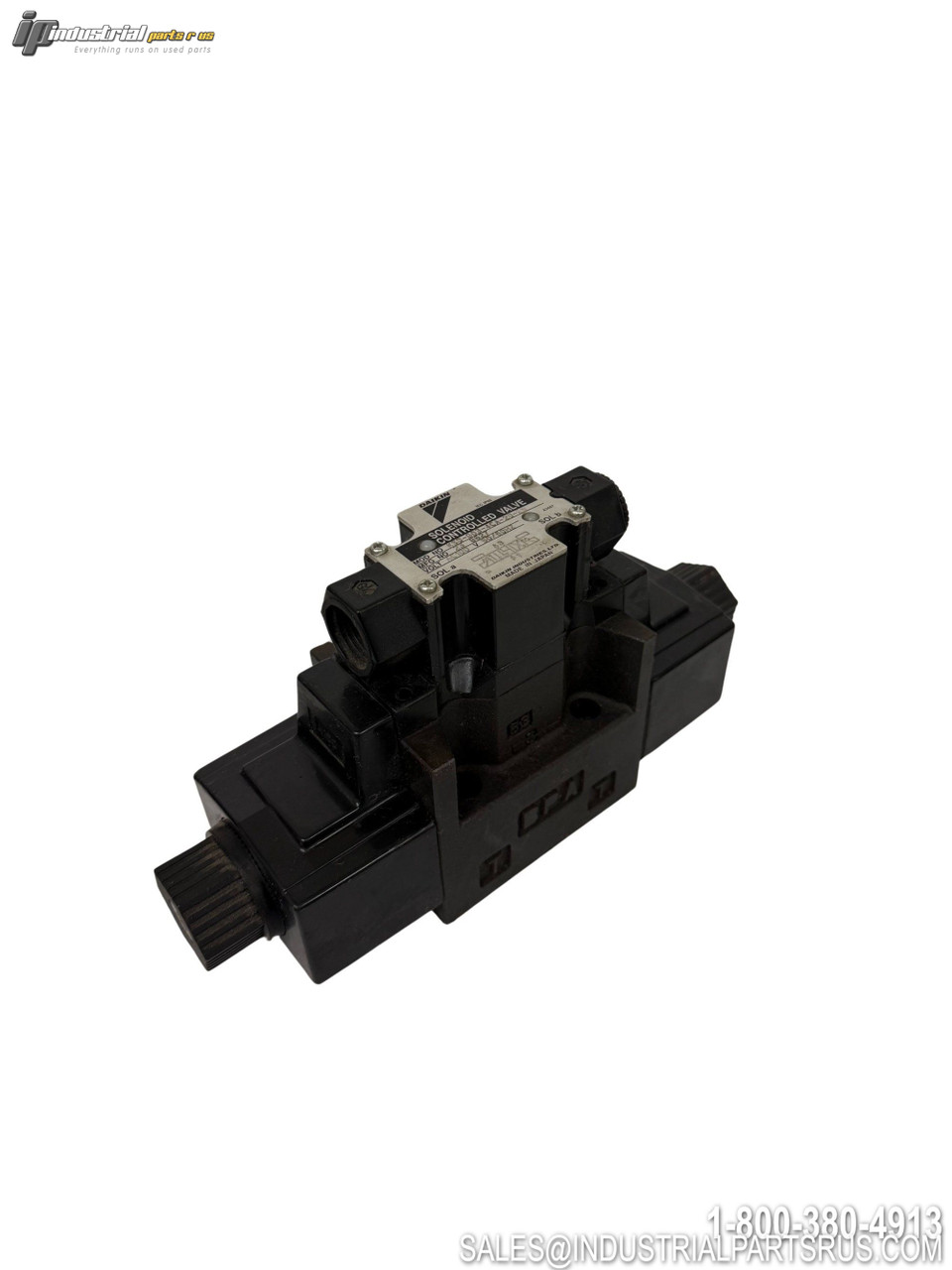

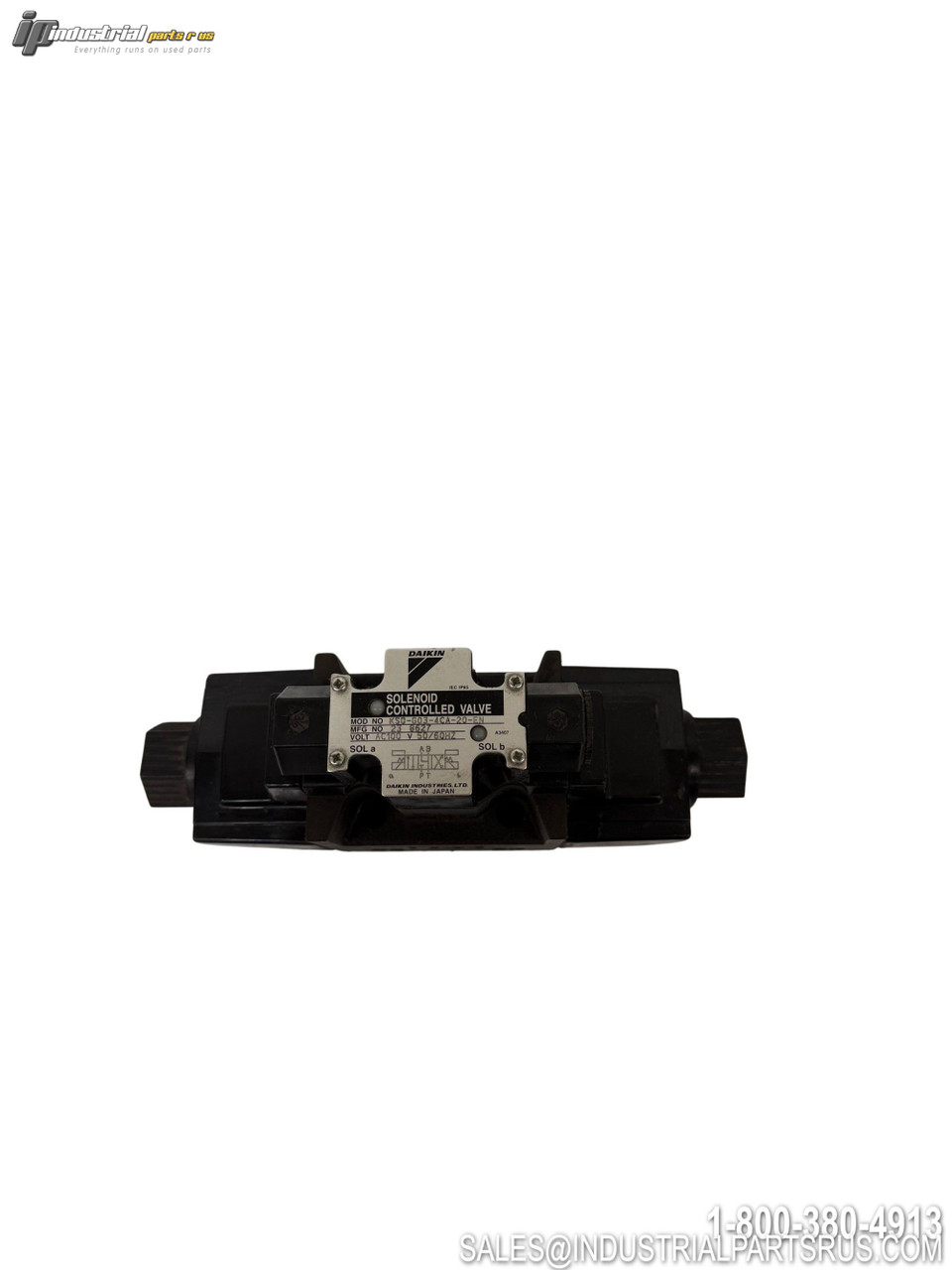

The Daikin KS0-G03-4CA-20-EN is a high-performance hydraulic solenoid directional control valve designed for demanding industrial applications. This valve features spring center type operation with 4-way, 3-position spool configuration, delivering reliable fluid control at high pressures up to 35 MPa and flow rates up to 160 L/min.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Daikin |
| Model/Part Number | KS0-G03-4CA-20-EN |
| Type | Hydraulic Solenoid Directional Control Valve |
| Series | KSO |
| Maximum Operating Pressure | 35 MPa (350 kgf/cm²) |
| Maximum Flow Rate | 160 L/min |
| Nominal Diameter | Rc 3/8 |
| Spool Operating Method | Spring Center Type |
| Voltage | 100VAC |
| Frequency | 50/60Hz |
| Mounting Pattern | D05 |
| Electrical Connection | Terminal Box |
| Protection Rating | IP65 |
| Applicable Fluid | Petroleum-based hydraulic fluid |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Equipment Type Solenoid Valve
Manufacturer Daikin
Enclosure Type IP65
Part Number KS0-G03-4CA-20-EN
Shelf A-19
Model KS0-G03-4CA-20-EN
MPN KS0-G03-4CA-20-EN
Type Hydraulic Valve
