Product Description

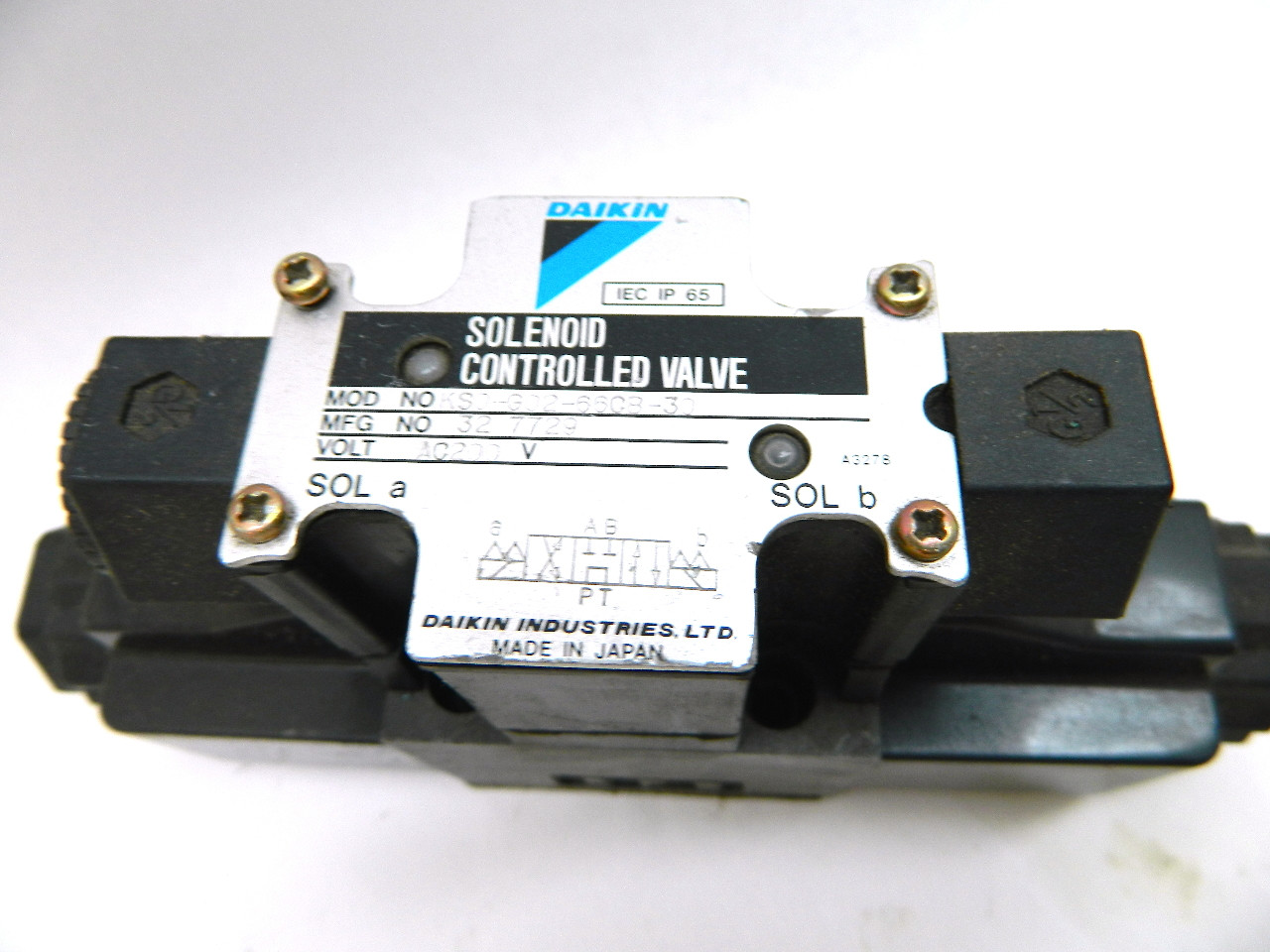

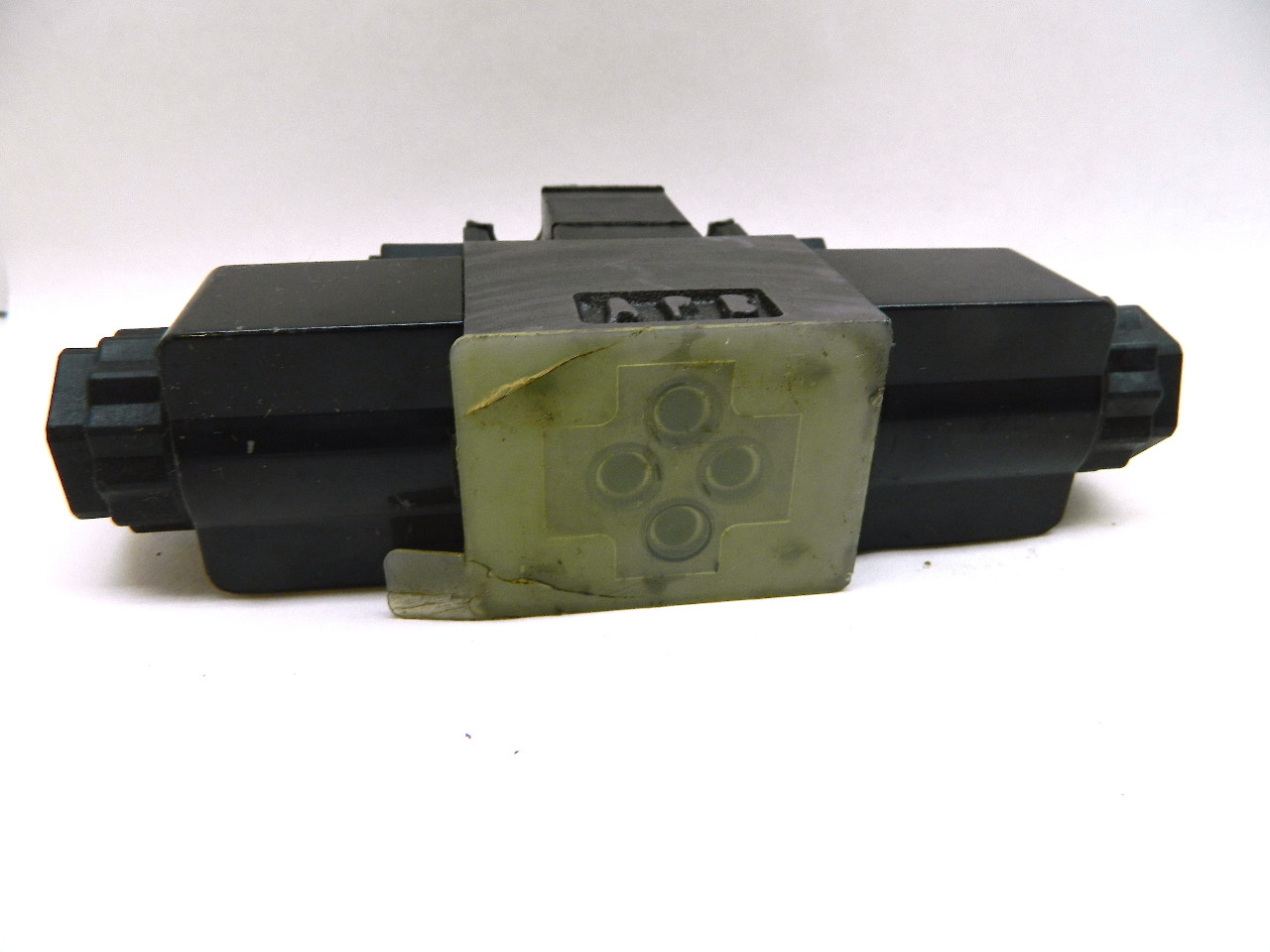

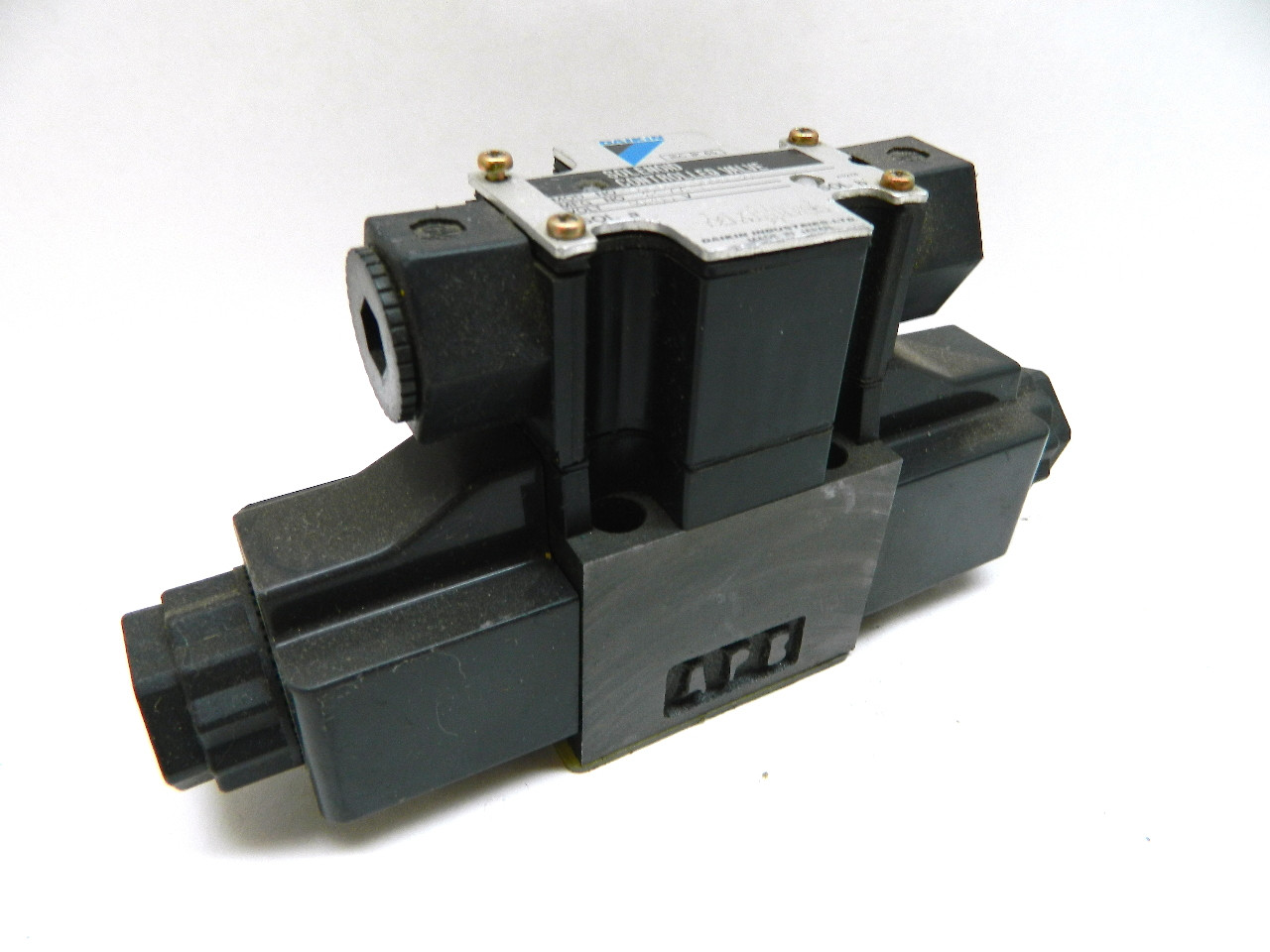

Daikin KSO-G02-66CB-30 Solenoid Operated Hydraulic Valve 200Vac Spring Center Spool with Indicator Lamps.
Item Features:
Item Features:
- Caution: Sub-plate is not attached to the valve.
- Ground Terminal: Nothing
- Wiring System: Terminal box shape
- Indicator Lamp: With
- Protection Structure: IEC Pub529 IP65
- Rating Time: Continuity
- Spool Spring Type: Spring center
- Insulation Resistance (Mohm): 50
- Insulation Assortment: Class B (winding: H species)
- Power Supply Voltage (V): AC200(50/60Hz)AC220(60Hz)
- Strarting Current (A): AC200V(50Hz):1.21AC200V(60Hz):1.07AC220V(60Hz):1.18
- Holding Power (W): AC200V(50Hz):21.5AC200V(60Hz):18AC220V(60Hz):22.5
- Tolerable Voltage Fluctuation: AC200V (50Hz): 80 to 110% AC200V (60Hz): 90 to 121% AC220V (60Hz): 82 to 110%
- Maximum Working Pressure (MPa [kgf/cm2]): 25[250]
- Actuation: Spool: Spring center type
- Withstand Voltage: 1 minute AC1500V
- Peak Flow Rate (L/min): 100
- Surge Suppressor: Nothing
- Nominal Diameter: 1/4
- Mass (kg): 1.8
- Allowable Back Pressure (MPa[kgf/cm2]): 17.5[175]
- Switching Frequency (Times): 240
- Connection Method: Gasket type
- Operating Time (Seconds): Operating direction (excitation): 0.01 to 0.025 operating direction (spring return): from 0.01 to 0.045
- Holding Current (A): AC200V(50Hz):0.26AC200V(60Hz):0.19AC220V(60Hz):0.22
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
GTIN 641752899728
Country/Region of Manufacture Japan
Manufacturer Daikin
Shelf A-16
Model KSO-G02-66CB-30
MPN KSO-G02-66CB-30
Voltage 200Vac
Type Hydraulic Control Valve
