Product Description

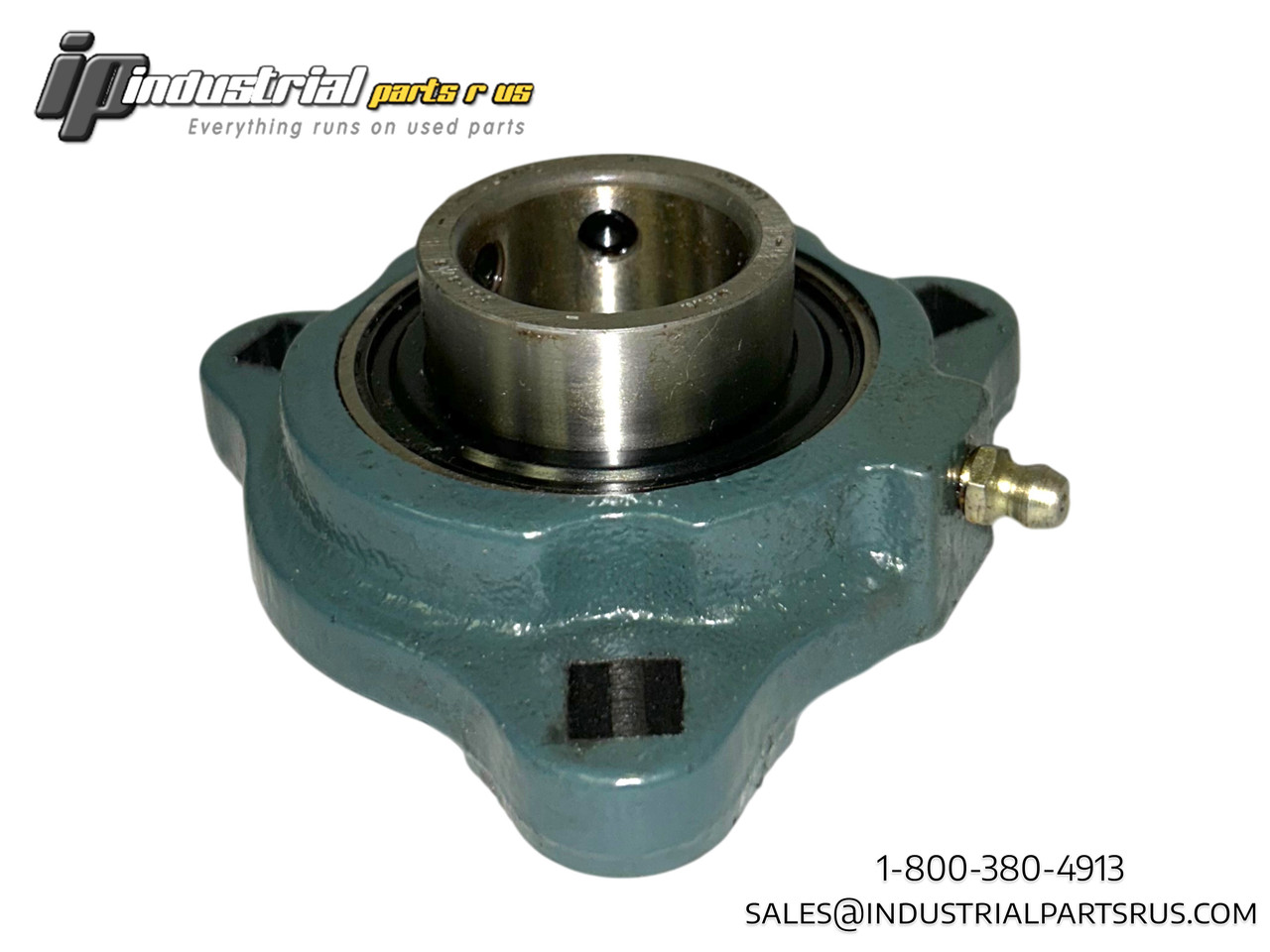

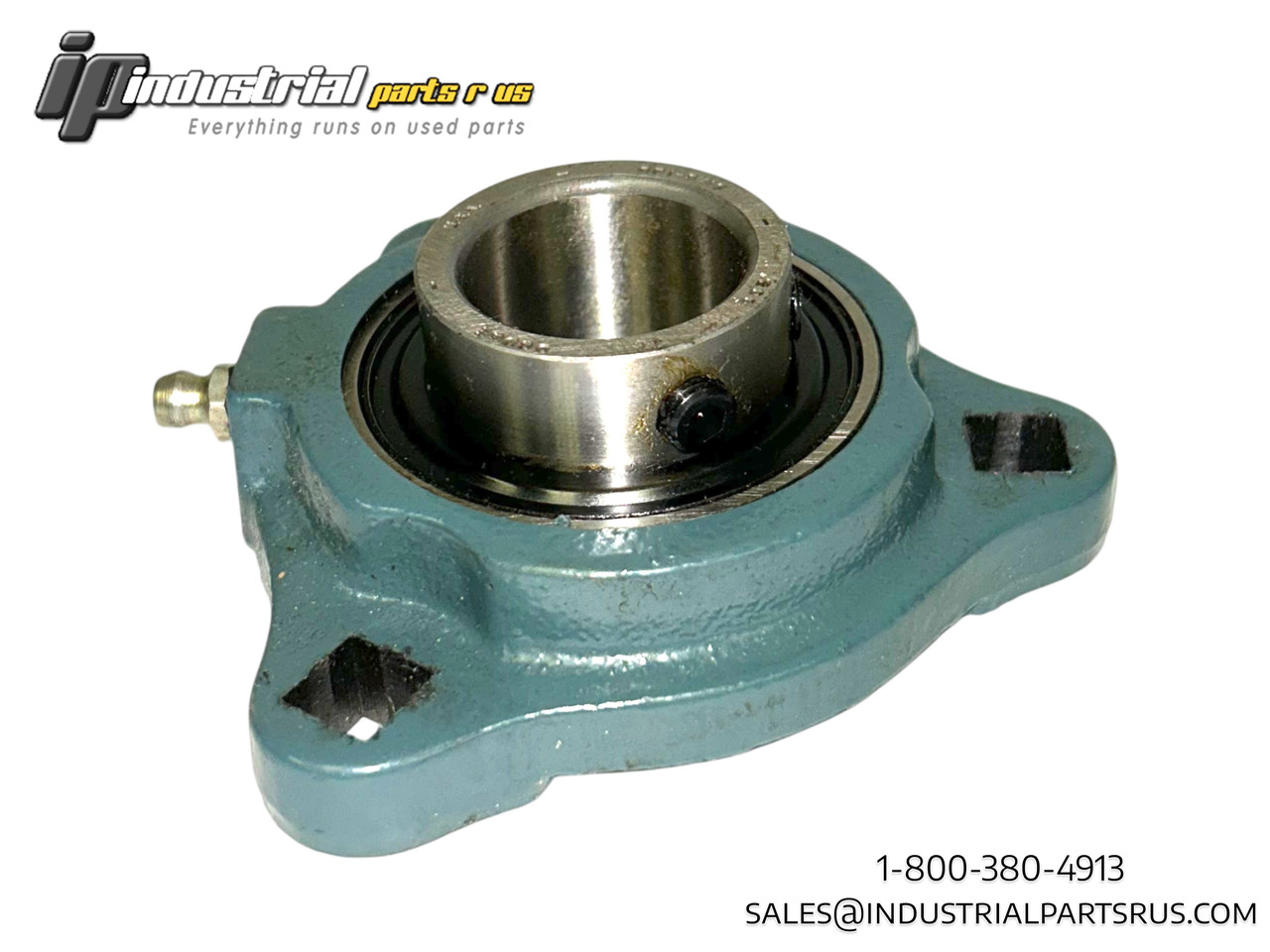

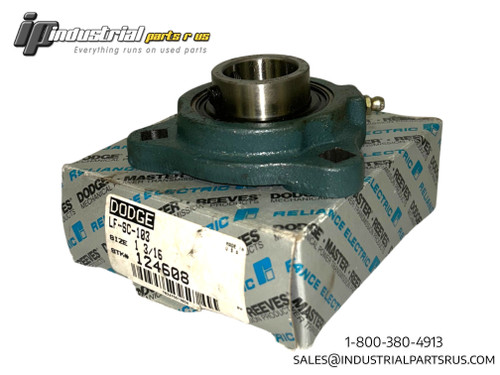

The Dodge LF-SC-103 is an intermediate duty pillow block ball bearing unit designed for reliable power transmission applications. This series 206 bearing features a 1-3/16 inch bore diameter with setscrew locking and a three-bolt base flange mounting configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dodge |
| Model/Part Number | LF-SC-103 |
| Bearing Type | Pillow Block |
| Series | 206 |
| Bore Diameter | 1-3/16 inch |
| Mounting Type | 3-Bolt Base Flange |
| Bearing Insert Type | Ball Bearing |
| Locking Device | Setscrew |
| Bolt Center-to-Center | 3.56 inch |
| Bolt Circle Diameter | 3.56 inch |
| Overall Length/Diameter | 4.44 inch |
| Overall Depth | 1.45 inch |
| Dynamic Load Rating | 4368 lbs |
| Static Load Rating | 2538 lbs |
| Maximum Speed | 6500 RPM |
| Operating Temperature | 225 to 400°F |
| Bearing Material | Steel |
| Seal Type | Nitrile Rubber |
| Housing Finish | Powder Coated |
| UPC | 782475513604 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture USA
GTIN 679523686161
Material Steel
Manufacturer Dodge
Part Number LF-SC-103
Shelf A-3
Bore Diameter 1-3/16 in
Model LF-SC-103
MPN LF-SC-103
Type Pillow Block
