Product Description

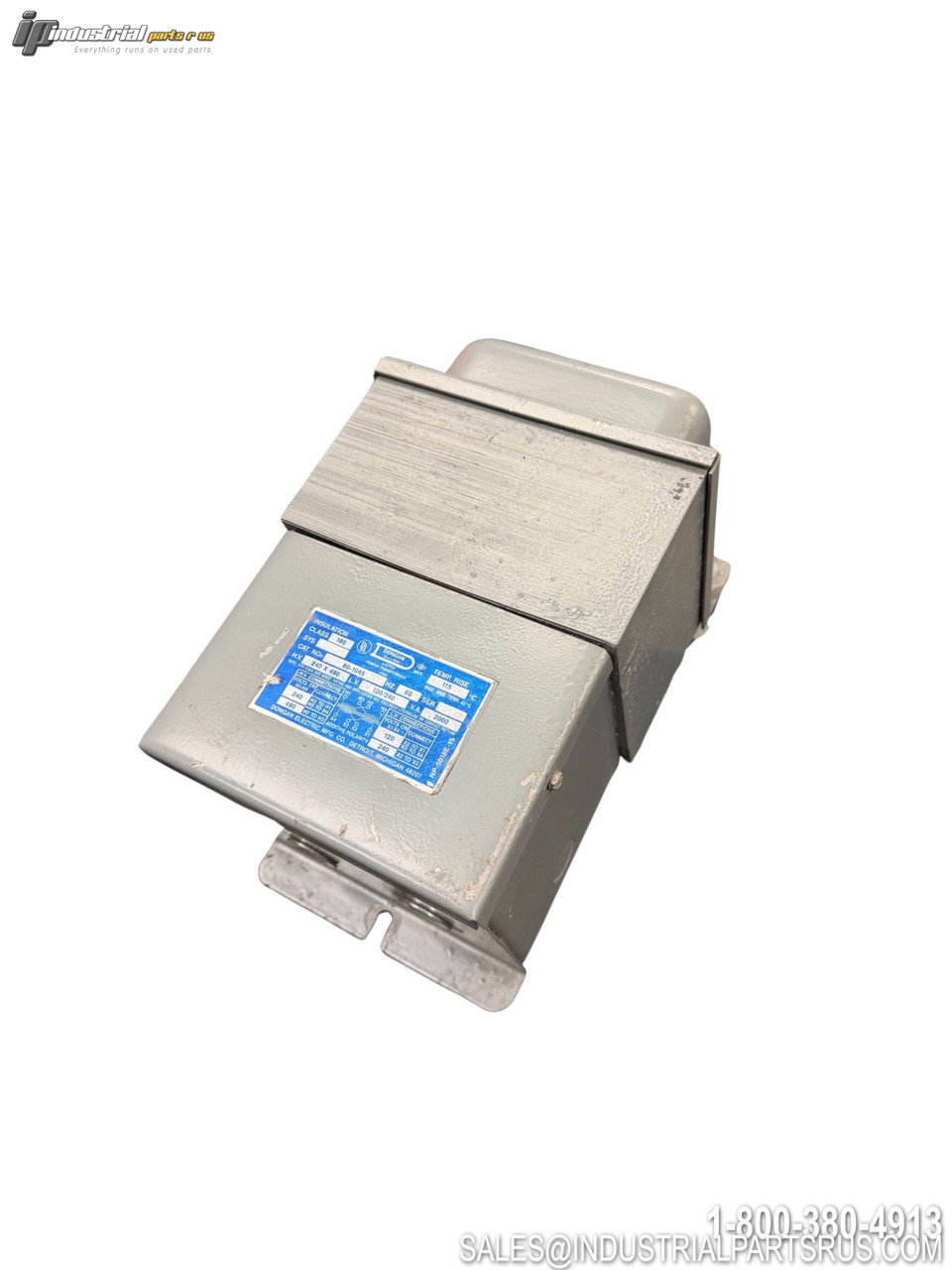

The Dongan 80-1045 is a single-phase general purpose transformer designed for isolation and voltage conversion applications. This 2 kVA unit features dual primary voltage capability (240V/480V) and dual secondary output (120V/240V), making it versatile for various industrial and commercial installations. The transformer utilizes copper windings throughout and includes a NEMA Type 3R enclosure suitable for indoor or outdoor use.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dongan |
| Model/Part Number | 80-1045 |
| Series | 80 |
| Power Rating (kVA) | 2 kVA |
| Primary Voltage | 240 x 480 VAC |
| Secondary Voltage | 120/240 VAC |
| Frequency Rating | 60 Hz |
| Phase | Single Phase |
| Maximum Primary Amperage | 8.3/4.1 Amp |
| Maximum Secondary Amperage | 16.6/8.3 Amp |
| Insulation Class | UL Class 180°C |
| Temperature Rise | 115°C at 40°C Ambient |
| Winding Material | Copper |
| Construction Type | Ventilated, Dry-Type, Double Wound |
| Enclosure Type | NEMA Type 3R |
| Mounting Type | Wall Mount |
| Width | 6.63 IN |
| Height | 11 IN |
| Depth | 5.88 IN |
| Weight | 41 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 8.3/4.1 Amp
Manufacturer Dongan
Enclosure Type NEMA Type 3R
Part Number 80-1045
Shelf I-18
Model 80-1045
MPN 80-1045
Type Transformer
