Product Description

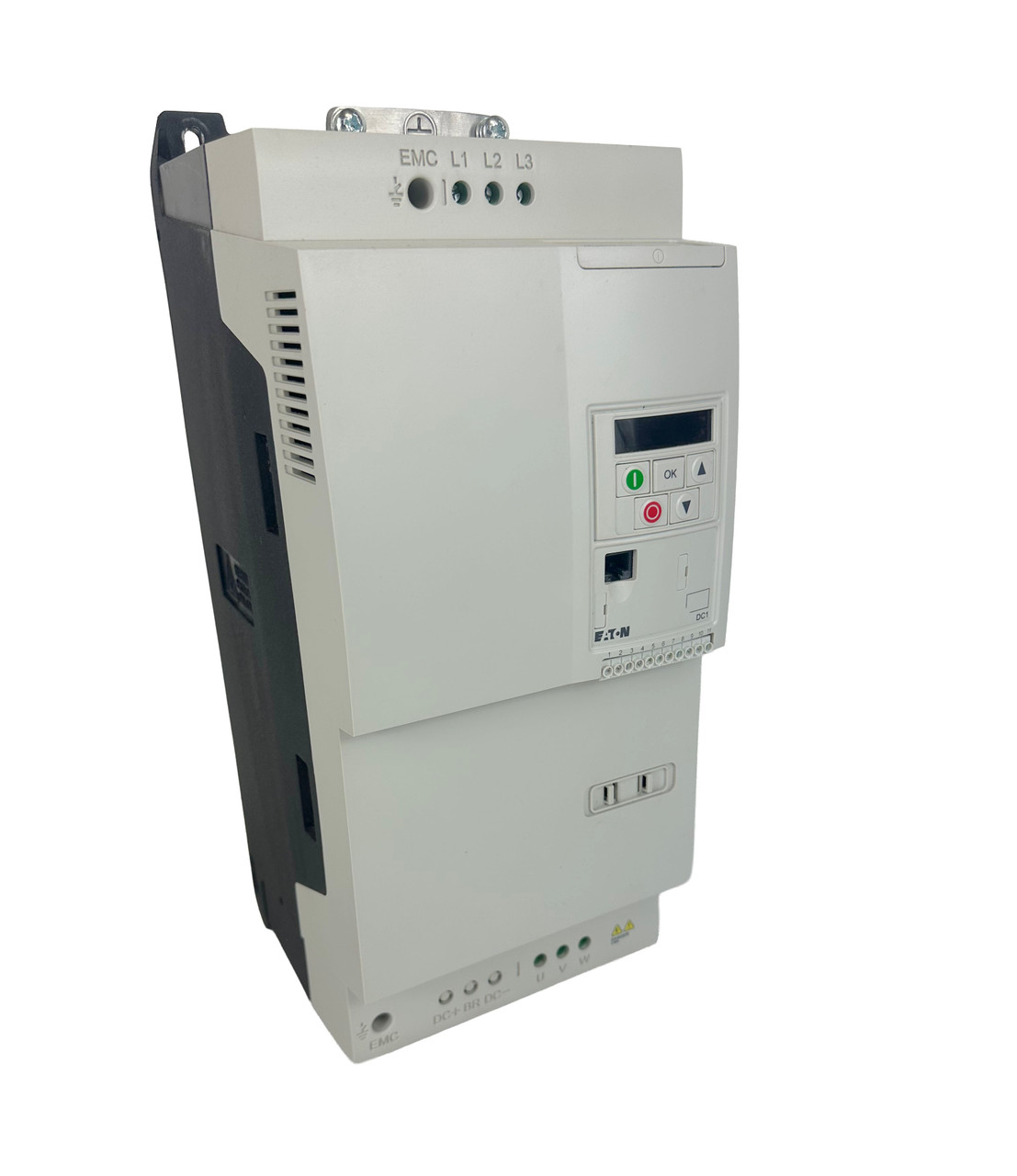

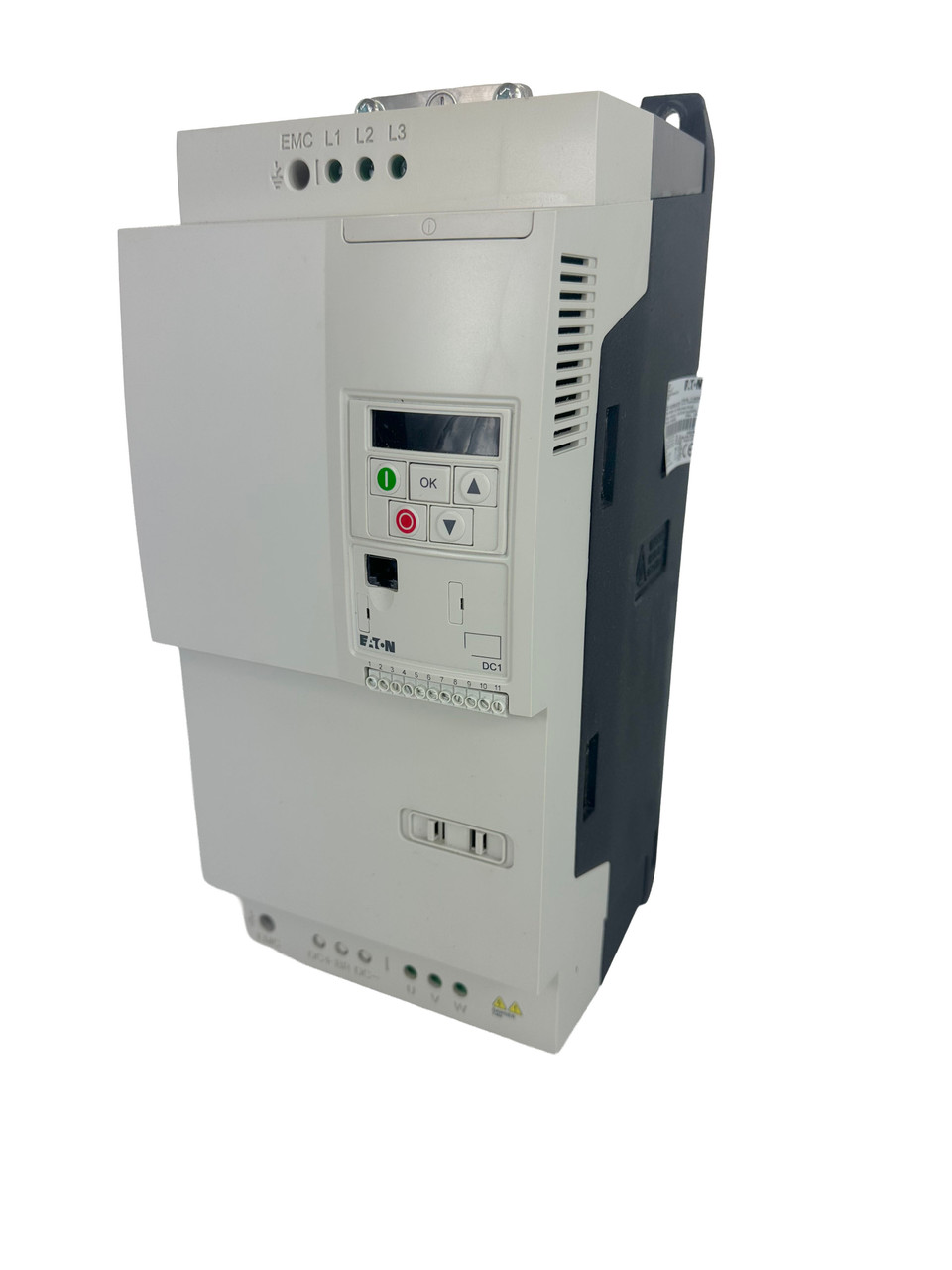

Eaton Power XL 20Hp 15Kw Variable Frequency Drive / Adjustable Speed Control. Excellent Condition with 30 Day Warranty.| Manufacturer Part Number | EATON-DC134030NBA20CE1 |
|---|---|
| Manufacturer | Cutler Hammer, Div of Eaton |
| Product Series | DC1 |
| Family Series | Cutler Hammer, Div of Eaton Drives, DC1 Series |
| Description | Eaton DC1 device series variable frequency drive, IP20 480V IN/460V OUT 20HP, 30A ENH FW |
| Phase | 3 |
| HP (Constant Torque Rating) | 20 hp |
| Amps (Constant Torque Rating) | 30 A |
| Brake | Dynamic Braking, Flux Braking |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Frequency | 500 Hz |
| Frame Size | FS4 |
| Protection Rating | IP20 |
| Dynamic Braking | Included |
| Height | 16.48 " |
| Width | 6.81 " |
| Depth | 8.31 " |
| Comments | Enhanced Firmware, SmartWire Capability, Contactor Style Power Wiring, Input Top, Output Bottom |
| Net Weight | 22.45 lbs |
| Gross Weight | 22.45 lbs |
Product Description
Eaton DC1 VFD
Eaton’s PowerXL™ DC1 variable frequency drives are the next generation of drives specifically engineered for today’s machinery applications. The DC1 is compact with only 14 basic parameters, SmartWire-DT™ connectivity, and outstanding ease of mounting and installation. The DC1 is perfect for quick commissioning and is ideal for panel builders. This drive supports single-phase motor applications, and detachable terminal blocks make control wiring much easier..
- Three Phase Main Connections
- 460VAC Main Voltage
- Three Phase Output Connection
- 460VAC Output
- 20 HP
- 30 Amp
- No Internal RFI Filter
- No Internal Brake Chopper
- LED Display
- IP20/Nema 0 Housing
Product Videos
Custom Field
GTIN 721814239430
Country/Region of Manufacture United Kingdom
Manufacturer Eaton Corp.
Input Voltage 460 V

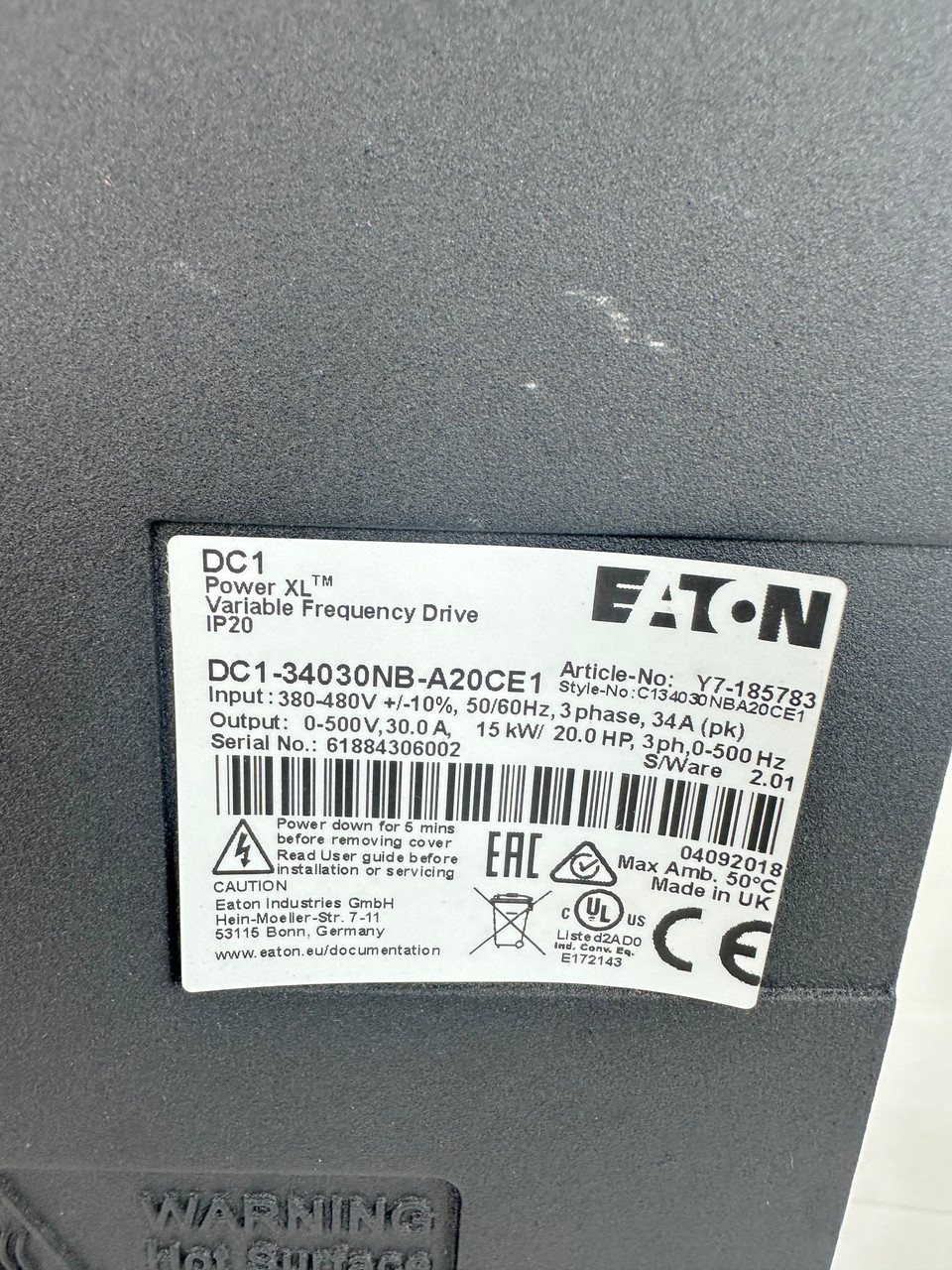

Model DC1-34030NB-A20CE1
MPN DC1-34030NB-A20CE1
Type Variable Frequency Drive
