Product Description

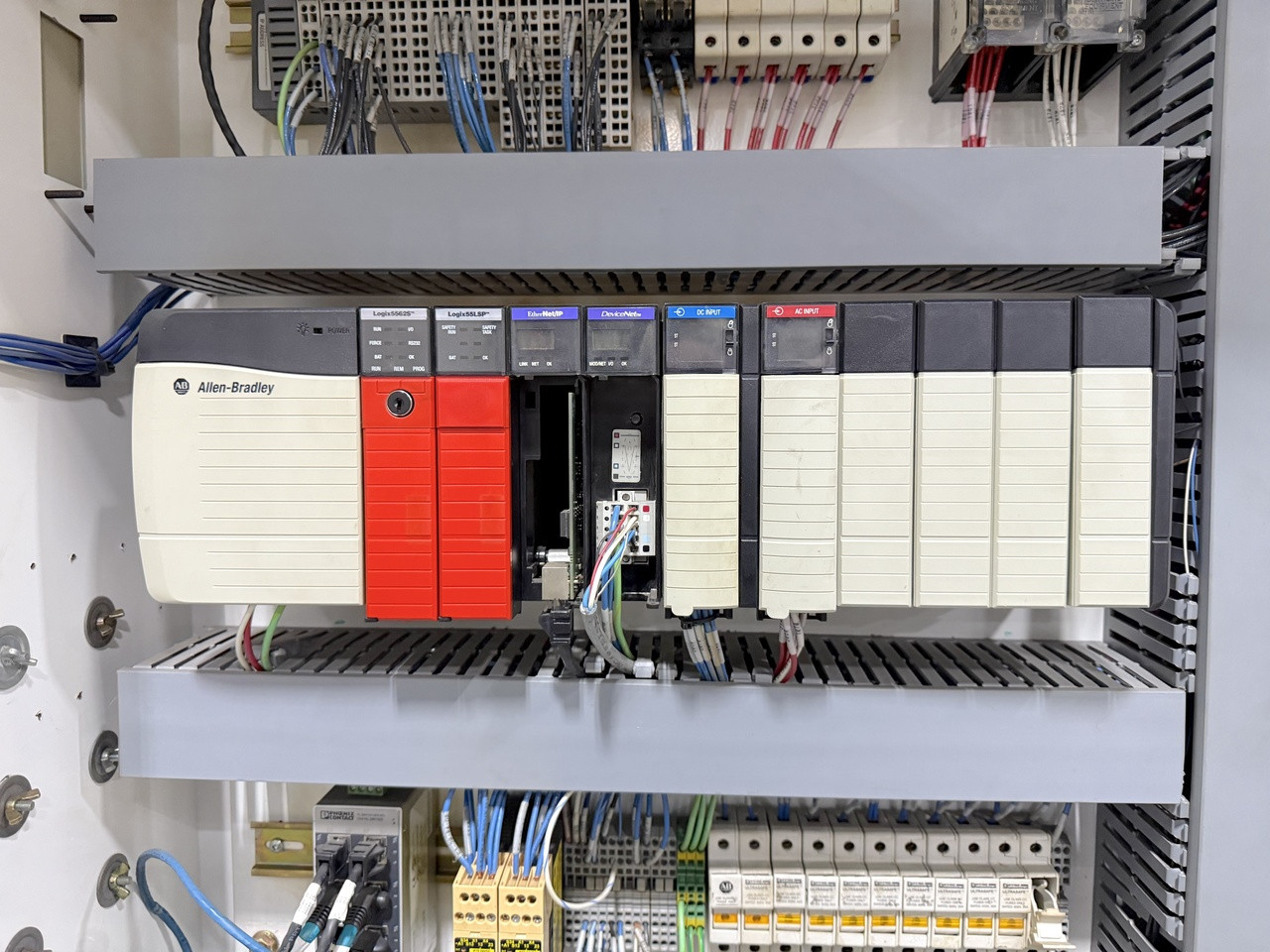

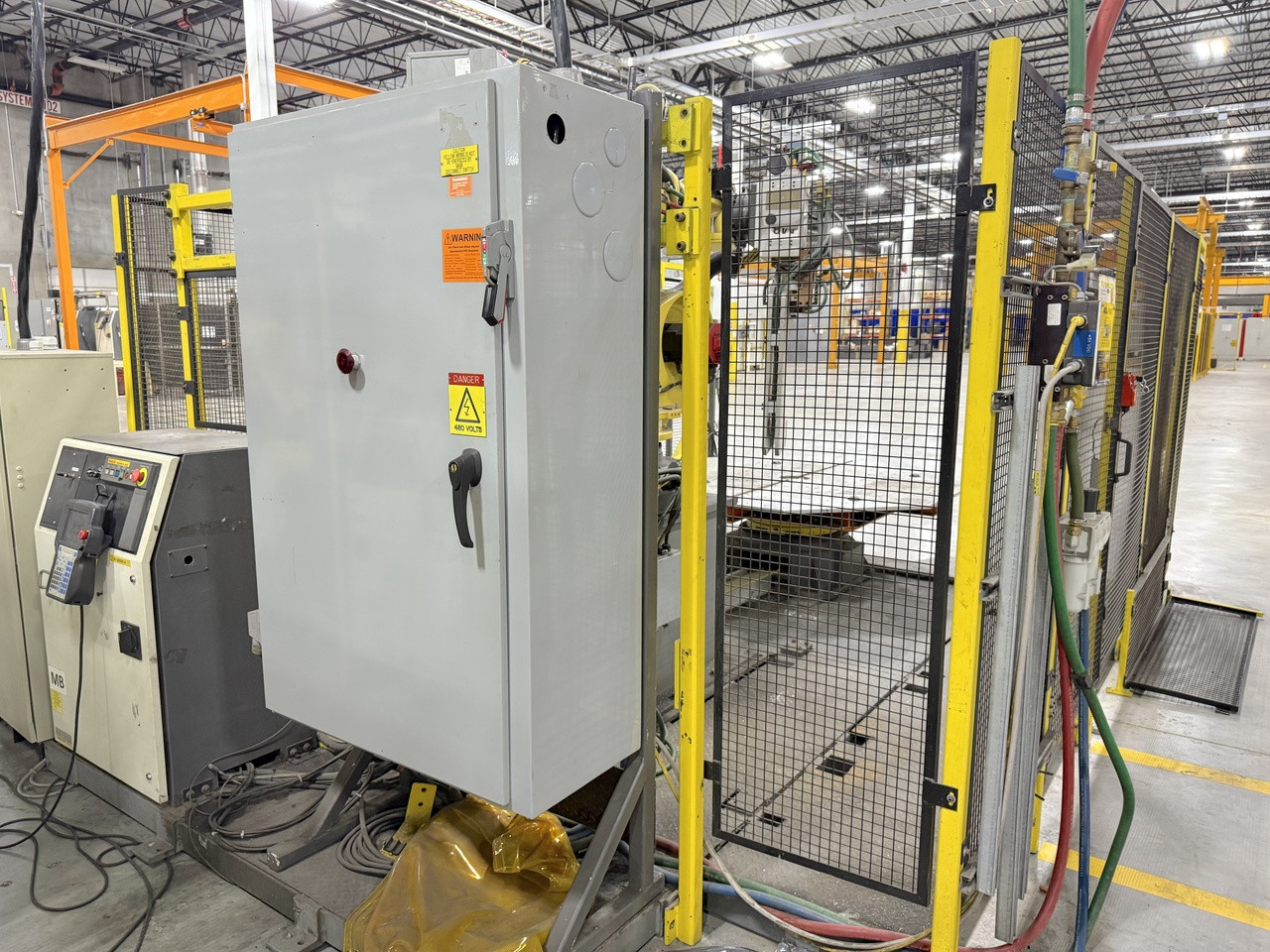

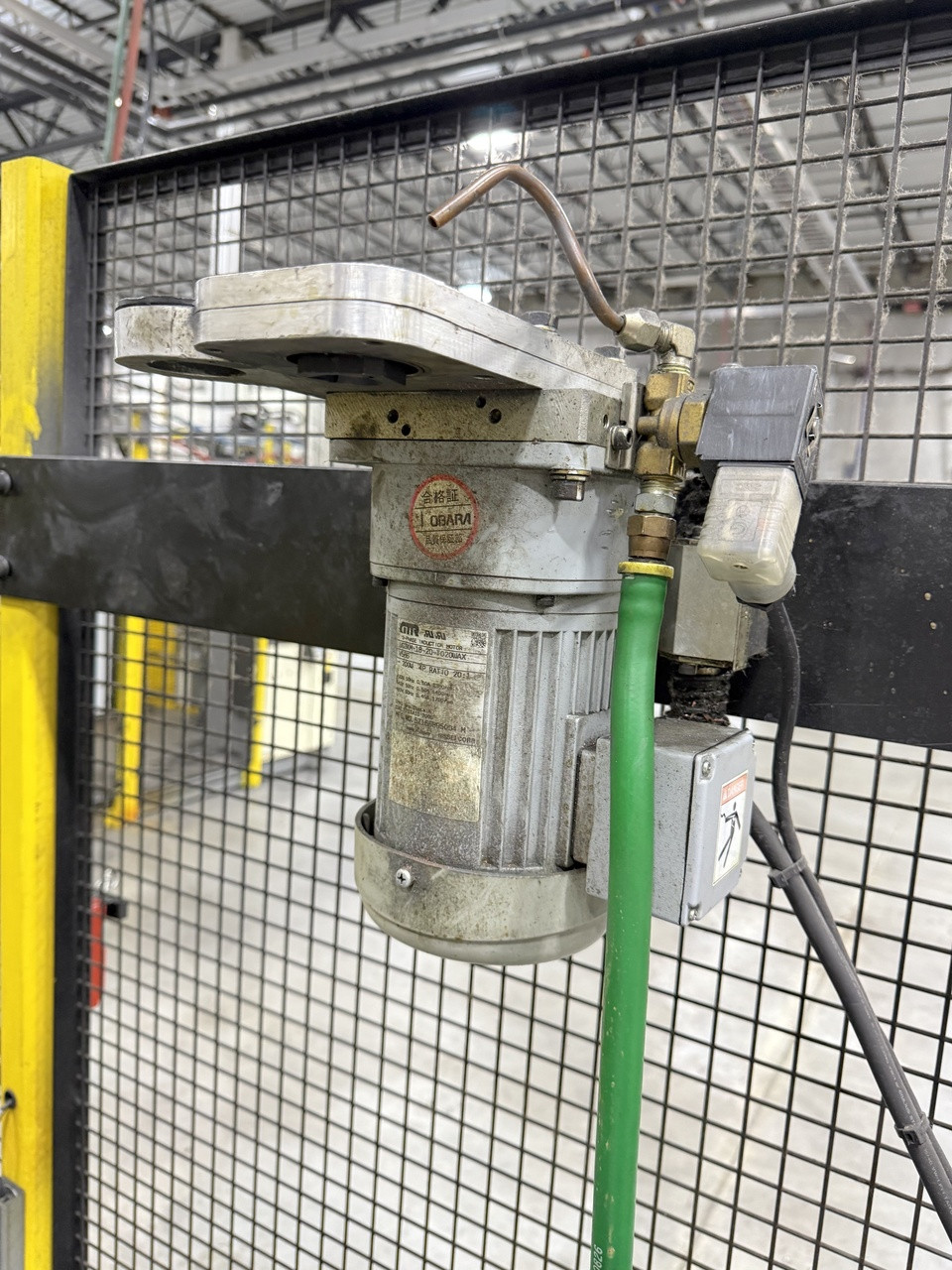

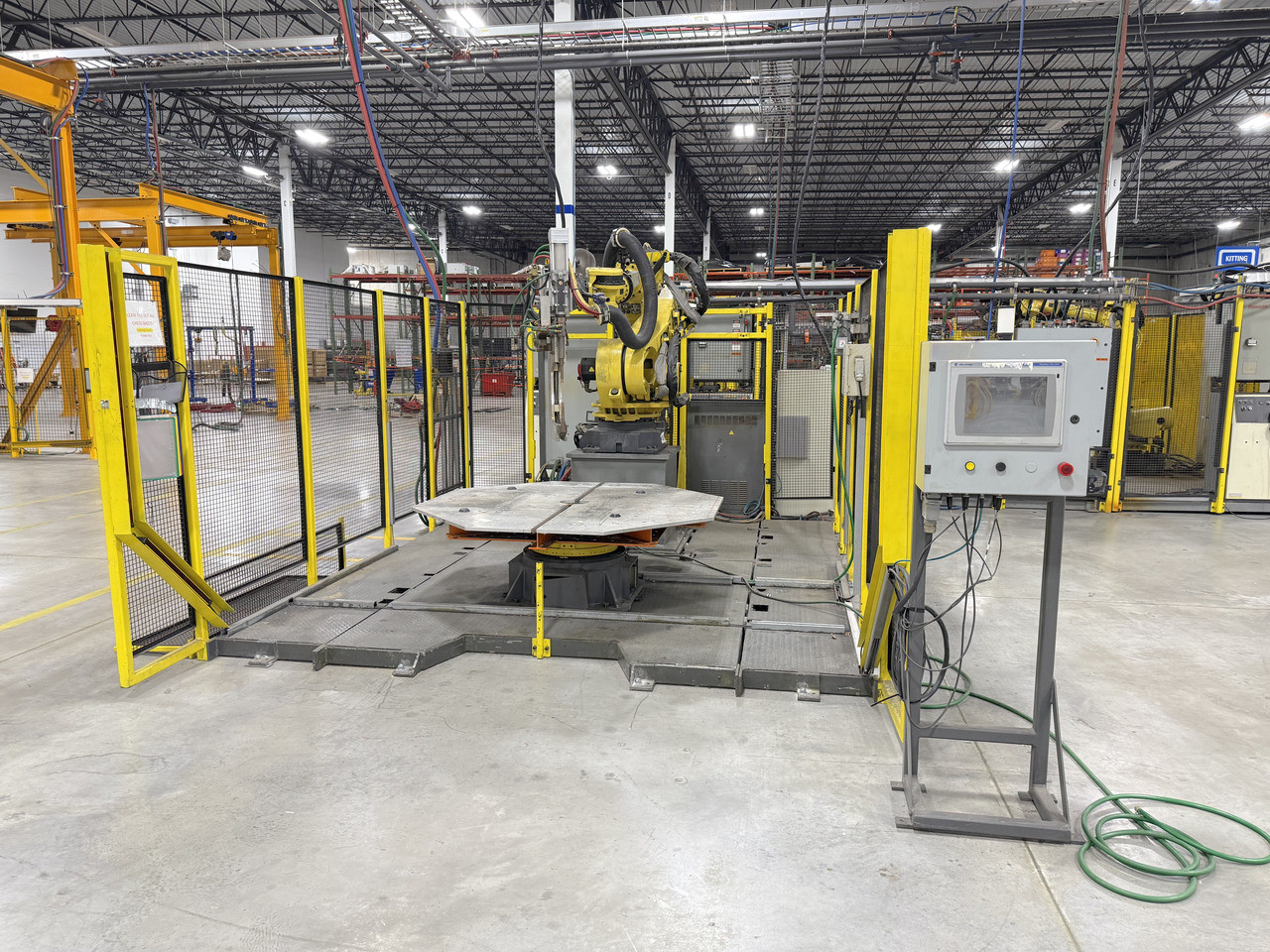

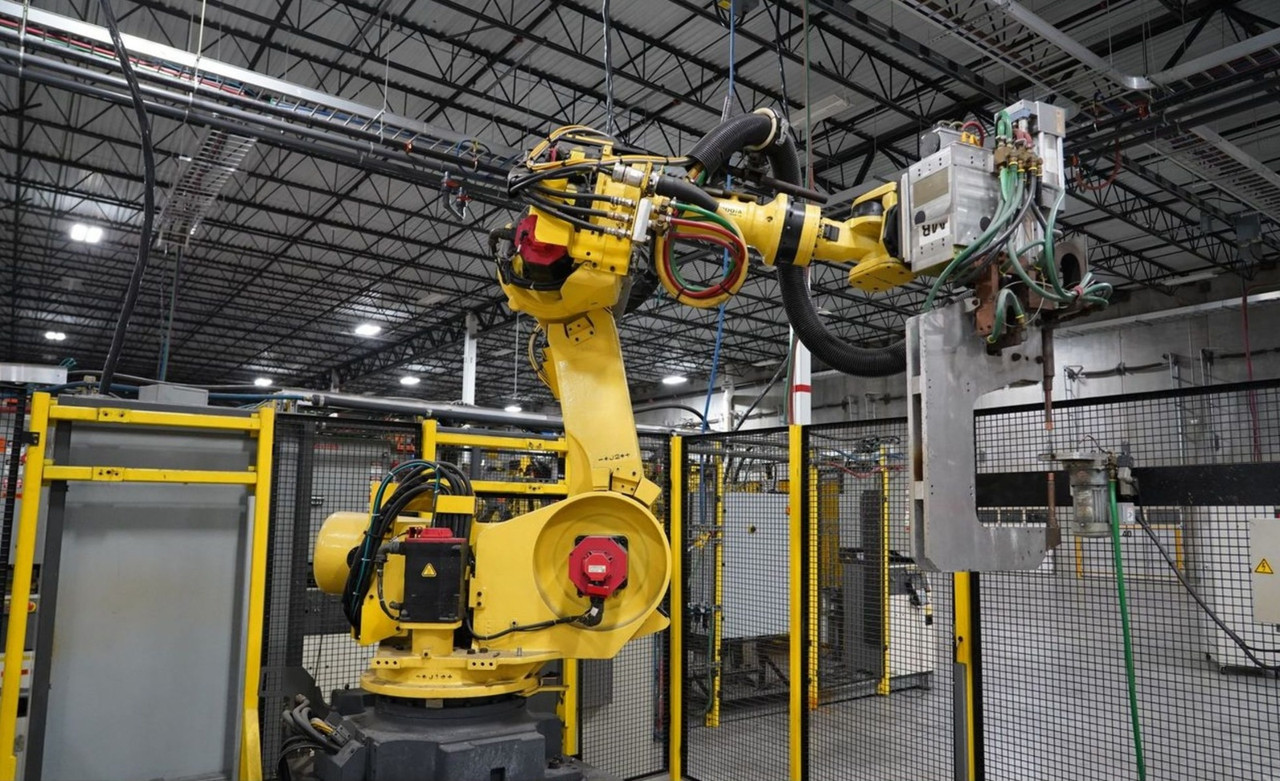

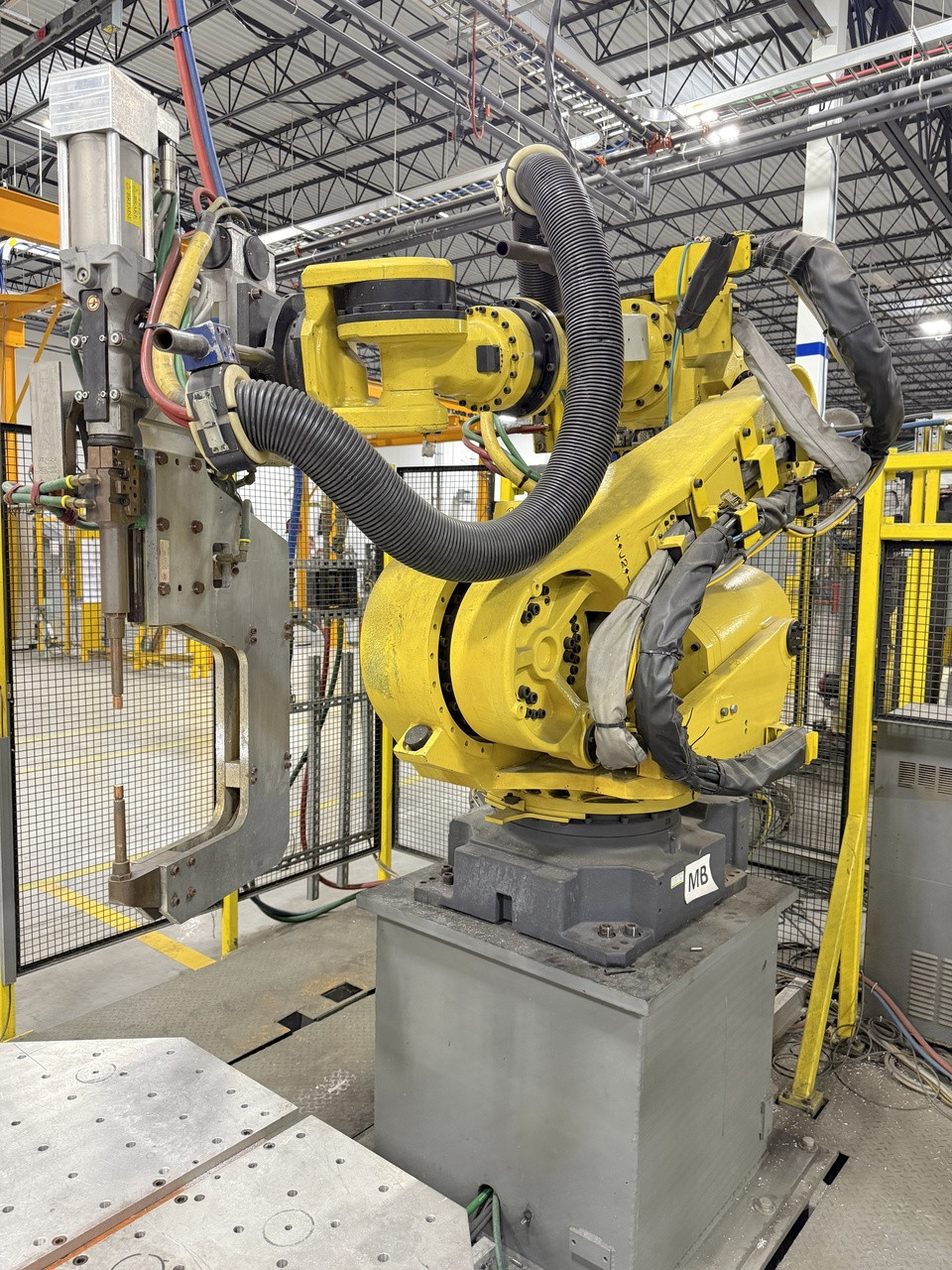

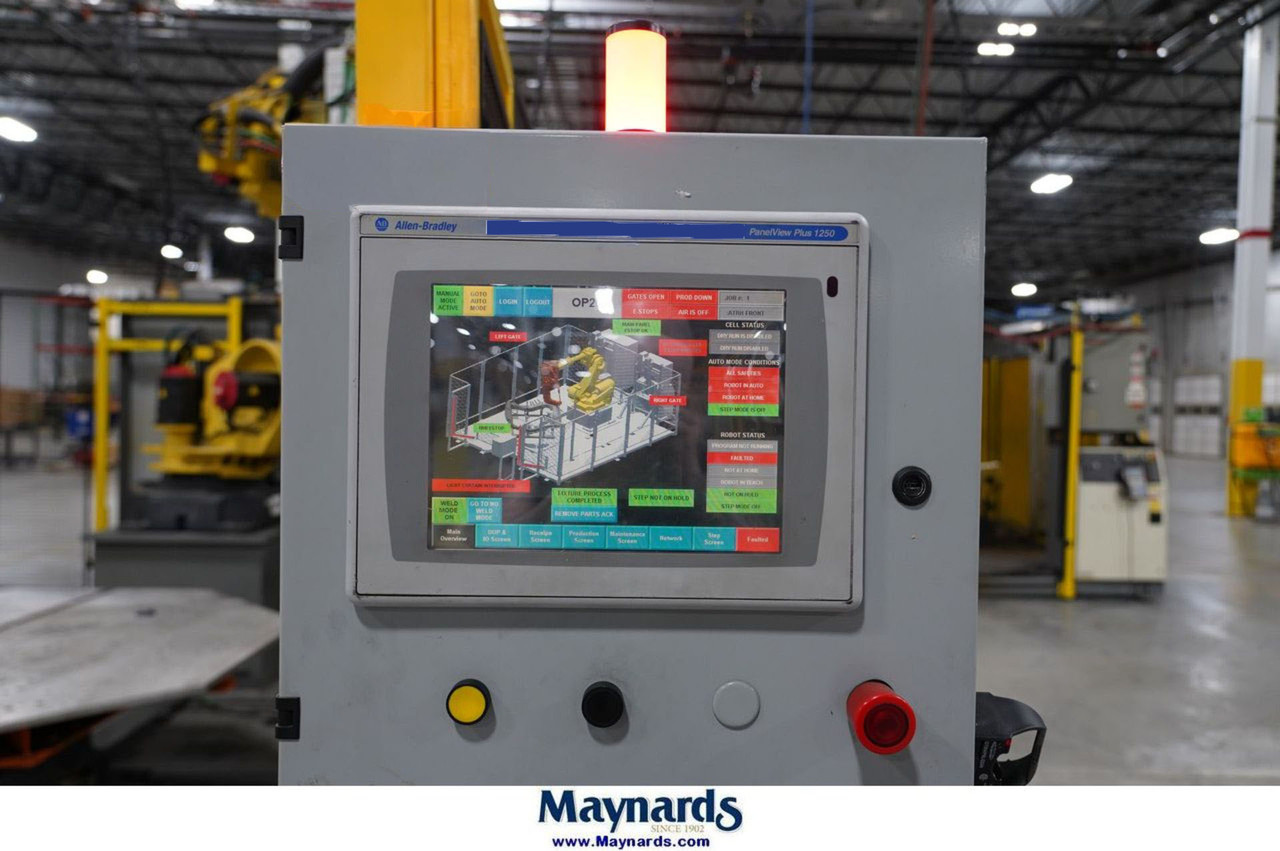

2006 Fanuc R-2000iA/ 200FO Spot Welding Robot 200Kg Payload, Equipped with the R-J3iB Control, a Fanuc 1200Kg Servo Driven Turntable, a 2018 ARO Welding Technologies MFDC IBOX SW1200 ETH IP Spot Welding System with Force Control and 1200 Amp Output Current, Tip Dresser, with an Allen Bradley Controllogix Control System with an HMI User Interface, Safety Light Curtains, and Safety Cage. All mounted on a solid steel skid for easy portability. The robot has been tested and is in excellent condition. It was previously used for low production prototype work. Everything is ready to plug and play on this system. We will load at no addition charge.- Type: Robotic Spot Welding Cell

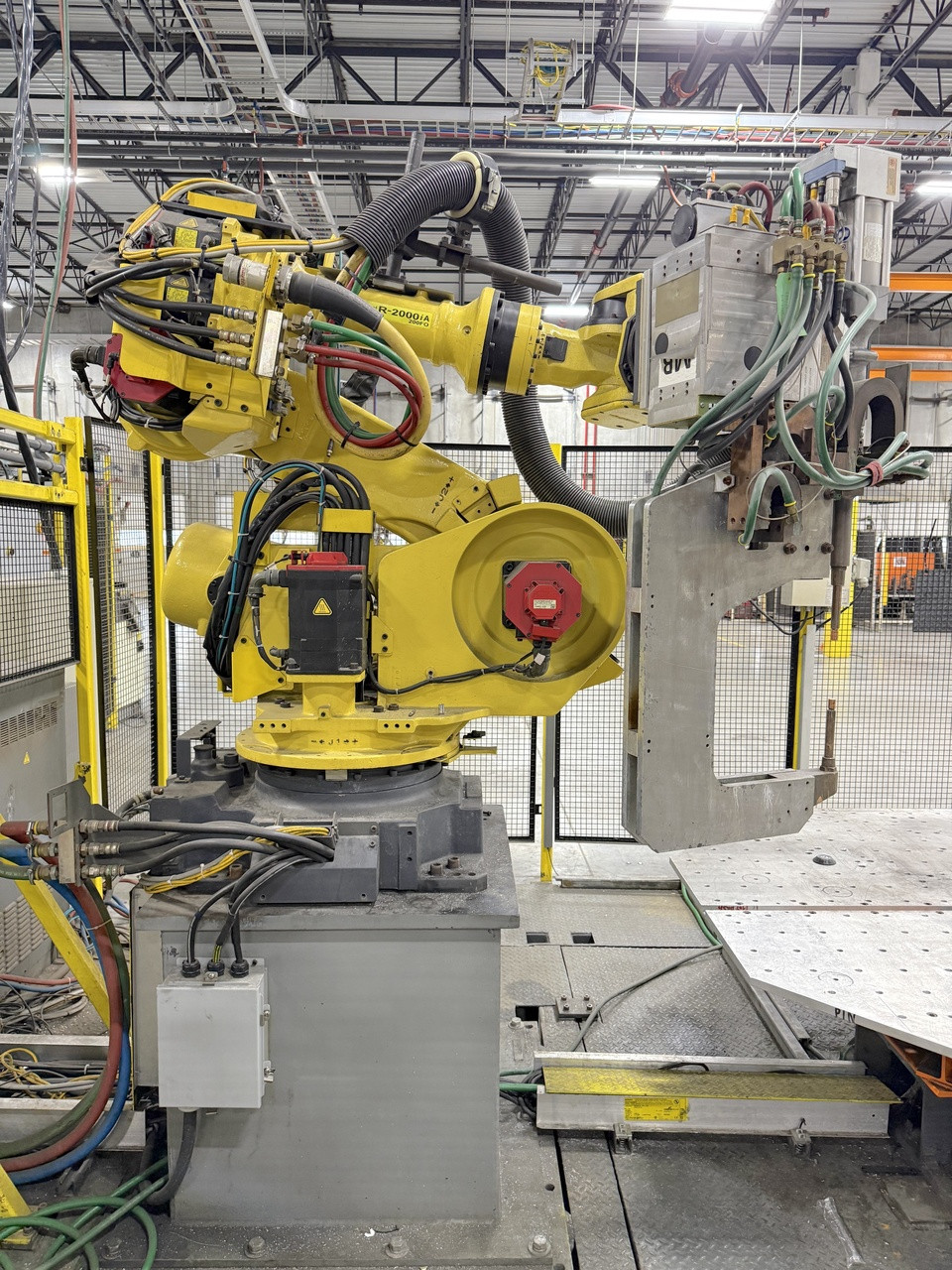

- Robot Model: Fanuc R-2000iA/200 FO
- Payload Capacity: 200Kg
- Reach: 2650mm

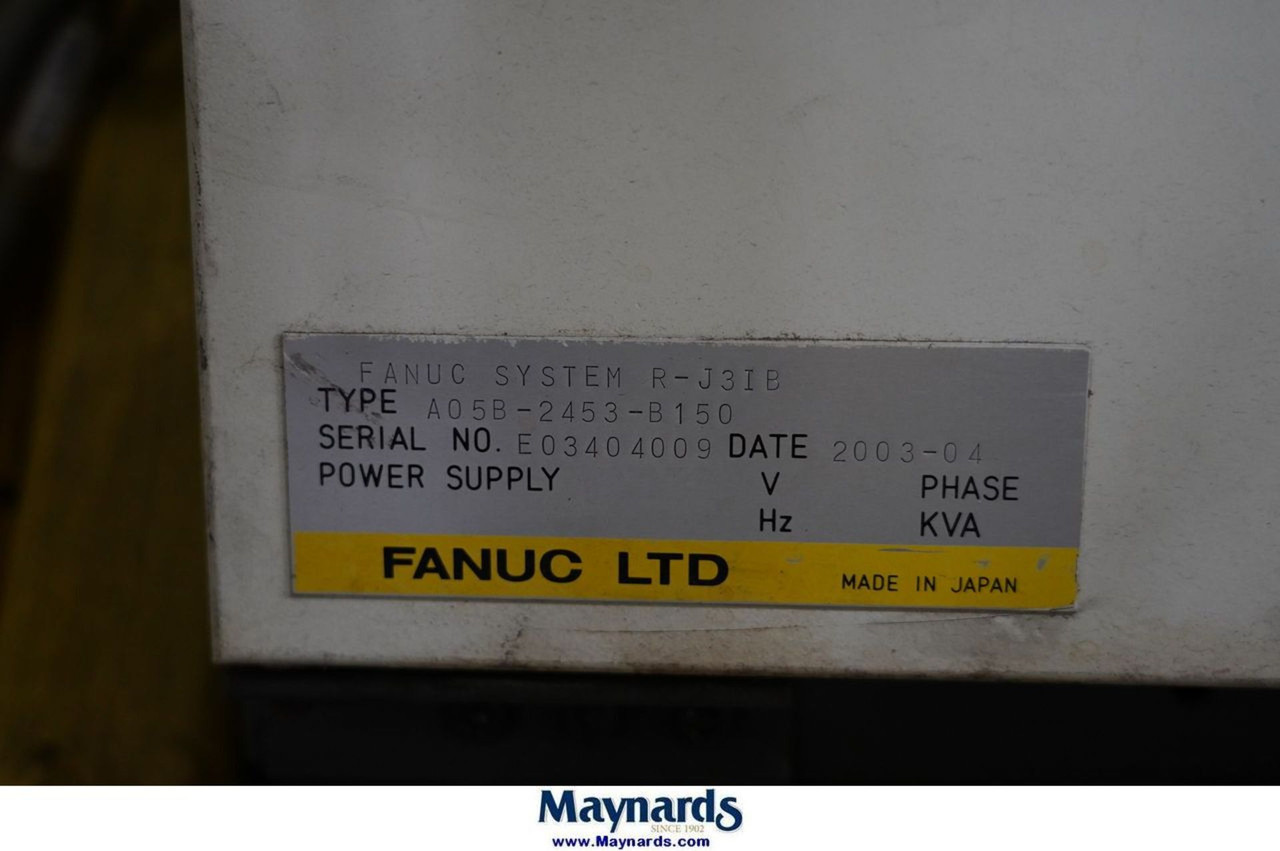

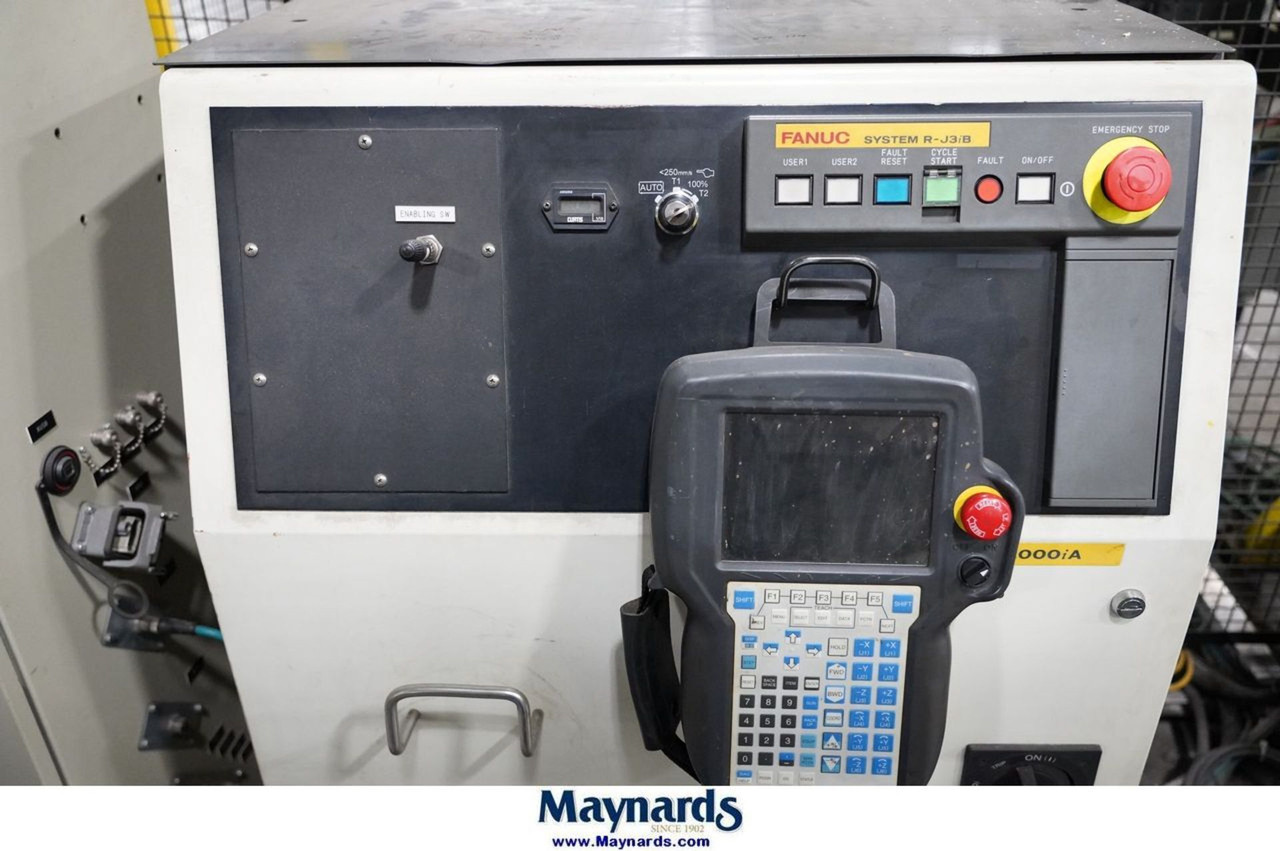

- Control Model: R-j3iB

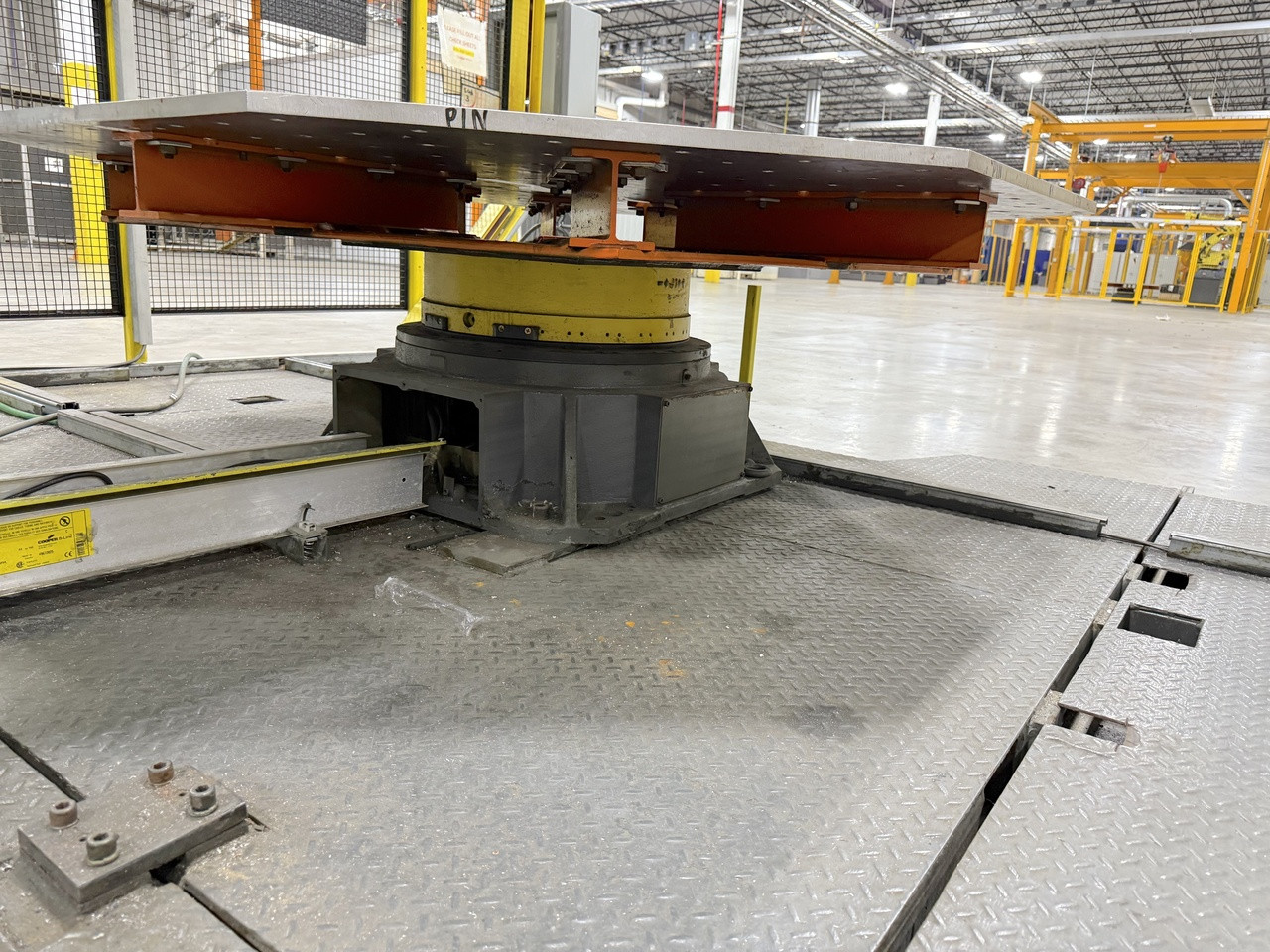

- Turntable Payload Capacity: 1200Kg
- Turntable Measurements: 6' x 6' Flat Surface

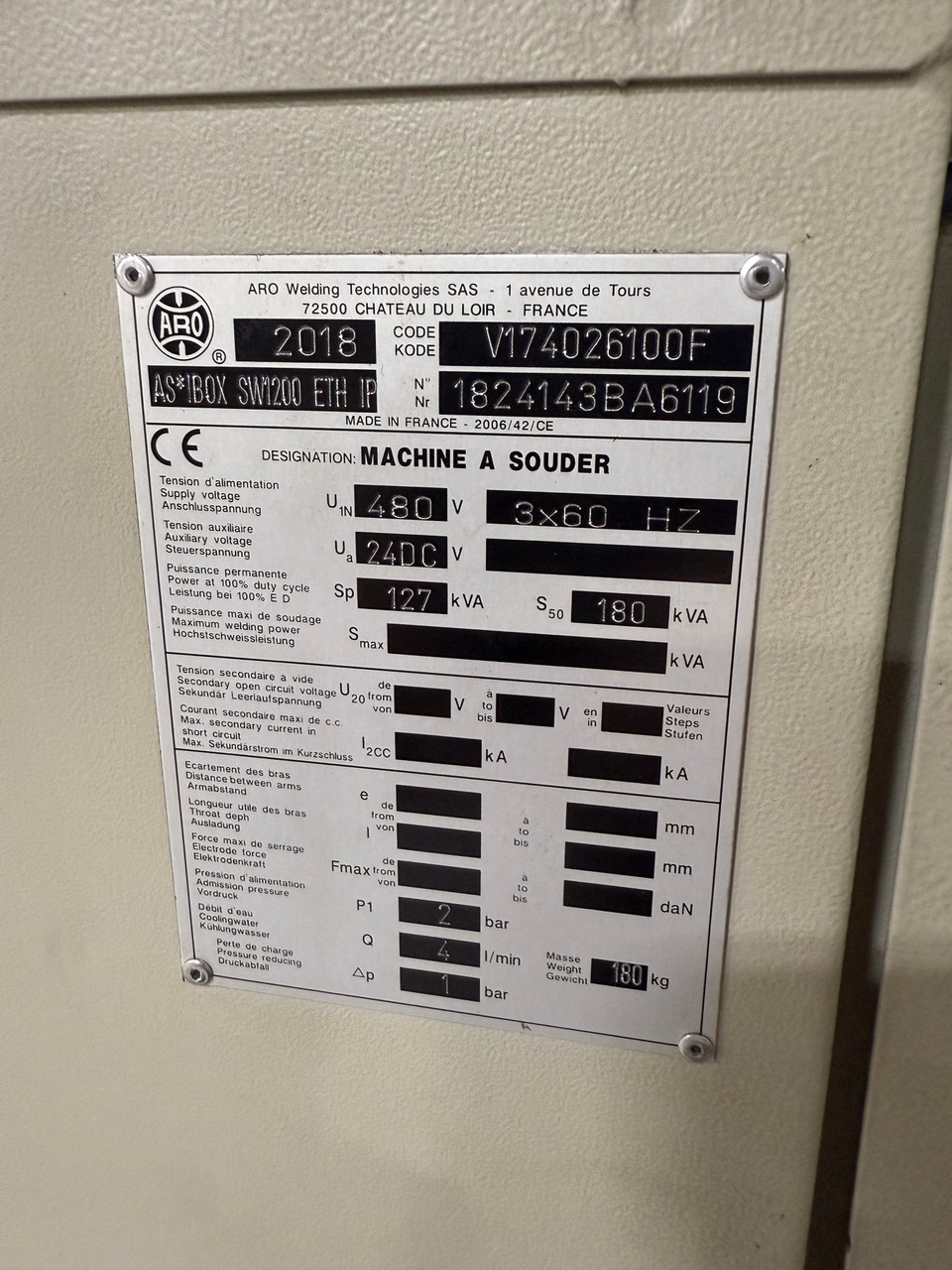

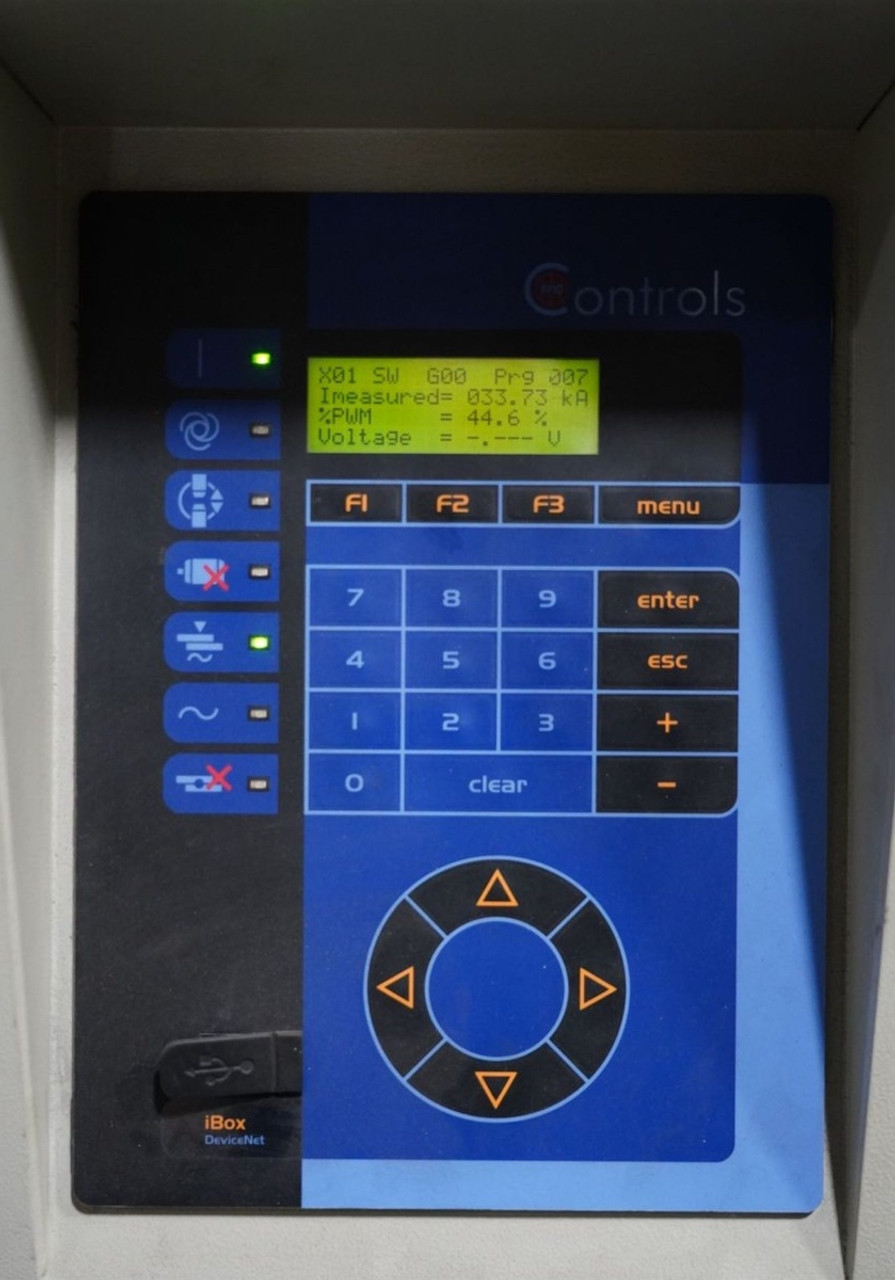

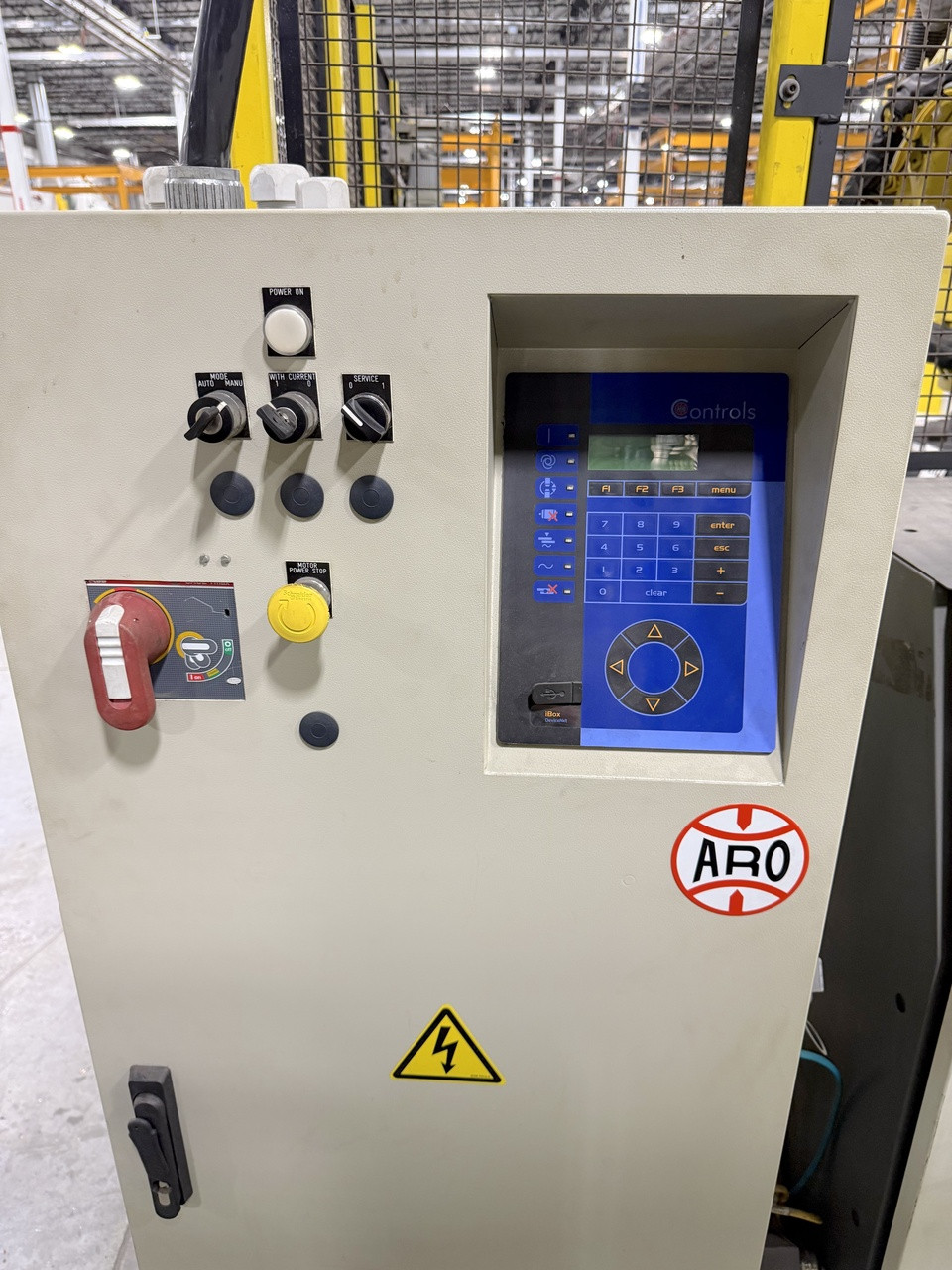

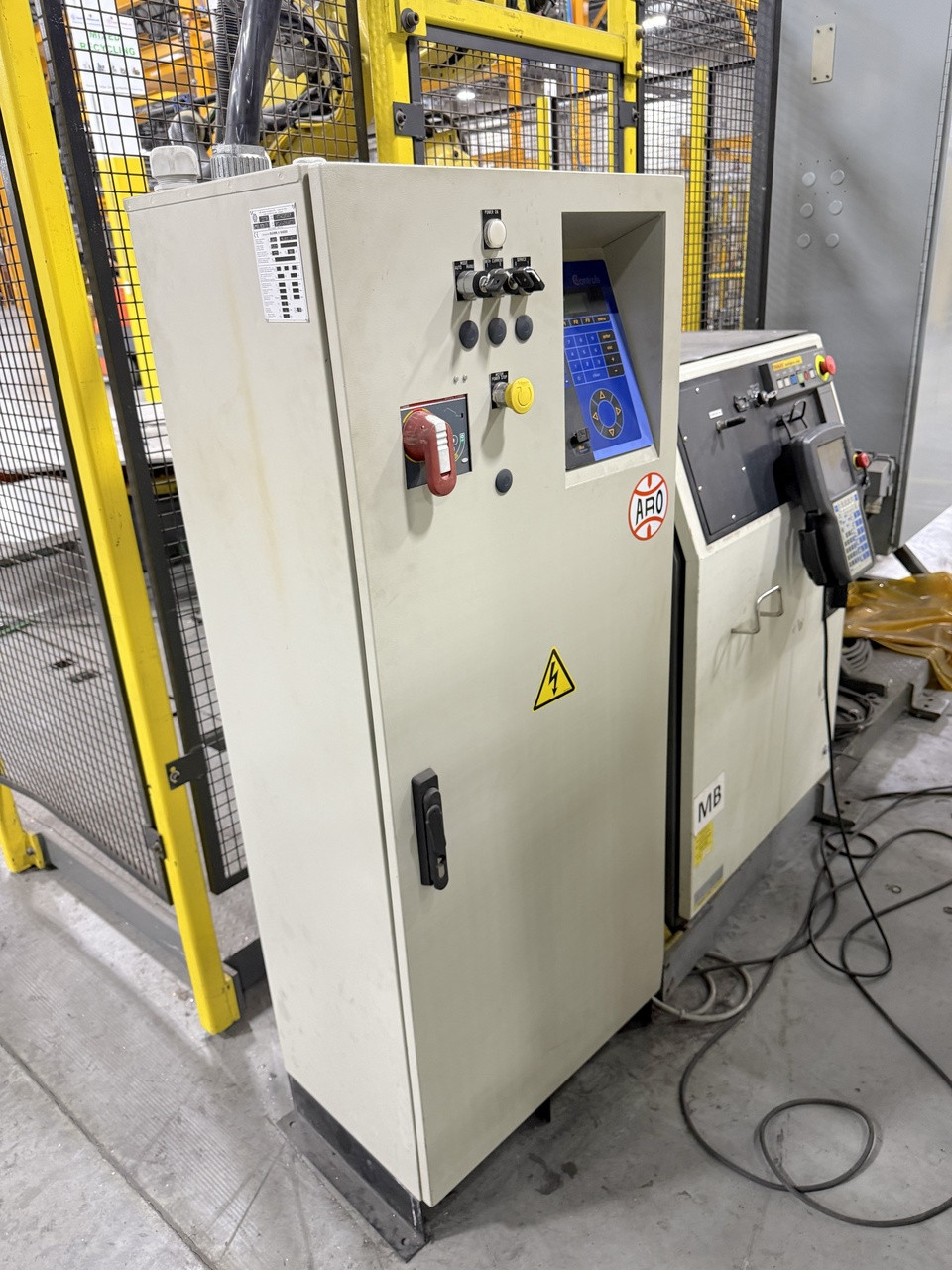

- Spot Weld Control Model: IBOX SW1200 ETH IP
- Output Current: 1200 Amps
- Technology: MFDC
- Application: Spot Welding/ Projection
- Force Control: Yes
- Spot Welding Equipment MFG Date: 2018

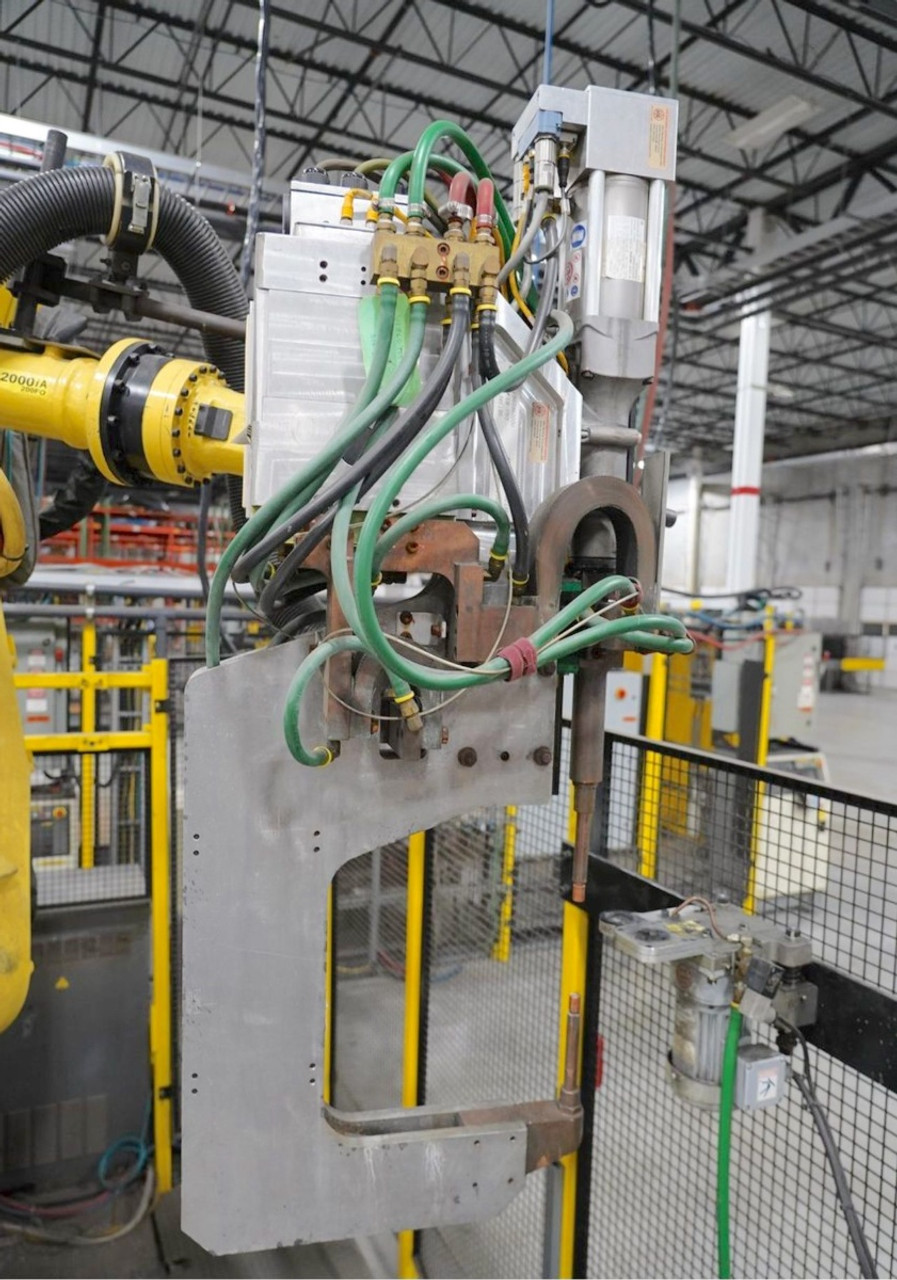

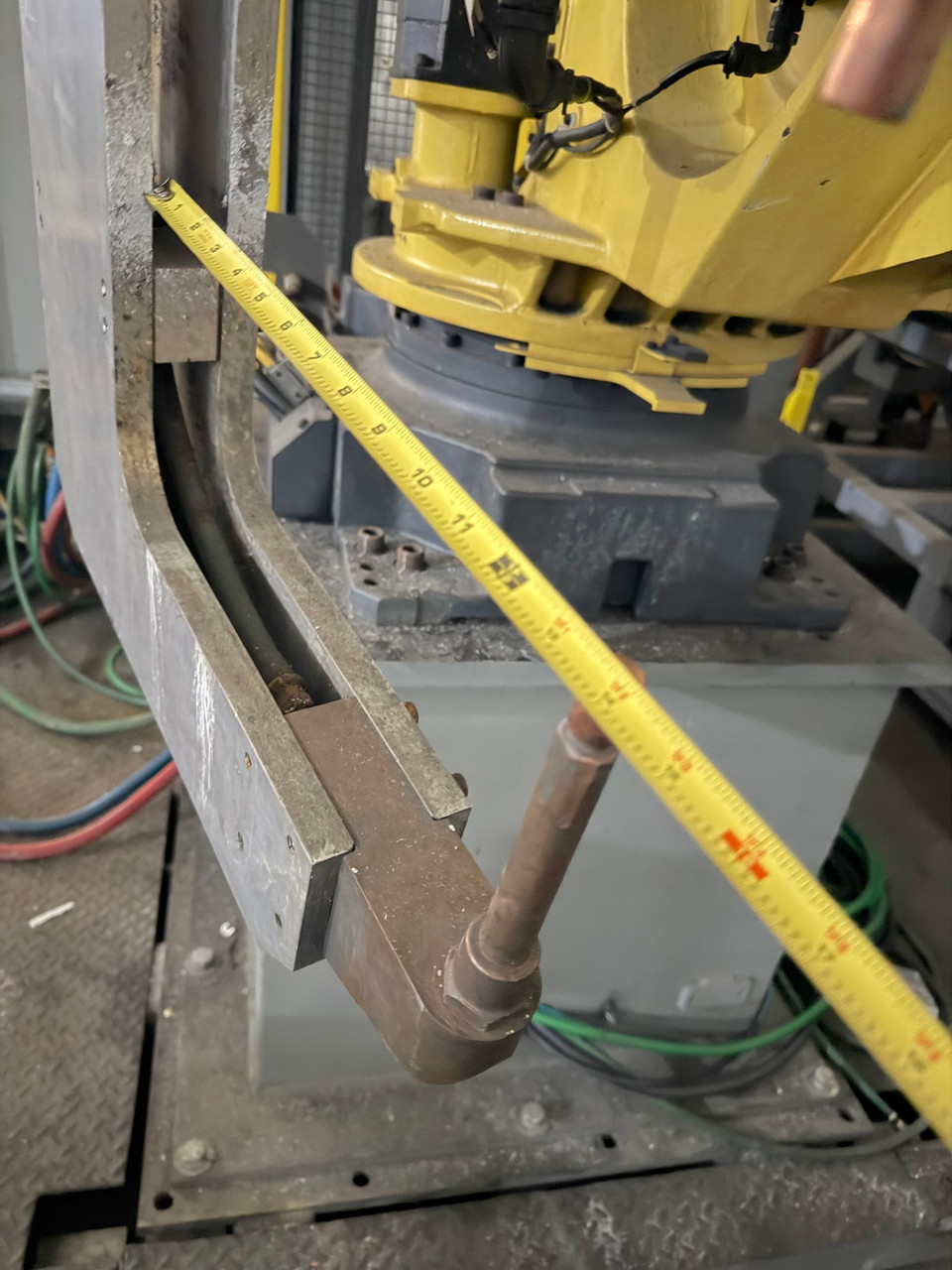

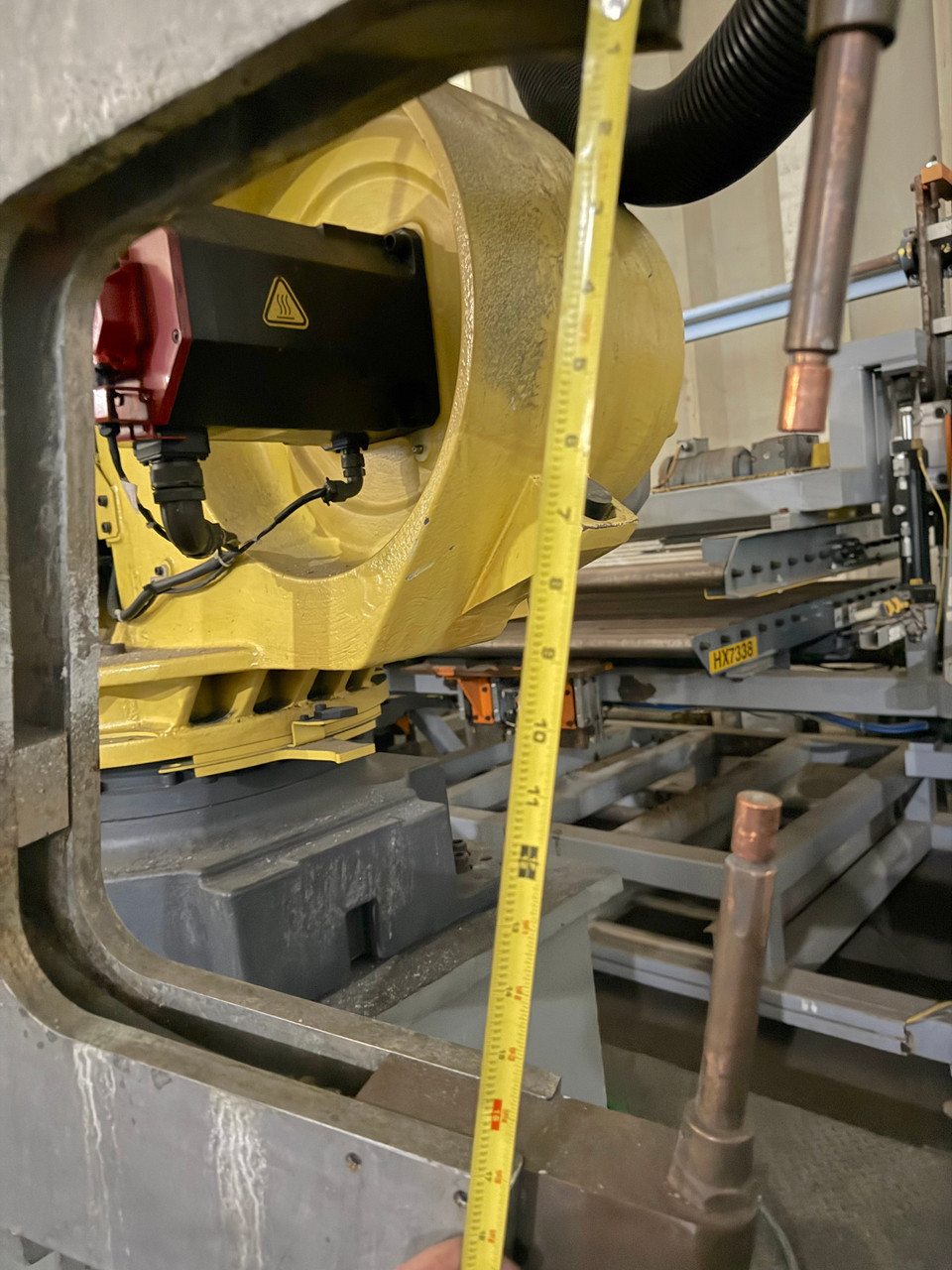

- Throat Depth of Welding Gun: 14"

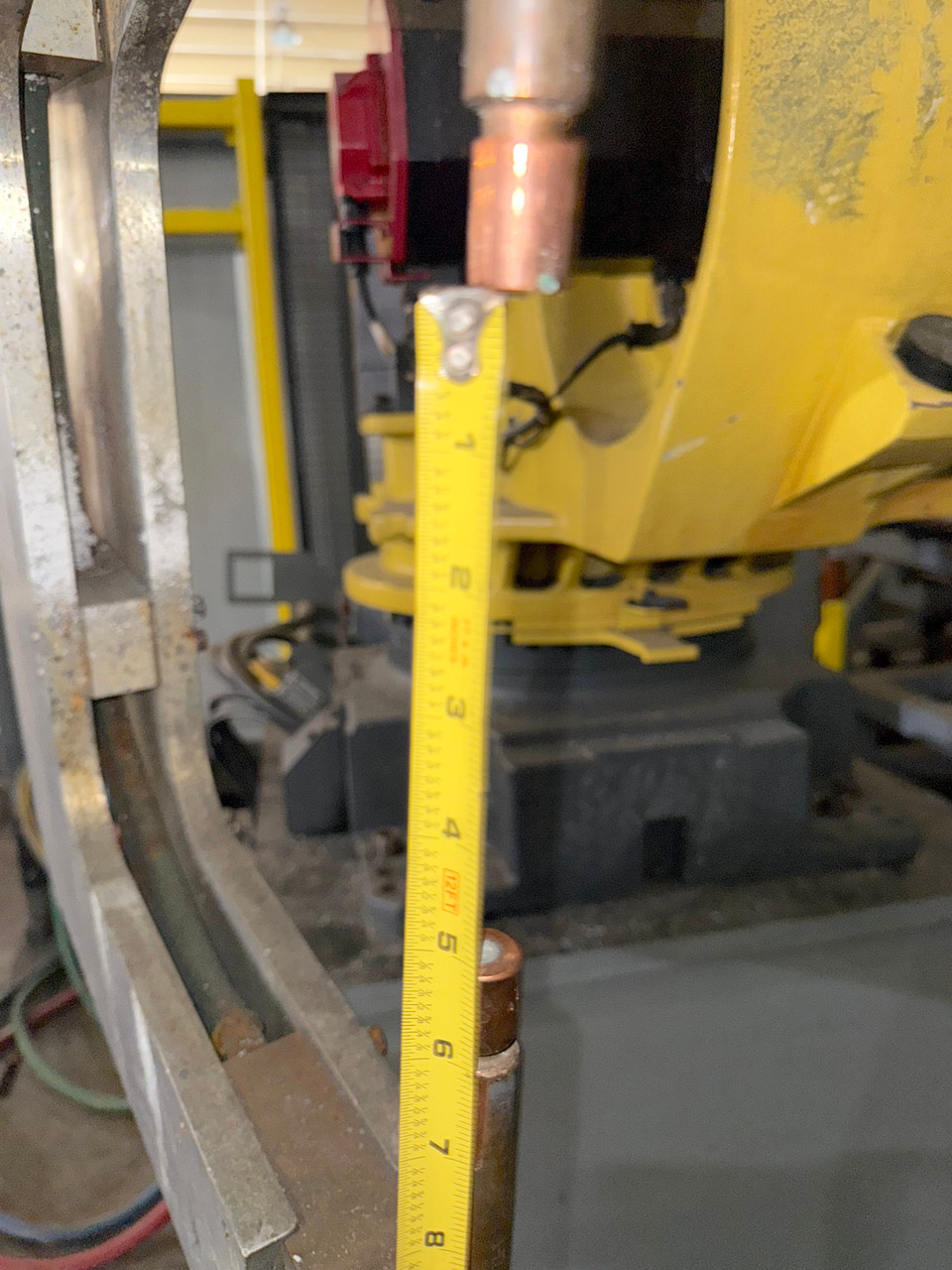

- Opening Distance Between Electrodes: 120mm (can open wider with with shorter tips)
- Spot Welding Gun Opening Height: 17"

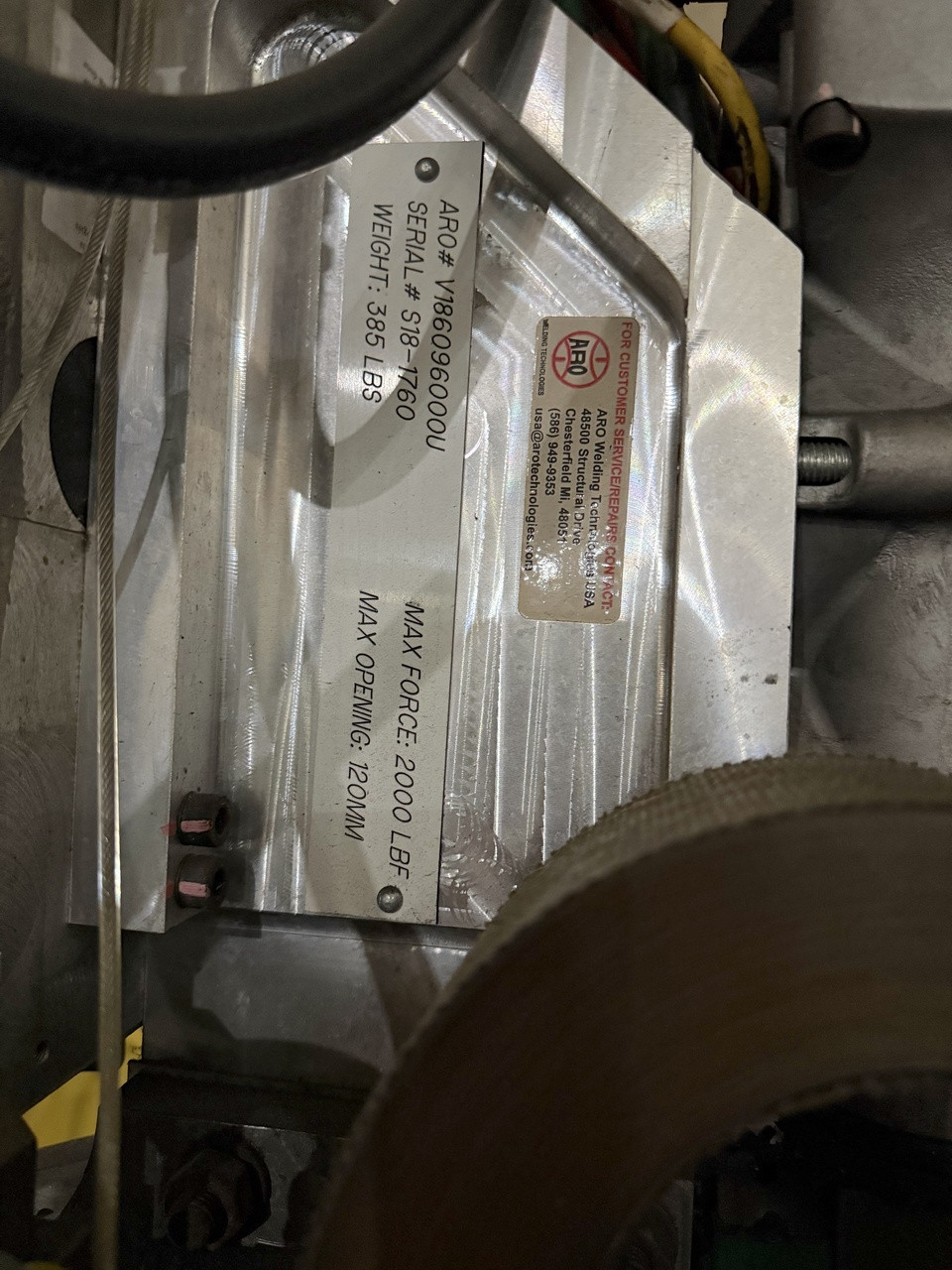

- Max Force: 2000 LBF
- Spot Welding Gun Weight: 385 Lbs.

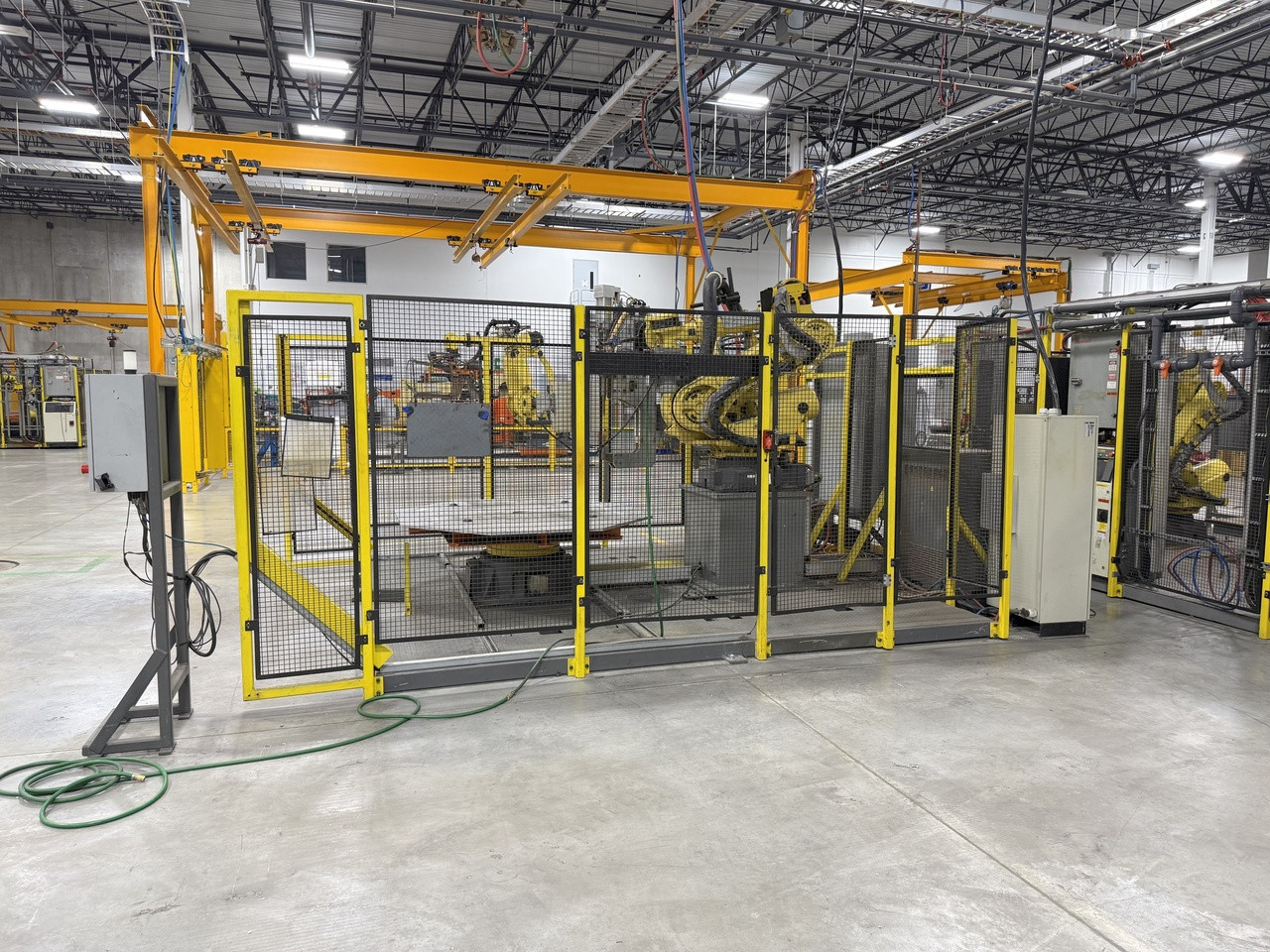

- Cell Foot Print: 11' Wide x 17' Long
Product Videos
Custom Field
GTIN Does Not Apply
Robotics Controls Type Arm
Country/Region of Manufacture Japan
Payload 200 Kg
Manufacturer Fanuc
Controller Platform R-J3iB
Robot Type Spot Welding Robot
Model R-2000iA
MPN R-2000iA/200FO
Voltage 460V
Type Robotic Arm Assembly
